Product Description
Loflin Fabrication | Compact Tractor Vertical Root Grapple | 60"-72" Width | 2x8" Cylinders | 25–50 HP | For Tractors
DESCRIPTION

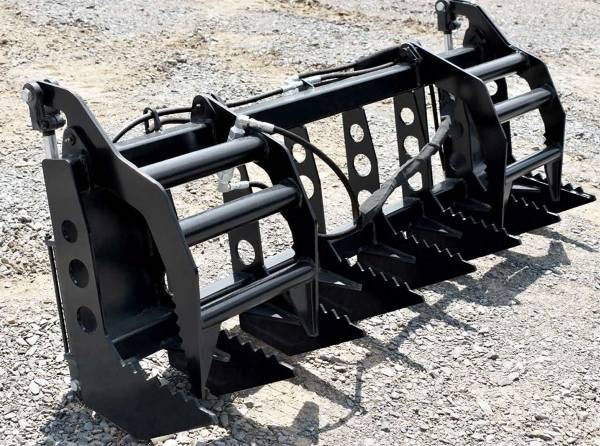

The Loflin Fabrication Compact Tractor Vertical Root Grapple, a versatile and robust attachment designed specifically for compact tractors operating between 25 to 50 horsepower. This American-made tool is engineered to enhance your productivity, allowing you to efficiently handle materials such as logs, brush, rocks, and demolition debris with ease.
The unique rake-like design of the Vertical Root Grapple allows dirt to sift through while securely grasping larger materials, making it ideal for effective debris separation. With independent grapple tines, this attachment provides superior control and adaptability, ensuring you can tackle uneven loads with confidence.
Constructed with 3/8" thick steel tines, the Compact Tractor Vertical Root Grapple is built for durability and longevity. It features 2” x 8” hydraulic cylinders for robust performance, and comes fully equipped with Parker brand hoses, fittings, and couplers, making it job-site ready right out of the box.
Key Features
- Durable Powder-Coated Finish Protects against rust and wear for long-term use in harsh environments.
- 2″ x 8″ Hydraulic AG Cylinders Deliver high clamping power to tackle heavy-duty grappling tasks.
- Independent Grapple Tines Adapt to uneven loads, securing odd-shaped materials with ease.
- 3⁄8” Thick Steel Tines Provide industrial-grade strength for gripping and holding dense material.
- Rake-Style Vertical Design Allows dirt and small debris to fall through, ideal for sorting and land clearing.
- Parker Brand Hoses and Fittings Comes jobsite-ready with premium hydraulic components for reliability.
- Fully Protected Hydraulic Lines & Greasable Hinges Minimize wear and simplify maintenance over time.
- Quick-Attach Compatible Seamlessly fits most compact tractors for fast hookup and removal.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | Compact Tractor Vertical Root Grapple |
| Type | Root Grapple (Vertical Tine) |
| Working Width Options | 60″, 66″, 72″ |
| HP Compatibility | Recommended for 40 HP and below machines |
| Hydraulic Cylinders | Two 2″ x 8″ hydraulic cylinders |
| Grapple Tine Thickness | 3/8” thick steel |
| Tine Spacing | 9″ - 12″ range |
| Opening Width | 33¼” |
| Hinge Points | Fully greasable |
| Hydraulic Components | Parker brand hoses, fittings, and couplers |
| Hose Protection | Fully protected hoses |
| Finish | Powder coated |
| Mount Compatibility | Universal Quick Attach |
| Approx. Weights (by width) | 60″: 348 lbs, 66″: 385 lbs, 72″: 414 lbs |
| Key Benefit | Efficient root and debris removal for compact tractors, with excellent dirt sifting and durability. |

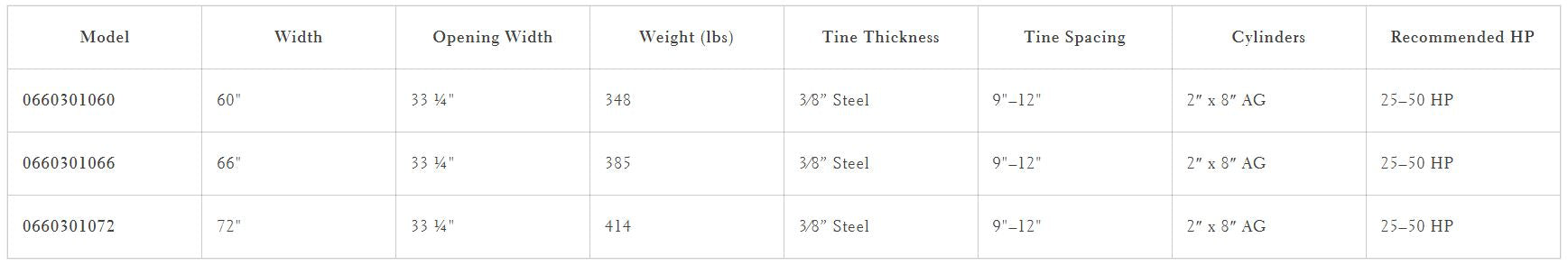

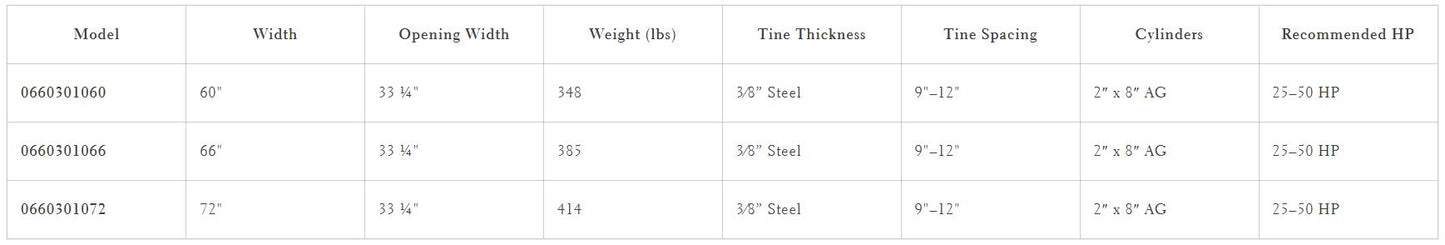

| Specs |
066030- 1060 |
066030- 1066 |
066030- 1072 |
|---|---|---|---|
| Width | 60" | 66" | 72" |
| Opening Width | 33 ¼" | 33 ¼" | 33 ¼" |
| Weight (lbs) | 348 | 385 | 414 |
| Tine Thickness | 3⁄8” Steel | 3⁄8” Steel | 3⁄8” Steel |
| Tine Spacing | 9"–12" | 9"–12" | 9"–12" |
| Cylinders | 2″ x 8″ AG | 2″ x 8″ AG | 2″ x 8″ AG |
| Horsepower | 25–50 HP | 25–50 HP | 25–50 HP |
