Product Description
Loflin Fabrication | Grapple Bucket | XHD | Width 66" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

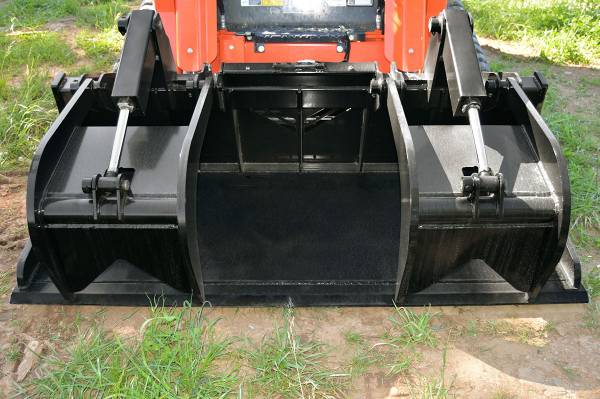

Introducing the Loflin Fabrication XHD Grapple Bucket, a powerful and versatile skid steer attachment designed to handle the toughest jobs with ease. This innovative tool is engineered for maximum efficiency, making it an essential asset for contractors, landscapers, and construction professionals alike.
The XHD Grapple Bucket features 1” thick independent grapple tines, allowing you to grapple uneven loads securely and effectively. With an impressive 9,500 lbs of grappling force, this bucket is built to tackle heavy materials, making it ideal for a variety of applications, from debris removal to material handling.
Constructed with a 1/4” thick reinforced steel bottom and 1” thick sides, the XHD Grapple Bucket is designed for durability and strength. The 2” x 10” hydraulic cylinders provide robust hydraulic power, ensuring reliable performance on the job site. The bucket also comes equipped with high-quality Parker brand hoses, fittings, and couplers, making it job site ready right out of the box.
With an opening width of 31¾ inches and a 1” x 8” cutting edge, this grapple bucket is perfect for loading, moving, and backfilling a variety of materials. The reinforced quick attach system ensures a secure connection to your skid steer, while the oversized, greasable 1¼” pins enhance durability and ease of maintenance.
Key Features
- 1″ Thick Independent Grapple Tines Provides secure grip on uneven loads, ensuring stability and control.
- Heavy-Duty Hydraulic Cylinders Equipped with 2″ x 10″ covered cylinders, delivering 9,500 lbs of grappling force for maximum efficiency.
- Reinforced Steel Frame Built with ¼" thick reinforced steel bottom and 1″ thick sides, ensuring long-lasting durability in demanding environments.
- Precision Cutting Edge Comes with a 1″ x 8″ edge, enhancing material separation and leveling capabilities.
- Optional Bolt-On Reversible Double Edge Allows customized cutting precision, extending bucket lifespan.
- Oversized Greasable Pins 1¼” pins improve smooth operation and longevity.
- Expanded Grapple Opening 31⅞" opening width, accommodating large debris loads for quicker clearing.
- Hydraulic Flow 15 To 25 GPM For Skid Steer.
- Fully Protected Hydraulic Components Enclosed hoses and cylinders, preventing exposure and minimizing maintenance needs.
- Reinforced Quick Attach System Ensures secure and stable connection to skid steer loaders, improving handling and maneuverability.
- Premium Hydraulic Components Comes equipped with Parker brand hoses, fittings, and couplers, ensuring jobsite-ready reliability.
- Treaded Step for Operator Safety Provides stable footing and easy entry/exit for skid steer operation.
- Versatile Size Options Available in 66", 72″, 78″, and 84″ widths, with custom sizes available upon request.
- High Horsepower Compatibility Designed for skid steers with 75–120 HP, ensuring powerful and controlled operation in extreme conditions.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | XHD (Xtra Heavy Duty) |
| Type | Grapple Bucket |
| Working Width Options | 66", 72″, 78″, 84″ (and custom sizes available) |
| Maximum Horsepower | 75-120 HP |
| Grappling Force | 9,500 lbs |
| Grapple Tine Thickness | 1″ thick independent tines |
| Cylinder Size | 2″ x 10″ |
| Cutting Edge | 1″ X 8″ |
| Bucket Bottom Thickness | ¼” reinforced steel |
| Bucket Side Thickness | 1″ thick steel |
| Optional Edge | Bolt-on reversible double edge available |
| Opening Width | 31 7/16“ |
| Hose & Fittings | Parker brand (jobsite ready) |
| Quick Attach | Reinforced |
| Hose Protection | Fully protected |
| Cylinder Protection | Covered |
| Pin Size | Oversized, greasable 1 ¼“ |
| Treaded Step | Integrated for easy cab access |
| Axle Type | N/A (Skid Steer Attachment) |
| Compatibility | Universal Skid Steer Compatibility |
| Hydraulic Flow | 15 To 25 GPM |
| Key Benefit | Unyielding power and extreme durability for handling the heaviest and most demanding materials with high-horsepower skid steers. |
| Specs | XHD Grapple Bucket 66 | XHD Grapple Bucket 72 |
|---|---|---|
| Width | 66″ | 72″ |
| Grapple Opening | 31 7⁄16″ | 31 7⁄16″ |
| Cylinders | 2″ x 10″ (Dual) | 2″ x 10″ (Dual) |
| Tines | 1″ Thick (Independent) | 1″ Thick (Independent) |
| Weight (lbs) | 1,096 | 1,129 |
| Machine Compatibility | Hydraulic Flow 15 To 25 GPM Skid Steers/Loaders | Hydraulic Flow 15 To 25 GPM Skid Steers/Loaders |
| Specs | XHD Grapple Bucket 78 | XHD Grapple Bucket 84 |
|---|---|---|
| Width | 78″ | 84″ |
| Grapple Opening | 31 7⁄16″ | 31 7⁄16″ |
| Cylinders | 2″ x 10″ (Dual) | 2″ x 10″ (Dual) |
| Tines | 1″ Thick (Independent) | 1″ Thick (Independent) |
| Weight (lbs) | 1,158 | 1,190 |
| MachineCompatibility | Hydraulic Flow 15 To 25 GPM Skid Steers/Loaders | Hydraulic Flow 15 To 25 GPM Skid Steers/Loaders |
