Loflin Fabrication | Grapple | XHD Rock Bucket | 66", 72", 78", 84" Widths | Hydraulic Flow 10–25 GPM | For Skid Steer

Product Description

Loflin Fabrication | Grapple | XHD Rock Bucket | 66", 72", 78", 84" Widths | Hydraulic Flow 10–25 GPM | For Skid Steer

DESCRIPTION

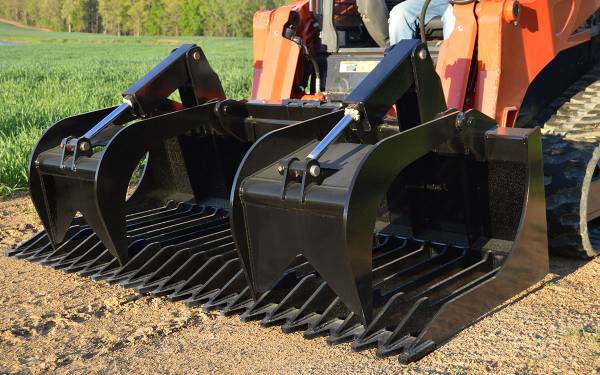

Introducing the Loflin Fabrication XHD Rock Bucket Grapple, a powerful and versatile skid steer attachment designed to tackle the toughest jobs in the tree industry and beyond. This innovative tool is engineered to perform multiple tasks efficiently, making it an essential asset for contractors, landscapers, and construction professionals.

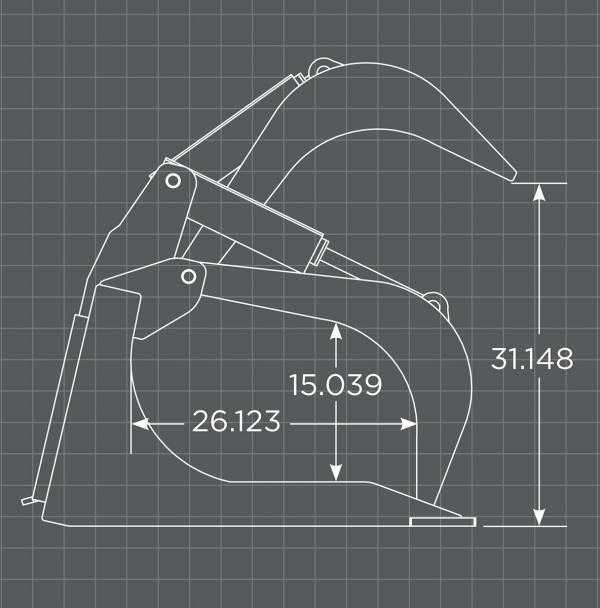

Constructed with 1/2” thick steel tines, the XHD Rock Bucket Grapple is built for durability and strength, ensuring it can withstand the rigors of heavy use. With a tine spacing of 3 inches and an opening width of 31 inches, this grapple is designed to allow dirt to fall through while securely holding onto rocks, logs, and other debris.

Equipped with 2” x 10” hydraulic cylinders, this attachment provides robust hydraulic power, making it job site ready right out of the box. The oversized, greaseable 1¼” pins enhance durability and ease of maintenance, while the treaded step ensures safe access to the grapple.

The XHD Rock Bucket Grapple is designed to perform three essential jobs in one: it rakes away debris, keeps it in a manageable pile for easy movement, and features a round bottom bar for effective backfilling. This multi-functional design not only saves time and energy but also helps lower labor costs and shorten project schedules.

Key Features

• Heavy-Duty Rock Separation 3″ tine spacing allows dirt and small debris to fall through, ensuring clean, efficient sorting.
• Independent Hydraulic Cylinders Equipped with 2″ x 10″ cylinders, delivering powerful grip strength and controlled material handling.
• Robust Steel Construction ½” thick steel tines reinforced for maximum durability in tough environments.
• Oversized Greasable Pins 1¼” pins allow smooth articulation and extended longevity.
• Expanded Grapple Opening 31″ opening width, accommodating large debris loads for faster clearing.
• Treaded Step for Operator Safety Enables stable footing and easy access to the skid steer.
• Non-Invasive Ground Contact Tines curve upward, preventing damage to underground utilities while gliding smoothly over terrain.
• Fully Protected Hydraulic Components Enclosed hoses and cylinders minimize maintenance needs and enhance long-term reliability.
• Reinforced Quick Attach System Ensures secure skid steer connection, maximizing efficiency and maneuverability.
• Premium Hydraulic Components Comes equipped with Parker brand hoses, fittings, and couplers, ensuring job-site-ready performance.
• Horsepower Compatibility Designed for skid steers 50–75 HP, ensuring powerful and controlled operation in demanding environments.
• Multiple Width Options Available in 66″, 72″, 78″, and 84″ sizes, with custom sizing available upon request.
