Product Description
Loflin Fabrication | Root Grapple | Medium Duty | Widths 60" To 72" | Hydraulic Flow 10 To 15 GPM | For Skid Steer
DESCRIPTION
Introducing the Loflin Fabrication Medium Duty Root Grapple, a robust and versatile skid steer attachment designed for professionals who demand quality and performance. Crafted with precision and care, this American-made grapple is perfect for handling a variety of materials, making it an essential tool for landscaping, construction, and tree care applications.
The Medium Duty Root Grapple features independent tines that allow for effective grappling of uneven loads, ensuring that you can tackle any job with confidence. With a lightweight design suitable for machines with up to 50 horsepower, this grapple is both efficient and easy to maneuver. The 3/8” thick steel tines provide durability and strength, while the reinforced quick attach system ensures a secure connection to your skid steer.
Equipped with high-quality Parker brand hoses, fittings, and couplers, the Medium Duty Root Grapple is job site ready and built to withstand the rigors of daily use. The fully protected hoses and greasable hinge points enhance longevity and reduce maintenance, allowing you to focus on getting the job done.
Key Features
- Independent Grapple Tines Provides secure grip on uneven loads, preventing slipping and ensuring balanced handling.
- Heavy-Duty Hydraulic Cylinders Equipped with 2″ x 10″ covered cylinders for maximum stability and power.
- Robust 3/8″ Steel Tines Ensures durability and resilience, built to withstand heavy workloads without bending.
- Fully Protected Hydraulic Components Covered hoses and cylinders minimize wear and tear, reducing maintenance needs.
- Reinforced Quick-Attach System Allows for fast connection to skid steer loaders, enhancing efficiency on the job site.
- Greasable Hinges & Oversized Pins 1¼” pins ensure smooth operation and long-term reliability.
- Compatible with machines Hydraulic Requirements 10 To 15 GPM For Skid Steers.
- Optimized Opening Width 34¼” grapple opening accommodates large loads for faster clearance.
- Precision Tine Spacing 8½”–9″ spacing prevents clogging while allowing dirt to fall through for cleaner operation.
- Lightweight Design for Smaller Machines Specifically engineered for skid steers up to 50 HP, maximizing efficiency without excess strain.
- Non-Invasive Ground Contact Glides along the surface, preventing underground damage to utilities or cables.
- Operator-Preferred Ergonomics Features a treaded step for safe and easy entry and exit from equipment.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | Medium Duty Root Grapple |
| Available Widths | 60", 66", 72" (Custom sizes available) |
| Weight (60") | 564 lbs |
| Tine Thickness | 3/8" heavy-duty steel |
| Hydraulic Cylinders | 2" x 10", covered and protected |
| Pin Diameter | 1¼" greasable pins |

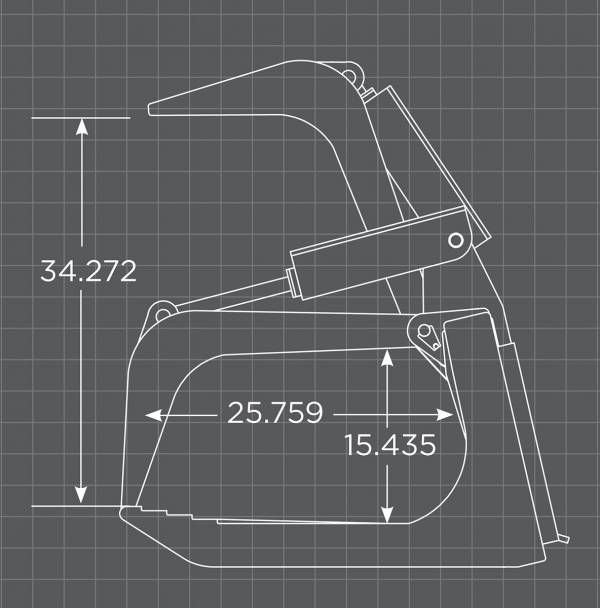

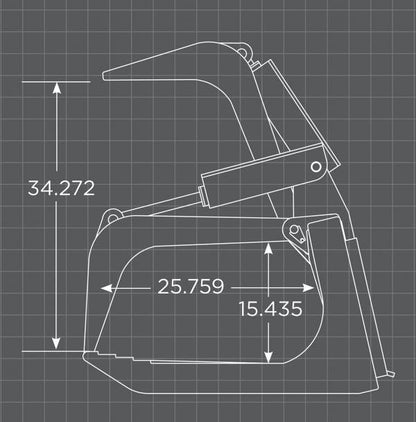

| Opening Width | 34¼" |
| Grapple Style | Independent dual tine arms |
| Tine Spacing | 8½” to 9” (varies by size) |
| Hose & Couplers | Parker brand – fully protected |
| Quick Attach | Reinforced universal skid steer mount |
| Horsepower Compatibility | Up to 50 HP |
| Hydraulic Flow | 10 To 15 GPM |
| Machine Compatibility | Standard-flow skid steers |
| Ground Glide Design | Curved tines prevent digging in |
| Maintenance Features | Fully greasable hinge points and top pins |
| Step Feature | Integrated treaded step |
