Loflin Fabrication Root Grapple | Standard Duty | Widths 60" To 84" | Hydraulic Flow 10 To 20 GPM | For Skid Steer

Loflin Fabrication Root Grapple | Standard Duty | Widths 60" To 84" | Hydraulic Flow 10 To 20 GPM | For Skid Steer

Regular price $3,546.54
Regular price Sale price $3,546.54
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Hydraulic Flow 10 To 20 GPM For Skid Steer.
  • Working Width Options 60" To 84" inches.
  • Independent Grapple Tines Allows for adjustment based on load size, ensuring secure grip and balance.
  • Heavy-Duty Hydraulic Cylinders Equipped with 2” x 10” cylinders, offering 9,500 lbs of grappling force for maximum efficiency.
  • Robust Steel Construction Built with ½” thick steel tines, ensuring longevity and durability under extreme use.
  • Reinforced Quick-Attach System Allows seamless skid steer connection, enhancing stability and ease of operation.
View full details

Product Description

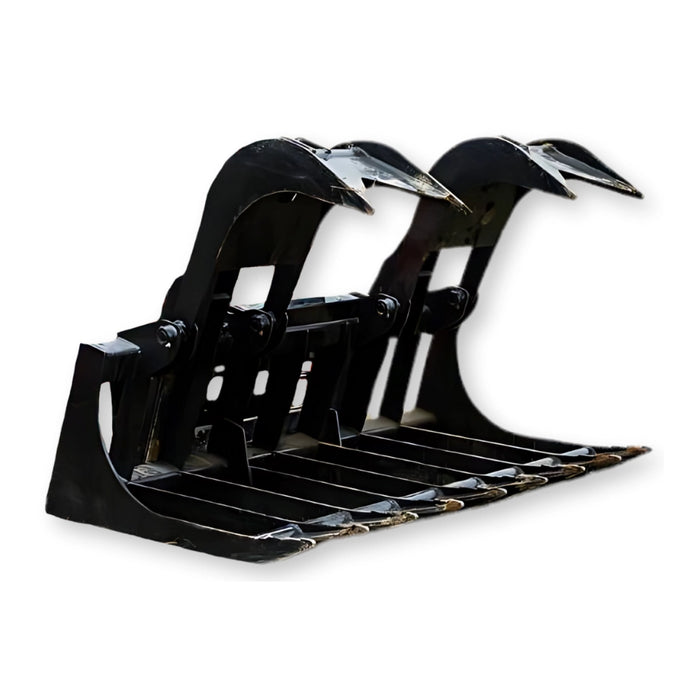

Loflin Fabrication Root Grapple | Standard Duty | Widths 60" To 84" | Hydraulic Flow 10 To 20 GPM | For Skid Steer


DESCRIPTION

Introducing the Loflin Fabrication Standard Duty Root Grapple, a powerful and versatile skid steer attachment designed to tackle the toughest jobs in the tree industry and beyond. This American-made tool is engineered for durability and efficiency, delivering an impressive 9,500 lbs of grappling force while supporting up to 75 horsepower. Whether you're a contractor or a landscaping professional, this grapple is an essential addition to your equipment arsenal.

The unique design of the Standard Duty Root Grapple allows dirt to fall through while securely holding onto debris, making it ideal for a variety of applications. With independent grapple tines and a reinforced quick attach system, this attachment is built for performance and ease of use. The grapple's tines curve upward, enabling it to slide across the ground without digging in, thus avoiding damage to underground utilities and topsoil.

This versatile tool performs three jobs in one: it rakes away debris, keeps it in a manageable pile for easy movement, and features a round bottom bar for effective backfilling. Whether you're loading or piling logs, brush, rocks, or demolition debris, the Standard Duty Root Grapple is designed to make your work more efficient, saving you time and labor costs.

Key Features

  • Independent Grapple Tines Allows for adjustment based on load size, ensuring secure grip and balance.
  • Heavy-Duty Hydraulic Cylinders Equipped with 2” x 10” cylinders, offering 9,500 lbs of grappling force for maximum efficiency.
  • Robust Steel Construction Built with ½” thick steel tines, ensuring longevity and durability under extreme use.
  • Reinforced Quick-Attach System Allows seamless skid steer connection, enhancing stability and ease of operation.
  • Protected Hydraulic Components Fully covered hoses and cylinders, preventing damage and minimizing maintenance.
  • Fully Greasable Hinges & Oversized Pins 1¼” oversized pins ensure long-lasting smooth operation.
  • Optimized Tine Spacing 8½” to 9” spacing prevents clogging while allowing dirt and debris to fall through.
  • Large Opening Width 34½” grapple opening accommodates large objects for efficient handling.
  • Non-Invasive Ground Contact Designed to slide along the top of the surface, preventing damage to underground utilities.
  • Premium Hydraulic Components Comes equipped with Parker brand hoses, fittings, and couplers, ensuring jobsite-ready performance.
  • Versatile Width Options Available in 60″, 66″, 72″, 78″, and 84″ sizes, with custom widths available on request.
  • Compatible with machines Hydraulic Requirements 10 To 20 GPM For Skid Steers.
  • High Horsepower Compatibility Supports up to 75 HP, delivering powerful and efficient operation across diverse job sites.

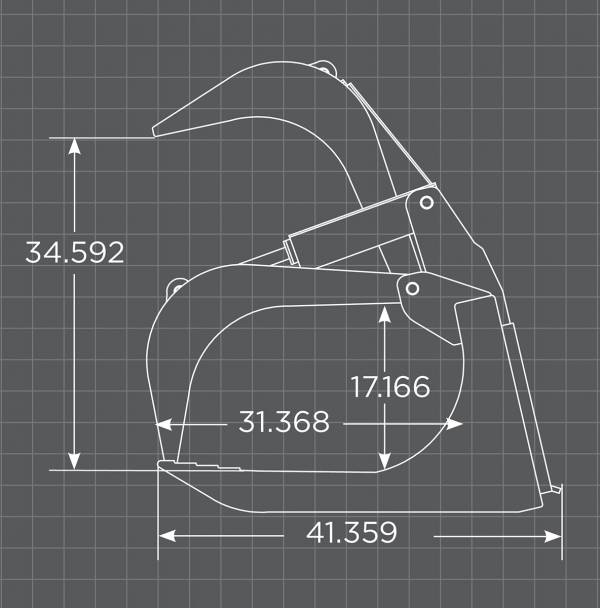

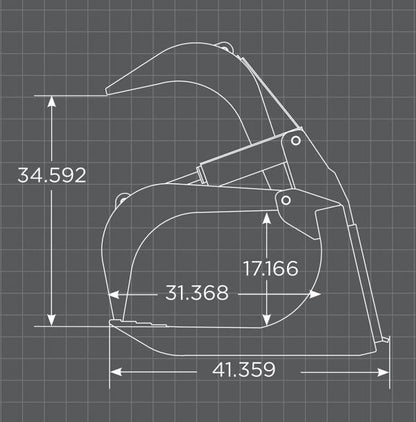

Detailed Specifications

Specification Details
Brand Loflin Fabrication
Product Type Standard Duty Root Grapple
Model Name Root Grapple
Available Widths 60", 66", 72", 78", 84"
Grappling Force Up to 9,500 lbs
Hydraulic Cylinders 2" x 10" (independent operation)
Maximum Horsepower Up to 75 HP
Hydraulic Flow 10 To 20 GPM
Steel Tine Thickness 1/2"
Tine Spacing 8.5" to 9" (custom spacing available)
Opening Width 34.5"
Quick Attach Reinforced, universal skid steer mount
Hydraulic Hoses Parker® brand, fully protected
Cylinder Protection Enclosed hydraulic cylinders
Pin Size 1¼", fully greasable
Hinge Points Fully greasable
Application Tree clearing, rock removal, debris handling
Country of Manufacture United States
