Loflin Fabrication | Root Grapple | Vertical | 72″ To 84″ Width | Hydraulic Flow 15 To 23 GPM | For Skid Steer
Loflin Fabrication | Root Grapple | Vertical | 72″ To 84″ Width | Hydraulic Flow 15 To 23 GPM | For Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Loflin Fabrication | Root Grapple | Vertical | 72″ To 84″ Width | Hydraulic Flow 15 To 23 GPM | For Skid Steer
DESCRIPTION

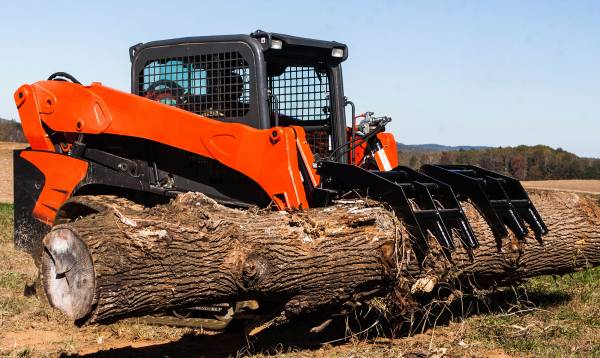

Introducing the Loflin Fabrication Vertical Grapple, a game-changing skid steer attachment designed to enhance your material handling capabilities. This innovative tool operates like a rake, allowing dirt to fall through while securely holding onto debris, making it an essential asset for professionals in the tree industry and various contracting applications.
Constructed with 1½” thick steel tines, the Vertical Grapple is built to withstand the toughest jobs, ensuring durability and reliability. The 2” x 10” hydraulic cylinders provide powerful performance, allowing you to tackle a wide range of tasks with ease. With an opening width of 54 inches and 11¼” tine spacing, this grapple is designed for efficiency, making it ideal for loading or piling logs, brush, rocks, and demolition debris.
The Vertical Grapple is engineered to perform three essential jobs in one: it rakes away debris, keeps it in a manageable pile for easy movement, and features a round bottom bar for effective backfilling. This multi-functional design not only saves time and energy but also helps lower labor costs and shorten project schedules.
Key Features
- Multi-Function Performance Rakes debris, piles materials for transport, and backfills holes, streamlining operations.
- Independent Grapple Tines Adapts to uneven loads, ensuring stable grip and secure movement.
- Heavy-Duty Hydraulic Cylinders 2″ x 10″ cylinders provide strong and controlled force for material handling.
- Ultra-Durable Steel Construction Built with 1½” thick steel tines, reinforced for long-lasting wear resistance.
- Expanded Grapple Opening 54″ opening width, accommodating large debris loads for efficient clearing.
- Optimized Tine Spacing 11¼” spacing, allowing dirt to fall through while retaining large materials, ensuring cleaner operations.
- Non-Invasive Ground Contact Tines curve upward, preventing topsoil disruption and avoiding underground damage.
- Fully Protected Hydraulic Components Covered hoses and cylinders, ensuring long-term durability and reduced maintenance needs.
- Oversized Greasable Pins 1¼” pins enable smooth articulation, extending component longevity.
- Reinforced Quick Attach System Provides seamless skid steer connection, improving efficiency and safety.
- Premium Hydraulic Components Equipped with Parker brand hoses, fittings, and couplers, guaranteeing jobsite-ready reliability.
- Compatible with machines Hydraulic Requirements 15 To 23 GPM For Skid Steers.
- High Horsepower Compatibility Designed for machines 60–120 HP, ensuring powerful and efficient operation.
- Custom Size Options Available Available in 72″, 78″, and 84″ widths, with additional customization available.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | Vertical Root Grapple |
| Series | VRT Series |
| Available Widths | 72", 78", 84" |
| Grapple Type | Dual Independent Vertical Tine |
| Hydraulic Cylinders | 2" x 10" (Dual Cylinders) |
| Tine Thickness | 1½″ Heavy-Duty Steel |
| Opening Width | 54″ |
| Tine Spacing | 11¼″ Standard (Custom Available) |
| Hydraulic Components | Parker Brand Hoses, Fittings, Couplers |
| Quick Attach Compatibility | Universal Skid Steer Mount |
| Pins | 1¼″ Oversized, Fully Greasable |
| Horsepower Compatibility | 60 – 120 HP |
| Hydraulic Flow | 15 To 23 GPM |
| Operating Weight | 1117–1215 lbs (Varies by width) |
| Applications | Forestry, Land Clearing, Demolition, Landscaping |
| Made In | USA |
