Loflin Fabrication | Root Grapple | XHD | Width 66″ To 84″ | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Loflin Fabrication | Root Grapple | XHD | Width 66″ To 84″ | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Loflin Fabrication | Root Grapple | XHD | Width 66″ To 84″ | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

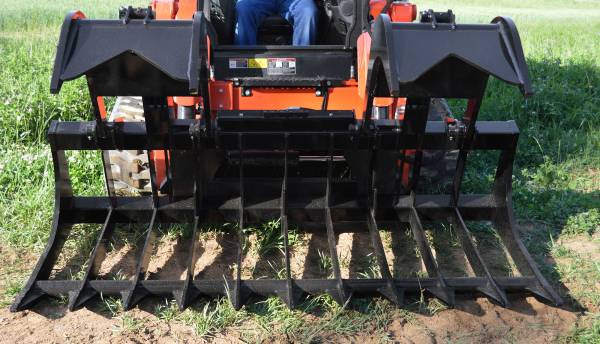

Introducing the Loflin Fabrication XHD Root Grapple, the ultimate solution for heavy-duty material handling and root removal. Designed for robust performance, this American-made grapple is engineered to deliver an impressive 9,500 lbs of grappling force, making it ideal for demanding tasks in landscaping, construction, and forestry applications.
The XHD Root Grapple features 1” thick independent grapple tines that provide exceptional strength and durability, allowing you to tackle even the toughest jobs with confidence. Its 1/2” thick steel tines, combined with 1” thick outside tines, ensure that this grapple can withstand the rigors of daily use while maintaining peak performance.
Equipped with 2” x 10” hydraulic cylinders, the XHD Root Grapple is designed for machines with up to 110 horsepower, making it a versatile choice for a variety of skid steers. The grapple's unique design allows dirt to fall through while securely holding onto debris, preventing damage to underground utilities and ensuring efficient operation.
Key Features
- Independent 1″ Thick Grapple Tines Provides secure grip on uneven loads, preventing shifting and ensuring balanced handling.
- Heavy-Duty Hydraulic Cylinders Equipped with 2″ x 10″ covered cylinders, delivering 9,500 lbs of grappling force for unmatched material control.
- Reinforced Steel Tines ½” thick inner tines with 1″ thick outer tines, ensuring long-lasting strength and durability.
- Oversized, Greasable Pins 1¼" oversized pins enhance articulation and longevity, allowing smooth operation even under intense workloads.
- Precision Ground Contact Designed to slide along the surface without digging or damaging underground utilities, ensuring precise and controlled land clearing.
- Optimized Opening Width 33¼” grapple opening, accommodating large materials for increased productivity.
- Hydraulic Flow 15 To 25 GPM For Skid Steer.
- Fully Protected Hydraulic Components Enclosed hoses and cylinders reduce maintenance needs while ensuring long-term durability.
- Reinforced Quick Attach System Secure and stable connection to skid steers, improving efficiency and ease of use.
- Premium Hydraulic Components Comes equipped with Parker brand hoses, fittings, and couplers, ensuring job-site-ready performance.
- Precision Tine Spacing 8½”–9″ spacing, preventing clogging while allowing dirt and small debris to fall through for cleaner operation.
- Extreme Horsepower Compatibility Supports skid steers up to 110 HP, making it ideal for high-powered machines.
- Custom Sizing Available Offered in 66", 72″, 78″, and 84″ widths, with additional customization options available.

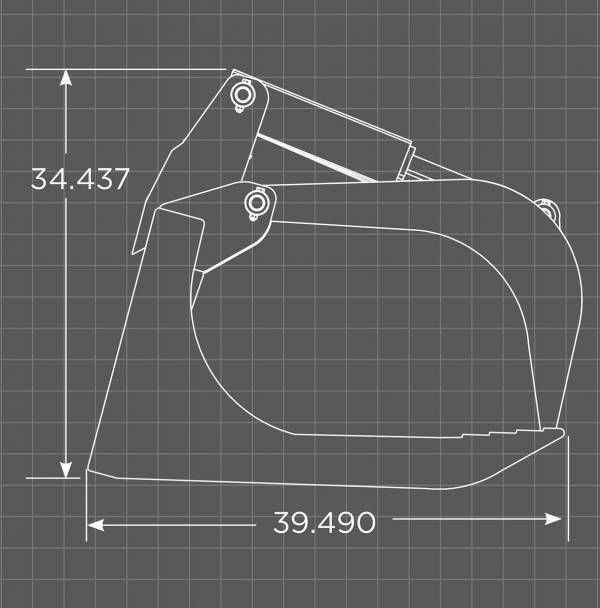

Detailed Specifications
| Specification | Details |
|---|---|
| Model Name | XHD Root Grapple |
| Available Widths | 66", 72", 78", 84" (Custom sizes available) |
| Grappling Force | 9,500 lbs |
| Cylinder Size | 2" x 10" hydraulic cylinders |
| Compatible Horsepower | Up to 110 HP |
| Hydraulic Flow | 15 To 25 GPM For Skid Steer |
| Tine Thickness | ½" tines with 1" thick outer tines |
| Grapple Tine Type | Independent, 1" thick |
| Pin Size | 1¼" greasable pins |
| Hinge Points | Fully greasable |
| Tine Spacing | 8½"–9" (Custom spacing available) |
| Opening Width | 33¼" |
| Quick Attach | Reinforced universal skid steer mount |
| Hydraulic Components | Parker hoses, fittings, and couplers |
| Hose Protection | Fully covered/guarded |
| Material Flow | Dirt-fall-through design |
| Origin | Made in the USA |
