Product Description
Loflin Fabrication | XHD Low Profile Bucket | 6" Longer Bottom with Bolt-On Edge | 72" Width | Horsepower 70+ HP | For Skid Steer & Track Loaders
DESCRIPTION

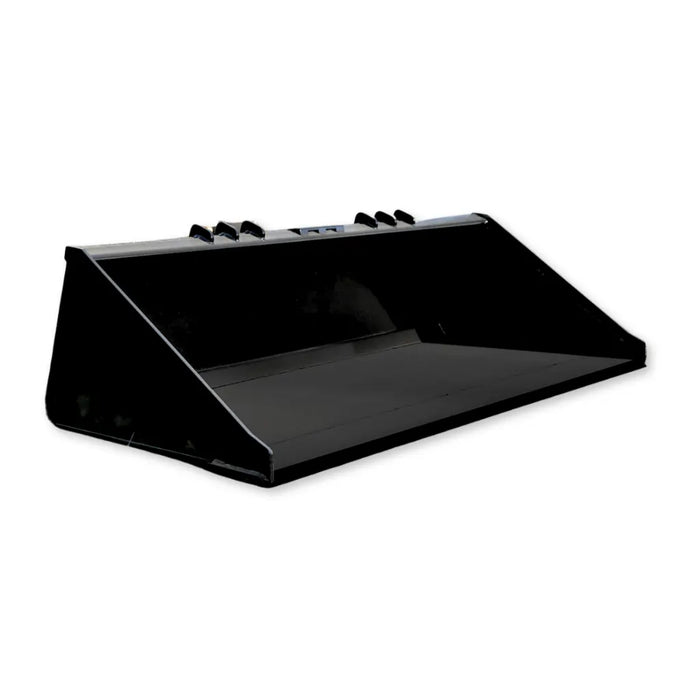

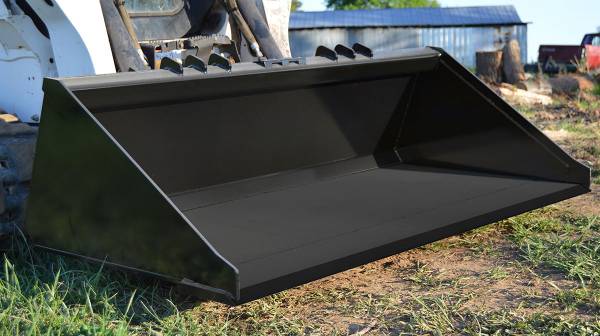

The Loflin Fabrication XHD Low Profile Bucket, a premier attachment designed for heavy-duty material handling. This bucket is engineered to excel in demanding environments, making it an essential tool for construction, landscaping, and agricultural applications. With its robust construction and innovative features, the XHD Low Profile Bucket is built to enhance your productivity and efficiency on the job site.
Crafted with 1/4” thick sides and a 1/2” thick bottom, this bucket is designed to withstand the toughest conditions. The 1” thick x 8” wide cutting edge ensures exceptional durability and performance for digging and moving materials. The reinforced quick attach system provides a secure connection to your equipment, allowing for seamless attachment changes and increased operational efficiency.
The XHD Low Profile Bucket is available in a variety of sizes, including 66”, 72”, 78”, and 84”, with custom sizes also available to meet your specific needs. You can choose between a version with or without teeth, depending on your application requirements. Additionally, the bucket can be equipped with a 6” longer bottom for increased capacity, making it even more versatile for larger loads.
Designed for machines with 70 horsepower and above, this bucket is compatible with all track loaders, ensuring optimal performance across various equipment types. The treaded step provides easy access for operators, enhancing safety and convenience during operation.
Key Features
- Ultra-Rugged Steel Construction Crafted with ¼″ thick steel sides and a ½″ thick reinforced bottom, ensuring exceptional durability for intense workloads.
- Extended Bottom for Maximum Load Control 6″ longer bottom increases grading efficiency, material containment, and operational precision.
- Heavy-Duty Bolt-On Cutting Edge 1″ thick x 8″ wide high-strength edge, delivering extended wear resistance and clean cutting power.
- Reinforced Quick Attach System Heavy-duty reinforcement improves load stability and secure connection for extreme applications.
- Optimized Load Handling Features a ¼″ thick back plate with an additional reinforcement plate, ensuring structural integrity under extreme pressure.
- Available with or Without Teeth Provides custom excavation versatility, allowing operators to choose the ideal setup for their needs.
- Treaded Step for Operator Safety Enhances accessibility, offering secure footing for easy skid steer entry and exit.
- Multiple Width Options Available in 60″, 66″, 68″, 72″, 74″, 78″, 80″, and 84″, ensuring flexibility for different applications.
- Horsepower Compatibility Recommended for machines 70 HP and above, delivering maximum power efficiency for skid steers and all track loaders.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Loflin Fabrication |
| Model Name | XHD Low Profile Bucket (6" Longer Bottom) w/ Bolt-On Edge |
| Type | High-Capacity, Xtra Heavy-Duty Skid Steer Bucket |
| Working Width Options | 60″, 66″, 68", 72″, 74", 78″, 80", 84″ (and custom sizes) |
| Side Thickness | ¼” thick steel |
| Bottom Thickness | ½” thick steel, 6” longer |
| Cutting Edge | 1” thick X 8” wide, with included bolt-on edge |
| Back/Quick Attach | ¼” thick back with ¼” thick reinforcement plate |
| HP Compatibility | Recommended for 70 horsepower and above |
| Machine Compatibility | All Track Loaders |
| Optional Features | Available with large teeth tooth bar (if preferred over BOE) |
| Operator Step | Treaded step |
| Axle Type | N/A (Skid Steer Attachment) |
| Compatibility | Universal Skid Steer Compatibility |
| Key Benefit | Extreme durability, increased capacity for light, bulky materials, and superior cutting edge protection for extended service life. |

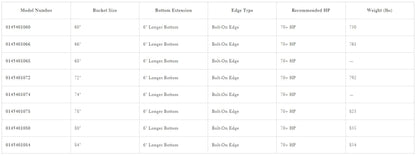

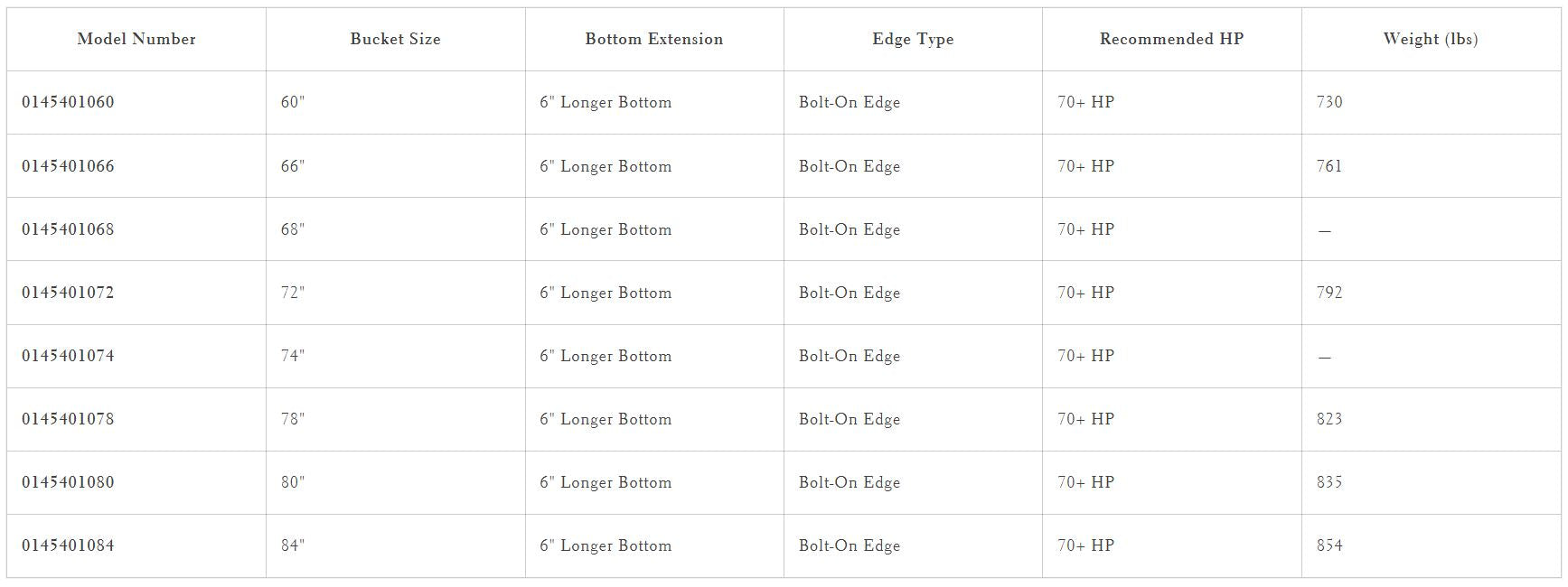

Comparison Charts
| Specs |
014540- 1060 |
0145401- 066 |
|---|---|---|
| Bucket Size | 60" | 66" |
| Bottom Extension | 6" Longer Bottom | 6" Longer Bottom |
| Edge Type | Bolt-On Edge | Bolt-On Edge |
| Recommended HP | 70+ HP | 70+ HP |
| Weight (lbs) | 730 | 761 |
| Specs |
0145401- 068 |
014540- 1072 |
|---|---|---|
| Bucket Size | 68" | 72" |
| Bottom Extension | 6" Longer Bottom | 6" Longer Bottom |
| Edge Type | Bolt-On Edge | Bolt-On Edge |
| Recommended HP | 70+ HP | 70+ HP |
| Weight (lbs) | — | 792 |
| Specs |
014540- 1074 |
014540- 1078 |
|---|---|---|
| Bucket Size | 74" | 78" |
| Bottom Extension | 6" Longer Bottom | 6" Longer Bottom |
| Edge Type | Bolt-On Edge | Bolt-On Edge |
| Recommended HP | 70+ HP | 70+ HP |
| Weight (lbs) | — | 823 |
