Lowrance

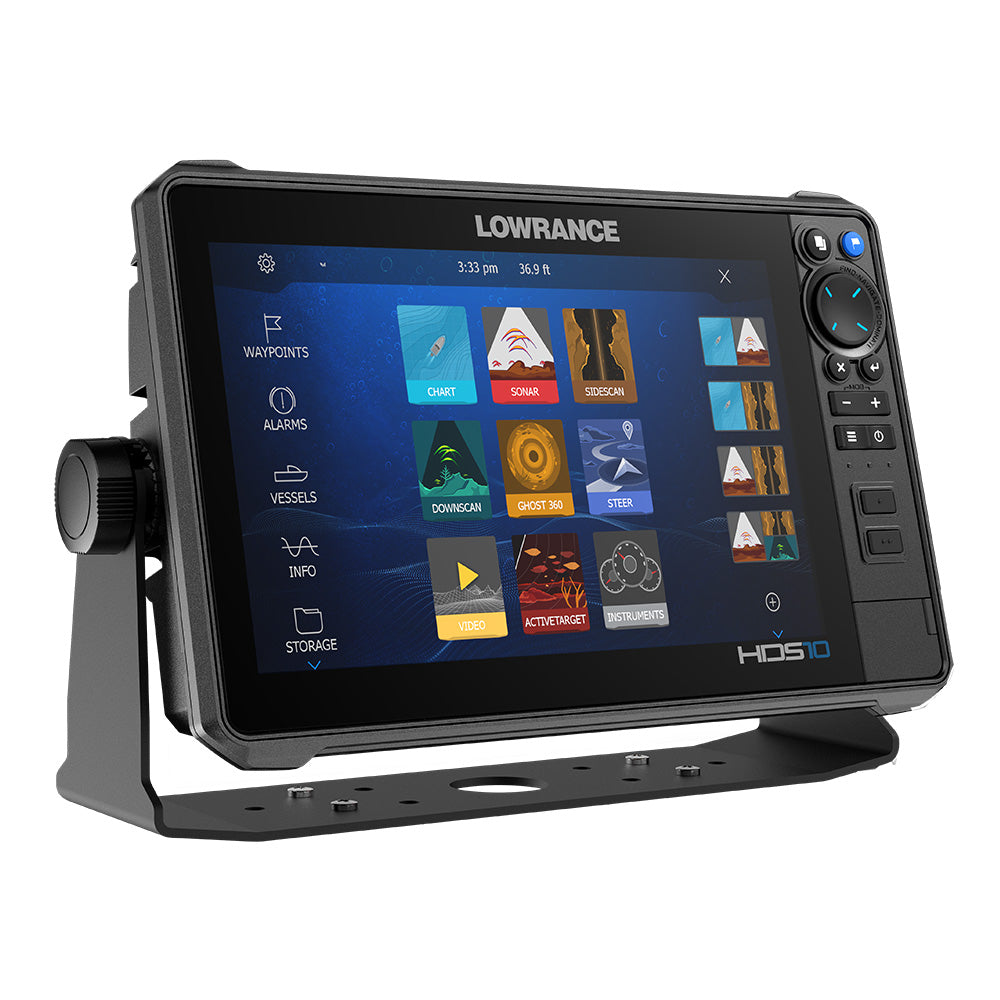

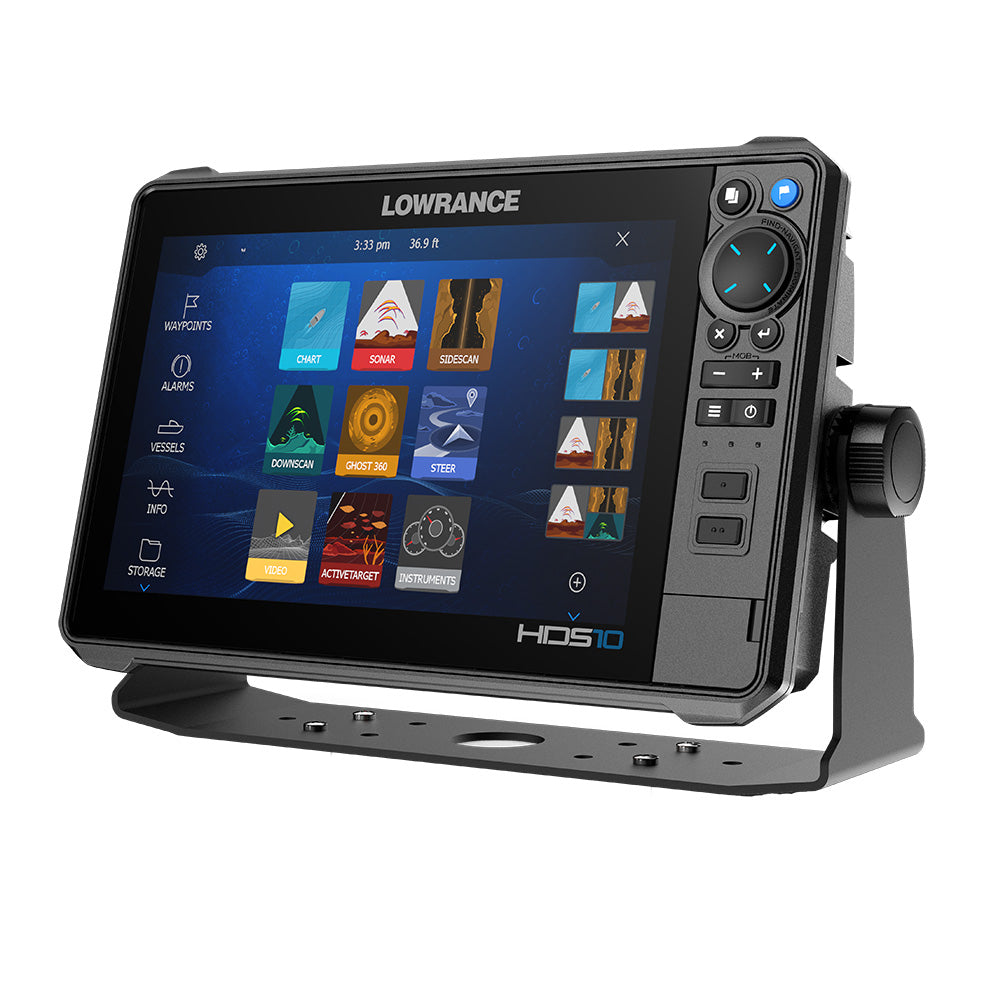

Lowrance HDS PRO 10 - w/ Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer [000-15984-001]

Lowrance HDS PRO 10 - w/ Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer [000-15984-001]

$2,449.99
$0.00 $2,449.99
Sale Sold out
Customizable
Fast
24/7 Support

HDS PRO 10 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

See more and catch more with the HDS PRO 10 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to

In the box:

  • HDS PRO fishfinder/chartplotter (10-inch display screen)
  • C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)

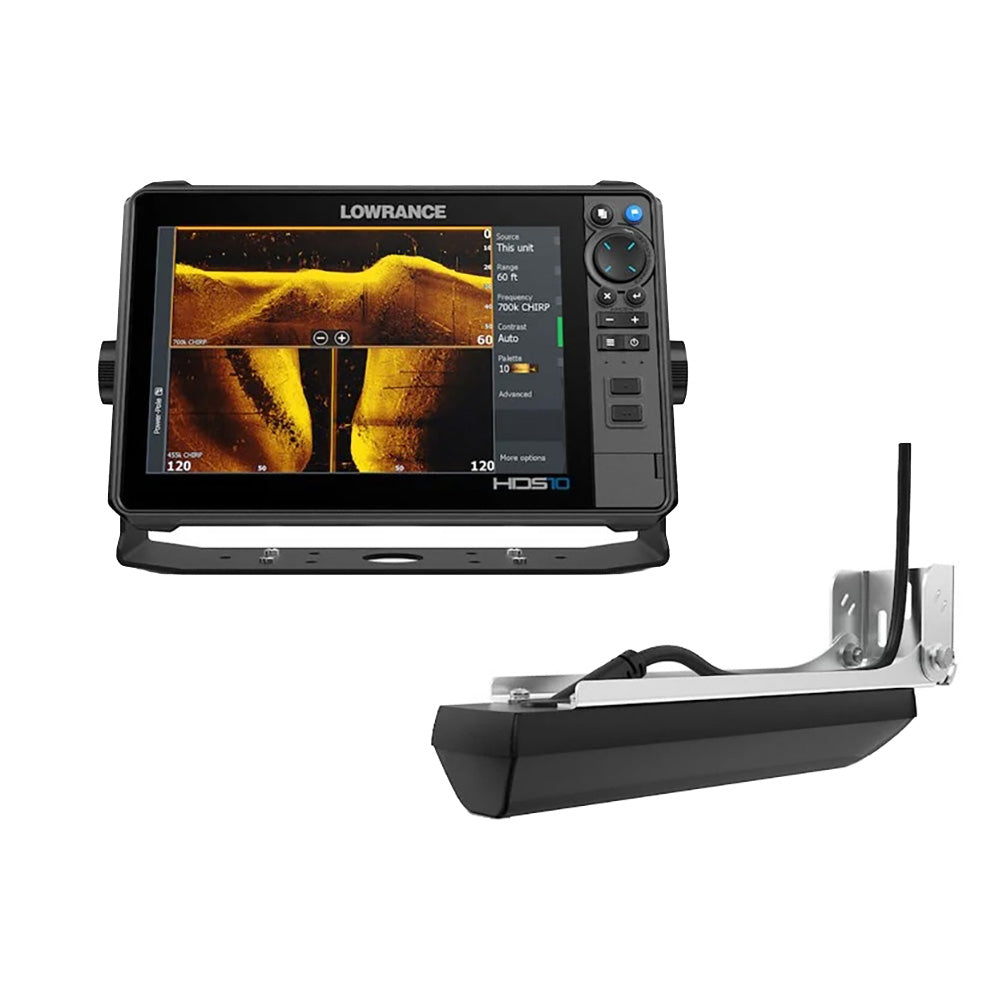

  • Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)

Features (Lowrance Active Imaging HD 3-in-1 Transducer):

  • High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
  • Lowrance® CHIRP with superb clarity and target separation
  • FishReveal™ DownScan view makes fish identification easy
  • Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
  • Smart transducer design boosts signal clarity
  • Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Features:

  • Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
  • SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
  • High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
  • High-resolution ActiveTarget 2 Live Sonar ready
  • FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
  • Real-time mapping is available with C-MAP Genesis Live.
  • Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
  • Large programmable keys
  • Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
  • NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications

Display:

  • Backlight Color: Pure white LED
  • Display Resolution: 1280 x 720
  • Viewing Angles: 80° top/bottom, 80° left/right

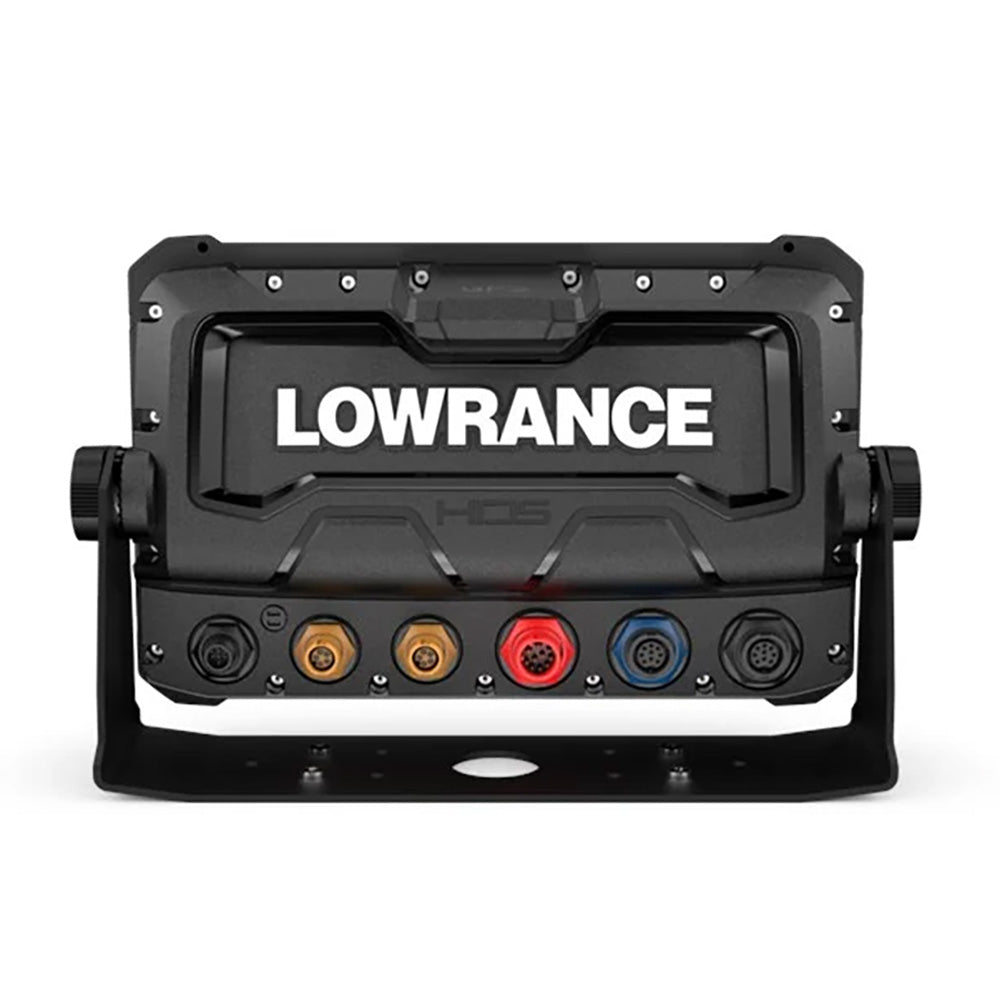

Connectivity:

  • Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
  • Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
  • Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
  • NMEA 2000 Connectivity: 1x Micro-C
  • SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

  • Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar on
  • Power Consumption Minimum: 2.0A @ 13VDC with Full Backlight, Sonar on
  • Power Consumption Typical: 2.0A @ 13VDC with Full Backlight, Sonar on
  • Recommended Fuse Rating: 3A
  • Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )

 GPS:

  • GPS Receiver Channels: 16
  • Update rate: 10 Hz

MFD (Multi-Function Display):

  • Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
  • Internal Storage: 8.0 GB Internal
  • Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

Specifications:

  • Cartography Brand: C-Map
  • Included Transducer: 000-16062-001
  • Screen Size: 10"
  • Touchscreen: Yes
  • Transducer Included: Yes
  • Box Dimensions: 5"H x 14"W x 16"L WT: 11.25 lbs
  • UPC: 9420064129645

Quick Guide (pdf)
Owner's Manual (pdf)
View full details
