Lucid Bots GNSS Antenna | Model BT-560 | Operating Voltage 3.0V-18.0V | For High-Precision Applications
DESCRIPTION

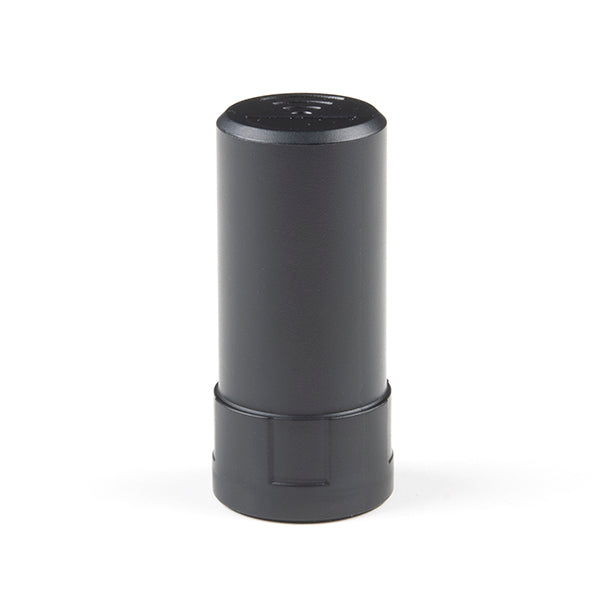

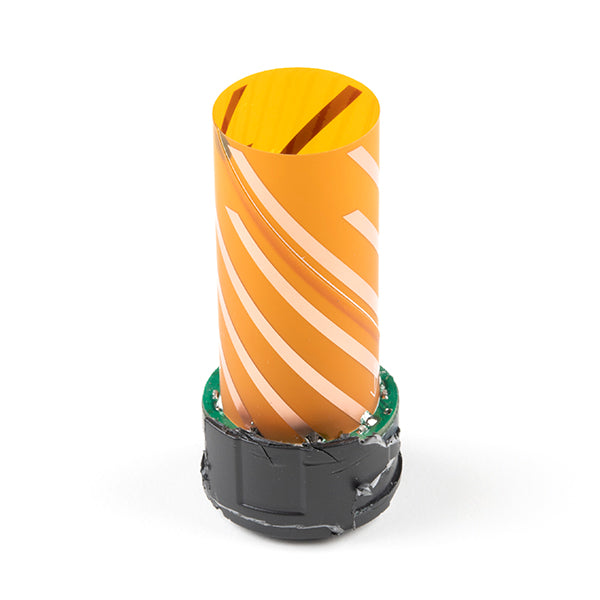

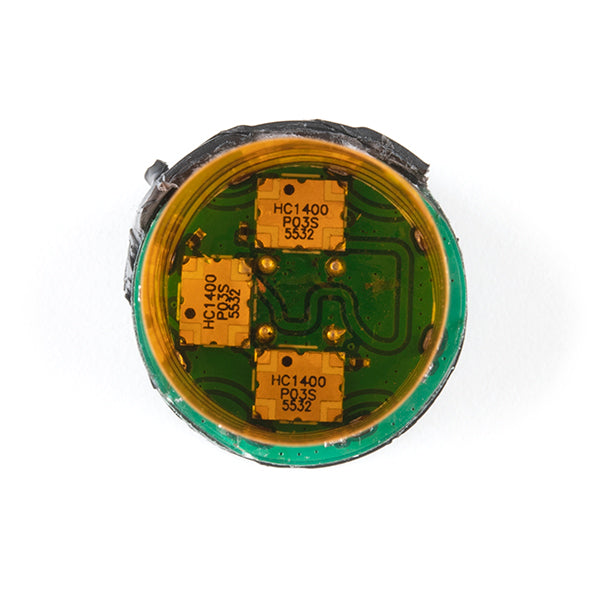

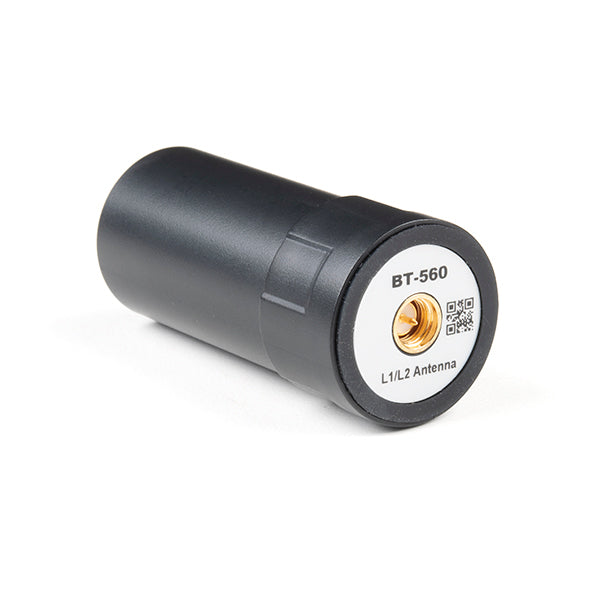

The Lucid Bots BT-560 GNSS Antenna is a high-performance four-star nine-band helical antenna designed for exceptional positioning accuracy and lightweight convenience. Engineered for use with various receivers, this versatile antenna is ideal for applications in UAVs, handheld terminals, and small RTK equipment. Its robust capabilities, including right-hand circular polarization and waterproof IP67 grading, make it suitable for military and demanding environments. Compact yet powerful, the BT-560 provides reliable performance across a wide frequency range, ensuring seamless operation under diverse conditions.
Key Features
- Four-Star Nine-Band Coverage: Supports GPS, GLONASS, BDS, and GALILEO frequencies for broad compatibility.
- Precision and Accuracy: Includes a phase center error of ±2mm for consistent positioning results.
- Lightweight Design: Weighs ≤20g, ensuring minimal impact on device weight.
- Durable Build: Rated IP67 waterproof for reliable use in challenging environments.
- Wide Application Range: Suitable for UAVs, handheld terminals, small RTK equipment, and military applications.
- Optimized Electrical Specs: Features 35±3 dB LNA gain and a low noise figure of ≤1.8 dB for superior signal clarity.
- Temperature Resistant: Operates between -40°C and +70°C, with storage capability up to -55°C to +85°C.
Detailed Specifications
| Feature | Specification |
|---|---|
| Frequency Range | GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, GALILEO E1/E5b |
| Gain | <3 dBi |
| Polarization | Right-hand circular polarization |
| Impedance | 50 Ω |
| VSWR | ≤1.5 |
| Phase Center Error | ±2 mm |
| Connector Type | SMA-J |
| Antenna Size | Φ27.3 x 58.6 mm |
| Weight | ≤20 g |
| LNA Gain | 35±3 dB |
| Operating Voltage | 3.0V-18.0V |
| Operating Current | ≤50 mA |
| Noise Figure | ≤1.8 dB |
| Waterproof Grade | IP67 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| In-Band Flatness | ±2 dB |
| Differential Propagation Delay | ≤5 ns |
