Product Description
Lucid Bots Sherpa Cleaning Drone | Model C1 | Max Working Voltage 52.2V | Width 53" inches | For Industrial Cleaning
DESCRIPTION

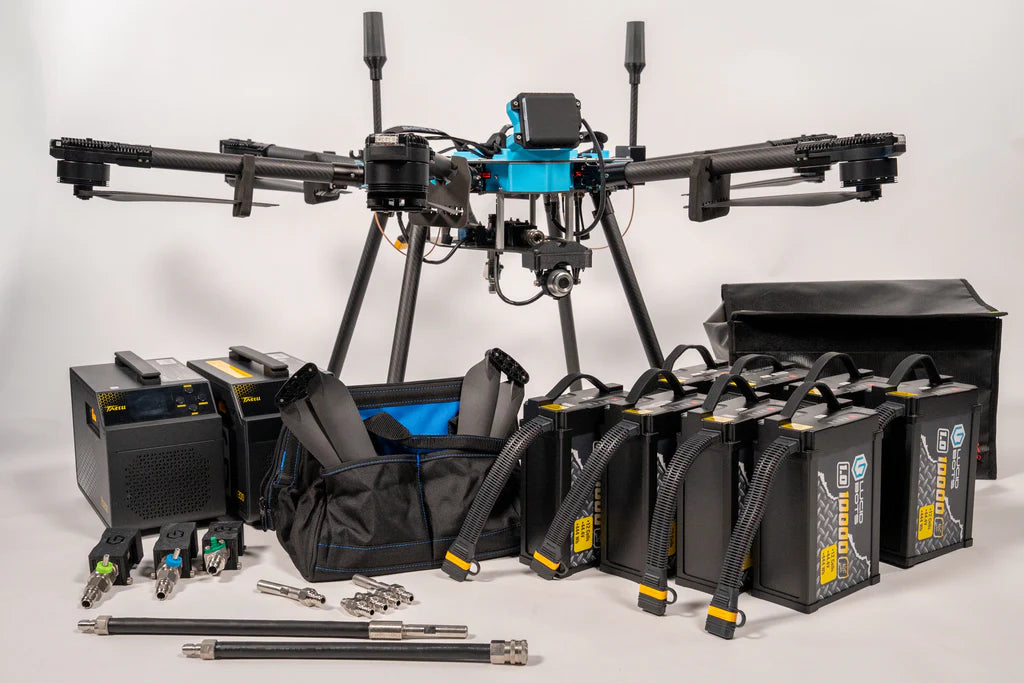

The Lucid Sherpa Cleaning Drone is an advanced, industrial-grade cleaning solution designed for efficiency, reliability, and precision. With its robust hexacopter airframe, state-of-the-art propulsion and spraying systems, and cutting-edge collision prevention, this drone excels in challenging environments. It comes with a comprehensive set of accessories, training support, and a warranty, making it ideal for professionals seeking superior performance and ease of use.
Key Features
- Advanced Hexacopter Airframe: Built for industrial-grade cleaning tasks, the hexacopter design offers stability and power for challenging environments.
- Precision Propulsion System: Equipped with six high-performance motors delivering a max thrust of 12kg per rotor, ensuring optimal efficiency and power during operations.
- Robust Spraying System: Features stainless steel components and a high-rated pressure of 4500psi. Includes an Assassin nozzle tip for targeted precision and adjustable flow rate for diverse cleaning needs.
- Collision Prevention with RADAR Technology: Incorporates USD1 RADAR with obstacle sensing up to 50m range and IP67-rated durability, offering safe operation in tight or complex spaces.
- FPV Camera for Enhanced Navigation: Provides a wide field of view (120 degrees) with HD resolution (1920x1200 and 1080p), allowing clear and accurate visuals during operations.
- Exceptional Flight Parameters: Handles wind resistance up to 18 mph and operates within a range of 0 to 40°C, ensuring reliability in various weather conditions.

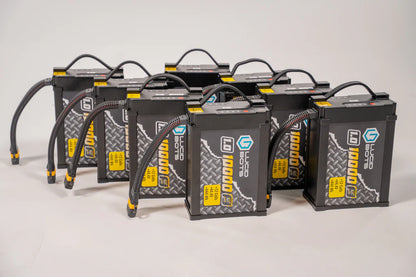

- High-Capacity Battery System: Comes with 8x 12S batteries and chargers capable of rapid charging, ensuring sustained operations over long durations.
- Durable Construction: Designed with stainless steel and aluminum hardware, combined with waterproof components equivalent to IPX5, for longevity and resilience.
- User-Friendly Controller: Features a built-in Android system with an LCD touchscreen, 15KM max transmission distance, and 8-hour battery life for seamless and intuitive control.
- Compact Foldable Design: Easy to transport with a foldable frame and sturdy SKB hard travel case for secure mobility.
- Comprehensive Training & Support: Includes Sherpa Academy training and Part 107 certification, along with a 1-year warranty and email support for professional use and peace of mind.
Detailed Specifications
Feature | Details |
---|---|
Product Model | Lucid Sherpa Cleaning Drone |
Airframe | Hexacopter |
Max Diagonal Wheelbase | 53" |
Dimensions |
Arms unfolded: 53"x53"x24" Arms folded: 24"x24"x24" |
Airframe Hardware | 316 Stainless, Aluminum |
Anti-Collision Lights | 6x LED |
Motors | 6 |
Stator Size | 70mm |
KV | 180kv |
Max Thrust | 12kg/rotor |
Max Power | 3500W/rotor |
Weight | 720g |
Waterproof Rating | Equivalent to IPX5 |
Max Working Current | 80A (Continuous) |
Max Working Voltage | 52.2V |
Propellers | Foldable, 23x8.8in diameter x pitch |
Weight (Single Propeller) | 36g |
Inlet Connection Material | 304 Stainless |
Inlet Connection Type | 3/4" Male Cam and Groove Fitting |
Max Rated Pressure | 4500psi |
Plumbing Material | 304 Stainless |
Nozzle Tip Type | Assassin 0 degree #50 |
Nozzle Tip Flow Rate | 6.5 - 7.5 gpm |
Max Nozzle Assembly Length | 18" |
Collision Prevention System | RADAR (USD1) |
Obstacle Sensing Range | 0.5-50m |
Field of View | 43x30 |
IP Rating | IP67 |
FPV Camera Field of View | 120 degrees |
FPV Camera Resolution | 1920x1200 <br> 1080p (Video Transmission) |
Video Transmission Type | Digital |
Flight Controller Frequency | 2.400-2.483GHz |
Total Weight | 21 lbs (Excluding battery) |
Battery Type | Tattu 10000mah 12S (2x) |
Max Operating Speed | 10 mph |
Max Wind Resistance | 18 mph |
Max Service Ceiling | 2000 m Above Sea Level |
Operating Temperature | 0 to 40°C |
Transmitter Model | SIYI MK15 |
Transmitter Screen | 5.5-inch LCD |
Transmitter Battery Life | 8h |
Built-in Battery Capacity | 12000mah |
Max Transmission Distance | 15KM |
Transmitter Operating System | Android |
Charging Method | USB-C |
Battery Charger Model | TAA1200 |
Battery Charger Input Voltage | 110-120V |
Battery Charger Output | 4~25.2V, 0~38A |
Battery Charger Operating Temp | 5~+40°C |
