Product Description
Lumishore Surface-Mount Underwater LED Light | Model SMX154 | Total Lumens 15,750 | LED Life 50,000+ Hours
DESCRIPTION

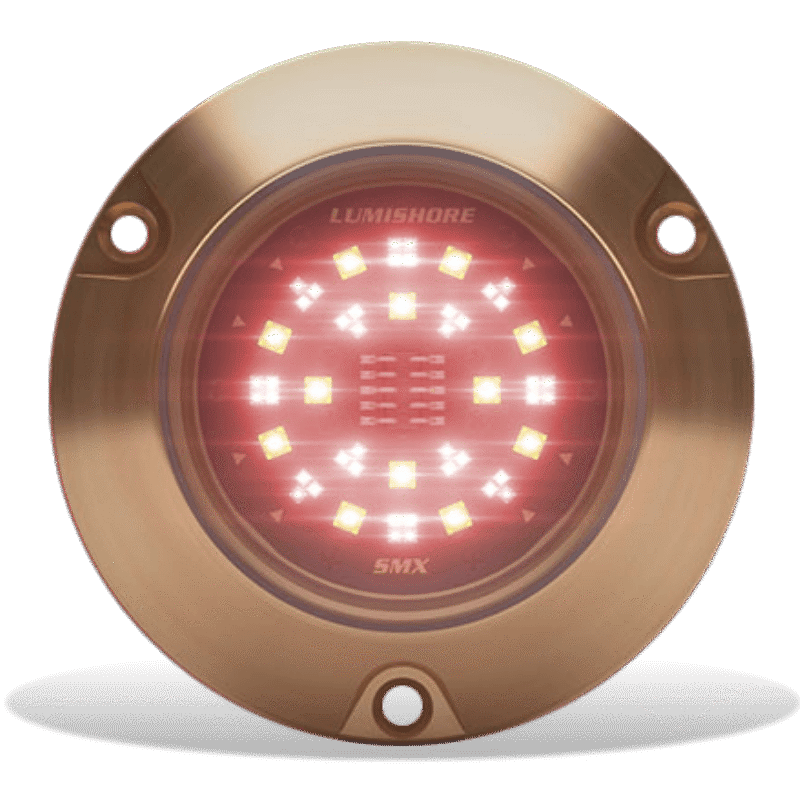

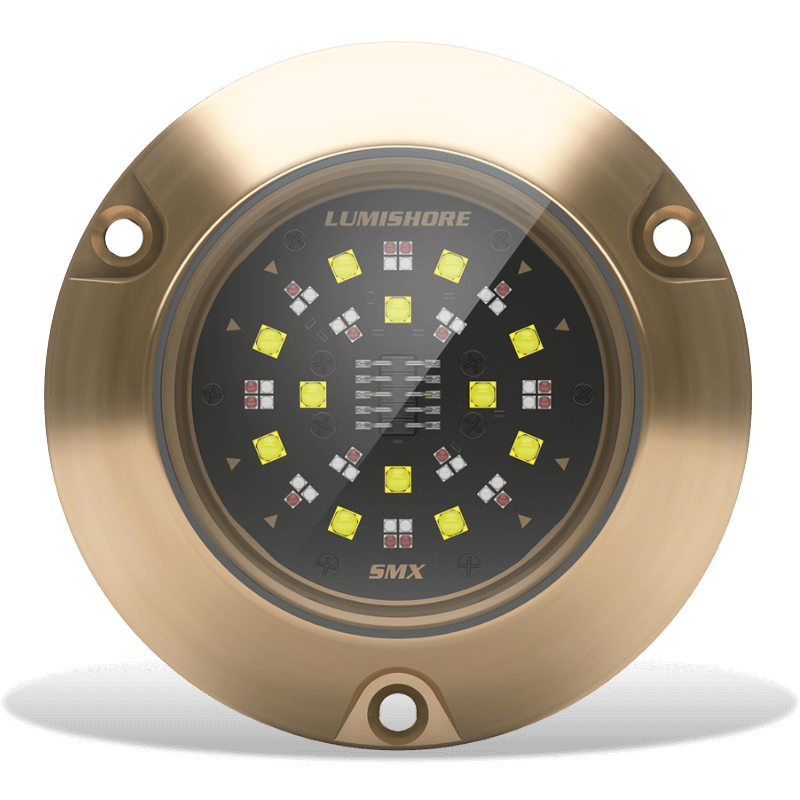

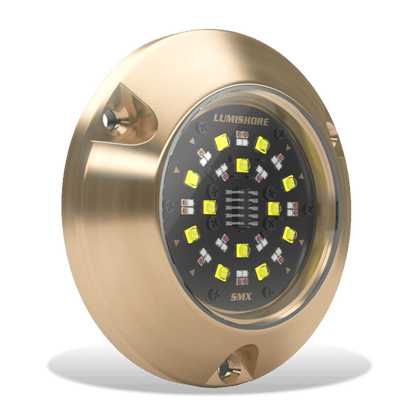

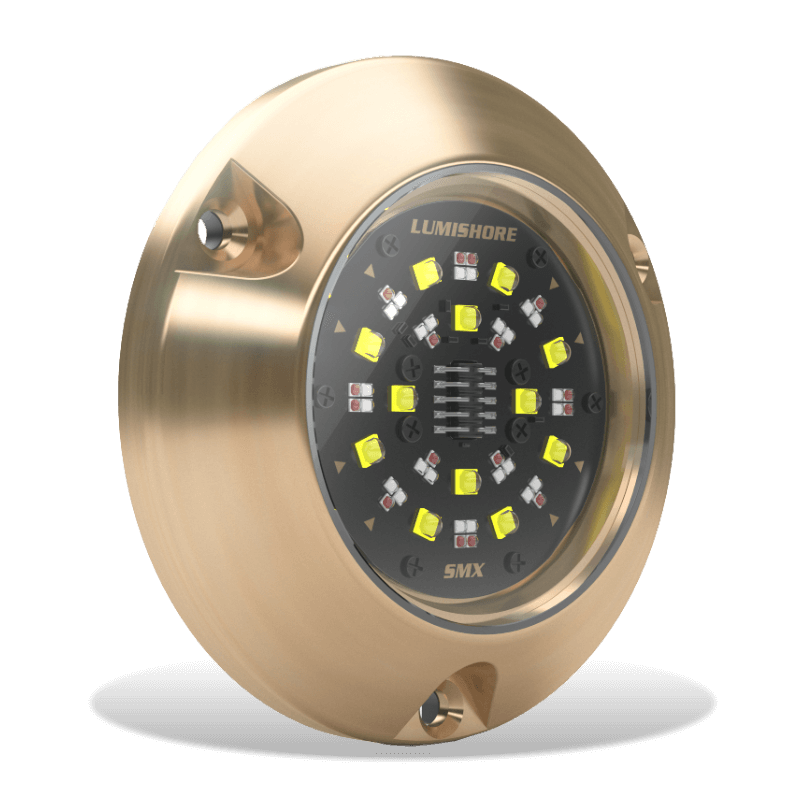

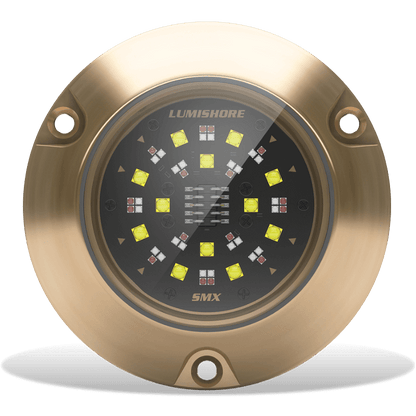

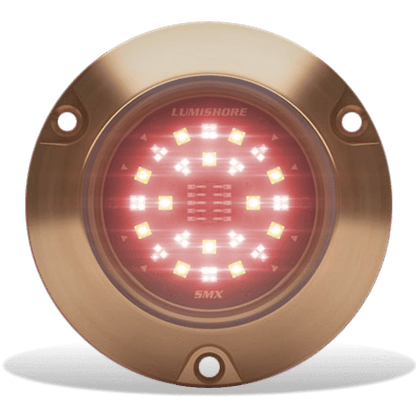

The Lumishore SMX154 is a high-performance, surface-mount underwater LED light designed to deliver vibrant, full-spectrum illumination for vessels up to 15 meters (50 feet). Engineered for stepped hulls, transoms, and side mounting, the SMX154 offers 7,000 verified fixture lumens (white) and a wide 90° beam angle, ensuring brilliant coverage and stunning visual impact below the waterline.
Powered by Lumishore’s advanced EOS Series RGBW technology, the SMX154 features multi-channel internal drivers, HICOB LED arrays, and plug-and-play installation for seamless integration. Users can control lighting directly from a certified MFD, EOS-LUX-SUPRA display, or via Wi-Fi app, enabling dynamic effects like color cycle, color sweep, sound-to-light, and customizable strobe modes.
With automatic light discovery, diagnostic functions, and intelligent power management, the SMX154 simplifies setup while maximizing reliability. Its marine-grade bronze housing and borosilicate glass lens ensure durability in harsh marine environments, backed by a 3-year warranty.
Key Features
- Full EOS Color Change (RGBW) Dynamic lighting effects with customizable scenes, presets, and synchronized modes.
- 7,000 Verified Fixture Lumens (White) Delivers powerful underwater illumination with 15,750 total lumens.
- 90° Beam Angle Wide coverage for vibrant underwater ambiance.
- Smart Control Options Operate via MFD, Lumishore display, or Wi-Fi app; supports DMX/RDMX protocols.
- Plug-and-Play Installation Simplifies electrical setup with no bonding required.
- Marine-Grade Bronze Housing Corrosion-resistant body with borosilicate glass lens for long-term durability.
- Advanced Protection & Diagnostics Includes surge protection, reverse polarity, soft start, and automatic thermal rollback.
- Sound-to-Light & Strobe Modes Interactive lighting effects for entertainment and ambiance.
- Suitable for All Hull Types Isolation kit required for conductive hulls.
Detailed Specifications
| Specification | Details |
|---|---|
| Available LED Colors | Full EOS Color Change (RGBW) |
| Total Lumens | 15,750 |
| Verified Fixture Lumens (White) | 7,000 |
| LED Configuration | White: 12×10W, Green: 12×3W, Blue: 12×3W, Red: 16×3W |
| LED Power Type | HICOB Array |
| Typical LED Life | 50,000+ Hours |
| Beam Angle | 90° |
| Driver Type | Multi-Channel Internal Driver |
| Supply Voltage | 12/24 V DC |
| Max Current Draw | 4.0A @ 12V / 2.0A @ 24V |
| Housing Material | Marine Grade Bronze / Glass Lens |
| User Control Options | MFD and/or Lumishore Display |
| Lights Synchronized | Yes |
| Color Cycle | Yes |
| Color Cycle with Speed Adjust | Yes |
| Color Sweep with Speed Adjust | Yes |
| Customizable Favorites | Yes |
| Fixed Strobe (2-Speed) | Yes |
| Wi-Fi Control (App) | Yes |
| Sound-to-Light Function | Yes |
| Brightness Adjustment | Yes |
| Auto Light Discovery & Setup | Yes |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

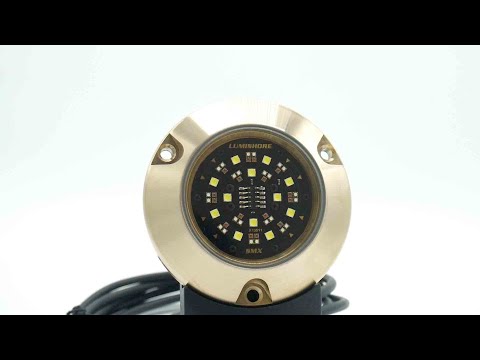

Videos
