Lumishore Underwater Camera | TIX402‑UWC Lumi‑Cam HD | 1080p Full HD Video | For Boats & Yachts
Lumishore Underwater Camera | TIX402‑UWC Lumi‑Cam HD | 1080p Full HD Video | For Boats & Yachts
Regular price
$2,255.55
Regular price
Sale price
$2,255.55
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Lumishore Underwater Camera | TIX402‑UWC Lumi‑Cam HD | 1080p Full HD Video | For Boats & Yachts
DESCRIPTION

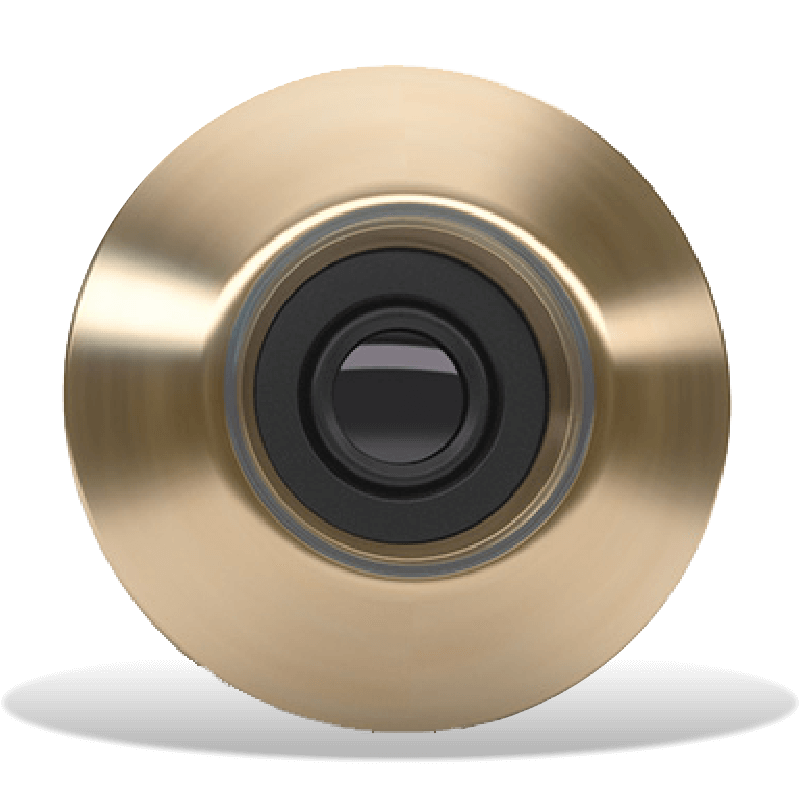

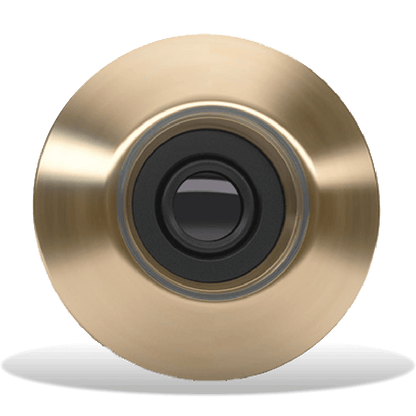

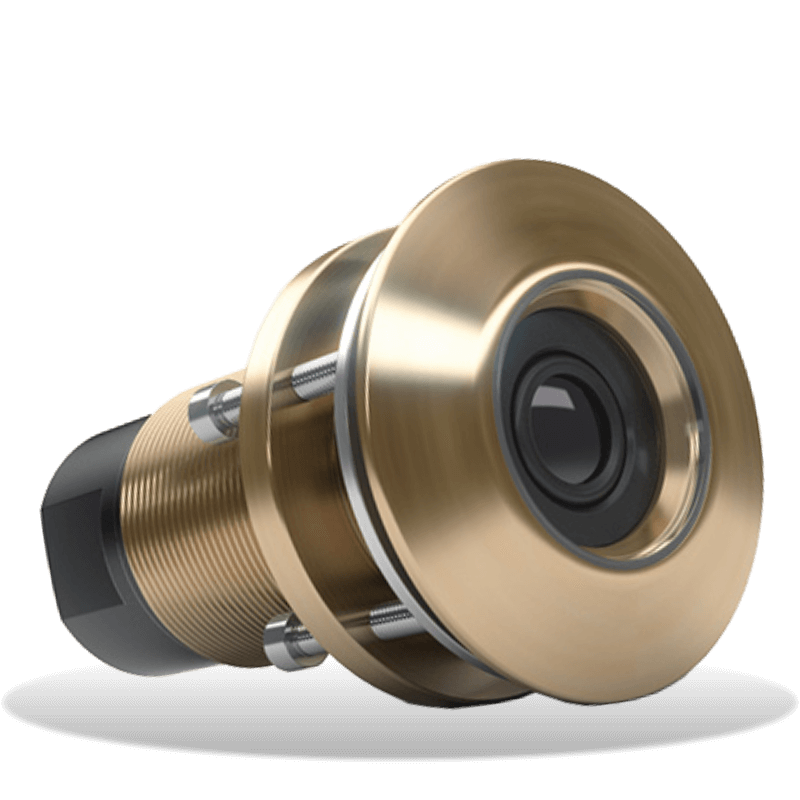

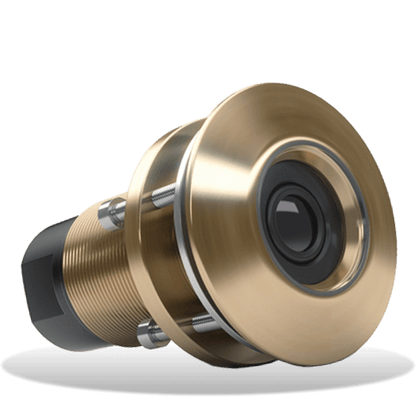

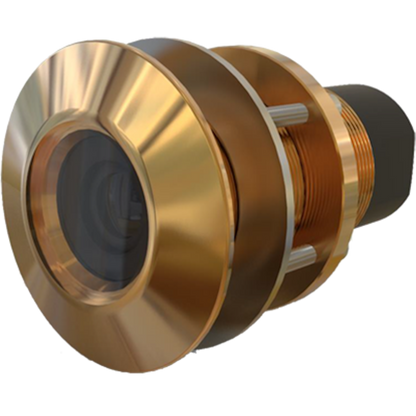

The Lumishore TIX402 Lumi‑Cam is a high‑definition underwater camera designed for thru‑hull installation, delivering 1080p HD‑SDI video and composite outputs for seamless integration with MFDs, chart plotters, or monitors. Built with a marine‑grade aluminum bronze housing, it is flush‑fit and suitable for transom or bottom mounting. The interchangeable element design allows servicing from inside the hull, eliminating the need to haul the vessel. With automatic low‑light mode and rugged construction, the TIX402 provides unmatched underwater visibility for sports boats, cruisers, yachts, and super yachts.
Key Features
- Full HD 1080p Video – Crisp underwater imaging with HD‑SDI output.
- Composite Video Option – NTSC/PAL compatibility with HDMI converter available.
- Flush‑Fit Thru‑Hull Mount – Low‑profile design suitable for transom or bottom mounting.
- Interchangeable Element – Serviceable from inside the vessel, no haul‑out required.
- Automatic Low‑Light Mode – Enhanced visibility in darker underwater conditions.
- Marine‑Grade Bronze Housing – Built for durability in harsh marine environments.
- Compact Design – 3.5" face diameter, 0.32" profile, 5.35" shaft length.
- Simple Power Requirements – Operates on 9–15 VDC.
- Waterproof Protection – IP68 rated for complete submersion.
- Limited 3‑Year Warranty – Backed by Lumishore reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| Part Number | 60‑0255 |
| Model | TIX402‑UWC Lumi‑Cam |
| Lens | 3.6 mm fixed focus |
| Video Interface | HD‑SDI (1080p) or Composite (NTSC/PAL) |
| Control Type | None |
| Modes | Daylight / external illumination |
| Dimensions | Face: 3.5"; Profile: 0.32"; Shaft: 5.35"; Shaft Diameter: 2.25" |
| Housing Material | Marine‑grade aluminum bronze |
| Mount Type | Flush‑fit thru‑hull |
| Cut‑Out Size | 2.25" entry hole |
| Input Voltage | 9–15 VDC |
| Waterproof Rating | IP68 |
| Pan/Tilt | No |
| Zoom | No |
| Cable Included | 1 meter |
| Warranty | Limited 3 years |
