Lumishore Underwater Light | TIX403‑CCP EOS | 9,000 Lumens | Full Spectrum Color Control | For Boats & Yachts
Lumishore Underwater Light | TIX403‑CCP EOS | 9,000 Lumens | Full Spectrum Color Control | For Boats & Yachts
Regular price
$3,014.70
Regular price
Sale price
$3,014.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Lumishore Underwater Light | TIX403‑CCP EOS | 9,000 Lumens | Full Spectrum Color Control | For Boats & Yachts
DESCRIPTION

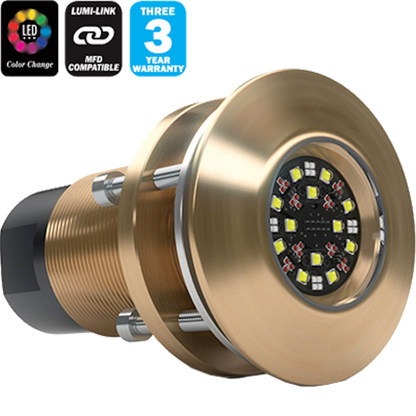

The Lumishore TIX403‑CCP EOS Underwater Light is a high‑performance, full‑spectrum color‑changing thru‑hull fixture designed as an add‑on light to existing EOS systems. Delivering 9,000 raw lumens (4,000 fixture lumens) with an ultra‑wide 110° beam angle, it provides unmatched illumination and vibrant color effects. Featuring an internal driver and interchangeable thru‑hull design, the TIX403 can be serviced from inside the hull without hauling the vessel. Controlled via the EOS STV2203‑i Color Controller, compatible MFDs, or Wi‑Fi devices, it offers intuitive operation and synchronized lighting effects for a clutter‑free helm.
Key Features
- Full EOS Color Control – RGBW spectrum with 12 presets, infinite color choice, sweeps, and strobe modes.
- High Output Lighting – 9,000 raw lumens / 4,000 fixture lumens.
- Ultra‑Wide Beam – 110° beam angle for maximum underwater coverage.
- Internal Driver Design – Serviceable from inside the hull, no haul‑out required.
- Flush‑Fit Profile – Low‑profile thru‑hull mount suitable for transom, side hull, or bottom installation.
- Advanced Protection – Reverse polarity, surge, low voltage, noise suppression, soft start, and thermal management.
- Entertainment Integration – Sound‑to‑Light capability with onboard audio, Wi‑Fi control via iPhone/iPad Lumi‑App.
- Long LED Life – 50,000+ hours with HICOB LED array.
- Easy Installation – Plug‑and‑play connectors, synchronized sequencing across all lights.
- Limited 3‑Year Warranty – Backed by Lumishore reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| Part Number | 60‑0336 |
| Light Model | TIX403‑CCP EOS |
| Beamwidth | 110° |
| Color Control | Full Spectrum (RGBW, presets, sweeps, DMX, sound‑to‑music) |
| Lumens | 9,000 raw / 4,000 fixture |
| LEDs Used | White: 12, Blue: 12, Green: 12, Red: 16 |
| Input Voltage | 12/24 VDC (internal driver) |
| Cut‑Out Size | 2.25" shaft |
| Dimensions | 3.47" diameter, 0.33" profile |
| Max Hull Thickness | 5.35" shaft length |
| Housing Type | Flush‑fit thru‑hull |
| Waterproof Rating | IP68 |
| LED Life | 50,000+ hours |
| Warranty | Limited 3 years |
