Product Description
Machinerie AM Inc | "FOR" Series Forestry Trailer | with Double Frame | Capacity 1.75T to 12T
Description
The “FOR” Series Forestry Trailer by Machinerie AM Inc is a robust and versatile trailer designed to meet the rigorous demands of forestry operations. Engineered with a double frame, this trailer offers enhanced durability and stability, making it ideal for transporting heavy loads through challenging terrains.
This trailer is an excellent choice for forestry professionals looking for a reliable and durable solution to their transportation needs.
the “FOR” Series Forestry Trailer by Machinerie AM Inc is designed to be compatible with a wide range of forestry equipment. Here are some examples of compatible equipment:
- Log Loaders: The trailer can be paired with various log loaders to facilitate the loading and unloading of logs.
- Grapples: Compatible with different types of grapples for handling logs and other forestry materials.
- Winches: Can be equipped with winches to assist in pulling logs onto the trailer.
- Cranes: Suitable for use with forestry cranes for efficient log handling and placement.
- Hydraulic Systems: The trailer can integrate with hydraulic systems to power various attachments and tools
Compatibility Chart
| Machine Model |
900R 900RA |
FOR 1005 FOR 2005 |
FOR 1205 FOR 2205 |
FOR 1207 FOR 2207 FOR 2209 |
FOR 1610 FOR 2610 |
5.5CV Hydraulic Unit | 9CV Hydraulic Unit | 11CV Hydraulic Unit |
|---|---|---|---|---|---|---|---|---|
| 900SR / 9T11 | X | X | ||||||
| JMS 110 | X | X | X | X | ||||
| JMS 130 / JMS 130EX | X | X | X | X | X | |||
| JMS 155 | X | X | X | X | ||||
| JMS 170 | X | X | X | X | ||||
| AM 190 | X | X | X | X |
Key Features
- Double Frame Construction: Provides superior strength and stability, ensuring the trailer can handle tough forestry conditions.
- Capacity Range: Available in various models with load capacities ranging from 1.75 tons to 12 tons, catering to different operational needs.
- Heavy-Duty Performance: Built to withstand the harsh environments of forestry work, ensuring long-lasting reliability.
- Versatile Applications: Suitable for a wide range of forestry tasks, from transporting logs to carrying equipment.
-
Enhanced Safety: Designed with safety features to secure loads and ensure safe transportation through rugged terrains.

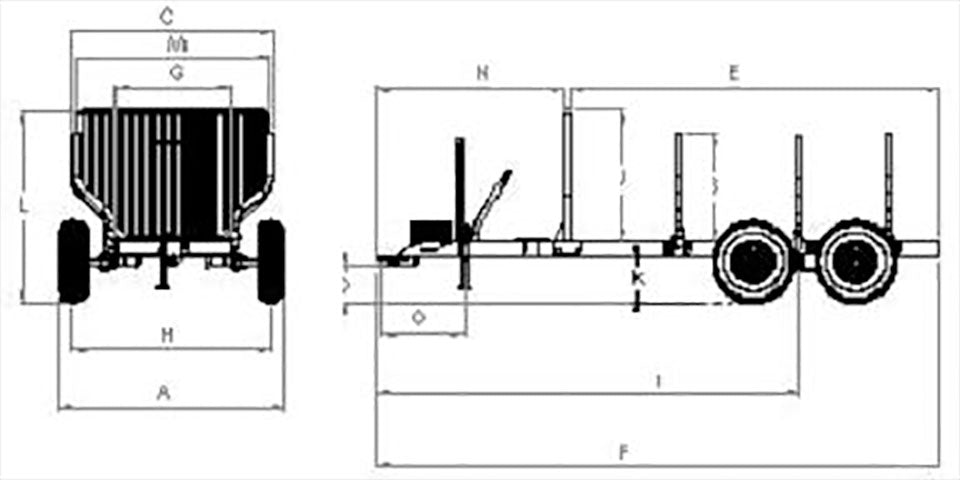

Detailed Specifications
| MODEL CODE | 900R | 900RA | FOR 1005 | FOR 1205 | FOR 1207 | FOR 1610 |
|---|---|---|---|---|---|---|
| Weight | 535 lbs | 635 lbs | 980 lbs | 1400 lbs | 1430 lbs | 1950 lbs |
| Capacity | 3500 lbs | 4000 lbs | 3T / 3000 kg | 5T / 5000 kg | 7T / 7000 kg | 12T / 12000 kg |
| Recommended for | ATV | Voirp.8 | Tract. 30 HP | Tract. 50 HP | Tract. 75 HP | Tract. 100 HP |
| Overall length (F) | 161" | 161" | 190" | 200" | 200" | 246" |
| Overall width (A) | 54" | 65" | 62" | 73" | 80" | 80" |
| Coupler height (D) | 13" | 13" | 12" | 12" | 12" | 15" |
| Posts maximum height (B) | 25" | 25" | 40" | 40" | 40" | 40" |
| Loading length (E) | 93" | 93" | 112" | 128" | 128" | 176" |
| Loading width © | 38" | 41" | 55" | 60" | 66" | 66" |
| Base loading width (G) | 23 1/2" | 27" | 29 1/2" | 34" | 40" | 40" |
| Track width/center to center (H) | 44" | 53 1/2" | 54" | 62-3/4" | 69-1/2" | 69-1/2" |
| Spindles (I) | 1/2" | 1 3/4" | 2" | 2" | 2" | 2" |
| Hub qty/bolts | 5 holes | 5 holes | 6 holes | 6 holes | 7 holes | 8 holes |
| Agricultural tire | 25X12X10 | 25X12X10 | 11 L15/8 ply | 11 L15/8 ply | 12 L15/10 ply | 14L16.1 12 ply |
| Tongue stand | Jack | Jack | STD | STD | STD | STD |
| Tandem | Adjustable | Adjustable | Fixed | Fixed | Fixed | Fixed |
| Ground clearance (K) | 14" | 14" | 14" | 17" | 17" | 20" |
| OPTIONS | ||||||
| Electric Brake | OPT | OPT | OPT | OPT | OPT | OPT |
| Wheel Diflector | N/A | N/A | OPT | OPT | OPT | OPT |
| Verin (Cric) | INCL | INCL | OPT | OPT | OPT | OPT |
Manual & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

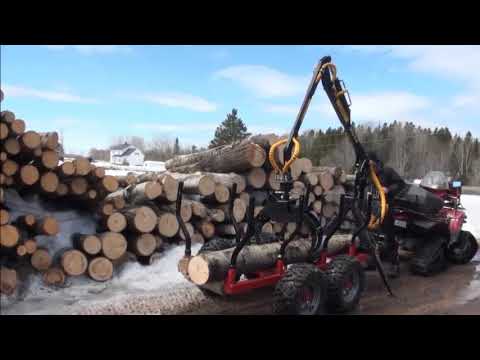

Videos
