Machinerie AM Inc | "RFR" Series Road & Forestry Trailer | with coupler 2 5/16"/Goose Neck | GVWR  7700 lbs To 30000 lbs

Description

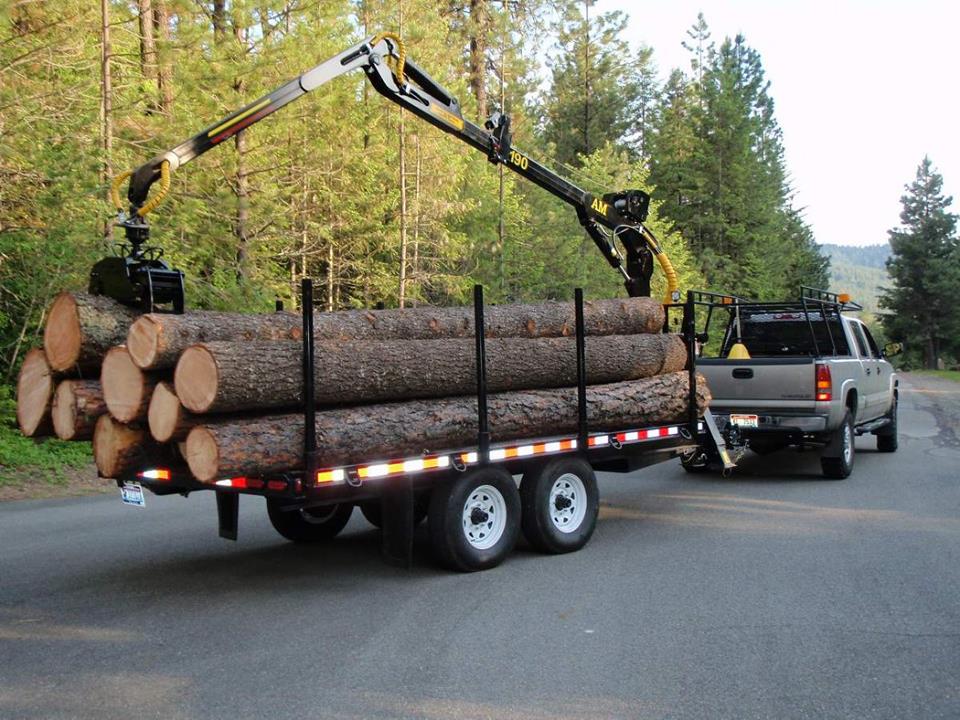

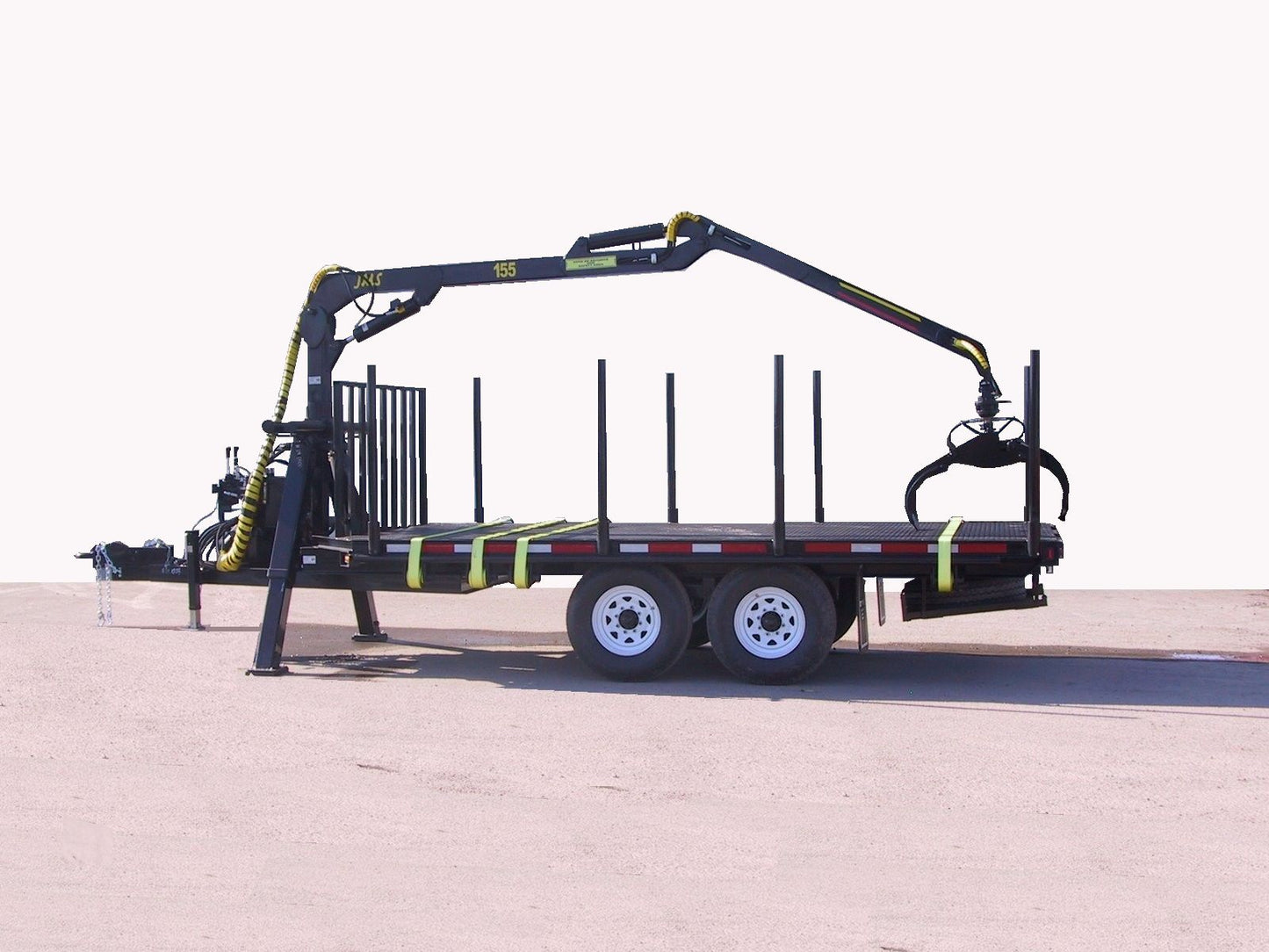

The Machinerie AM Inc “RFR” Series Road & Forestry Trailer is a highly versatile and durable trailer designed to meet the demanding needs of both road and forestry applications.

The “RFR” Series Road & Forestry Trailer by Machinerie AM Inc is engineered for heavy-duty performance and reliability. It offers a range of coupler options, including a 2 5/16" ball hitch and a gooseneck, to suit various towing requirements. With a Gross Vehicle Weight Rating (GVWR) ranging from 7,700 lbs to 30,000 lbs, this trailer is capable of handling a wide array of loads, making it an ideal choice for transporting heavy equipment and materials in challenging environments.

The Machinerie AM Inc “RFR” Series Road & Forestry Trailer is designed to handle off-road conditions effectively. Its durable construction and robust suspension system make it well-suited for rough terrains typically encountered in forestry and off-road applications. The trailer’s sturdy build ensures it can withstand the challenges of uneven and rugged surfaces, providing reliable performance even in demanding environments.

Compatibility Chart



Key Features

• Coupler Options: Available with a 2 5/16" ball hitch or a gooseneck, providing flexibility for different towing setups.
• GVWR Range: Offers a GVWR from 7,700 lbs to 30,000 lbs, accommodating various load capacities.
• Durable Construction: Built to withstand tough conditions, ensuring longevity and reliability in both road and forestry applications.
• Electric Brakes: Equipped with electric brakes for enhanced safety and control during transportation.
• Customization Options: Includes options for spare tires, wooden or metal floors, ramps, turrets with ladders, and hydraulic winches.
• Loading Space: Generous loading space dimensions, varying by model, to accommodate different types of cargo.
• Axle Configurations: Multiple axle configurations to support different weight capacities and ensure stability.
• Suspension System: Robust suspension system designed to handle rough terrains and provide a smooth ride.
• Safety Features: Includes securing straps and trailer posts to ensure the load is safely secured during transit.

This trailer is perfect for those who need a reliable and adaptable solution for transporting heavy loads in challenging environments. Whether you are working on the road or in the forest, the “RFR” Series trailer is designed to meet your needs with its robust construction and versatile features.

Detailed Specifications

Model	Weight (approx)	Capacity (GVWR)	Loading Surface	Overall Length	Overall Width	Axles	Suspension	Electric Brakes	Tires (spare tire optional)	Trailer Posts	Securing Strap	Hitch Height	Track Width Center/Center	Hub Holes/Bolts (Qty)	Hitch	Pintle Hook

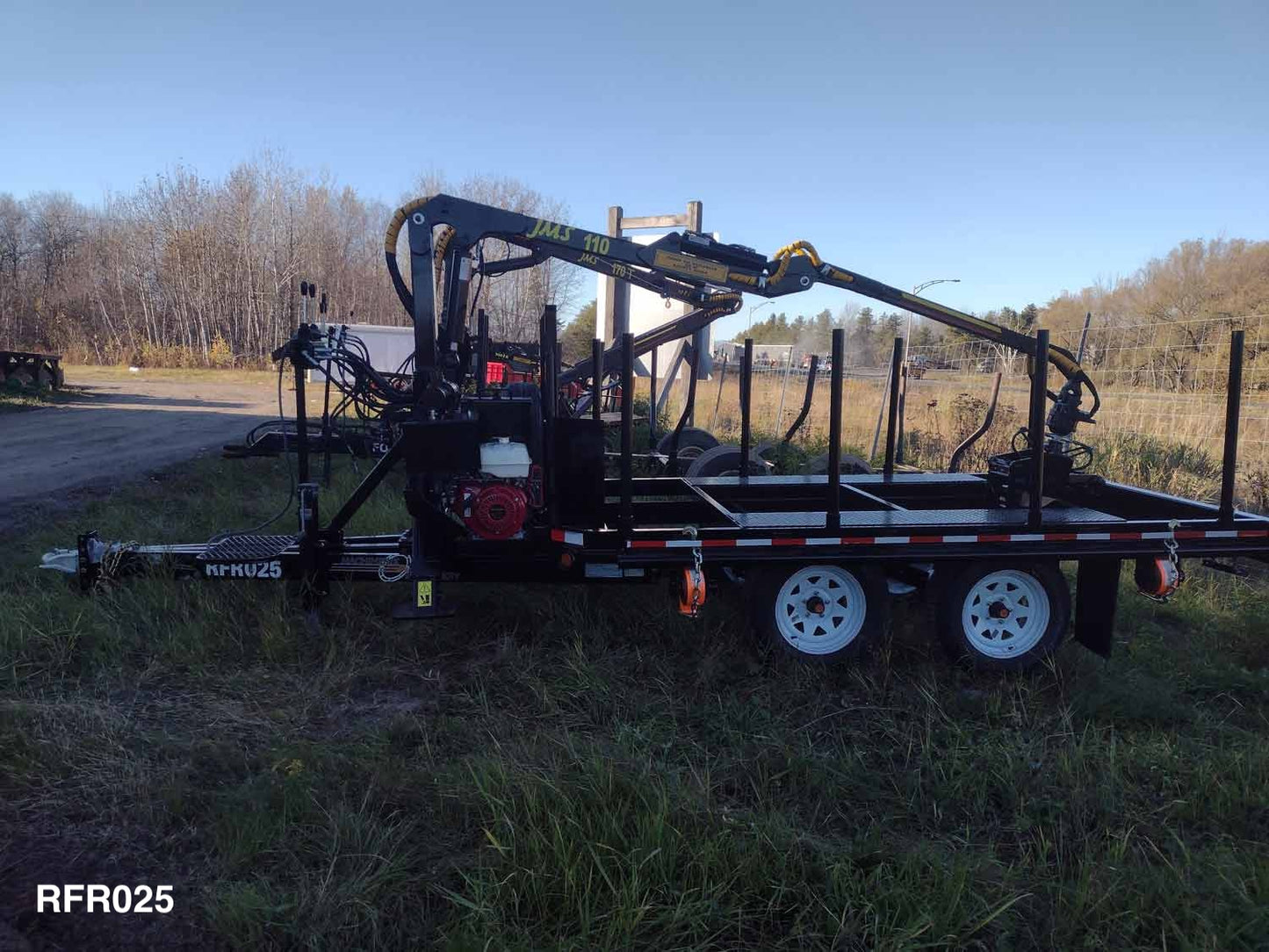

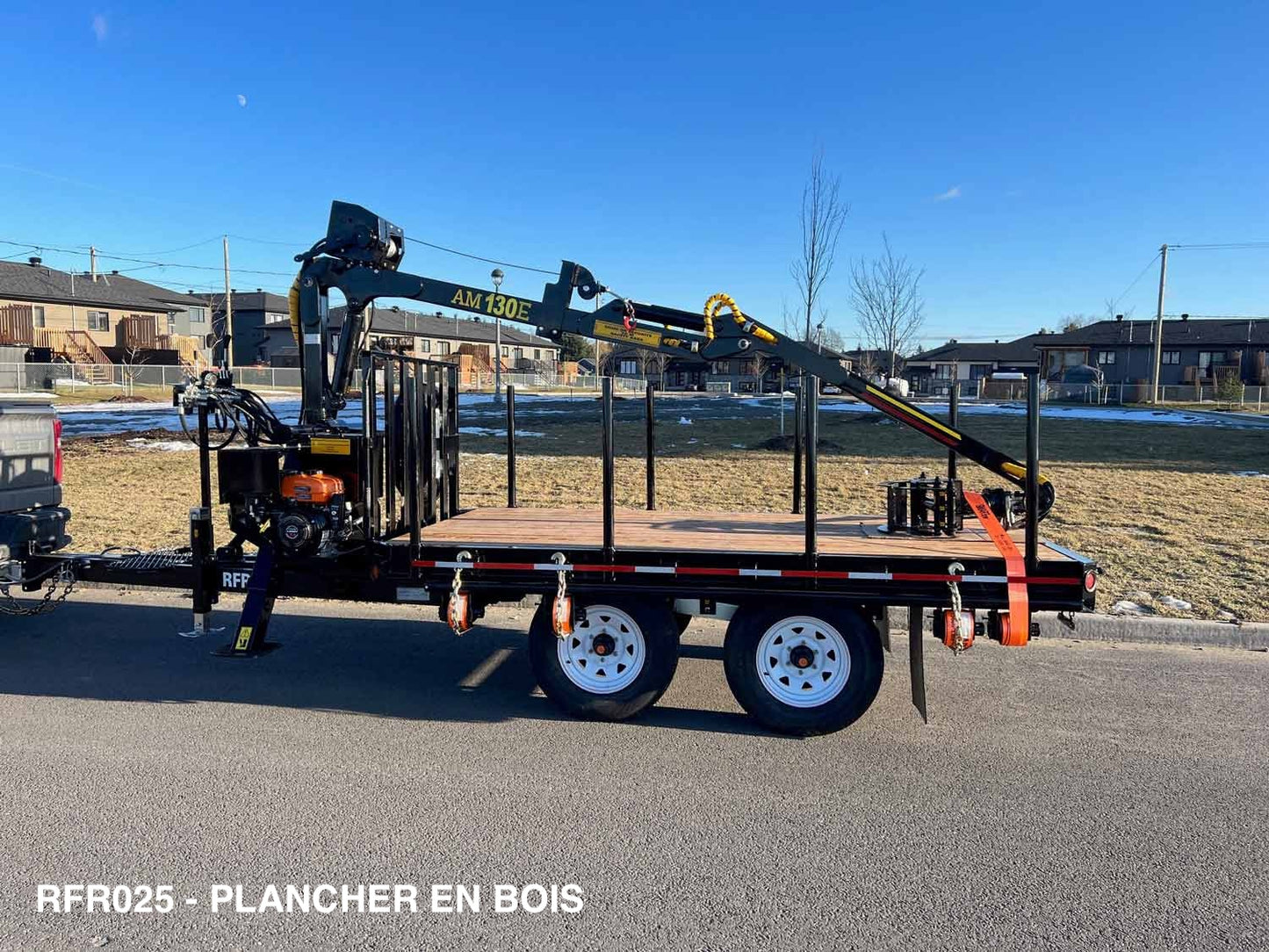

RFR025	1628 lb	7000 lb	64" x 10’8"	17’	72"	2 x 3500 lb	Blades	10"	H78/15ST 8 ply	8 x 48"	2	18"	50"	5	2 5/16"	Optional

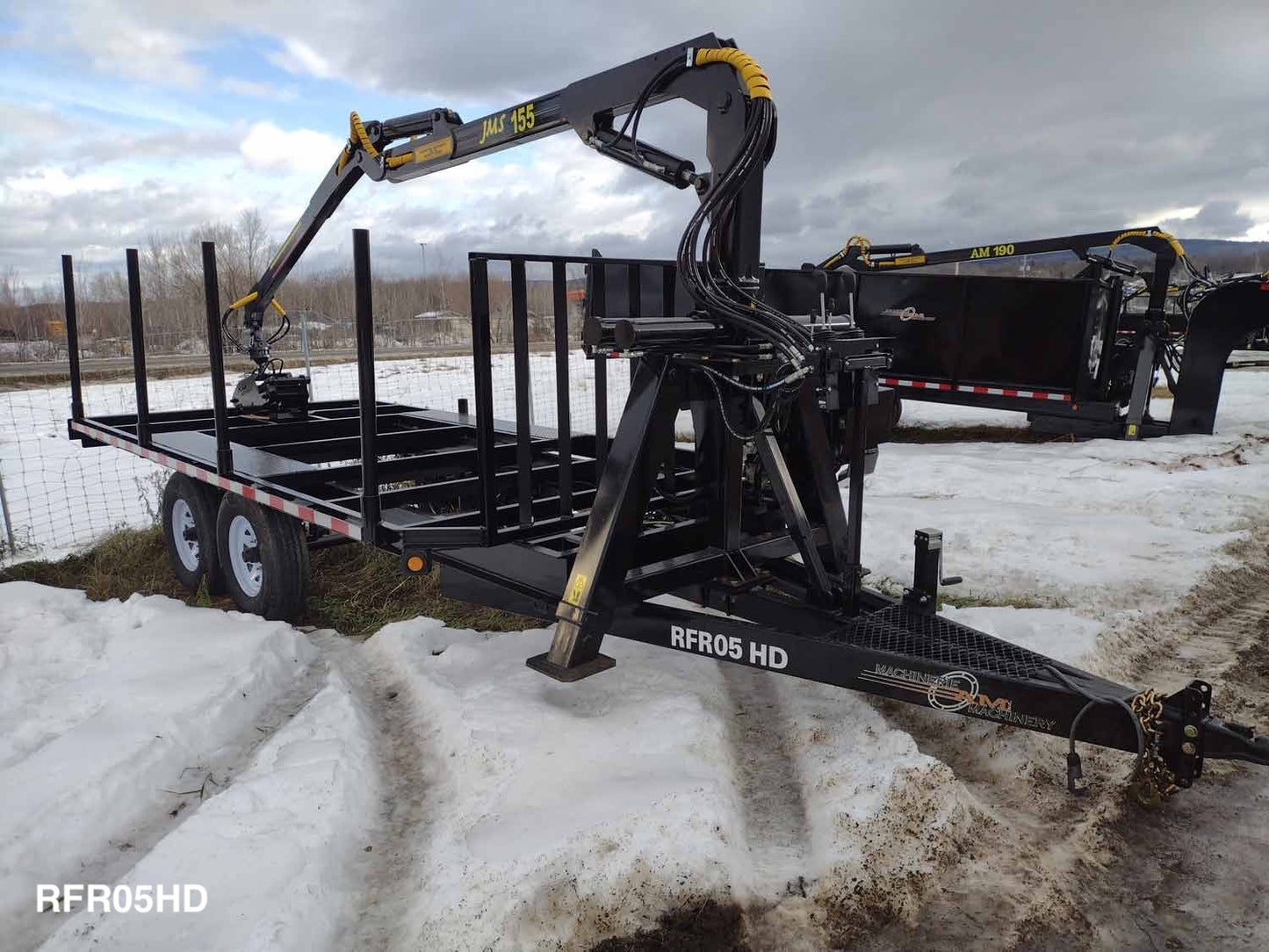

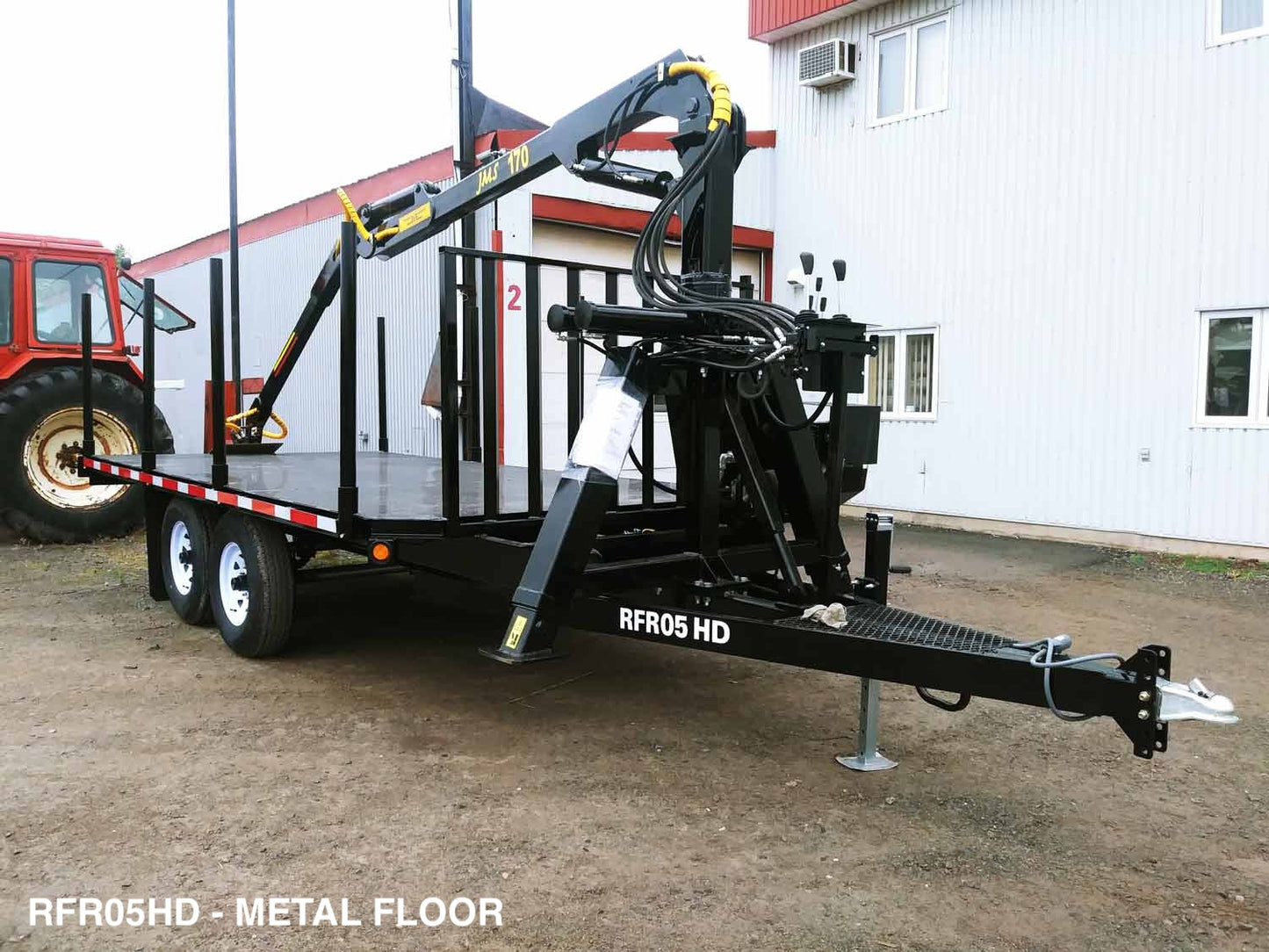

RFR05HD	2530 lb	13,385 lb	84" x 15’4"	24’	93"	2 x 7000 lb	Blades	12"	235/85R16 10 ply	8 x 48"	4	21"	71"	8	2 5/16"	Optional

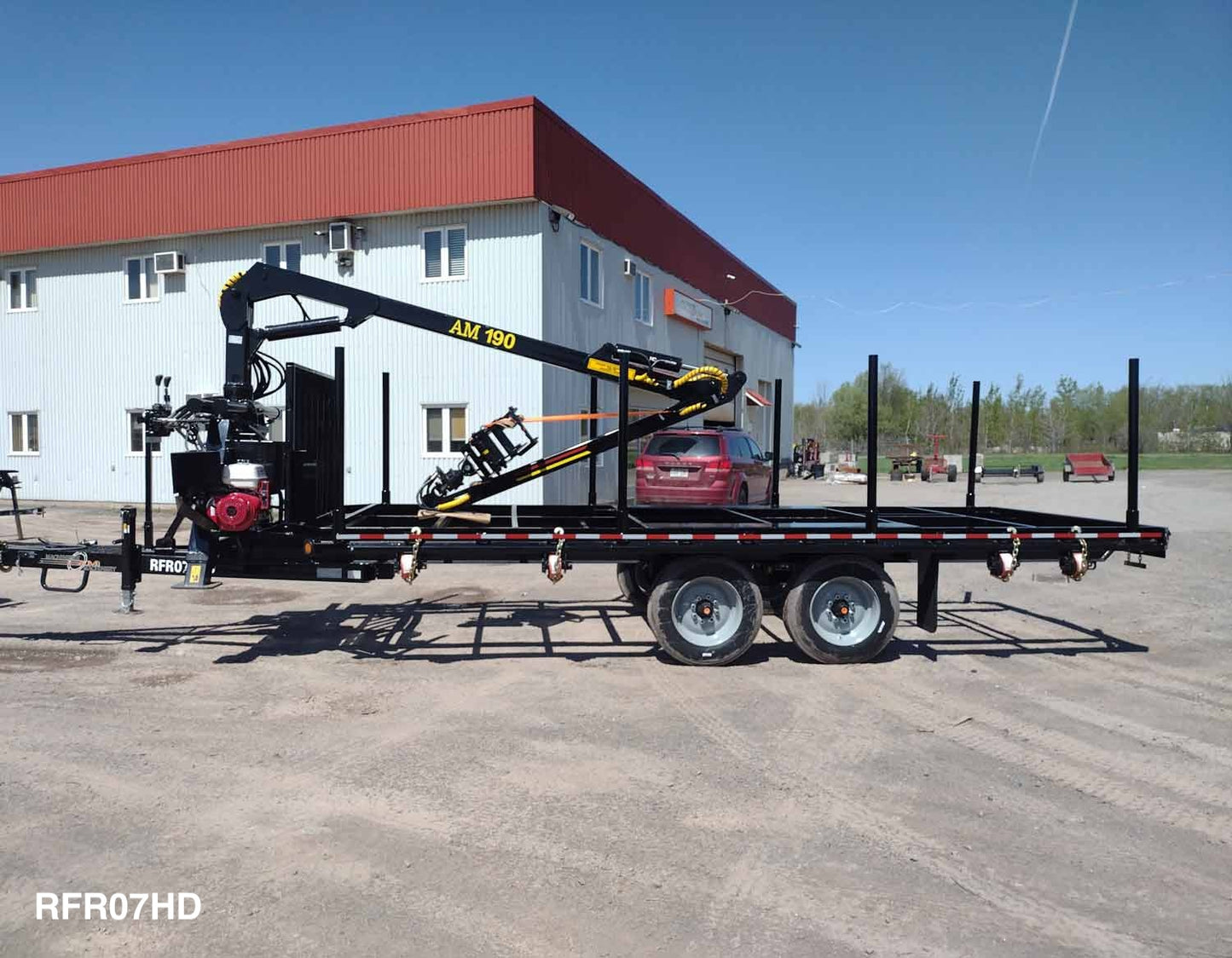

RFR07HD	2860 lb	16,500 lb	84" x 18’	26.75’	93"	2 x 8000 lb	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	Optional

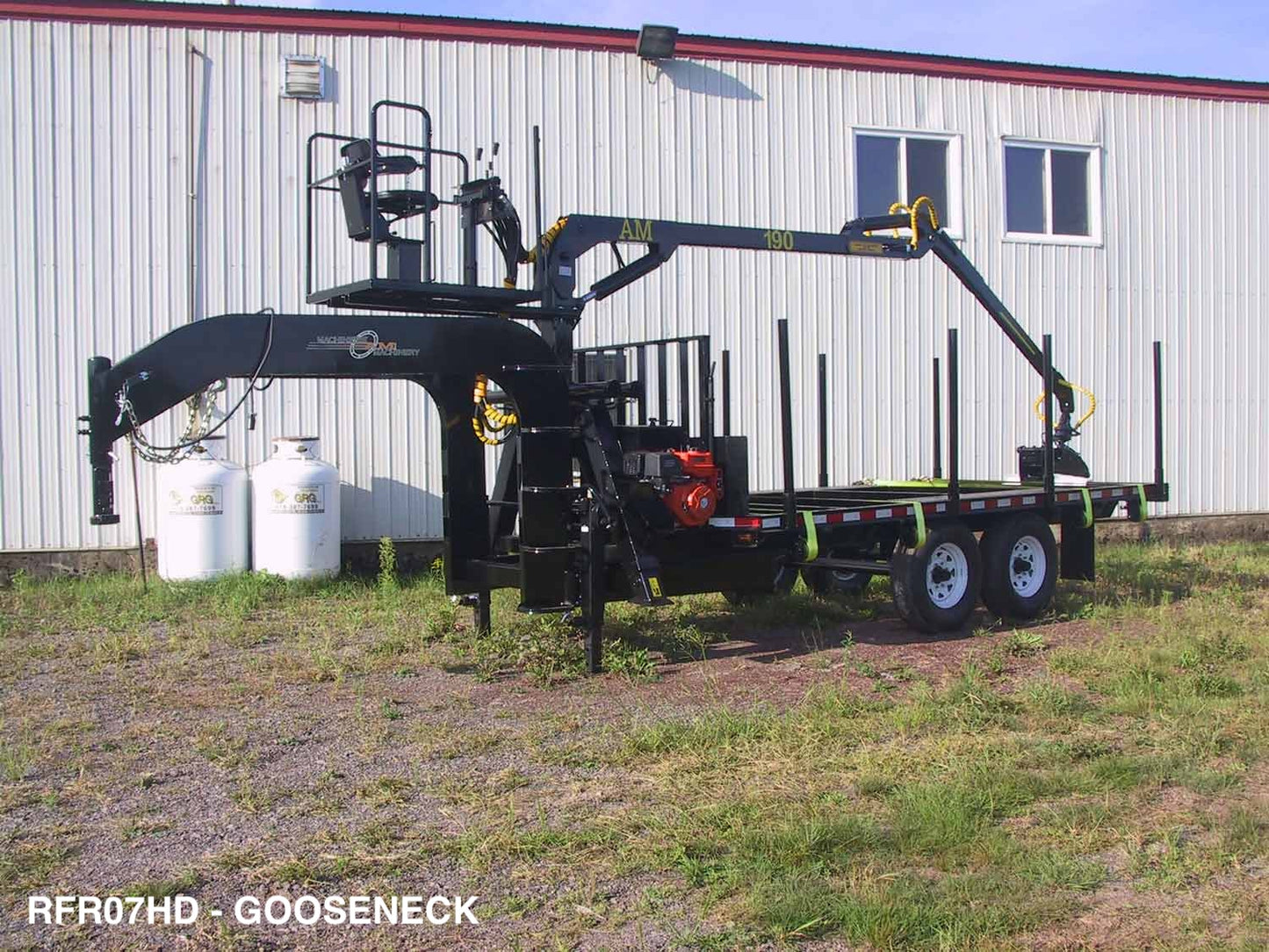

RFR07GN-HD	3600 lb	16,500 lb	84" x 18’	30.6’	93"	2 x 8000 lb	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	N/A
RFR10HD	4000 lb	20,000 lb	84" x 18’	26.75’	93"	3 x 7000 lb	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	Optional

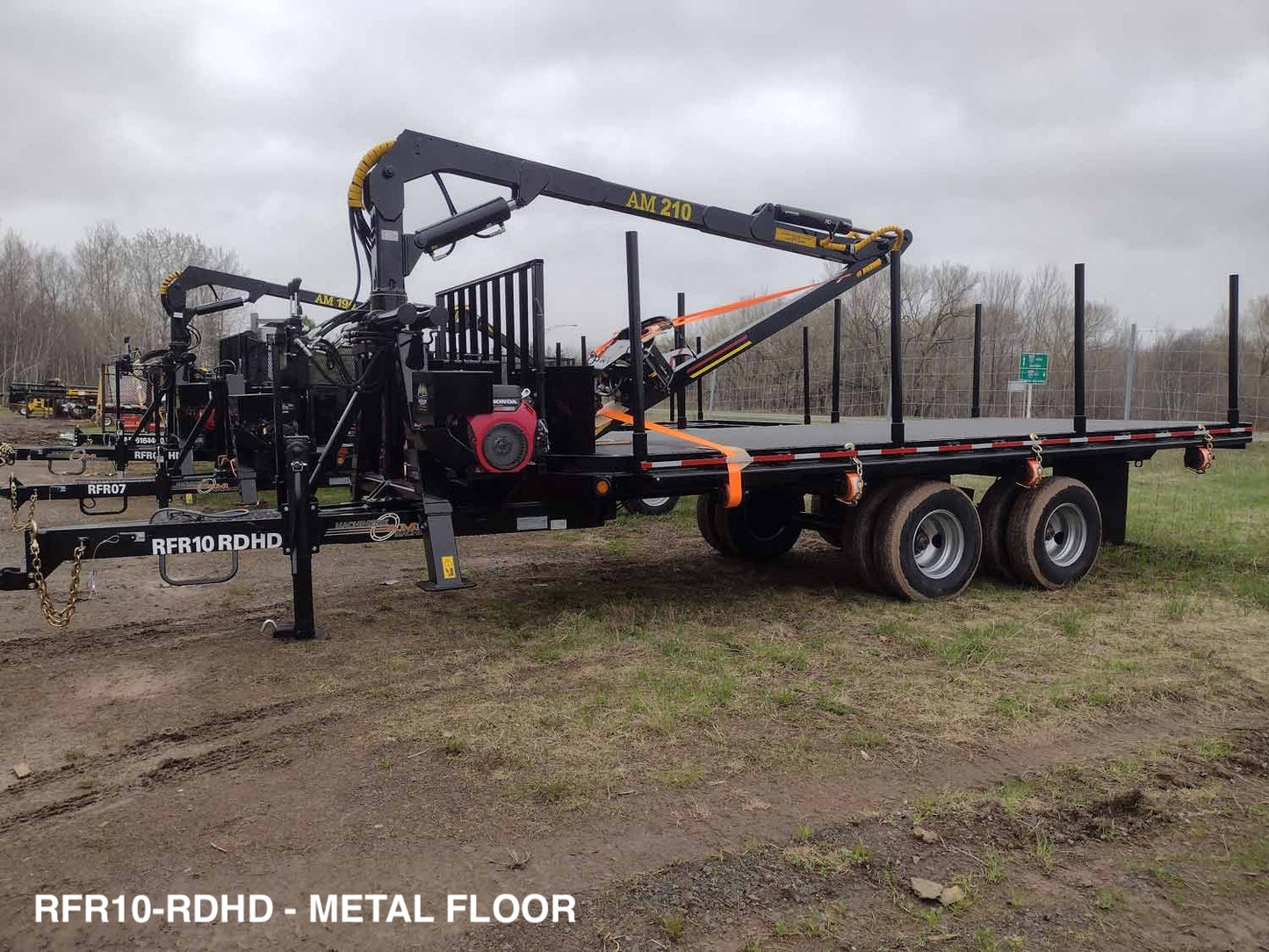

RFR10-RDHD	4635 lb	20,000 lb	94" x 18’	26.75’	101"	2 x 10,000 dbl tires	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	Optional

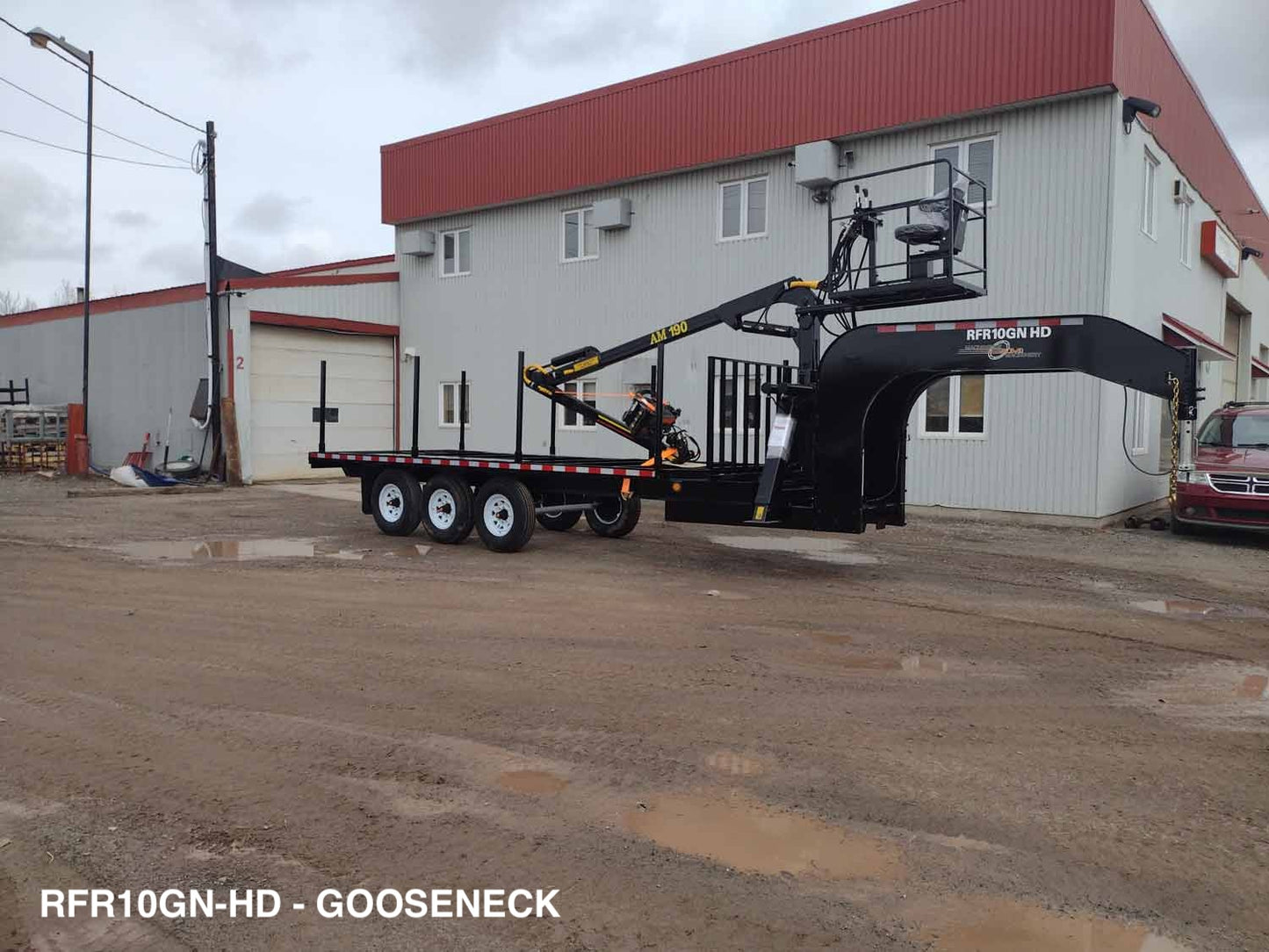

RFR10GN-HD	4635 lb	20,000 lb	84" x 18’	30.6’	93"	3 x 7000 lb	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	N/A
RFR10GN-RDHD	5200 lb	20,000 lb	94" x 18’	30.6’	101"	2 x 10,000 dbl tires	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	N/A
RFR12HD-RD	5200 lb	24,000 lb	94" x 18’	26.75’	101"	2 x 12,000 dbl tires	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	Optional
RFR12GN-RDHD	5200 lb	24,000 lb	94" x 18’	30.6’	101"	2 x 12,000 dbl tires	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	N/A
RFR15GN-RDHD	5200 lb	30,000 lb	94" x 18’	30.6’	101"	2 x 15,000 dbl tires	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	N/A
RFR15HD-RD	5200 lb	30,000 lb	94" x 18’	26.75’	101"	2 x 15,000 dbl tires	Blades	12"	235/85R16 12 ply	8 x 48"	4	21"	71"	8	2 5/16"	Optional

Manual & Documents

• Manual RFR025
• Manual RFR05
• Manual RFR07
• Manual RFR10

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

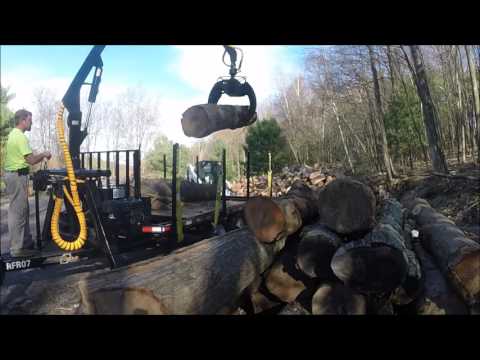

Videos
