Product Description
Madenler Cargo / Silage Transport Trailer | Case Width 3300-6000mm | Hydraulic Brake System
DESCRIPTION
Experience unmatched strength and versatility with Madenler’s Cargo / Silage Transport Trailers engineered to meet every need in modern agriculture. Whether you’re transporting silage or general cargo, our trailer range is available in multiple capacities, from a compact 4-ton model to a robust 18-ton heavy-duty option. Each trailer is meticulously crafted with high-quality ST-37 steel and features advanced hydraulic tipper systems, ensuring safe and efficient unloading. Designed for both durability and performance, these trailers are optimized for maximum volume and ease of operation providing an indispensable solution for farmers looking to streamline their transportation processes. With reliable braking systems, tailored axle configurations, and precision-engineered dimensions, Madenler trailers promise to elevate your farm’s efficiency while ensuring the safe conveyance of your agricultural loads.
Key Features
- Versatile Tonnage Options: Choose from eight different models each specifically designed to handle loads from 4 tons up to 18 tons, ensuring the perfect fit for your transportation needs.
- Robust Construction: Built entirely from ST-37 steel, our trailers are engineered for longevity, withstanding the toughest farm conditions while delivering consistent performance.
- Advanced Tipper Systems: Equipped with hydraulic tipping mechanisms (ranging from 2-stage to 5-step options) that guarantee safe and efficient unloading of silage and cargo.
- Optimized Capacity: Each model features a meticulously designed internal volume to maximize storage, with precise case dimensions and cover heights for streamlined loading and protection.
- Tailored Axle & Brake Systems: Whether you need a single axle with leaf springs for lighter loads or a tandem axle configuration for heavier tasks, our trailers offer the perfect suspension and hydraulic braking for dependable control.
- Engineered for Efficiency: From the case width to the additional cover height, every dimension is designed to optimize space and improve load stability during transit, reducing wear and increasing productivity.

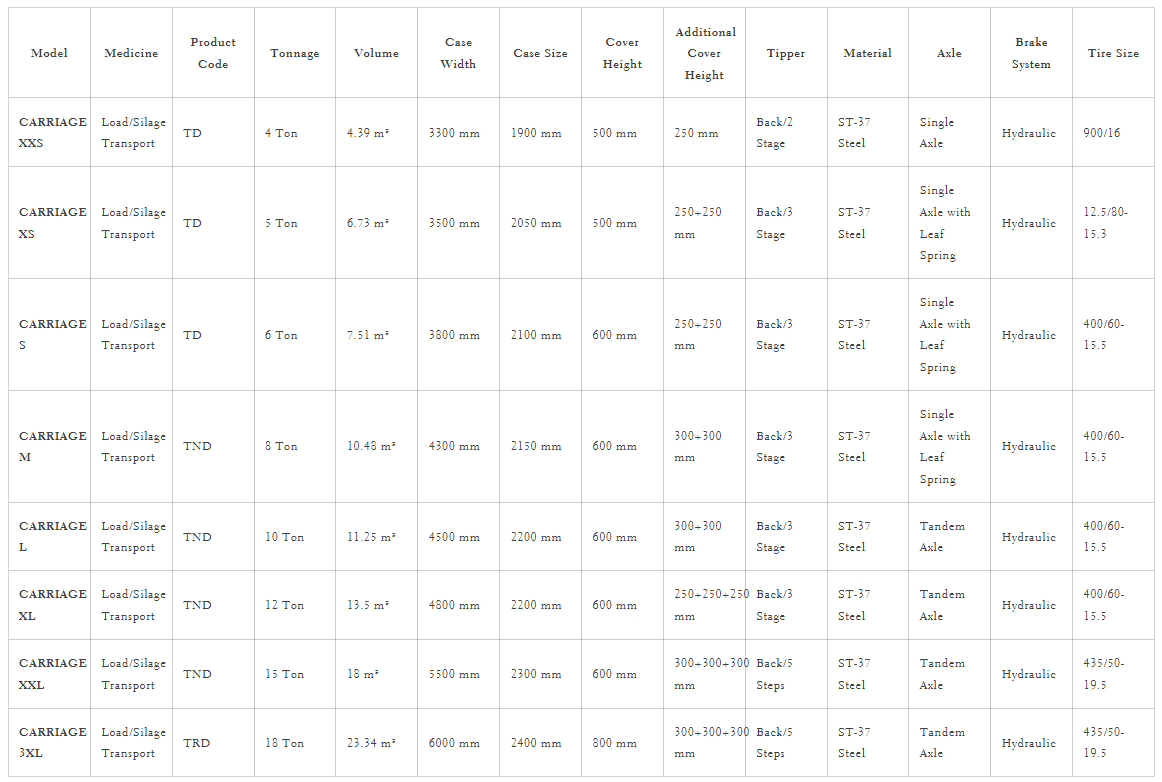

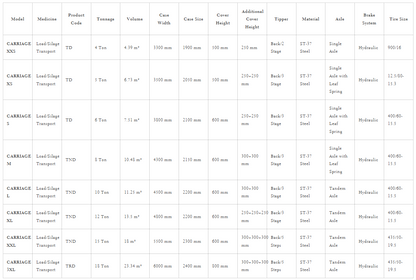

Detailed Specifications
| Feature | CARRIAGE XXS | CARRIAGE XS |
|---|---|---|
| Model | CARRIAGE XXS | CARRIAGE XS |
| Medicine | Load/Silage Transport | Load/Silage Transport |
| Product Code | TD | TD |
| Tonnage | 4 Ton | 5 Ton |
| Volume | 4.39 m³ | 6.73 m³ |
| Case Width | 3300 mm | 3500 mm |
| Case Size | 1900 mm | 2050 mm |
| Cover Height | 500 mm | 500 mm |
| Additional Cover Height | 250 mm | 250+250 mm |
| Tipper | Back/2 Stage | Back/3 Stage |
| Material | ST-37 Steel | ST-37 Steel |
| Axle | Single Axle | Single Axle with Leaf Spring |
| Brake System | Hydraulic | Hydraulic |
| Tire Size | 900/16 | 12.5/80-15.3 |
| Feature | CARRIAGE S | CARRIAGE M |
|---|---|---|
| Model | CARRIAGE S | CARRIAGE M |
| Medicine | Load/Silage Transport | Load/Silage Transport |
| Product Code | TD | TND |
| Tonnage | 6 Ton | 8 Ton |
| Volume | 7.51 m³ | 10.48 m³ |
| Case Width | 3800 mm | 4300 mm |
| Case Size | 2100 mm | 2150 mm |
| Cover Height | 600 mm | 600 mm |
| Additional Cover Height | 250+250 mm | 300+300 mm |
| Tipper | Back/3 Stage | Back/3 Stage |
| Material | ST-37 Steel | ST-37 Steel |
| Axle | Single Axle with Leaf Spring | Single Axle with Leaf Spring |
| Brake System | Hydraulic | Hydraulic |
| Tire Size | 400/60-15.5 | 400/60-15.5 |
| Feature | CARRIAGE L | CARRIAGE XL |
|---|---|---|
| Model | CARRIAGE L | CARRIAGE XL |
| Medicine | Load/Silage Transport | Load/Silage Transport |
| Product Code | TND | TND |
| Tonnage | 10 Ton | 12 Ton |
| Volume | 11.25 m³ | 13.5 m³ |
| Case Width | 4500 mm | 4800 mm |
| Case Size | 2200 mm | 2200 mm |
| Cover Height | 600 mm | 600 mm |
| Additional Cover Height | 300+300 mm | 250+250+250 mm |
| Tipper | Back/3 Stage | Back/3 Stage |
| Material | ST-37 Steel | ST-37 Steel |
| Axle | Tandem Axle | Tandem Axle |
| Brake System | Hydraulic | Hydraulic |
| Tire Size | 400/60-15.5 | 400/60-15.5 |
| Feature | CARRIAGE XXL | CARRIAGE 3XL |
|---|---|---|
| Model | CARRIAGE XXL | CARRIAGE 3XL |
| Medicine | Load/Silage Transport | Load/Silage Transport |
| Product Code | TND | TRD |
| Tonnage | 15 Ton | 18 Ton |
| Volume | 18 m³ | 23.34 m³ |
| Case Width | 5500 mm | 6000 mm |
| Case Size | 2300 mm | 2400 mm |
| Cover Height | 600 mm | 800 mm |
| Additional Cover Height | 300+300+300 mm | 300+300+300 mm |
| Tipper | Back/5 Steps | Back/5 Steps |
| Material | ST-37 Steel | ST-37 Steel |
| Axle | Tandem Axle | Tandem Axle |
| Brake System | Hydraulic | Hydraulic |
| Tire Size | 435/50-19.5 | 435/50-19.5 |
