Product Description
Manac / CPS | Lightweight Bottom Dump Trailer | 42' Length | 23 CY Capacity | 96" Width | For Efficient Bulk Material Transport
Ripping It is Partnered with Western Truck to provide the best pricing and service for Manac (CPS).
DESCRIPTION

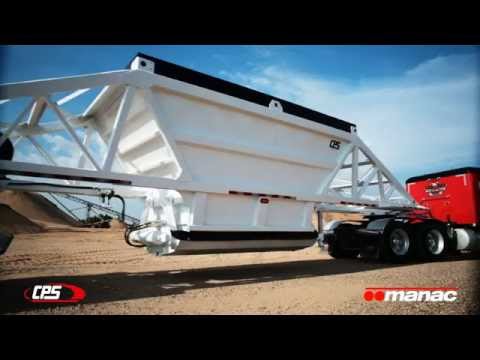

The 2025 Manac CPS Lightweight Bottom Dump Trailer is a high-efficiency bulk hauling solution, built for durability, superior load handling, and seamless material transport. Engineered with a reinforced HSLA steel frame, air-ride suspension, and a commercial-grade gate system, this trailer ensures precision unloading and optimized load capacity for demanding transport applications.
With a 42-foot length and a single hopper capacity of 20 cubic yards (expandable to 23 cubic yards with bangboards), this bottom dump trailer provides ample hauling space, making it ideal for construction sites, aggregate transport, and industrial material handling. The steel-welded push block, windrow deflector, and precision air-controlled gate system allow for streamlined unloading and load containment, ensuring high operational efficiency.
Designed with power requirements (kW/HP optimized) for seamless pneumatic integration, this trailer includes twin 8-inch air cylinders, a 60-gallon air reservoir, and an electric/manual Versa valve hand control, guaranteeing secure and controlled material discharge. Equipped with DOT-compliant lighting, automatic slack adjusters, and a durable paint finish, the Manac CPS Lightweight Bottom Dump Trailer offers unmatched reliability and industry-leading hauling capability.
Key Features
- High-Capacity Hopper for Bulk Material Transport: 20 cubic yards standard capacity, 23 cubic yards with bangboards for maximized load efficiency.
- Optimized Power Requirements: Designed for efficient pneumatic transport (kW/HP optimized) ensuring precise unloading cycles.
- Heavy-Duty Air Suspension & Axle System: Tridem air-ride suspension, hub-piloted 25K axles, and ABS-equipped braking system for secure hauling.
- Premium Wheels & High-Traction Tires for Long-Haul Reliability: Steel exterior & interior wheels, high-performance 11R24.5 16-ply radial tires for enhanced durability.
- Advanced Gate System & Load Securement: Commercial-grade steel gates with slide locks, precision air-controlled electric/manual discharge system.
- DOT-Approved Safety & Visibility Enhancements: LED lighting package, mid-flashers, and reflective conspicuity striping for optimal transport security.
- Integrated Windrow Deflector & Push Block for Load Control: Standard galvanized windrow dirt deflector, reinforced welded push block with certified underride protection.
Detailed Specifications
| Category | Details |
|---|---|
| Model Year | New - 2024 |
| Model | Manac/CPS Lightweight Bottom Dump Trailer |
| Length | 42' |
| Width | 96" |
| Height | 10' with Bangboards / 9'1" without Bangboards |
| Capacity | 20 Cubic Yards (Single Hopper) / 23 Cubic Yards (with Bangboards) |
| Coupler Height | 48" |
| Hopper Material | Upper Hopper: 10 & 12 GA Lightweight, Lower Hopper: 10 GA Lightweight |
| Gate Material | 3/16 80W Standard Steel Doors |
| Gate Style | Commercial Grade Steel with Slide Locks |
| Frame Construction | Welded Push Block with Certified Underride |
| Axle Configuration | Tridem |
| Suspension | Tridem Air Ride |
| Wheels & Tires | 11R24.5 16-Ply Steel Wheels |
| Brakes | 16 1/2" x 7" Cam Brakes with Automatic Slack Adjusters |
| Air System | 60 Gallon Air Tank with Air-Controlled Gate Control |
| Lighting System | LED ICC & DOT Approved Sealed Beam System |
| Finish | Shot Blasted, Epoxy Primer, Polyurethane Top Coat |
| Color | White |
| Reflective Tape | Conspicuity Striping Compliant with FMVSS/CMVSS 108 |
