Manac Flatbed Trailer | Model 10248C000L | Length 48' | Width 102"
Ripping It is Partnered with Western Truck to provide the best pricing and service for Manac .
DESCRIPTION
The Manac 10248C000L is a 48-foot combo platform flatbed trailer engineered for strength, weight efficiency, and regulatory compliance. Built with high-tensile steel and structural aluminum, this Legend SD model offers a 102" wide deck with 97" between side rails and a cambered frame for optimal load distribution. Its inverted “T” aluminum floor with Apitong planks, galvanized crossmembers, and CMVSS-approved safety features make it ideal for demanding freight operations. With a fixed tandem bogie, air-ride suspension, and California-legal configuration, this trailer is ready for long-haul performance across North America.
Key Features
- Heavy-Duty Aluminum & Steel Construction: High-tensile 80,000 PSI steel flanges & extruded aluminum flooring for maximum durability.
- Optimized Power Requirements: Designed for efficient towing (kW/HP optimized) ensuring seamless hauling operations.
- Premium Suspension & Axle Configuration: Fixed tandem bogie suspension, legal CA spacing, and high-strength crossmembers.
- High-Performance Deck & Load Securement: 1 1/8" aluminum extrusions with Apitong planks, beveled corners, and reinforced dock bumpers.
- DOT-Approved Safety & Lighting Package: Grote Ultra Blue LED system, shock-proof polycarbonate lenses, and recessed reflective tape for optimal compliance.
- Integrated Gooseneck Ramp & Load Adaptability: 11 1/4" gooseneck with integrated nose ramp for versatile cargo handling.
Detailed Specifications
| Category | Specification |
|---|---|
| Manufacturer | Manac |
| Model | 10248C000L |
| Trailer Type | Flatbed (Combo Platform Legend SD) |
| Length | 48'-0" |
| Width | 102" overall / 97" between side rails |
| Floor Height | 59½" front / 54" rear |
| Coupler Plate | ¼" thick, 80,000 PSI steel, plug welded |
| King Pin Location | 30" from front |
| Coupler Height | 48" |
| Frame Structure | 44" C/C cambered frame |
| Flanges | ⅜" x 5", high tensile steel |
| Web | ¼" plate at king pin, 3/16" elsewhere, 27" high with lightening holes |
| Gooseneck | 11¼" high with integrated nose ramp |
| Crossmembers | 4" I-beams @ 3.2 lbs/ft, galvanized, 16" C/C |
| X Braces | Full-length between main beams |
| Corners | Bevelled |
| Floor | Inverted “T” aluminum extrusions, 1⅛" high, with Apitong planks |
| Side Rails | 4⅜" x 5 11/16" extruded aluminum (“Legend” model) |
| Side Boxes | 3⅝" x 1⅝" inside, 4" high, extruded aluminum, 5500 lbs WLL |
| Rub Rails | ⅜" x 2¾" aluminum extrusions with 1" x 1¾" anchor spacers |
| Rear Rail | Galvanized formed steel |
| Front Rail | 7" bolted aluminum extrusion, overlapped floor |
| Bumper (Structure) | CMVSS 223-RIG approved, galvanized steel, 4" x 4" cross bar |
| Bumper (Dock) | Two rubber dock bumpers |
| Electrical Connector | 7-way SAE J560 |
| Lighting System | Grote Ultra Blue LED, sealed beams, CMVSS 108 compliant |
| Flashers | Amber sealed beam LED mid-point flashers |

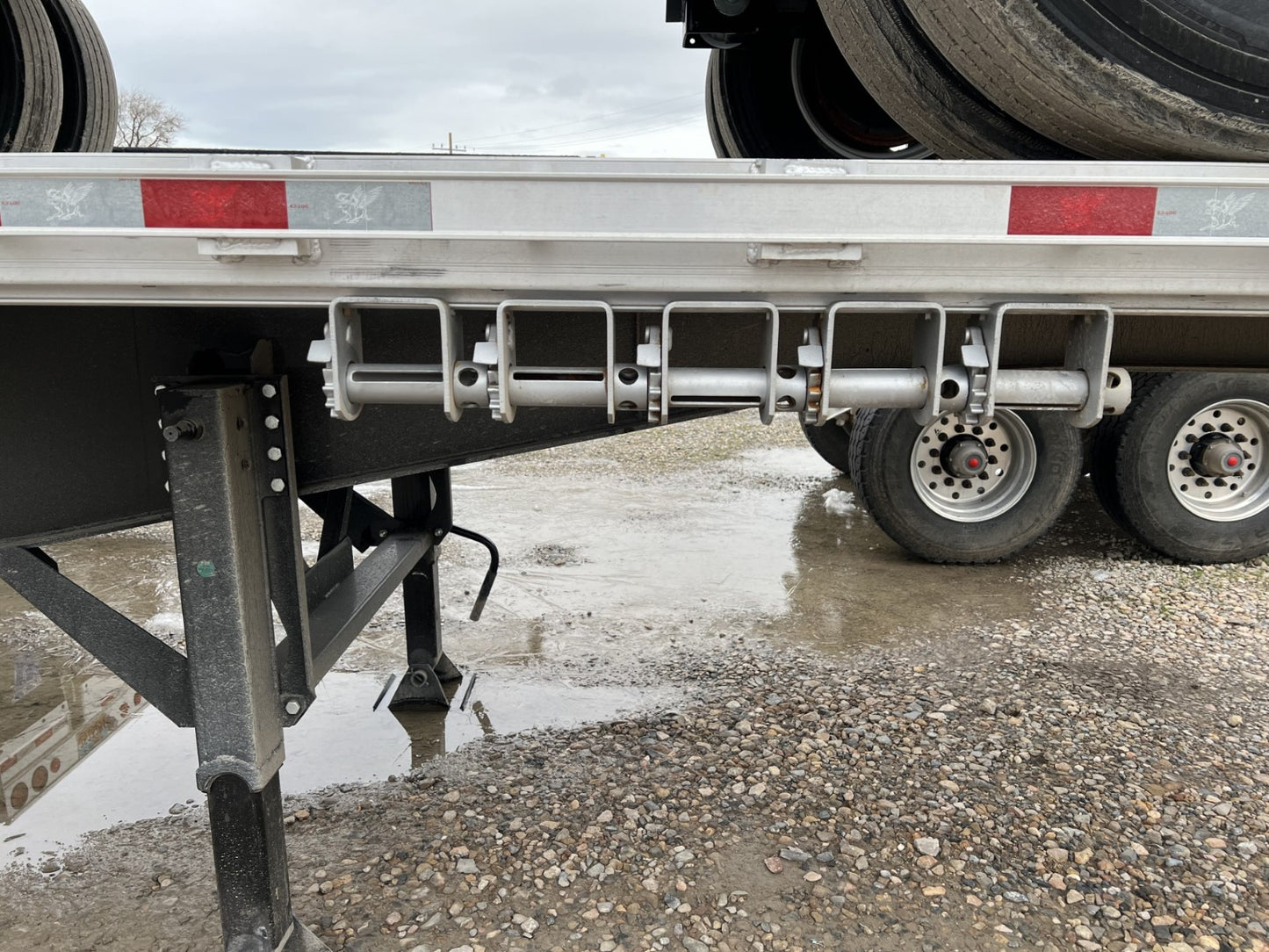

| Landing Gear | AXN LG50DUN with roadside crank |
| Sand Shoes | 10" x 10" |
| Bogie | Fixed tandem, 122" spread |
| Compliance | California Legal |
