MAXILATOR

Maxilator | Bale Spear | Models MHS-FEL1-GEM & MHS-FEL2-GEM Series | Bale Width 39" To 48" Spears | Lift Capacity 3,500 To 5,000 lbs | Horsepower 70 To 120 HP | For Tractor

Maxilator | Bale Spear | Models MHS-FEL1-GEM & MHS-FEL2-GEM Series | Bale Width 39" To 48" Spears | Lift Capacity 3,500 To 5,000 lbs | Horsepower 70 To 120 HP | For Tractor

Regular price $733.00
Regular price Sale price $733.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Compatibility: Fits Euro/Global mount tractors (70 To 120 HP).
  • Lift Capacity: 3,500 To 5,000 lbs depending on model.
  • Spear Length: Available in 39" or 48" configurations.
  • Intended Use: Designed for transporting 1 To 2 large round hay bales.
  • Unit Weight: Approx. 221 To 315 lbs based on single or double spear model.
View full details

Product Description

Maxilator | Bale Spear | Models MHS-FEL1-GEM & MHS-FEL2-GEM Series | Bale Width 39" To 48" Spears | Lift Capacity 3,500 To 5,000 lbs | Horsepower 70 To 120 HP | For Tractor



DESCRIPTION

Whether you’re moving a single bale or two, Maxilator’s lineup of Single and Double Bale Spears offers robust, American-made durability and impressive load capacities ranging from 3,500 to 5,000 lbs. Available in both 39” and 48” spear lengths, these attachments provide unmatched stability and load control in field, barn, and pasture settings.

Each model in this series is designed for Euro/Global quick attach systems and made to work seamlessly with tractors in the 70–120 horsepower range. With thermoplastic-coated spears for maximum durability and a simple, bolt-on design, this series offers performance you can count on season after season.

Whether you’re clearing a hay field or loading out for winter feed, the Maxilator Bale Spear Series is your go-to solution for efficient, safe, and stable bale handling.

Key Features

  • Compatible with tractors in the 70–120 horsepower range, ensuring reliable performance across a wide variety of farm equipment.
  • Available in single or double bale configurations, allowing users to choose the right model for their specific hay handling needs.
  • Offers 3,500 to 5,000 lbs lift capacity, giving operators the power to manage large and heavy round bales with ease.
  • Designed for Euro/Global quick attach systems, providing fast and secure mounting to most modern tractors without modification.
  • Features 39" or 48" spear lengths, offering deep bale penetration and improved transport stability on uneven terrain.
  • Includes multiple spears per unit single spear models feature stabilizers, while the double spear includes 4 spears for maximum balance.
  • Built with heavy-duty American steel, providing exceptional strength and durability for demanding agricultural work.
  • Spears are thermoplastic-coated, protecting against rust, chips, and wear while maintaining visual and structural integrity.
  • Ideal for use in hayfields, barns, feedlots, and pastures, making it a versatile tool for year-round bale handling.
  • Manufactured in the USA, ensuring premium build quality and supporting American craftsmanship.
  • Comes with complete mounting hardware for quick installation, reducing downtime and improving productivity on the job.
  • Compatible with compact, utility, and mid-sized tractors, making it perfect for small farms, large operations, and custom hay producers.
  • Offers stable dual-bale transport with the double spear model, increasing hauling efficiency and reducing trips across the field.
  • Precision-welded frame ensures long-term structural integrity, even in tough, high-use environments.
  • Designed for safe operation, with optimized spear placement to reduce slippage and enhance control during lifting and moving.

Detailed Specifications

Feature Double Bale Spear (MHS-FEL1-GEM/1427/1427)
Manufacturer Maxilator
Product Type Bale Spear – Double Bale Spear
Model Number MHS-FEL1-GEM/1427/1427
Category Tractor Attachment
Mount Type Euro/Global
Machine Compatibility Tractor
Recommended Horsepower 70–120 HP
Lift Capacity 3,500 lbs
Number of Spears 1 Main + 2 Stabilizers
Spear Length Options 39” or 48”
Coating Type Thermoplastic Coated
Frame Material Heavy-Duty Steel
Construction Origin Made in USA
Intended Use Single Bale Transport
Mounting Hardware Included
Weight (Approx.) 221.46 lbs
Industry Use Agriculture, Hay, Livestock



Feature Single Bale Spear (MHS-STS/14727)
Manufacturer Maxilator
Product Type Bale Spear – Single
Model Number MHS-STS/14727
Category Tractor Attachment
Mount Type Euro/Global
Machine Compatibility Tractor
Recommended Horsepower 70–120 HP
Lift Capacity 3,500 lbs
Number of Spears 1 Main + 2 Stabilizers
Spear Length Options 39” or 48”
Coating Type Thermoplastic Coated
Frame Material Heavy-Duty Steel
Construction Origin Made in USA
Intended Use Single Bale Transport
Mounting Hardware Included
Weight (Approx.) 221.46 lbs
Industry Use Agriculture, Hay, Livestock

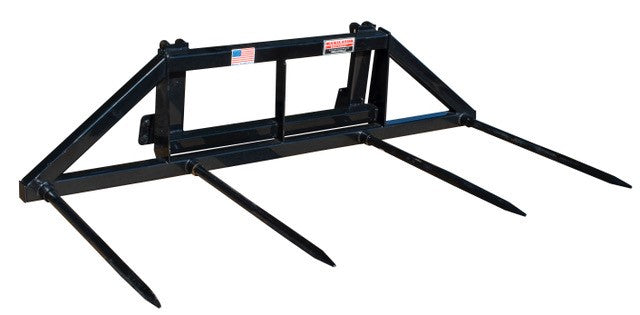

Feature Two Bale Spear (MHS-FEL2-GEM/14727/14727/1427/14727)
Manufacturer Maxilator
Product Type Bale Spear – Two Bale Spear
Model Number MHS-FEL2-GEM/14727/14727/1427/14727
Category Tractor Attachment
Mount Type Euro/Global
Machine Compatibility Tractor
Recommended Horsepower 70–120 HP
Lift Capacity 5,000 lbs
Number of Spears 4 Spears
Spear Length Options 39”
Coating Type Thermoplastic Coated
Frame Material Heavy-Duty Steel
Construction Origin Made in USA
Intended Use Dual Bale Transport
Mounting Hardware Included
Weight (Approx.) 315.14 lbs
Industry Use Agriculture, Hay, Livestock
