MAXILATOR

Maxilator | Two Bale Spear | Model MHS-3PH | 4 Spears | Load Capacity 5,000 lbs | Weight 223 lbs | Horsepower 40 To 120 HP | For Tractor

Maxilator | Two Bale Spear | Model MHS-3PH | 4 Spears | Load Capacity 5,000 lbs | Weight 223 lbs | Horsepower 40 To 120 HP | For Tractor

Regular price $1,583.00
Regular price Sale price $1,583.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Compatibility: Fits 40 To 120 HP tractors with Category I & II 3-point hitch.
  • Spear Length: Four 39" heat-treated spears for stable hay transport.
  • Load Capacity: Handles up to 5,000 lbs for heavy-duty bale handling.
  • Unit Weight: Weighs 223 lbs for balanced tractor-mounted operation.
  • Intended Use: Designed for moving two large round hay bales efficiently.
View full details

Product Description

Maxilator | Two Bale Spear | Model MHS-3PH | 4 Spears | Load Capacity 5,000 lbs | Weight 223 lbs | Horsepower 40 To 120 HP | For Tractor



DESCRIPTION

The Maxilator MHS-3PH Two Bale Spear is the ultimate hay handling solution for farmers, ranchers, and landowners who demand performance, durability, and efficiency from their tractor attachments. Built tough and designed to carry two large round bales at once, this 3-point hitch bale spear transforms your workflow by cutting transport time in half.

With four high-strength spears engineered for deep penetration and stable transport, this heavy-duty spear ensures secure grip and balance even when you're working in rugged terrain. Compatible with a wide range of 40 To 120 HP tractors, it's the perfect fit for anyone looking to optimize hay transport during harvest, feeding, or storage seasons.

Key Features

  • Move two large round hay bales at once to cut your field time in half and boost daily productivity.
  • Compatible with 3-point hitch Category I & II systems, making it ideal for tractors rated 40 To 120 HP.
  • Built with four 39-inch heat-treated spears for deep bale penetration and improved load stability.
  • Handles up to 5,000 lbs of weight, perfect for demanding hay operations and feeding schedules.
  • Heavy-duty steel frame construction ensures long-lasting performance in tough agricultural conditions.
  • Designed for year-round use during baling, feeding, and storage operations on farms and ranches.
  • Quick and secure connection to your tractor’s 3-point hitch for fast job turnaround without extra tools.
  • Thermoplastic-coated spears resist corrosion, chipping, and wear from daily use in the field.
  • Compatible with a wide range of compact, utility, and full-size tractors for flexible integration.
  • Excellent for transporting both dry and wet bales across uneven or hilly terrain.
  • Reinforced frame design keeps bales evenly spaced, reducing shifting and improving transport safety.
  • Low-profile build maintains rear visibility when reversing or maneuvering through tight barn areas.
  • Distributes bale weight evenly across the spears to minimize stress on your tractor’s hitch system.
  • Great for livestock operations needing regular feeding cycles with less manual handling.
  • Complete with all mounting hardware for fast, out-of-the-box installation and use.

Detailed Specifications

Specification Details
Brand Maxilator
Model MHS-3PH
Product Type Two Bale Spear Attachment
Attachment Type 3-Point Hitch (Category I & II)
Tractor Compatibility Tractors rated between 40 To 120 HP
Intended Use Transporting and handling two round hay bales
Load Capacity 5,000 lbs
Number of Spears 4 total (39" length each, heat-treated, replaceable)
Spear Material High-tensile steel with thermoplastic coating for durability

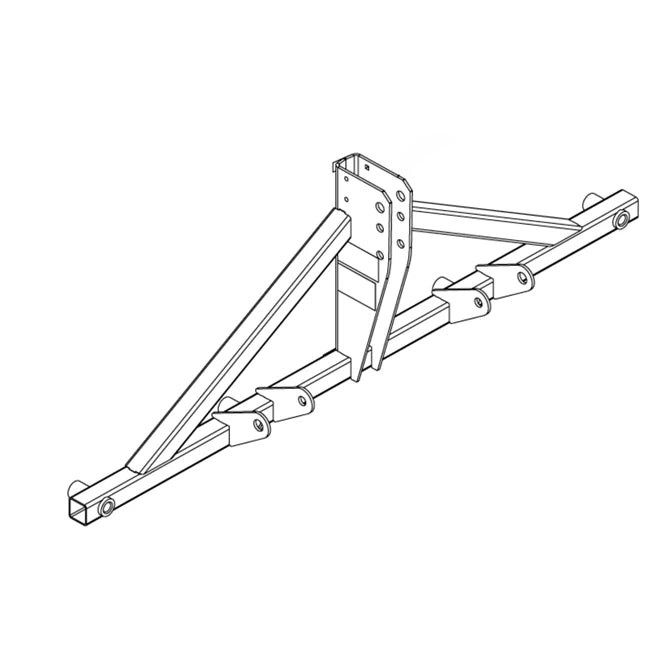

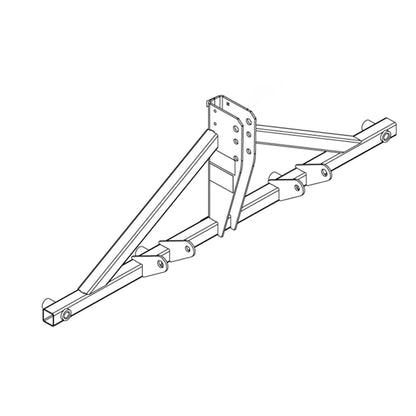

Frame Construction Heavy-duty welded steel frame
Weight 223 lbs
Mounting Hardware Included for quick installation
Finish Industrial-grade powder coat for rust and wear resistance
Application Agricultural bale handling for haying, feeding, and transport operations
Dimensions Approx. 60" W x 30" H x 48" D (varies slightly by spear spacing)
Country of Manufacture USA
Industry Use Agriculture, Livestock, Hay Farming
