Maxwell

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V [RC8612V]

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V [RC8612V]

Regular price $2,234.32
Regular price $0.00 Sale price $2,234.32
Sale Sold out
Customizable
Fast
24/7 Support
  • High Efficiency Output: Precision worm and worm wheel drive
  • User-Friendly Maintenance: Topworks can be disassembled easily
  • Secure Rode Transition: Patented chainwheel design enhances handling
  • Space-Saving Design: Compact build maximizes below-deck space
  • Emergency Ready: Free-fall function for anchor deployment without power
View full details

Product Description

DESCRIPTION

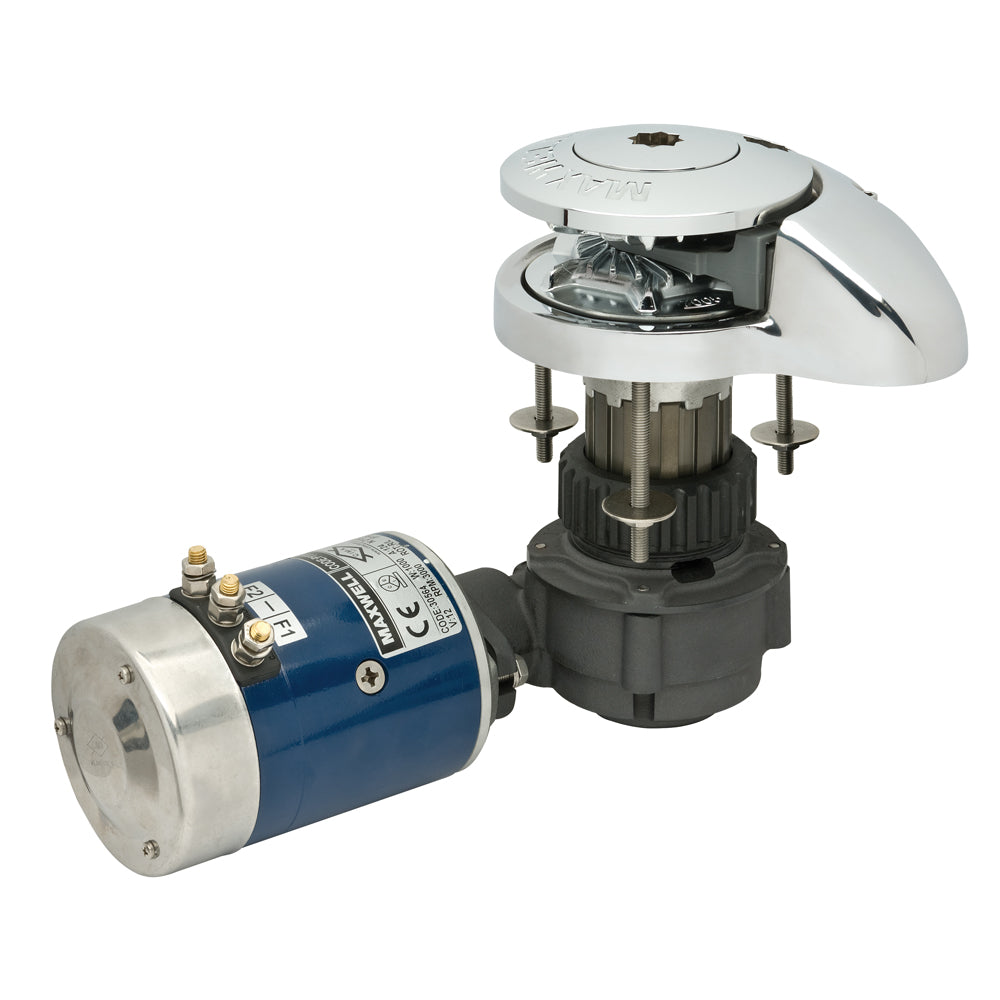

The RC8-6 Vertical Windlass by Maxwell offers a powerful solution for handling anchor rodes with ease, designed for vessels that require efficient rope and chain retrieval. This model supports 1/4" chain and 1/2" rope, featuring a simple two-piece installation system that minimizes setup time and allows seamless retrofitting. Constructed with marine-grade 316 stainless steel, it ensures durability and resistance against harsh marine conditions, while the ergonomic design optimizes deck space with a sleek, low-profile appearance.

Equipped with Maxwell’s unique Wave Design™ chainwheel, the RC8-6 provides superior rope-to-chain transitions. The windlass includes high-strength components, such as a heavy-duty pressure arm that maintains constant control on the rode, allowing reliable, jam-free performance. An emergency manual override and clutch release handle add a layer of safety, ensuring the RC8-6 can handle any situation with ease.

Key Features

  • Durable Build: Marine-grade 316 stainless steel construction for long-lasting performance
  • Efficient Installation: Two-piece setup simplifies retrofitting and reduces installation time
  • Smooth Rode Transition: Patented Wave Design™ chainwheel for seamless rope-to-chain handling
  • Heavy-Duty Pressure Arm: Exerts constant control on the rode for secure anchor deployment
  • Manual Override: Emergency crank handle for manual retrieval in case of power failure
  • High-Speed Retrieval: Up to 92 feet/min chain speed and 79 feet/min rope speed
  • Self-Aligning Gearbox: Allows optimal positioning of gearbox and motor
  • Wide Chain Compatibility: Suitable for G4, BBB, Proof Coil, and Metric chain types
  • Low Profile Design: Elegant, space-saving style enhances foredeck appearance
  • Maintenance-Friendly: Topworks disassembly using only the provided handle and an Allen key

Detailed Specifications

Specification Details
Material Marine-Grade 316 Stainless Steel
Power 12 Volt DC, 600 Watts
Chain / Short Link 1/4" (6mm/7mm)
Maximum Pull 770 lbs (350 kg)
Rope Size 1/2" (12mm), Nylon (3-Strand or 8-Plait)
Chain Speed (Anchor Retrieval) 92 ft/min (28 m/min)
Rope Speed (Anchor Retrieval) 79 ft/min (24 m/min)
Orientation Vertical
Freefall Yes
Box Dimensions 11" H x 17" W x 19" L
Weight 31.8 lbs
UPC 1000000004847

In Package

  • RC8-6 Windlass
  • On/Off Breaker Panel
  • Reversing Solenoid
  • Up/Down Panel Switch
  • Emergency Crank / Clutch Release Handle

Available Options

  • Capstan Drum: For additional control on retrieval and deployment
  • All-Chain Rode Compatibility: Use with all-chain setups for extra security
  • Extended Warranty: Optional extended warranty plans available

Benefits

  • Reliable Performance: Heavy-duty construction ensures dependable operation
  • Time-Saving Setup: Quick and simple two-piece installation
  • High Control Pressure: Stainless steel pressure arm grips the rode firmly
  • Customizable Options: Flexible for use with various chain types
  • Enhanced Rope Longevity: Wave Design™ chainwheel minimizes rope wear
