Mazio Angled Broom Angled Sweeper | Width 61"-108" | Hydraulic Flow Range 15–30 GPM | For Skid Steers

Mazio Angled Broom Angled Sweeper | Width 61"-108" | Hydraulic Flow Range 15–30 GPM | For Skid Steers

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote.
  • Multiple Size Options – Available in widths from 61″ (1550 mm) up to 108″ (2750 mm) to match compact, mid‑size, and large carriers
  • Hydraulic Flow Compatibility – Operates efficiently with 15–25 GPM on smaller models (1500–2100) and 20–30 GPM on larger models (2250–2750)
  • High‑Performance Brush – Equipped with 550 mm (22″) or 600 mm (24″) diameter brushes for aggressive sweeping and long service life
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Mazio Angled Broom Angled Sweeper | Width 61"-108" | Hydraulic Flow Range 15–30 GPM | For Skid Steers

Description

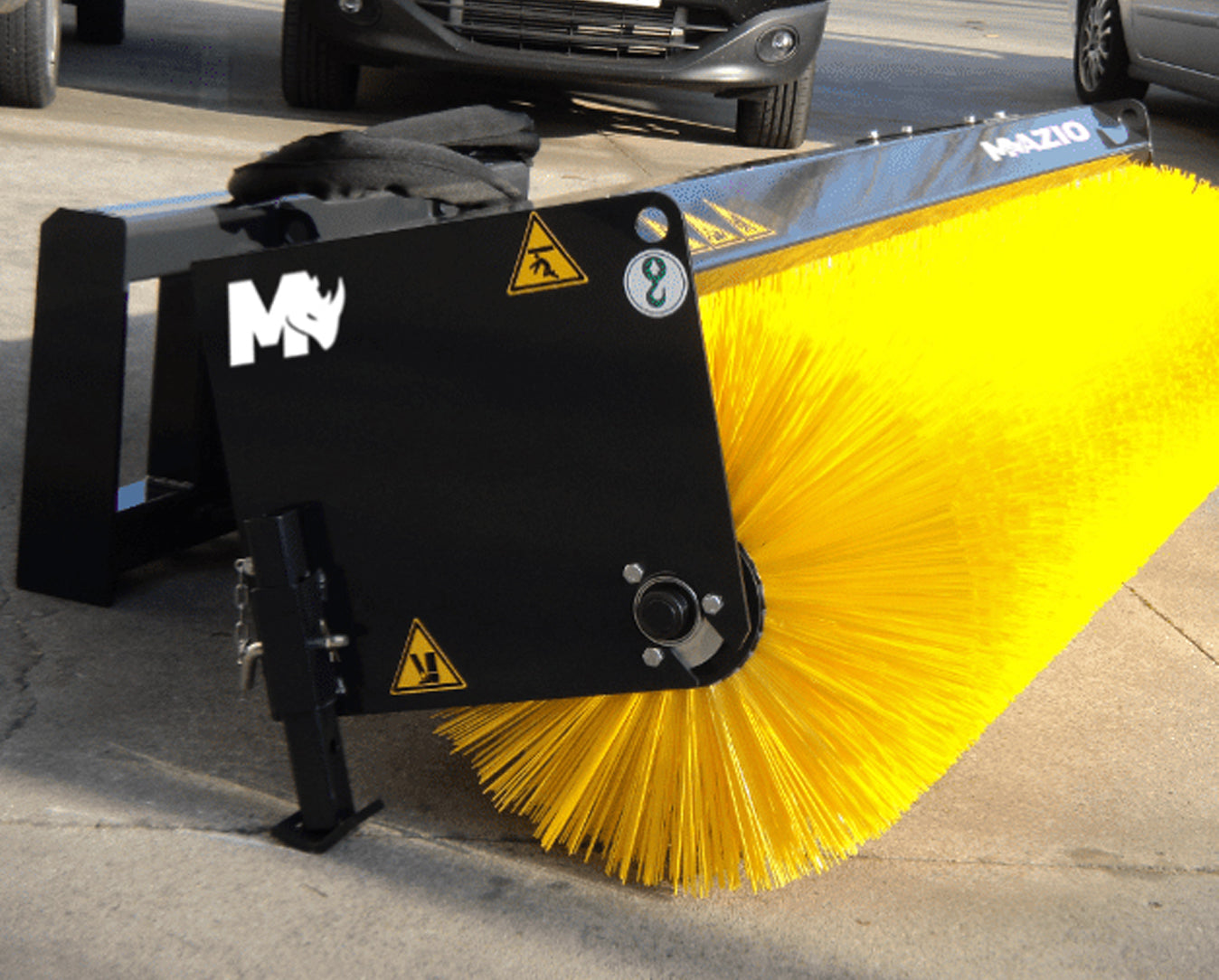

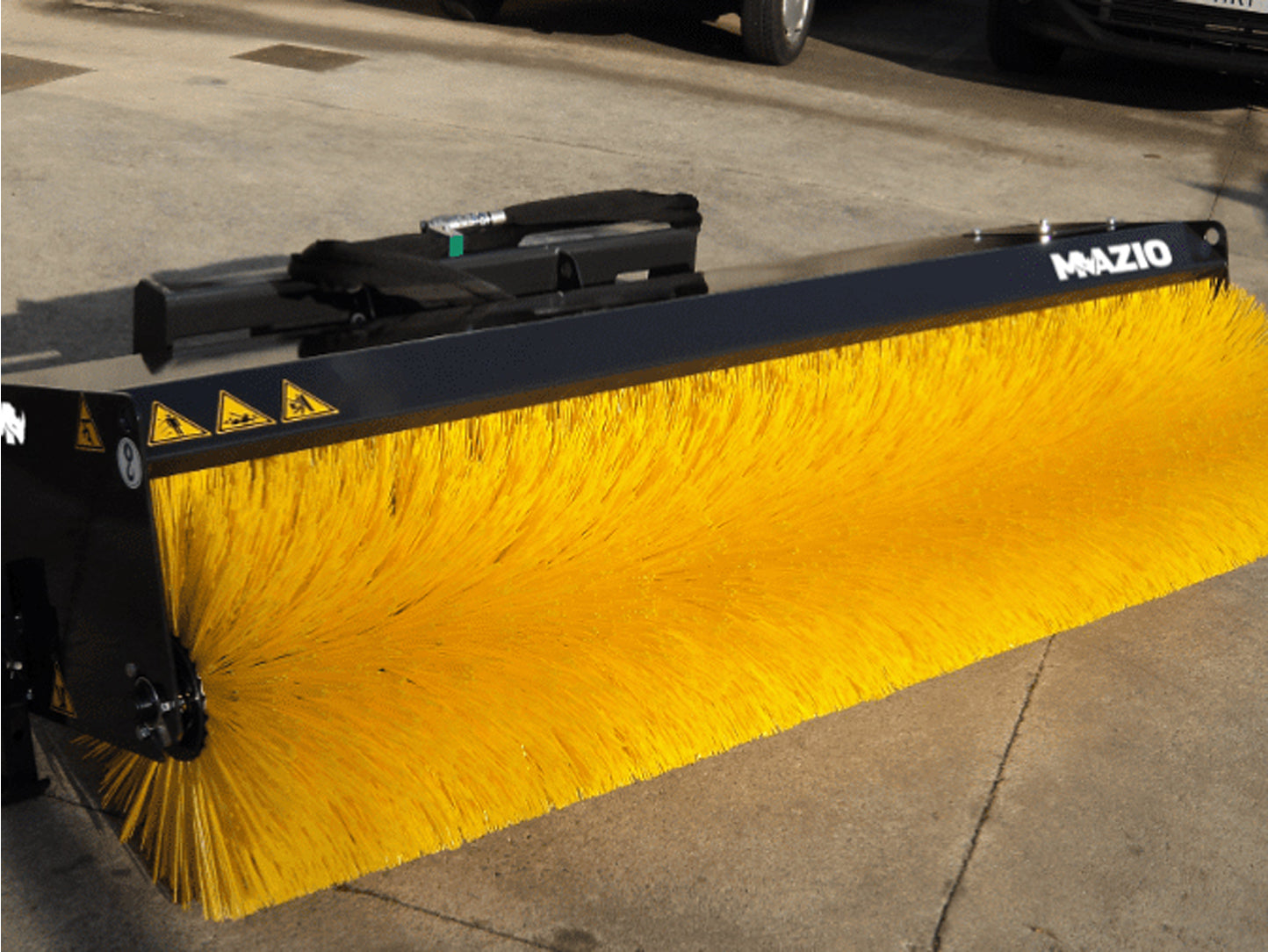

The Mazio Angled Broom Angled Sweeper is a durable and versatile cleaning attachment engineered for efficiency and reliability. Designed to handle a wide variety of cleaning tasks, it is compatible with backhoes, front loaders, telehandlers, and other machinery equipped with the universal SSL coupling ISO24410.

This sweeper offers flexibility with mechanical angling at ± 30°, and for even greater ease of use, an optional hydraulic angling feature is available. Its reversible bolt-on edge ensures extended usability and durability, making it a cost-effective cleaning solution for professionals.

Choose between steel or polypropylene (PP) brushes, depending on your cleaning environment. Whether you’re tackling heavy debris or lighter materials, the Mazio Angled Broom is designed to adapt to your specific needs. Its robust construction ensures long-lasting performance, even in the most demanding applications.

Key Features

  • Multiple Size Options – Available in widths from 61″ (1550 mm) up to 108″ (2750 mm) to match compact, mid‑size, and large carriers
  • Hydraulic Flow Compatibility – Operates efficiently with 15–25 GPM on smaller models (1500–2100) and 20–30 GPM on larger models (2250–2750)
  • High‑Performance Brush – Equipped with 550 mm (22″) or 600 mm (24″) diameter brushes for aggressive sweeping and long service life
  • Angled Sweeping Action – Adjustable angle design directs debris to one side for efficient road, lot, or site cleanup
  • Durable Construction – Reinforced frame and heavy‑duty brush core withstand demanding municipal, construction, and industrial use
  • Optimized Working Width – Working widths range from 53″ (1345 mm) to 98″ (2495 mm), maximizing coverage while maintaining maneuverability
  • Balanced Weight Range – From 250 kg (550 lbs) on compact models to 540 kg (1190 lbs) on heavy‑duty sweepers, ensuring stability across machine classes
  • Versatile Applications – Ideal for road maintenance, parking lots, construction sites, snow removal, and municipal cleaning
  • Quick Attachment – Compatible with standard skid steer and loader mounts for fast hookup and easy operation
  • Low Maintenance – Replaceable brush segments reduce downtime and extend service life

Detailed Specifications

Sweeper 1500 Angled

Feature Details
Width 1550 mm / 61 in
Weight 250 kg
Working Width 1345 mm / 53 in
Brush Ø 550 mm / 22 in
Hydraulic Flow Range 15–25 GPM

Sweeper 1800 Angled

Feature Details
Width 1850 mm / 73 in
Weight 300 kg
Working Width 1605 mm / 63 in
Brush Ø 550 mm / 22 in
Hydraulic Flow Range 15–25 GPM

Sweeper 2100 Angled

Feature Details
Width 2150 mm / 85 in
Weight 350 kg
Working Width 1865 mm / 73 in
Brush Ø 550 mm / 22 in
Hydraulic Flow Range 15–25 GPM

Sweeper 2250 Angled

Feature Details
Width 2250 mm / 89 in
Weight 460 kg
Working Width 2040 mm / 80 in
Brush Ø 600 mm / 24 in
Hydraulic Flow Range 20–30 GPM

Sweeper 2500 Angled

Feature Details
Width 2500 mm / 98 in
Weight 500 kg
Working Width 2285 mm / 90 in
Brush Ø 600 mm / 24 in
Hydraulic Flow Range 20–30 GPM

Sweeper 2750 Angled

Feature Details
Width 2750 mm / 108 in
Weight 540 kg
Working Width 2495 mm / 98 in
Brush Ø 600 mm / 24 in
Hydraulic Flow Range 20–30 GPM
