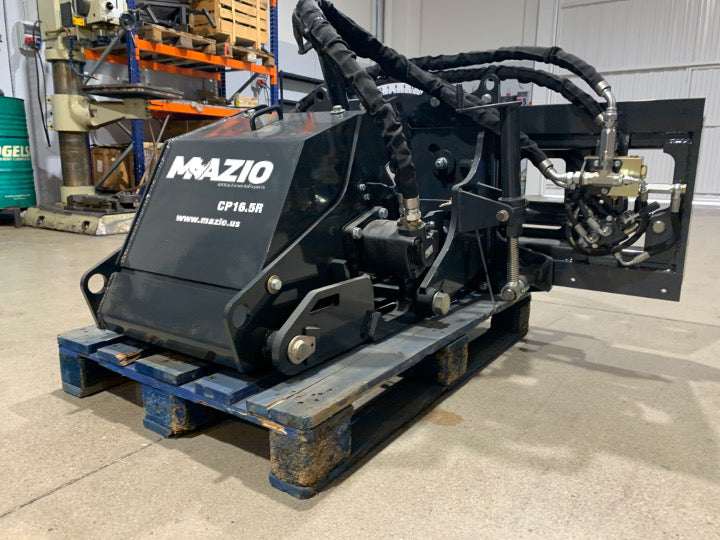

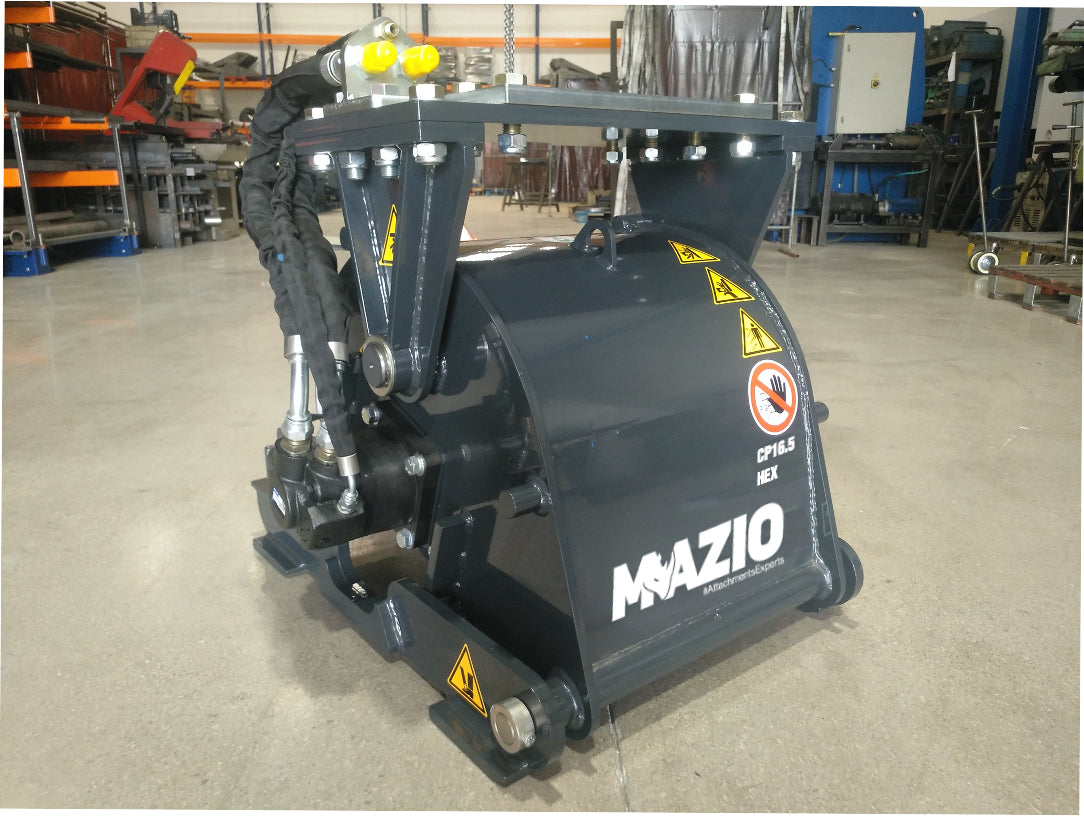

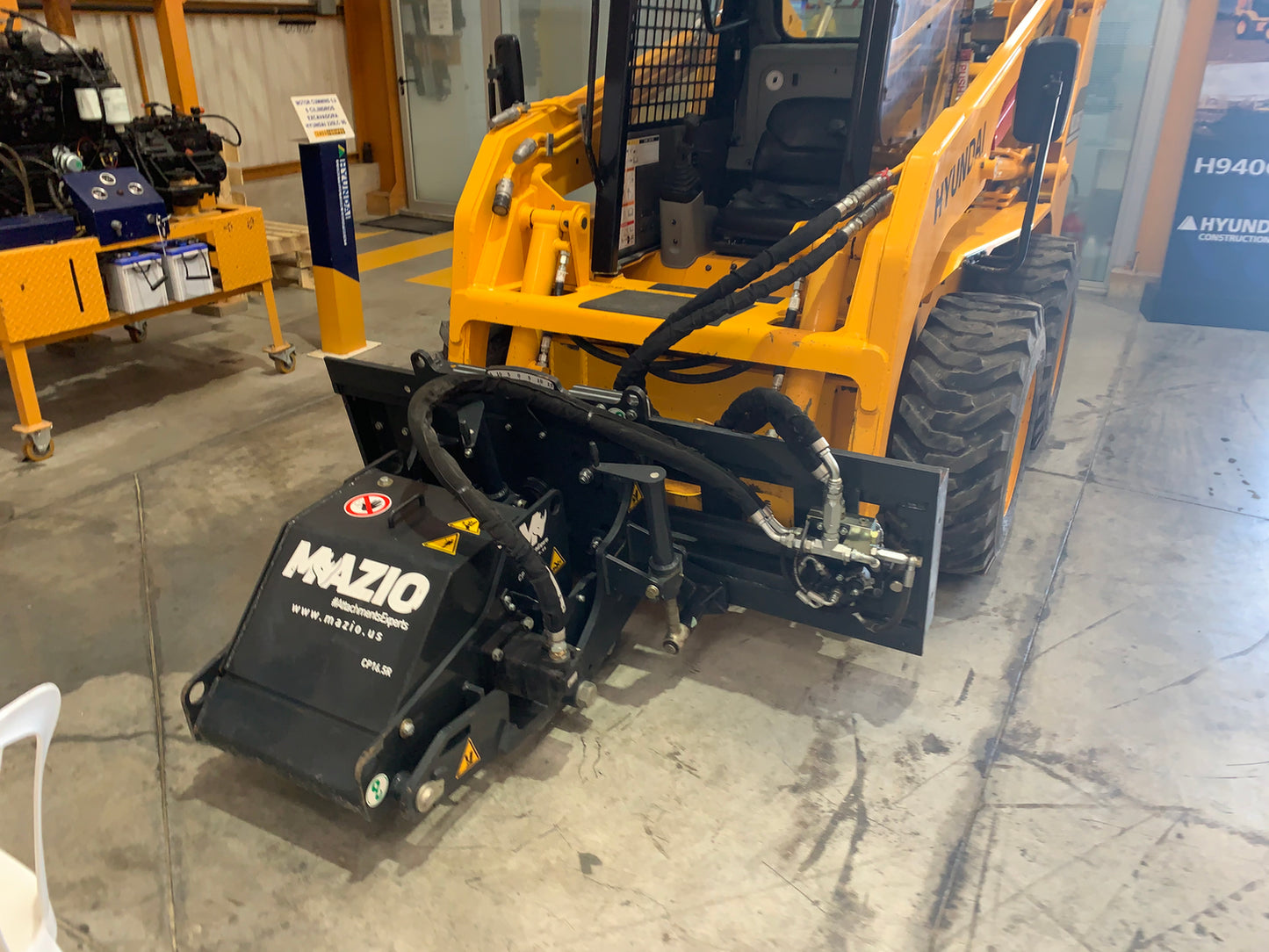

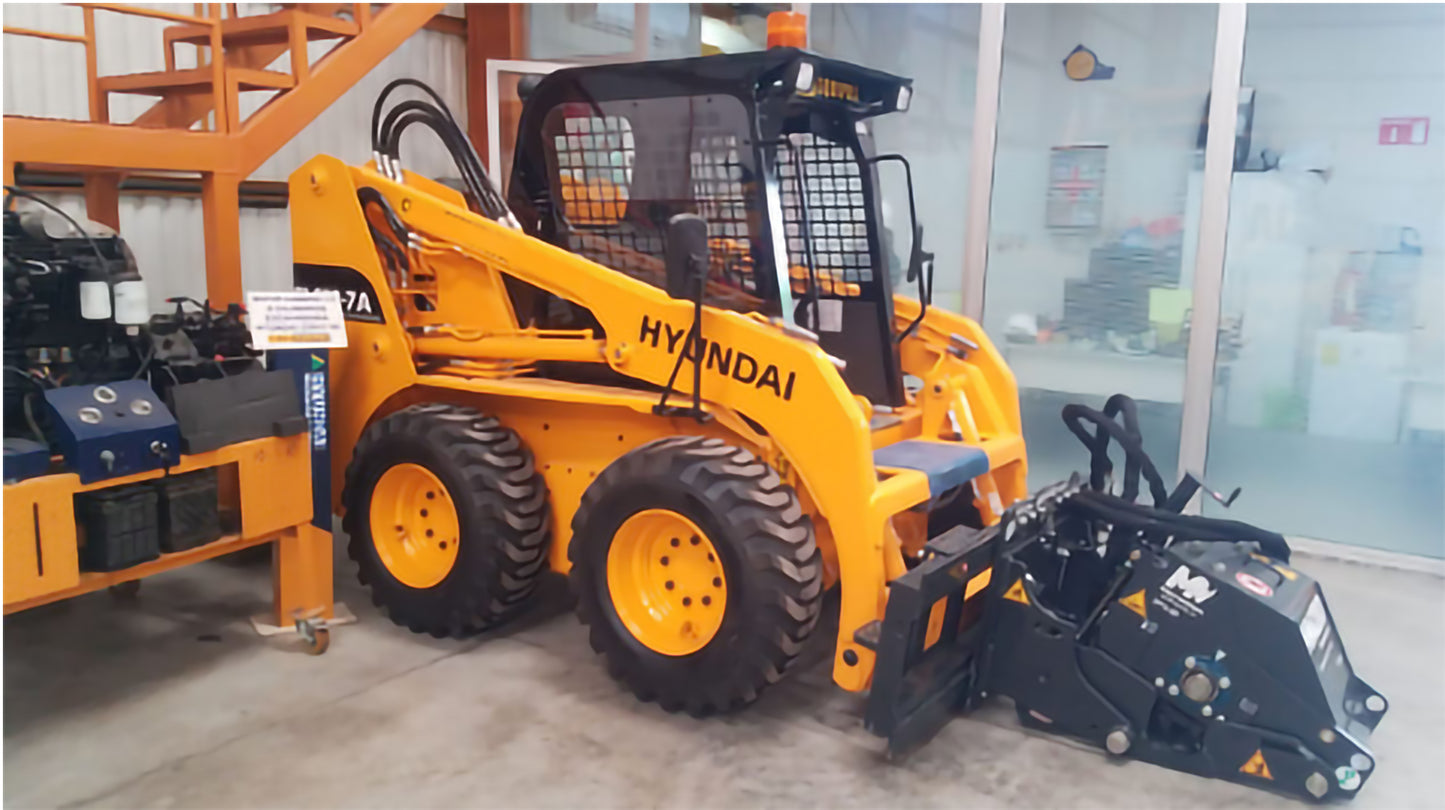

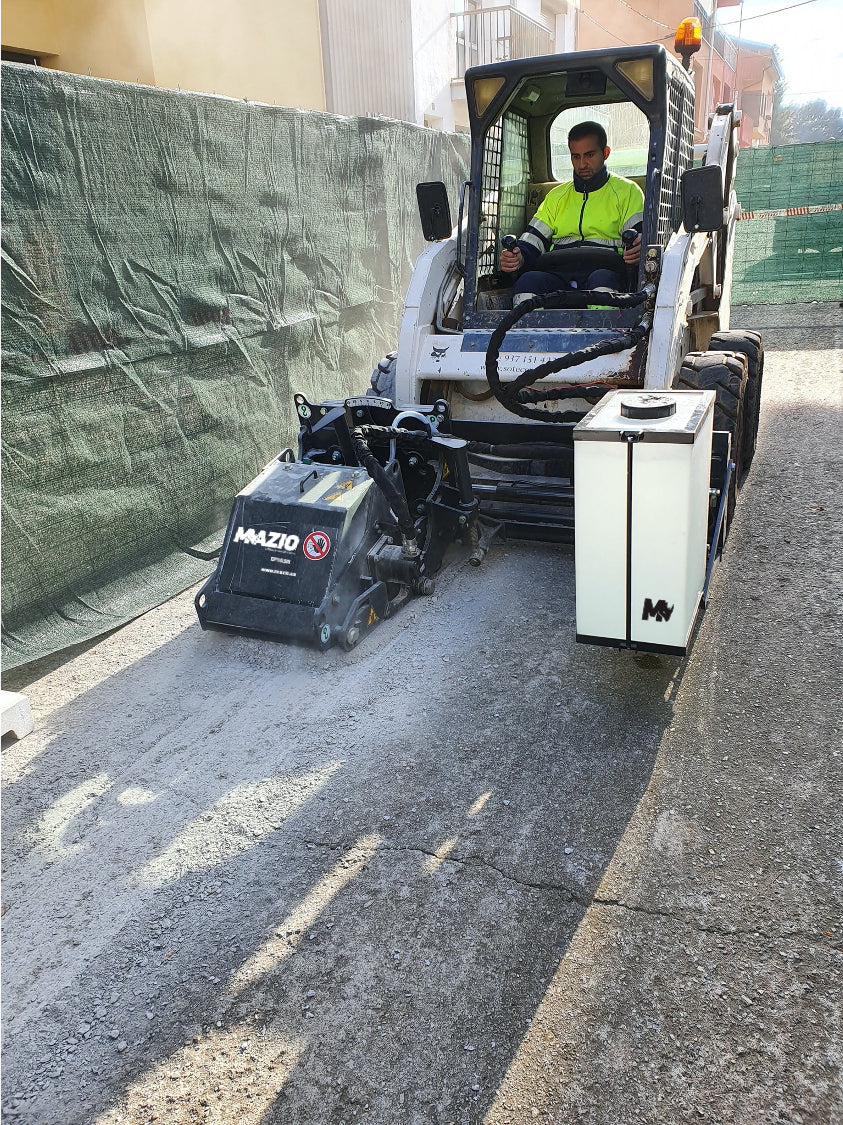

Mazio Cold Planer CP16.5R SSL Grinder | Width 16" | Hydraulic Flow Range 80–90 GPM | For Skid Steer Loaders

Mazio Cold Planer CP16.5R SSL Grinder | Width 16" | Hydraulic Flow Range 80–90 GPM | For Skid Steer Loaders

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote.
  • Compact Design – Width of 16″ (406 mm) and depth of 5″ (127 mm) for precision work in confined spaces
  • Wide Coverage – 26″ (660 mm) left‑to‑right span with ±15° tilt for flexible operation on uneven surfaces
  • High Hydraulic Flow Requirement – Optimized for 80–90 GPM, ensuring powerful and consistent performance
  • Robust Operating Pressure – Works within 2000–3248 psi (138–224 bar) for demanding applications
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Mazio Cold Planer CP16.5R SSL Grinder | Width 16" | Hydraulic Flow Range 80–90 GPM | For Skid Steer Loaders

Description

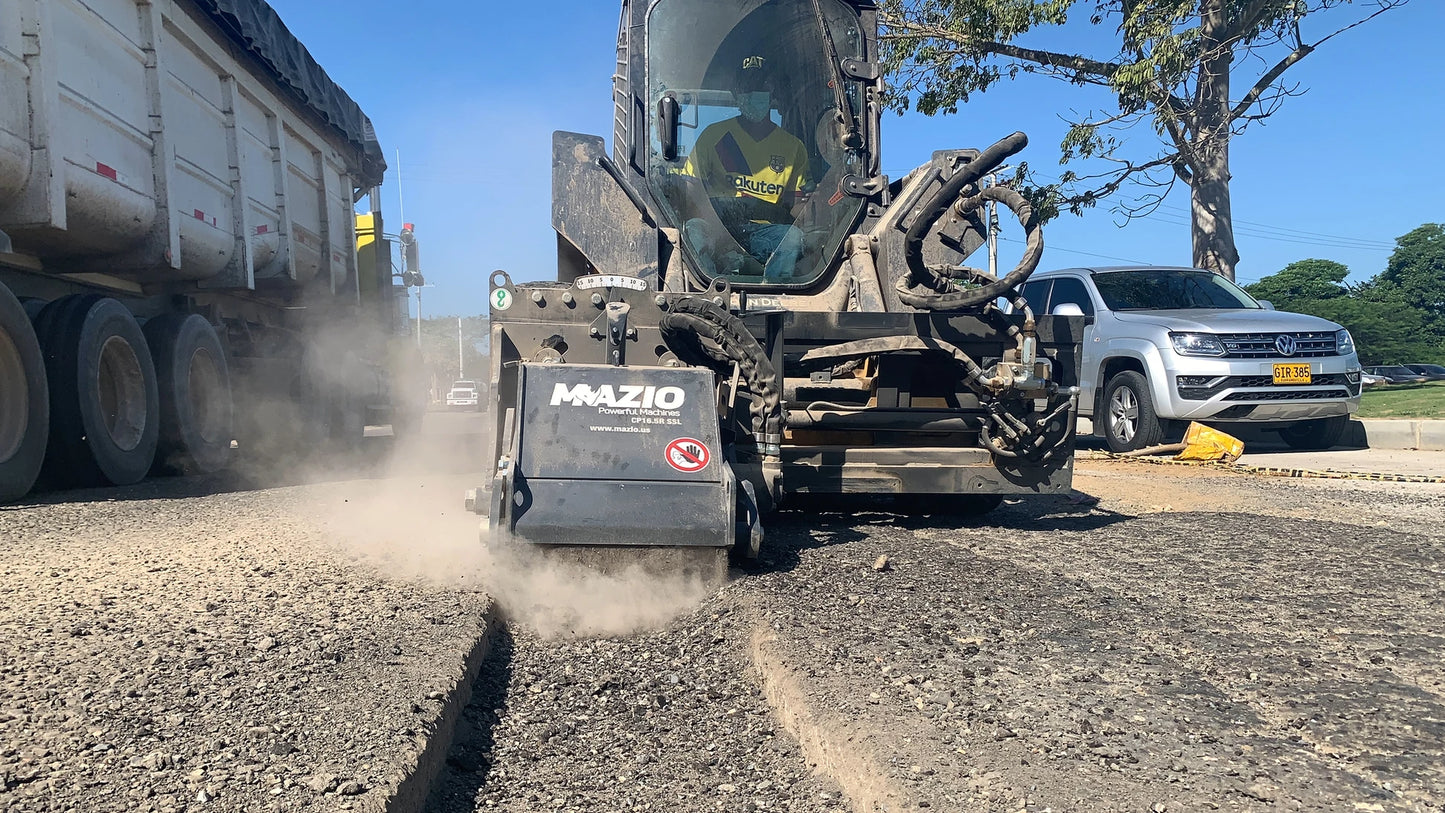

The Mazio Cold Planer CP16.5R SSL for skid steer loaders is a powerful and efficient tool designed for a variety of milling and grinding applications. Equipped with a piston motor and planetary driveline, it boosts torque by 21%, providing unmatched productivity. This best-in-class power-to-weight ratio reduces vibration and optimizes machine balance, making it ideal for asphalt milling, concrete grinding, and asphalt grinding. The Easy-Window feature ensures 50% less time spent on bit replacement, promoting 100% secure operation. The cold planer is designed with a 38mm (1.5 inches) drum thickness, ensuring durability and efficiency.

Key Features

  • Compact Design – Width of 16″ (406 mm) and depth of 5″ (127 mm) for precision work in confined spaces
  • Wide Coverage – 26″ (660 mm) left‑to‑right span with ±15° tilt for flexible operation on uneven surfaces
  • High Hydraulic Flow Requirement – Optimized for 80–90 GPM, ensuring powerful and consistent performance
  • Robust Operating Pressure – Works within 2000–3248 psi (138–224 bar) for demanding applications
  • Heavy‑Duty Build – Weighs 650 kg (1430 lbs), providing stability and durability in tough conditions

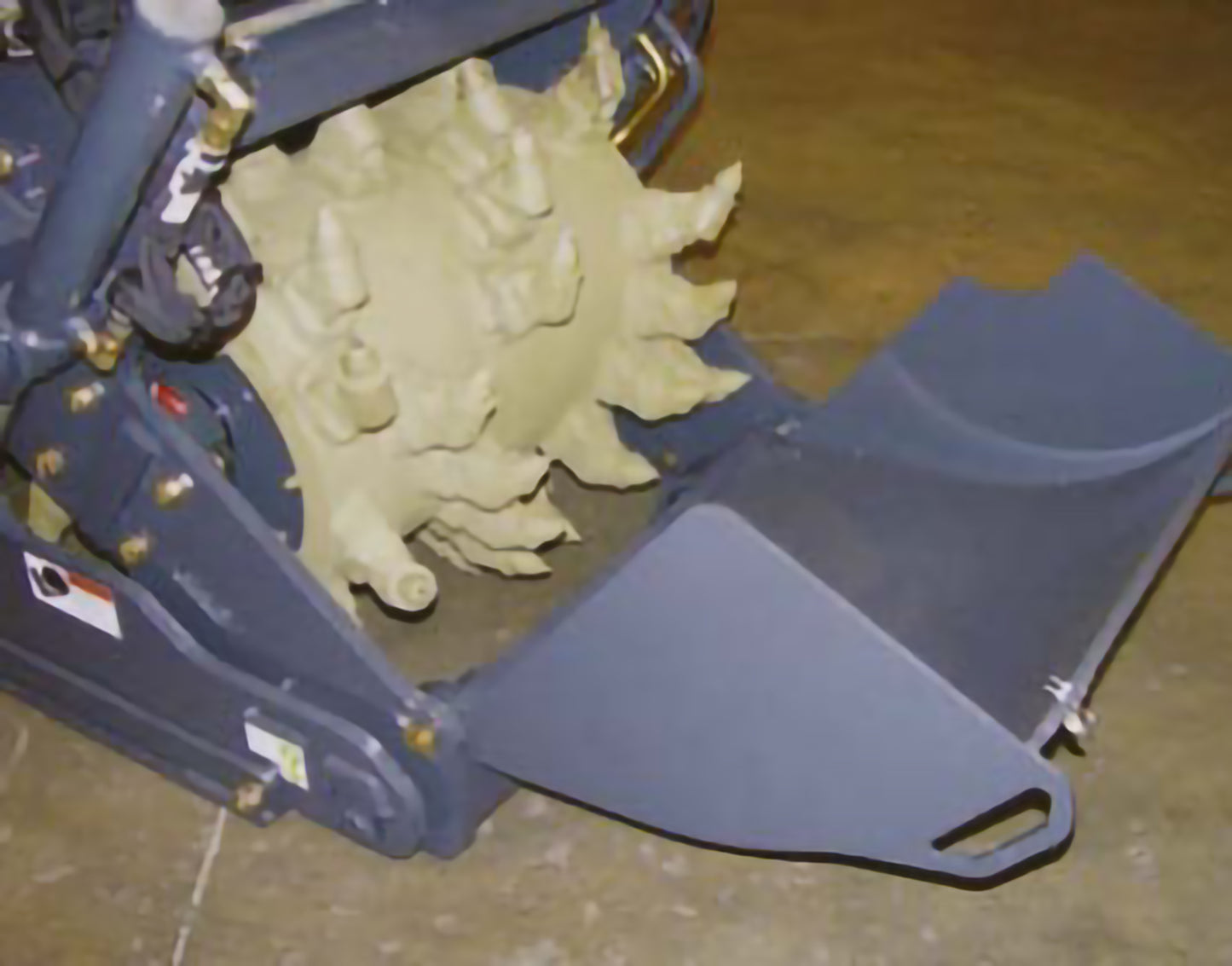

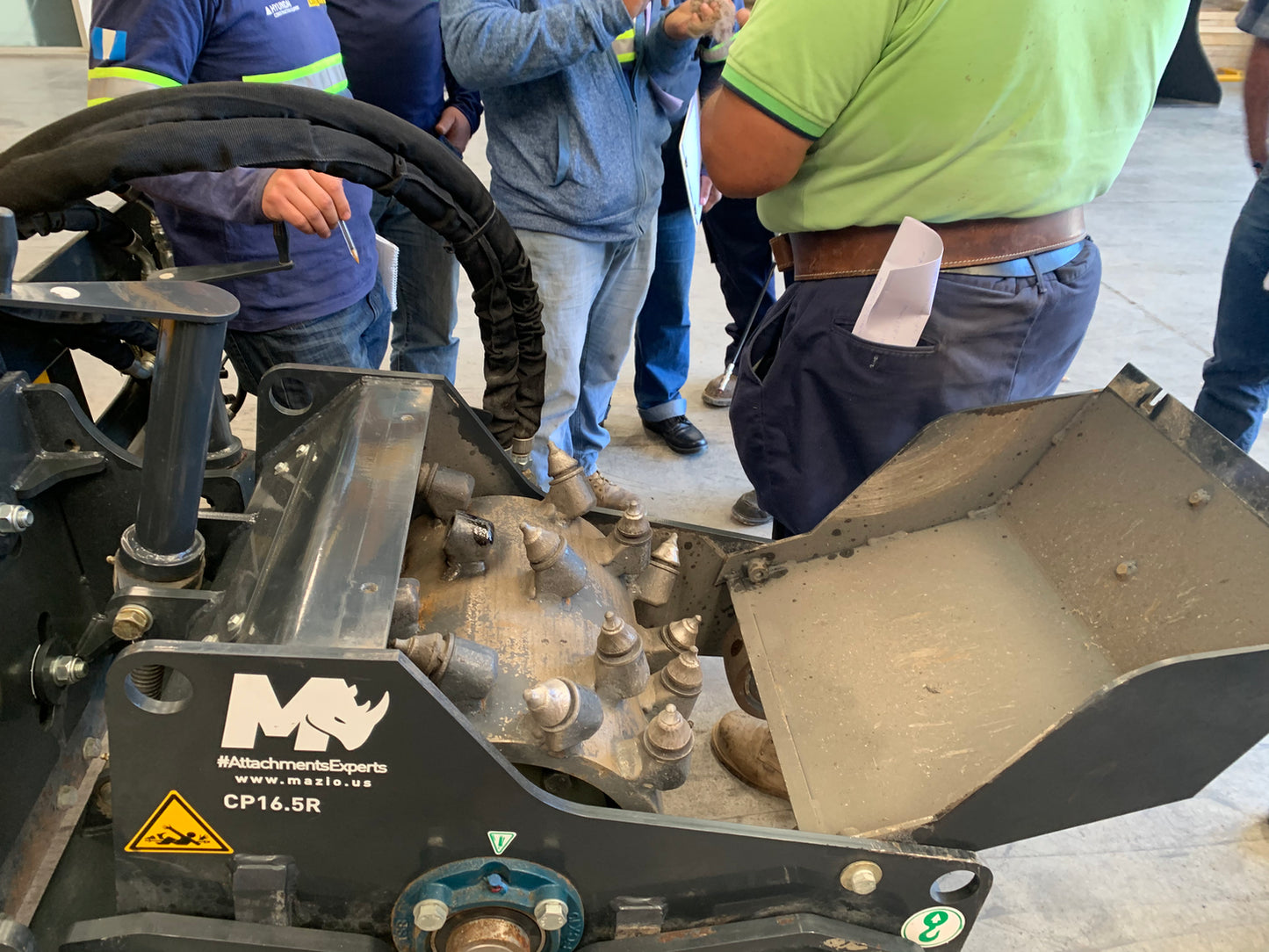

  • Efficient Cutting System – Equipped with 38 replaceable bits for aggressive material removal
  • Easy‑Window System – Reduces bit replacement time by 50%, minimizing downtime and boosting productivity
  • Secure Operation – Engineered for 100% safe performance, even under heavy loads
  • Versatile Application – Suitable for construction, roadwork, demolition, and site preparation
  • Operator Productivity – Designed for continuous use with minimal maintenance requirements

Detailed Specifications

Feature Specification
Model CP16.5R
Width (mm/in) 406 / 16
Depth (mm/in) 127 / 5
Left to Right (mm/in) 660 / 26
Tilt (º) ±15
Lt/min - gpm 2280 / 90
Bar - psi 224 - 138
Pressure (psi) 3248 - 2000
Weight (kg/lb) 650 / 1430
Number of Bits 38 pcs
Easy-Window 50% less time replacing bits
Operation 100% Secure
