Product Description

Mazio Forestry Tools Heavy Duty Log Grapple | LGE Series | Frame Width 23.2"-34.3" | Machine Size 3-26 Ton | For Excavators

DESCRIPTION

The Mazio LGE Series Log Grapples are designed for demanding forestry professionals, offering robust performance and versatility. These grapples are suitable for mini-excavators, wheeled loaders, excavators, and off-road vehicles. With a central cylinder and two connecting rods, they provide perfect balancing and long-lasting reliability. The compact structure, high closing force, and light design make them ideal for high-performing machinery.

The LGE Series includes models like the LGE200, LGE300, and LGE700, each tailored to different carrier weights and load capacities. The grapples feature advanced constructive geometry, ensuring they can handle minimal grab diameters, making them perfect for picking up logs in confined spaces. The continuous hydraulic rotation enhances versatility and productivity, with a safety valve fitted as standard.

Built with high tensile strength steel (STRENX) and wear plates (HARDOX), the LGE Series guarantees structural quality and durability. The hydraulic circuit is secure within the structure, providing excellent gripping capacity. Custom links are available to mount the grapples on various operating machines, allowing for pendulum movement in all horizontal directions.

The Mazio LGE Series Log Grapples are the ultimate solution for efficient and reliable log handling, meeting the rigorous demands of forestry professionals.

Key Characteristics

• LGE Series
• Bigger Gripping Area
• The professional log grapple
• Quality components make a difference.
• Heavy Duty Log Grapples For Industrial Forestry
• The safety valve is fitted as standard

Key Features

• Heavy-Duty Log Handling — Built for forestry, land clearing, and timber operations requiring secure grip and high lifting capacity.
• Wide Operating Range — Models available for excavators from 3 to 30 tons, ensuring fitment across compact, mid-size, and full-size machines.
• High Lifting Capacity — Handles up to 6,000 kg (13,200 lbs) depending on model—ideal for large timber and bundled loads.
• Hydraulic Pressure Rated to 250 bar — Ensures consistent clamping force and reliable performance under load.
• Precision Jaw Geometry — Optimized dimensions (A–G) for secure log engagement and efficient stacking or loading.
• Compact Frame Widths — Ranging from 590 mm (23.2″) to 870 mm (34.3″) for maneuverability in tight forestry environments.
• Universal Mounting Plate — Standardized 250 mm × 250 mm interface across all models for simplified integration.
• Reinforced Construction — Welded steel frame with powder-coated finish for durability in rugged terrain.
• Model-Specific Sizing — Each unit scaled by operating weight class and log volume capacity (0.20–0.70 m²) to match machine performance.
• Robust and Powerful: Perfect for demanding forestry professionals.
• Versatility: Compact and lightweight, suitable for mini-excavators, wheeled loaders, excavators, and off-road vehicles.
• Technical Advances: Central cylinder and two connecting rods for perfect balancing. Designed for minimal grab diameters for handling skinny logs and confined spaces.
• Log Handling: Various sizes and shapes for different diameters and tree-length handling situations.

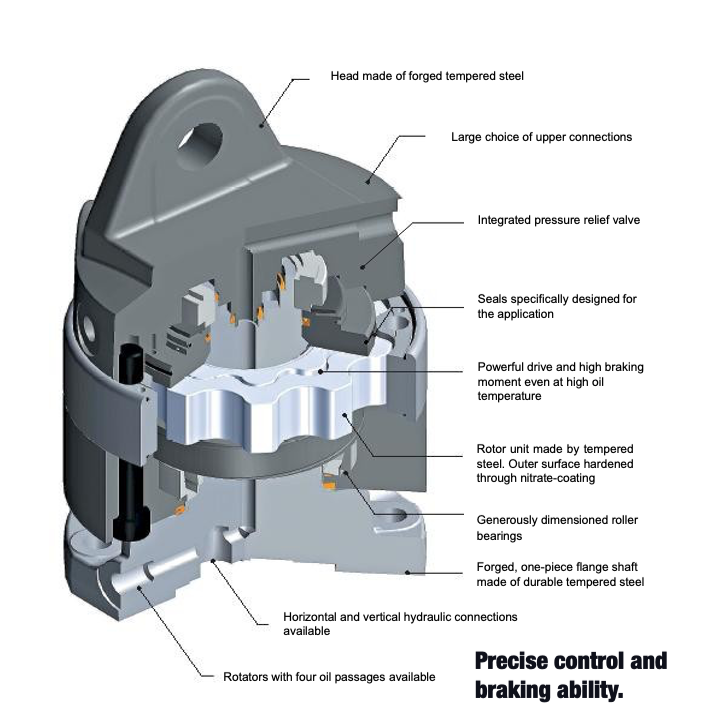

• Rotation Systems: Continuous hydraulic rotation for versatility and productivity. Adapts to flange mounting of most rotators.
• Safety: Equipped with a safety locking valve for secure handling of small timber.
• Strength and Reliability: Hydraulic circuit secured into the structure with a generously dimensioned cylinder.
• Structural Quality: High tensile strength steel (STRENX) and wear plates (HARDOX) for durability. Large diameter, induction-hardened chrome pins and bushings.
• Custom Links: Can be mounted on operating machines with Cardan links allowing movement in all four horizontal directions. Custom-made links available for any operating machine on the market.

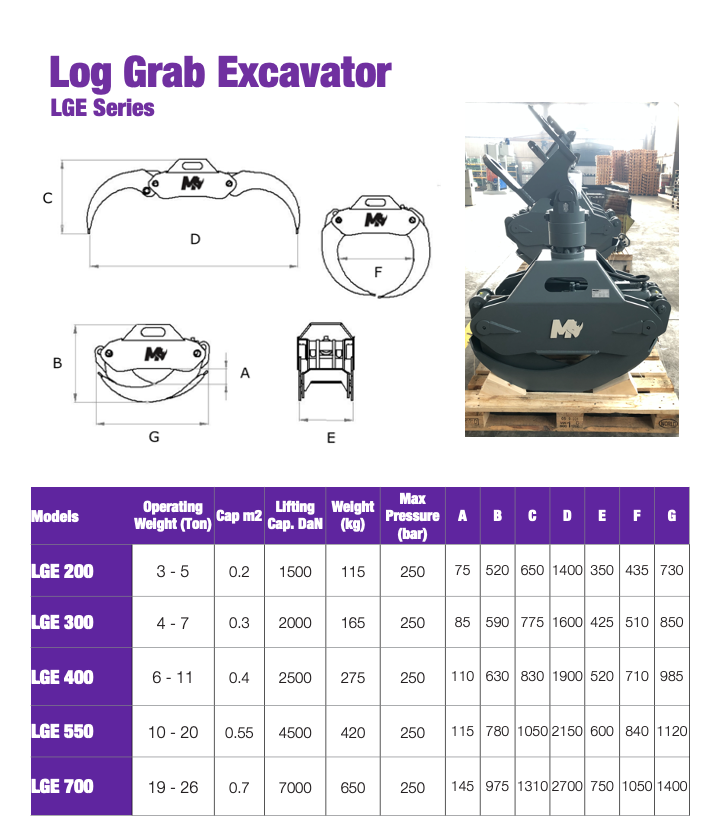

Detailed Specifications

Model: LGE 200

Model: LGE 300

Model: LGE 400

Model: LGE 500

Model: LGE 700
