Mazio Forestry Tools Hex Mulcher Head | T20 Series | Working Width 39" & 51" | Machine Size 8-15 Tons | For Excavators
Mazio Forestry Tools Hex Mulcher Head | T20 Series | Working Width 39" & 51" | Machine Size 8-15 Tons | For Excavators
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description

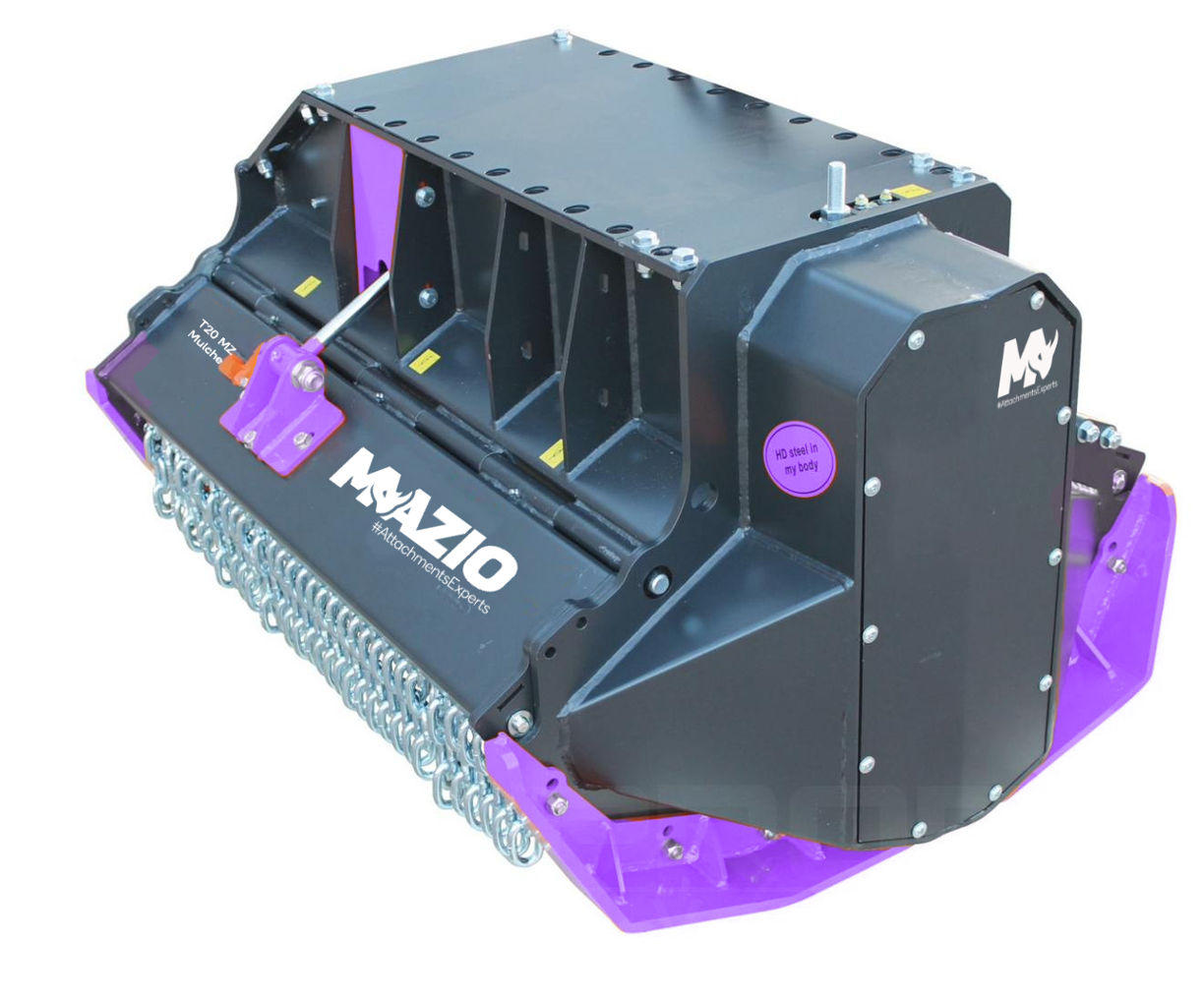

Mazio Forestry Tools Hex Mulcher Head | T20 Series | Working Width 39" & 51" | Machine Size 8-15 Tons | For Excavators
DESCRIPTION
T20 Series Suitable for cutting and shredding grass, shrubs, and branches up to 30 cm. Identical hydraulic adjustable front inlet and outlet for better and faster operation in both directions. Reinforced double-ase frame to prevent deformations due to extreme loads; height-adjustable skids, belt drive, standard flow, and pressure regulation valve.
This T20 Series gear sounds like it's built for serious durability and efficiency in all terrains.
Key Characteristics
- Cutting and Shredding: Efficiently handles grass, shrubs, and branches up to 30 cm.
- Mechanically Adjustable: Identical front inlet and rear outlet for optimized operation in both directions.
- Reinforced Double-Case Frame: Prevents deformations under extreme loads.
- Height-Adjustable Skids: Customizable for different terrain heights.
- Belt Drive: Ensures reliable power transmission.
-
Standard Flow and Pressure Regulation Valve: Maintains optimal performance and safety.
Key Features
- Excavator Compatibility: Built for 8–15 ton (MZ100) and 15–22 ton (MZ130) excavators, ideal for mid-size and heavy-duty land clearing.
- Working Widths: 39″ (MZ100) and 51″ (MZ130) cutting widths for efficient coverage across varied terrain.
- Attachment Weight: 1,232 lbs (MZ100) and 1,320 lbs (MZ130) for stable operation and balanced hydraulic performance.
- Hydraulic Flow Range: MZ100 operates at 55–90 L/min; MZ130 runs at a fixed 90 L/min for consistent rotor speed.
- Operating Pressure: Rated at 300 bar (MZ100) and 230 bar (MZ130) to match excavator output and mulching intensity.
- Belt Drive System: Equipped with 4 heavy-duty belts for reliable torque transfer and rotor protection.

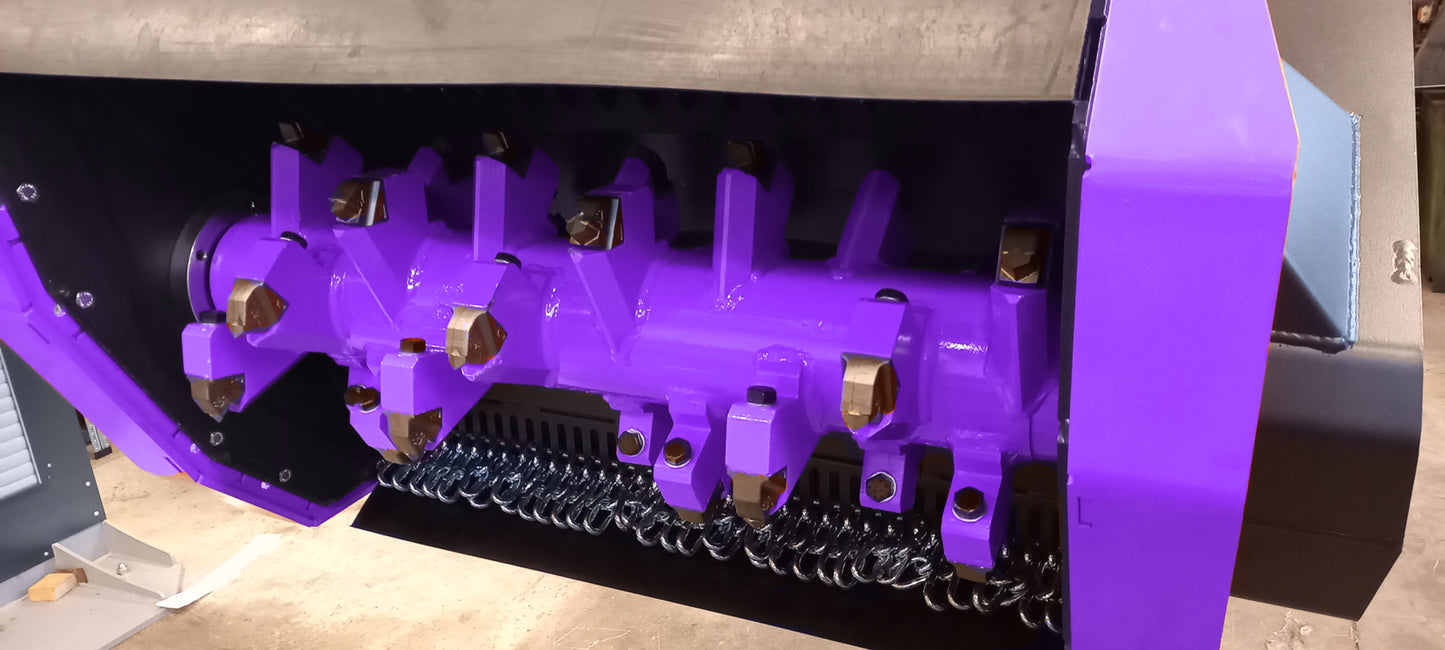

- Helical Rotor Design: Staggered cutting pattern reduces vibration and improves mulching smoothness.
- Integrated Piston Motor: High-efficiency motor delivers strong torque for dense vegetation and woody material.
- Fixed Hammer Count: 27 hardened hammers (MZ100) and 36 hammers (MZ130) for aggressive shredding and long-term durability
Detailed Specifications
| Models |
T20 MZ100 |
T20 MZ130 |
|---|---|---|
| Excavator Weight | 8 - 15 ton | 15 - 22 ton |
| Working width | 1000 (39 in.) | 1300 (51 in.) |
| Weight | 560 (1232 lbs) | 600 (1320 lbs) |
| Oil Flow | 55 - 90 L/min | 90 - 90 L/min |
| Oil Pressure | 300 bar | 230 bar |
| Belts | 4 pcs | 4 pcs |
| Rotor | helical | helical |
| Piston Motor | yes | yes |
| Fixed hammers | 27 | 36 |
