Mazio Forestry Tools SKID Shredder | Model MS 50 to MS 90 & HS 35 to HS 47 | Pressure 172 to 180 Bar | Rotor Hammers (#) 12 to 66 | For Skid Steer Loaders

Mazio Forestry Tools SKID Shredder | Model MS 50 to MS 90 & HS 35 to HS 47 | Pressure 172 to 180 Bar | Rotor Hammers (#) 12 to 66 | For Skid Steer Loaders

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote.
  • Robust and Compact Design: Suitable for both light and powerful skid steers.
  • Versatility: Capable of tasks from basic cleaning to mulching large branches and stumps.
  • Optimized Rotor: Ensures high-quality finish and optimal performance.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Mazio Forestry Tools SKID Shredder | Model MS 50 to MS 90 & HS 35 to HS 47 | Pressure 172 to 180 Bar | Rotor Hammers (#) 12 to 66 | For Skid Steer Loaders

Description

MAZIO'S SKID SHREDDERS are designed with a robust and compact structure to provide new utility to both the lightest and the most powerful skid steers. Their versatility allows for a range of tasks, from basic cleaning and maintenance to mulching large diameter branches and stumps, ensuring a high-quality finish and optimum performance. This is achieved through an optimized rotor and hardened replaceable counter-blades. The shredder body is built in high strength steel, and features include an adjustable height rear roller, sliding skids, and a rotor with floating hammers or blades. The hammers or blades are assembled to the rotor with Ø20 mm bolts. Additional protections include front protection plates and rear protection rubber. It also has a base flange for fastening the optional coupling to the excavator and a hydraulic gear motor with 14 cc displacement and a built-in anti-cavitation valve.

Key Features

  • Robust and Compact Design: Suitable for both light and powerful skid steers.
  • Versatility: Capable of tasks from basic cleaning to mulching large branches and stumps.
  • Optimized Rotor: Ensures high-quality finish and optimal performance.
  • Hardened Replaceable Counter-Blades: Enhances durability and efficiency.
  • High Strength Steel Body: Provides durability and robustness.
  • Adjustable Height Rear Roller: Customizable based on task requirements.
  • Sliding Skids: Facilitates smooth operation.
  • Rotor with Floating Hammers or Blades: Offers flexibility in operation.
  • Hammers or Blades Assembled with Ø20 mm Bolts: Ensures secure attachment.
  • Front Protection Plates and Rear Protection Rubber: Provides safety and protection.
  • Base Flange for Optional Coupling to Excavator: Adds versatility in attachment options.
  • Hydraulic Gear Motor with 14 cc Displacement: Includes built-in anti-cavitation valve for enhanced performance.

Detailed Specifications

Model Width (mm/in) Length (mm/in) Height (mm/in) Weight (kg/lb) Pressure (Bar/PSI) Flow Rate (lpm/gpm) Rotor Hammers (#) Rotor Blades (#)
MS 50 1420 / 60 - - 485 / 1067 172 / 2494 42-53 / 11-14 12 36
MS 58 1620 / 63 - - 505 / 1111 172 / 2494 48-57 / 13-16 16 48
MS 68 1870 / 73.6 1000 / 39.3 430 / 17 530 / 1166 172 / 2494 64-76 / 17-20 18 54
MS 80 2120 / 83.5 - - 560 / 1232 172 / 2494 79-91 / 21-24 20 60
MS 90 2420 / 95.2 - - 700 / 1540 172 / 2494 95-106 / 25-28 22 66
HS 35 900 / 35 - - 257 / 565 180 / 2646 30-90 / 8-24 42 14
HS 40 1000 / 40 - - 298 / 655 180 / 2646 40-90 / 10-24 42 14
HS 47 1200 / 47 - - 329 / 723 180 / 2646 54-90 / 13-24 54 18
HS 55 1400 / 55 - - 361 / 794 180 / 2646 60-90 / 16-24 66 22



These detailed specifications ensure that the Mazio Forestry Tools | SKID Shredder is versatile, powerful, and robust, making it an excellent choice for a variety of forestry and maintenance tasks.

Manual & Documents

    General Warranty Info:

    • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
    • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
    • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
    • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

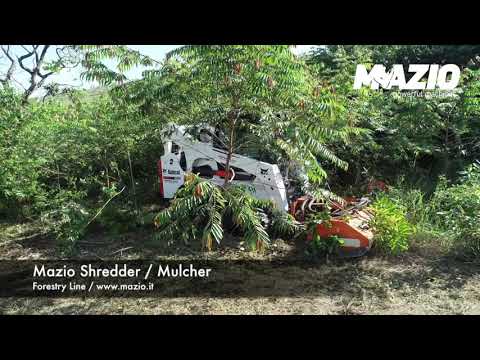

    Videos
