Mazio

Mazio Fronts Loader High Tip (Dump) Bucket | Width 98.4" | Machine Size 12–18 Tons | For Loaders

Mazio Fronts Loader High Tip (Dump) Bucket | Width 98.4" | Machine Size 12–18 Tons | For Loaders

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote.
  • Large Capacity – 4000 L (4.0 m³) bucket volume for efficient bulk handling of aggregates, waste, and recycling material
  • Optimized Dimensions – 2500 mm (98.4 in) width, 1700 mm depth, and 1550 mm height for balanced capacity and visibility
  • Machine Compatibility – Designed for 12–18 ton wheel loaders, ensuring stability and performance
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Mazio Fronts Loader High Tip (Dump) Bucket | Width 98.4" | Machine Size 12–18 Tons | For Loaders

DESCRIPTION

The Mazio High Tip Bucket is engineered for wheel loaders that need extra dumping height and large capacity for bulk material handling. With a 4000‑liter (4.0 m³) volume, reinforced Hardox 450 wear components, and a robust hydraulic high‑tip system, it is ideal for loading high‑sided trucks, hoppers, and silos. Its heavy‑duty build ensures durability in demanding applications such as construction, recycling, agriculture, and quarry operations.

Key Features

  • Large Capacity – 4000 L (4.0 m³) bucket volume for efficient bulk handling of aggregates, waste, and recycling material

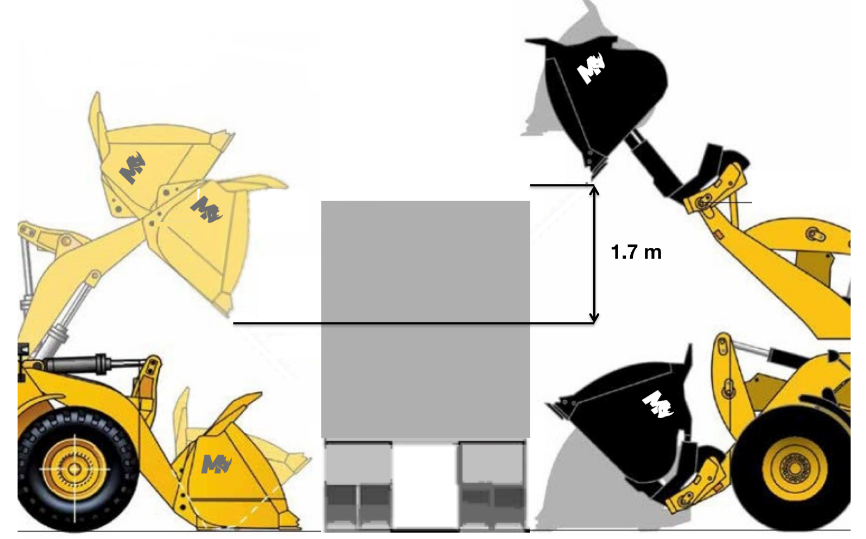

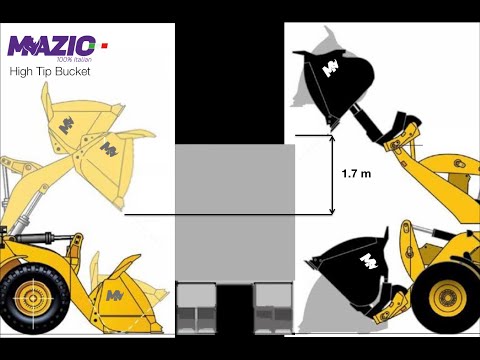

  • Extra Dumping Height – High‑tip design adds +800–1200 mm (31–47 in) clearance for loading into high‑sided trucks and hoppers

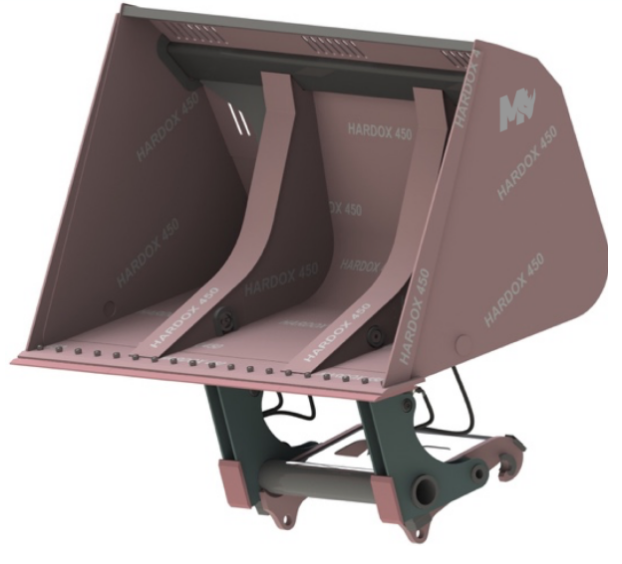

  • Heavy‑Duty Build – Reinforced with Hardox 450 wear plate on blade, cheeks, roller, and bolt‑on edge for maximum durability
  • Optimized Dimensions – 2500 mm (98.4 in) width, 1700 mm depth, and 1550 mm height for balanced capacity and visibility
  • Hydraulic System – Dual hydraulic cylinders with protective covers ensure smooth, reliable tipping action
  • Machine Compatibility – Designed for 12–18 ton wheel loaders, ensuring stability and performance
  • Wear Protection – Bolt‑on edge (25 mm Hardox 450) and replaceable wear parts extend service life
  • Operator Efficiency – Hydraulic high‑tip system ensures fast, complete emptying of sticky or bulky materials
  • Warranty – Backed by a 12‑month manufacturer’s warranty for peace of mind
  • Versatile Applications – Perfect for construction, agriculture, waste management, recycling, and industrial loading

Detailed Specifications

Attribute Detail
Width 2500 mm / 98.4 in
Volume 4000 liters / 4.0 m³
Weight 1290 kg
Depth 1700 mm
Height 1550 mm
Warranty 12 months
Recommended Machine Size 12–18 ton wheel loaders

Build & Material Specifications

Component Thickness (mm) Material
Blade 25 Hardox 450
Roller 8 Hardox 450
Cheeks 15 Hardox 450
Sides 8 S355
BOE (Bolt‑On Edge) 25 Hardox 450
Cylinder Cover 2 pcs Hardox 450
