Mazio HEX Cold Planer Grinder | CP16.5R HEX | Width 16" | Machine Size 7–12 Tons | For Mini Excavators

Mazio HEX Cold Planer Grinder | CP16.5R HEX | Width 16" | Machine Size 7–12 Tons | For Mini Excavators

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote.
  • High‑Flow Hydraulic Compatibility – Requires 80–90 GPM auxiliary flow, making it suitable for large skid steers and compact track loaders (7–12 ton class)
  • Powerful Operating Pressure – Works within 2000–3248 psi (138–224 bar) for aggressive milling performance
  • Compact Milling Width – 16″ (406 mm) cutting width with 5″ (127 mm) depth for precision surface removal
  • Wide Coverage – 26″ (660 mm) left‑to‑right travel with ±15° tilt for flexible operation on uneven surfaces
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

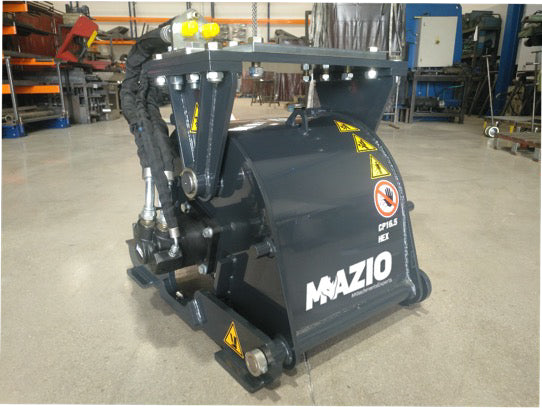

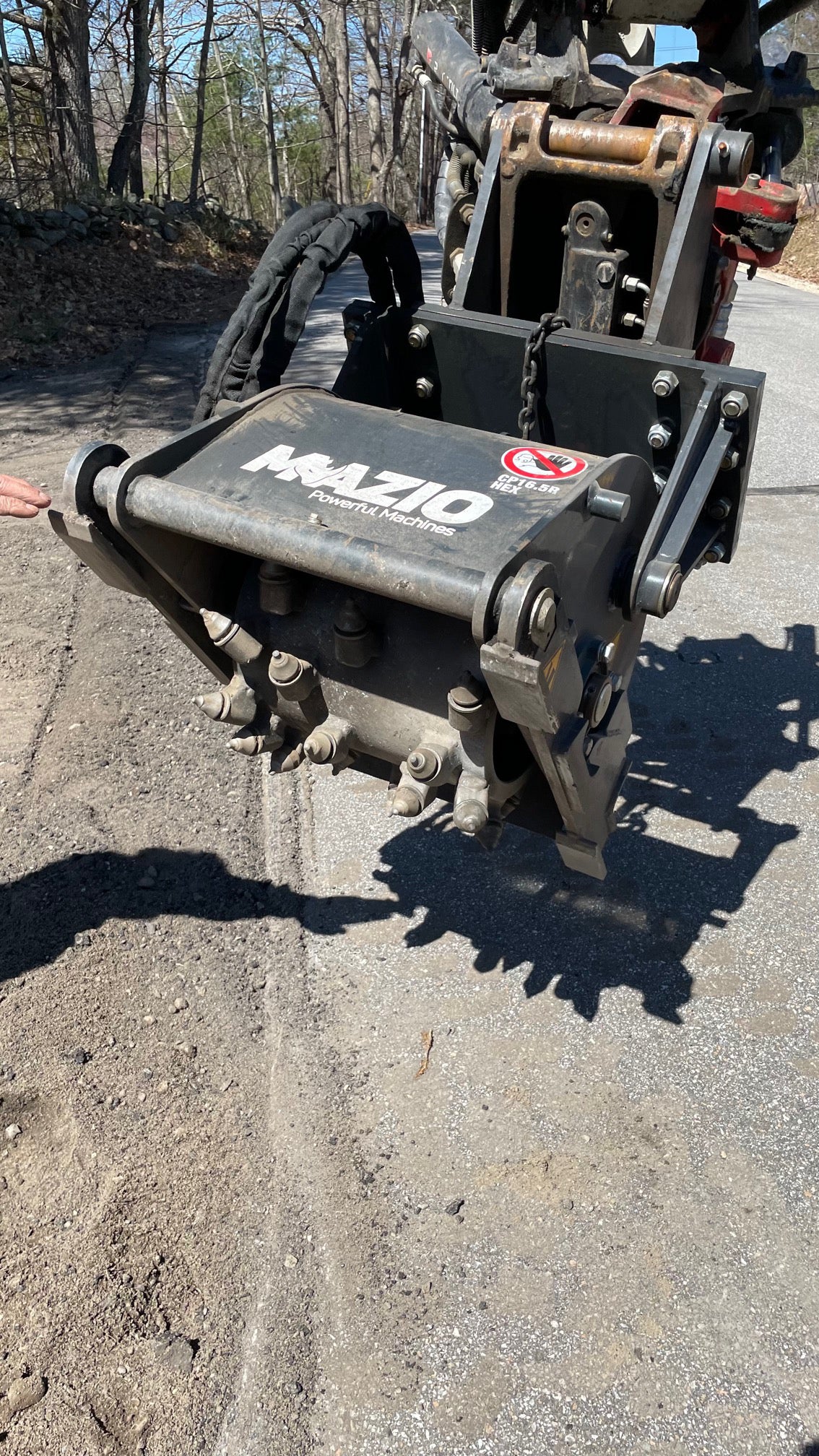

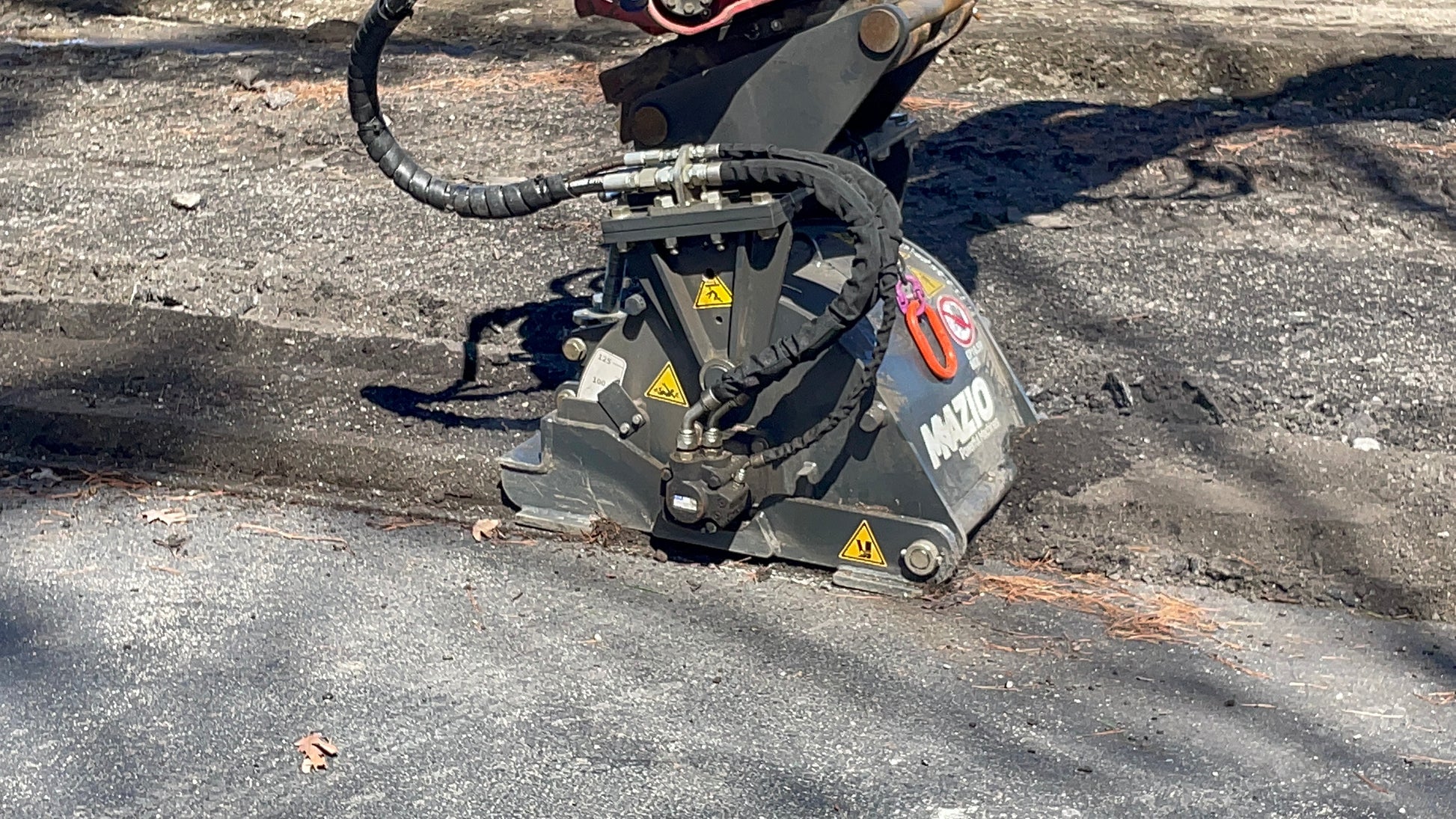

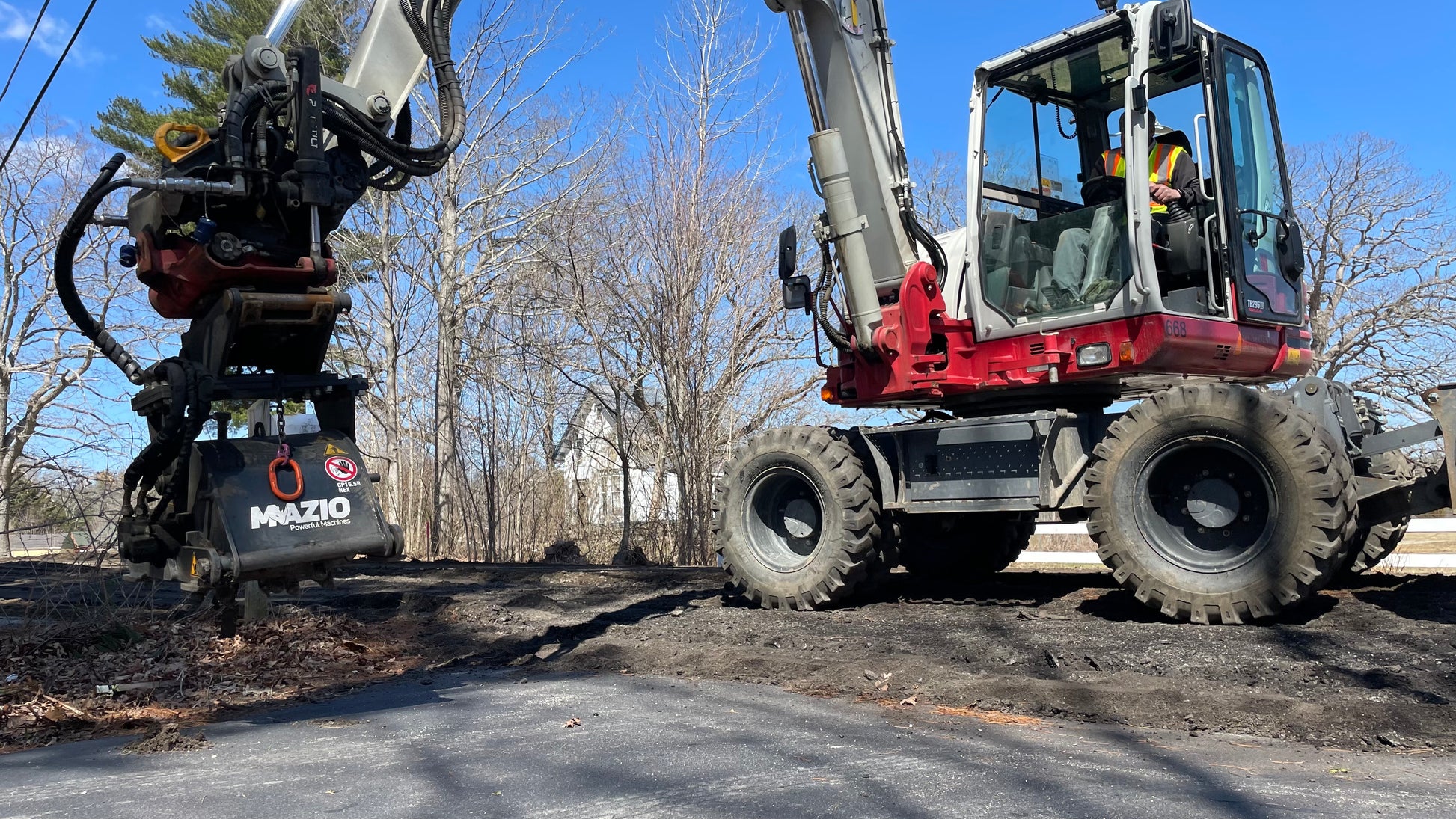

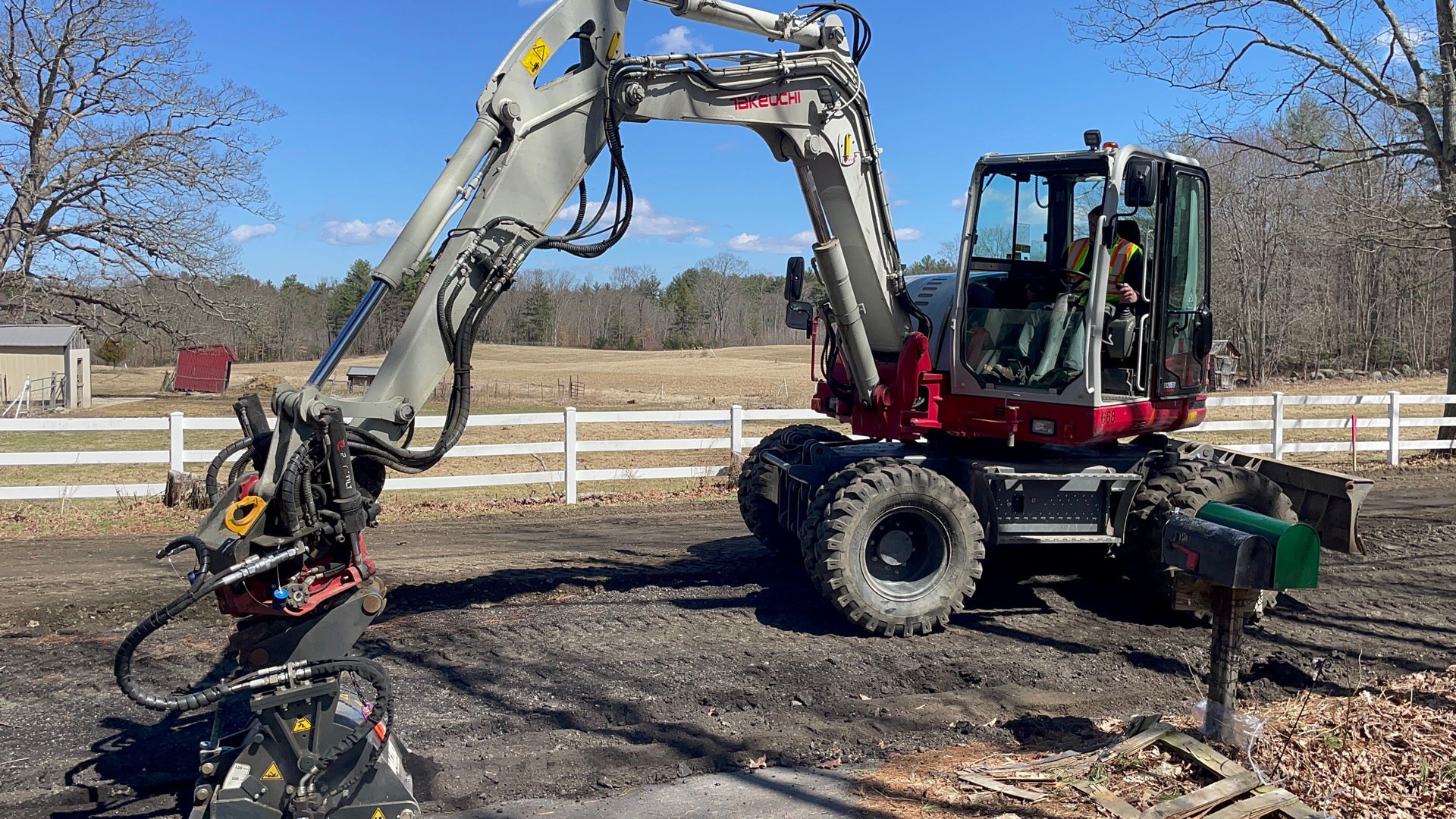

Mazio HEX Cold Planer Grinder | CP16.5R HEX | Width 16" | Machine Size 7–12 Tons | For Mini Excavators

Description

The Mazio HEX Cold Planer Mini Excavator CP16.5R HEX is designed for excavators up to 12 tons. Equipped with a piston motor and planetary driveline, it boosts torque by 21% for unmatched productivity. This best-in-class power-to-weight ratio reduces vibration and optimizes machine balance, making it ideal for various applications such as asphalt grinding, concrete grinding, and milling. The Easy-Window feature reduces bit replacement time by 50%, ensuring 100% secure operation. The cold planer is constructed with a 38mm (1.5 inches) drum thickness, offering durability and efficiency.

Key Features

  • High‑Flow Hydraulic Compatibility – Requires 80–90 GPM auxiliary flow, making it suitable for large skid steers and compact track loaders (7–12 ton class)
  • Powerful Operating Pressure – Works within 2000–3248 psi (138–224 bar) for aggressive milling performance
  • Compact Milling Width – 16″ (406 mm) cutting width with 5″ (127 mm) depth for precision surface removal
  • Wide Coverage – 26″ (660 mm) left‑to‑right travel with ±15° tilt for flexible operation on uneven surfaces
  • Heavy‑Duty Build – Weighs 650 kg (1430 lbs), ensuring stability and durability in demanding roadwork conditions
  • Efficient Cutting System – Equipped with 38 replaceable bits for fast, consistent material removal
  • Easy‑Window Design – Reduces bit replacement time by 50%, minimizing downtime and boosting productivity
  • Secure Operation – Engineered for 100% safe performance, even under heavy load and continuous use
  • Versatile Applications – Ideal for asphalt milling, road repair, surface leveling, and site preparation
  • Operator Productivity – Designed for continuous duty with minimal maintenance requirements

Detailed Specifications

Feature Specification
Model CP16.5R HEX
Width (mm/in) 406 / 16
Depth (mm/in) 127 / 5
Left to Right (mm/in) 660 / 26
Lt/min - gpm 2280 / 90
Bar - psi 224 - 138
Pressure (psi) 3248 - 2000
Weight (kg/lb) 650 / 1430
Number of Bits 38 pcs
Easy-Window 50% less time replacing bits
Operation 100% Secure



 These detailed specifications ensure that the Mazio HEX Cold Planer Mini Excavator is a powerful, reliable, and efficient tool for various construction and industrial applications. Its advanced features and robust construction make it an excellent choice for professionals seeking high productivity and safety.
