Product Description

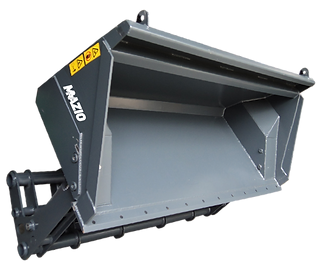

Mazio High Tip (Dump) Bucket SSL | Total Width 61"-85" | Hydraulic Flow Range 15–25 GPM | For Skid Steers
Description
The Mazio High Tip (Dump) Bucket SSL is a highly efficient and durable attachment designed for skid steers, enhancing the capacity and ease of handling materials. With a robust design featuring an anti-wear blade, this bucket is built to withstand rigorous use in various environments. The bucket's dump height can increase from 80 to 120 cm, providing superior reach and flexibility for loading and unloading tasks.
Engineered for maximum performance, the Mazio High Tip Bucket comes equipped with two protected hydraulic cylinders that ensure smooth and reliable operation. The hoses connections are specifically designed for skid steer loaders, marked as A+B, making it easy to integrate with existing machinery. Additionally, the bucket is compatible with the ISO24410 attach frame type skid steer loader, ensuring a perfect fit and easy installation.
This bucket is ideal for a wide range of applications, from construction to agriculture, thanks to its versatile design and robust construction. Its high tipping ability makes it especially useful for tasks that require elevated dumping, improving efficiency and productivity on the job site.
Key Features
- Multiple Size Options – Available in widths from 61″ (1550 mm) up to 85″ (2150 mm) to match different machine classes and applications
- Large Capacity Range – Handles from 300 L (low density) up to 1280 L (high density), giving operators flexibility for light, medium, or heavy materials
- Hydraulic Compatibility – Designed for standard‑flow hydraulics (15–25 GPM) with a maximum operating pressure of 224 bar (3248 psi)
- Balanced Weight Range – Weights scale from 240 kg (529 lbs) on compact models to 535 kg (1180 lbs) on larger models, ensuring stability and performance
- Durable Construction – Heavy‑duty build with reinforced structure for long service life under demanding conditions
- Optimized Performance – Engineered to maintain efficiency across different material densities (low, medium, high)
- Versatile Applications – Suitable for construction, agriculture, landscaping, and industrial material handling
- Operator Efficiency – Compact design with wide working widths reduces passes, saving time and fuel
- Low Maintenance – Simplified design with fewer wear points reduces downtime and service costs
Detailed Specifications
HT‑1550
| Feature | Details |
|---|---|
| Total Width | 1550 mm / 61 in |
| Capacity (Low Density) | 300 L |
| Capacity (Medium Density) | 420 L |
| Capacity (High Density) | 520 L |
| Maximum Pressure | 224 bar / 3248 psi |
| Weight | 240–290 kg (varies by density) |
| Hydraulic Flow Range | 15–25 GPM |
HT‑1700
| Feature | Details |
|---|---|
| Total Width | 1700 mm / 67 in |
| Capacity (Low Density) | 410 L |
| Capacity (Medium Density) | 470 L |
| Capacity (High Density) | 690 L |
| Maximum Pressure | 224 bar / 3248 psi |
| Weight | 275–340 kg |
| Hydraulic Flow Range | 15–25 GPM |
HT‑1850
| Feature | Details |
|---|---|
| Total Width | 1850 mm / 73 in |
| Capacity (Low Density) | 560 L |
| Capacity (Medium Density) | 780 L |
| Capacity (High Density) | 1060 L |
| Maximum Pressure | 224 bar / 3248 psi |
| Weight | 320–390 kg |
| Hydraulic Flow Range | 15–25 GPM |
HT‑2000
| Feature | Details |
|---|---|
| Total Width | 2080 mm / 82 in |
| Capacity (Low Density) | 850 L |
| Capacity (Medium Density) | 1100 L |
| Capacity (High Density) | 1240 L |
| Maximum Pressure | 224 bar / 3248 psi |
| Weight | 375–460 kg |
| Hydraulic Flow Range | 15–25 GPM |
HT‑2150
| Feature | Details |
|---|---|
| Total Width | 2150 mm / 85 in |
| Capacity (Low Density) | 870 L |
| Capacity (Medium Density) | 1160 L |
| Capacity (High Density) | 1280 L |
| Maximum Pressure | 224 bar / 3248 psi |
| Weight | 440–535 kg |
| Hydraulic Flow Range | 15–25 GPM |
