Mazio HLE Series Excavator Hydraulic Magnet | HLE-15, HLE-25 & HLE-40 Models | Machine Size 10-45 Ton | For Excavators

Mazio HLE Series Excavator Hydraulic Magnet | HLE-15, HLE-25 & HLE-40 Models | Machine Size 10-45 Ton | For Excavators

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote.
  • Operating Weight Range: 10-45 tons
  • Ideal For: Handling ferrous materials, especially scrap for recycling
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Mazio HLE Series Excavator Hydraulic Magnet | HLE-15, HLE-25 & HLE-40 Models | Machine Size 10-45 Ton | For Excavators

DESCRIPTION

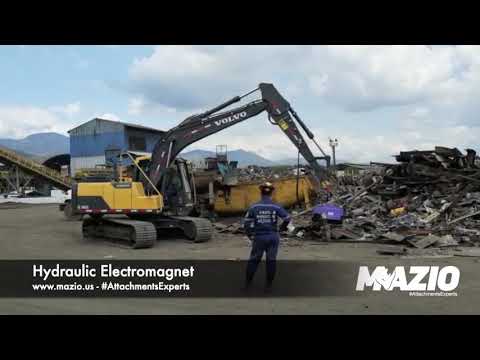

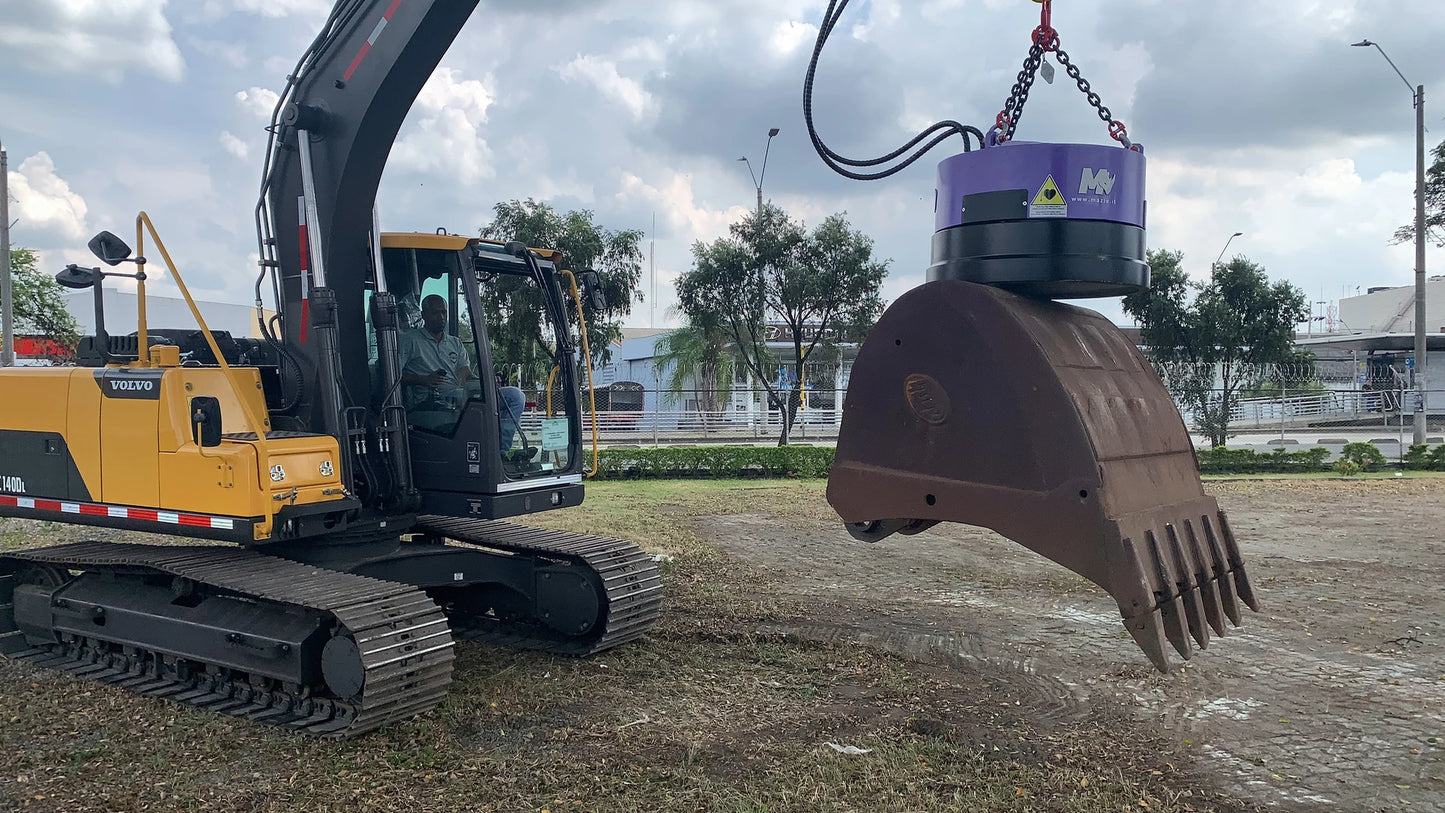

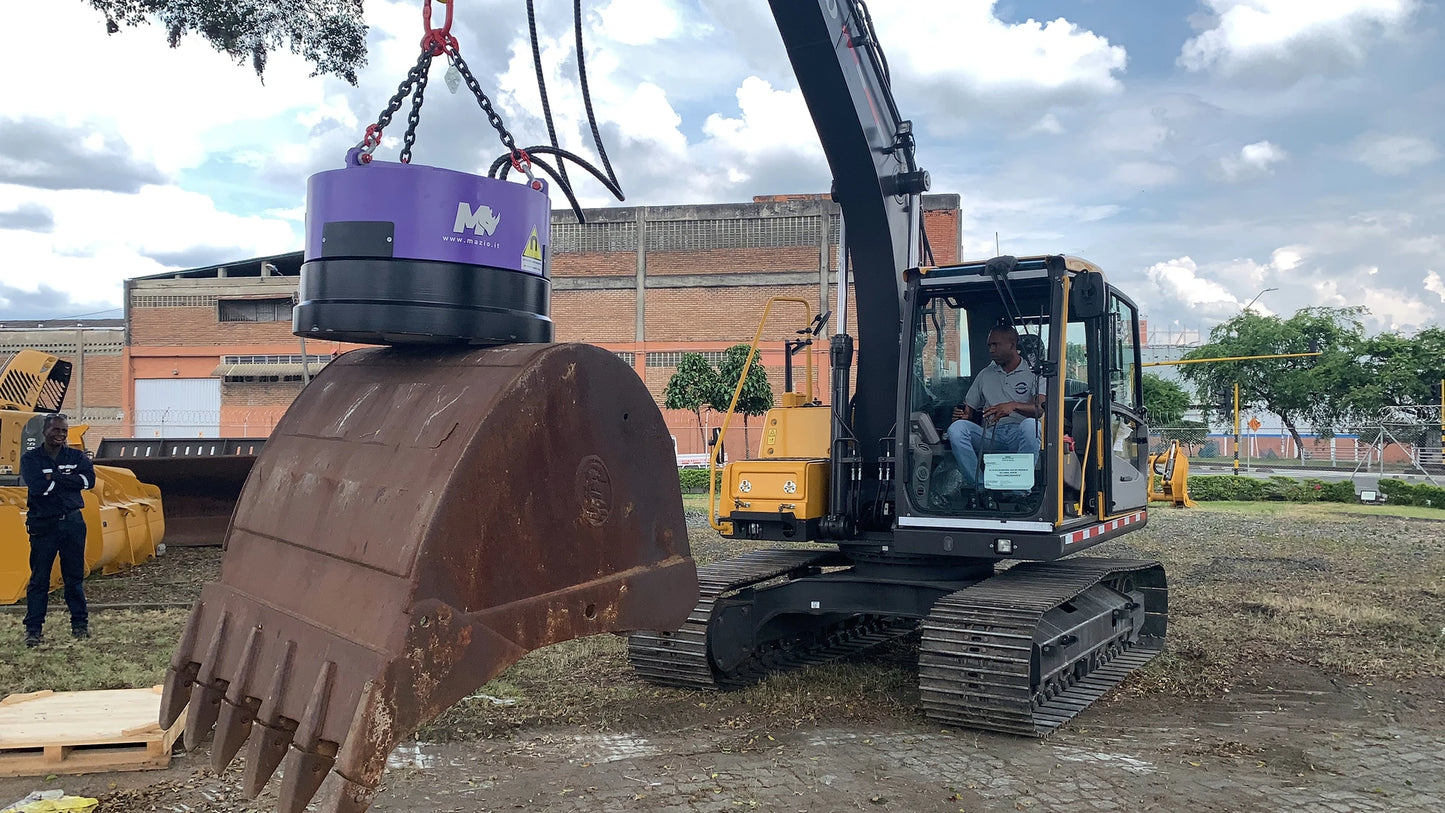

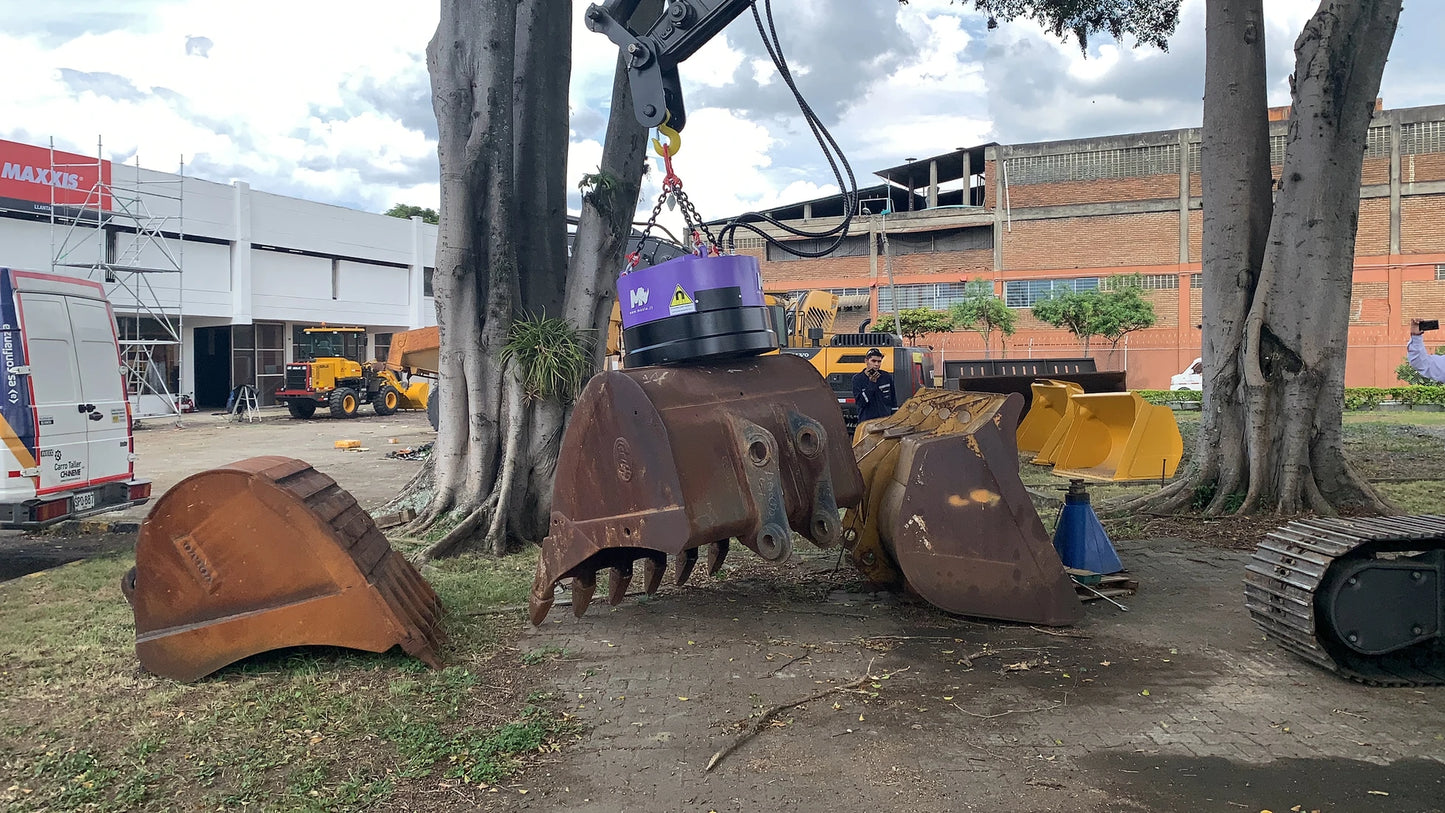

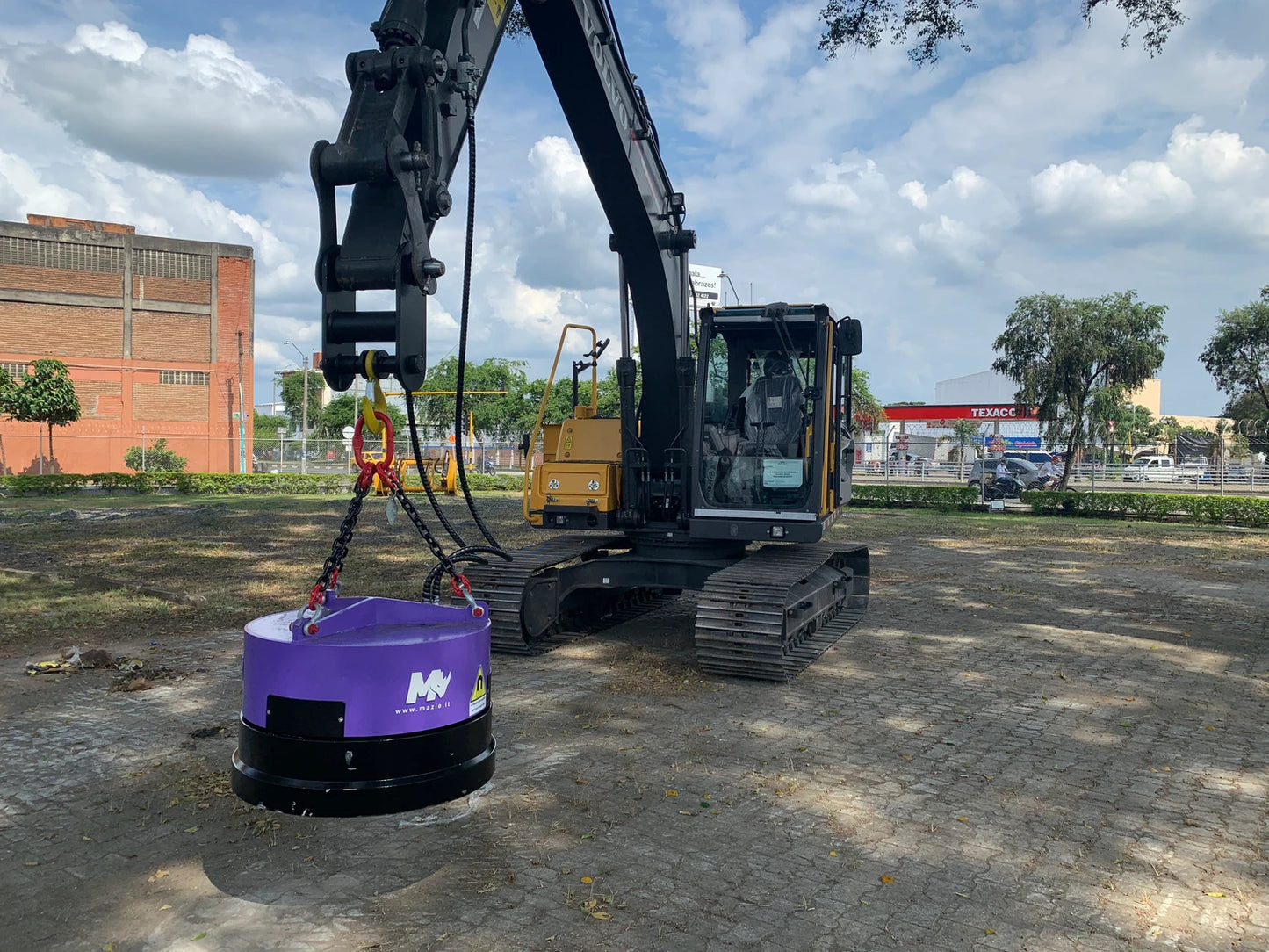

The Hydraulic Electromagnets Mazio HLE Series are designed for efficient handling of ferrous materials, particularly scraps intended for recycling. These electromagnets are activated through the hydraulic flow of the hydraulic breaker line, eliminating the need for an external generator. Ideal for heavy-duty recycling tasks.

Key Features

  • Wide Excavator Compatibility • HLE‑15: fits 10–19 ton excavators • HLE‑25: fits 20–30 ton excavators • HLE‑40: fits 35–45 ton excavators
  • High Magnetic Power Output • HLE‑15: 4.5 kW • HLE‑25: 7.2 / 9 kW (two options) • HLE‑40: 11 kW
  • Strong Tear‑Off Force • HLE‑15: 1,350 kg • HLE‑25: up to 24,000 kg • HLE‑40: 26,000 kg
  • Durable Construction – Heavy‑duty steel casing with reinforced coil protection ensures long service life in scrap yards and demolition sites
  • Hydraulic & Electrical Efficiency • Oil flow: 50–70 L/min (13–18 GPM) • Pressure: 110–200 bar • Optimized for stable performance across machine classes
  • Large Magnet Diameters • HLE‑15: 950 mm (37.4 in) • HLE‑25: 1250 mm (49.2 in) • HLE‑40: 1500 mm (59.1 in)
  • High Lifting Capacities • Scrap: up to 700 kg • Cast iron pigs: up to 1300 kg • Slabs/blocks: up to 650 kg • Light scrap: up to 600 kg • Steel turnings: up to 360 kg
  • Optimized Dimensions – Compact H1/H2 profiles (600–1450 mm) for efficient handling and easy integration with excavators
  • Versatile Applications – Ideal for scrap handling, steel recycling, demolition debris, foundry operations, and heavy industrial lifting

Detailed Specifications

General Specifications:

HLE-15 & HLE-25

Attribute HLE-15 HLE-25
Excavator Operating Weight (Ton) 10 - 19 20 - 30
Power (kW) 4.5 7.2 / 9
Weight (kg) 950 1650 / 1970
Oil Flow (l/min) 50 70
Pressure (bar) 110 150

HLE-40

Attribute HLE-40
Excavator Operating Weight (Ton) 35 - 45
Power (kW) 11
Weight (kg) 2460
Oil Flow (l/min) 70
Pressure (bar) 200

Tear Off Force and Dimensions:


HLE-15 & HLE-25 (7.2 kW)

Attribute HLE-15 HLE-25 (7.2 kW)
Tear Off Force (kg) 1350 22000
Diameter (mm) 950 1250
H1 (mm) 600 650
H2 (mm) 730 1150

HLE-25 (9 kW) & HLE-40

Attribute HLE-25 (9 kW) HLE-40
Tear Off Force (kg) 24000 26000
Diameter (mm) 1250 1500
H1 (mm) 650 750
H2 (mm) 1150 1450



Approximate Lifting Capacities:

Scrap & Cast Iron Pigs

Attribute Scrap (2.2-2.5 ton/m³) Cast Iron Pigs (1.9-2 ton/m³)
HLE-15 (kg) 320 450
HLE-25 (kg) 600 1150
HLE-40 (kg) 700 1300

Slabs or Blocks & Light Scrap

Attribute Slabs or Blocks (0.8-1 ton/m³) Light Scrap
HLE-15 (kg) 270 210
HLE-25 (kg) 600 550
HLE-40 (kg) 650 600

Steel Turning

Attribute Steel Turning
HLE-15 (kg) 160
HLE-25 (kg) 350
HLE-40 (kg) 360
