MAZIO XL SERIES HYDRAULIC BREAKERS | XL-140 TO XL-580 MODELS | OPERATING WEIGHT 1- 14 TON | FOR SKID STEERS, EXCAVATORS & BACKHOE

MAZIO XL SERIES HYDRAULIC BREAKERS | XL-140 TO XL-580 MODELS | OPERATING WEIGHT 1- 14 TON | FOR SKID STEERS, EXCAVATORS & BACKHOE

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote.
  • Weight Range: From 130 Kg to 580 Kg, suitable for various heavy-duty tasks.
  • Tool Diameter: From 42 mm to 92 mm, allowing for diverse applications.
  • High Impact Energy: From 190 joules to 1300 joules, ensuring powerful performance.
  • Carrier Weight Compatibility: Suitable for carriers ranging from 0.8 to 14 tons.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

MAZIO XL SERIES HYDRAULIC BREAKERS | XL-140 TO XL-580 MODELS | OPERATING WEIGHT 1- 14 TON | FOR SKID STEERS, EXCAVATORS & BACKHOE

DESCRIPTION

The Mazio XL Series Hydraulic Breakers are quite impressive! They're designed for a wide range of equipment, from skid steers and backhoes to excavators, and they handle operating weights from 1 to 140 tons. These breakers are built to withstand tough conditions in quarries, mining, tunneling, and demolition.

Key Features

  • Anti-Blank-Fire Technology: Protects the breaker from damage by preventing firing without a target.
  • Energy Recovery System: Enhances efficiency and performance by recycling energy.
  • Double Damping System: Reduces vibration for smoother operation and less wear.
  • Gas Technology Design: Fewer moving parts for greater reliability and reduced maintenance.
  • Variable Impact Speed and Power: Adaptable to different tasks and materials.
  • Low Cost of Ownership: Economical operation and maintenance.
  • 100% HARDOX & STRENX Steel: Exceptional durability and longevity.
  • Vibration Activated Hour Meter: Tracks operational hours for maintenance planning.
  • Tunnel and Underwater Operation Options: Versatile use in diverse environments.
  • 12-Month Warranty: Comprehensive coverage for peace of mind.

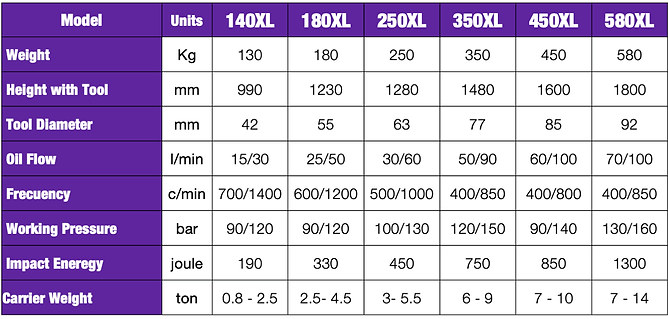

Detailed Specifications

140XL & 180XL

Attribute 140XL 180XL
Weight (Kg) 130 180
Height with Tool (mm) 990 1230
Tool Diameter (mm) 42 55
Oil Flow (l/min) 15/30 25/50
Frequency (c/min) 700/1400 600/1200
Working Pressure (bar) 90/120 90/120
Impact Energy (joule) 190 330
Carrier Weight (ton) 0.8 - 2.5 2.5 - 4.5


250XL & 350XL

Attribute 250XL 350XL
Weight (Kg) 250 350
Height with Tool (mm) 1280 1480
Tool Diameter (mm) 63 77
Oil Flow (l/min) 30/60 50/90
Frequency (c/min) 500/1000 400/850
Working Pressure (bar) 100/130 120/150
Impact Energy (joule) 450 750
Carrier Weight (ton) 3 - 5.5 6 - 9


450XL & 580XL

Attribute 450XL 580XL
Weight (Kg) 450 580
Height with Tool (mm) 1600 1800
Tool Diameter (mm) 85 92
Oil Flow (l/min) 60/100 70/100
Frequency (c/min) 400/800 400/850
Working Pressure (bar) 90/140 130/160
Impact Energy (joule) 850 1300
Carrier Weight (ton) 7 - 10 7 - 14

Manuals & Documents

Product Brochure

 General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
