Product Description
Mazio XL Series Hydraulic Breakers | XL-3000 to XL-10000 Models | Operating Weight 30-140 Ton | For Skid Steers, Excavators & Backhoe
DESCRIPTION

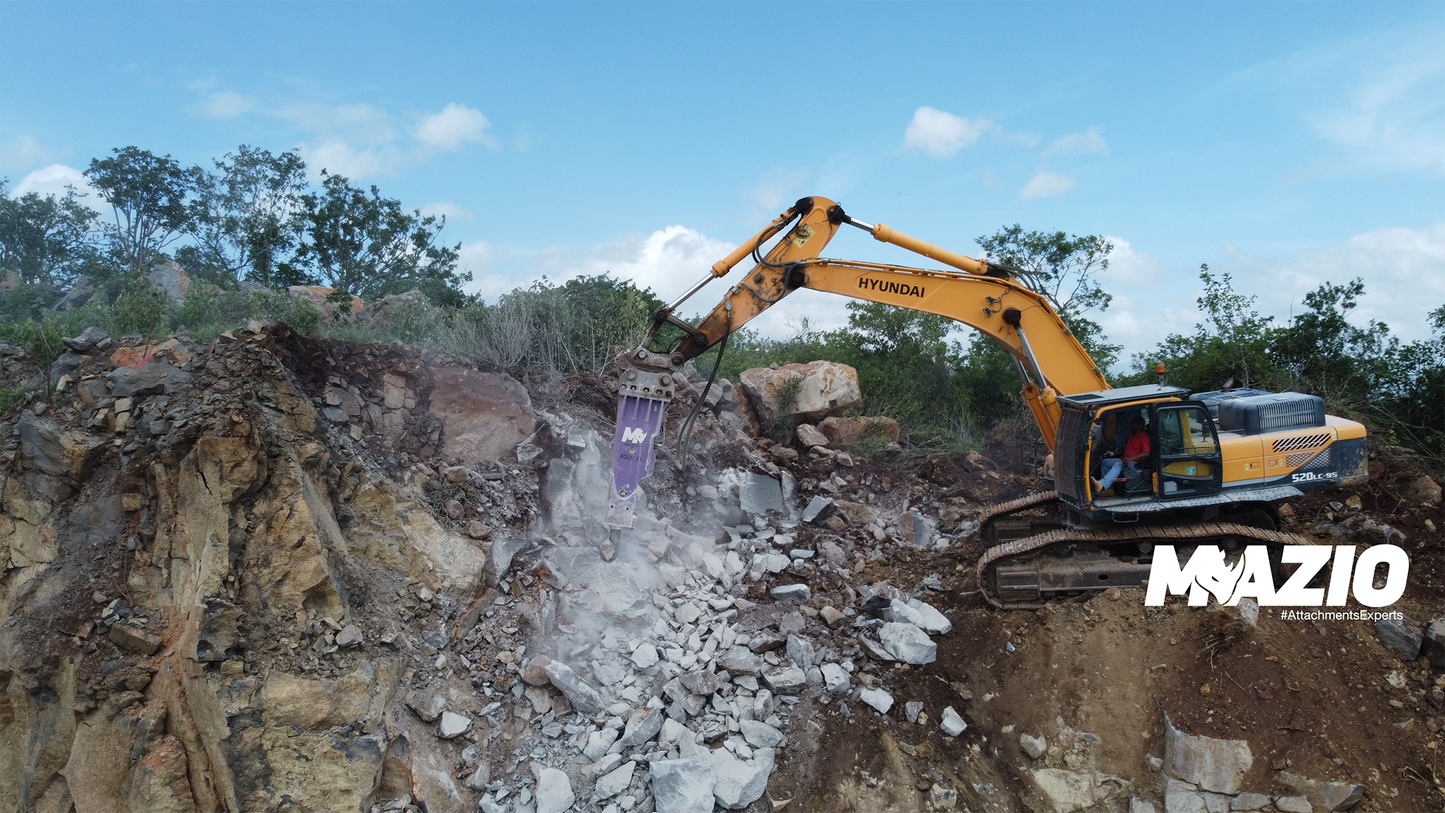

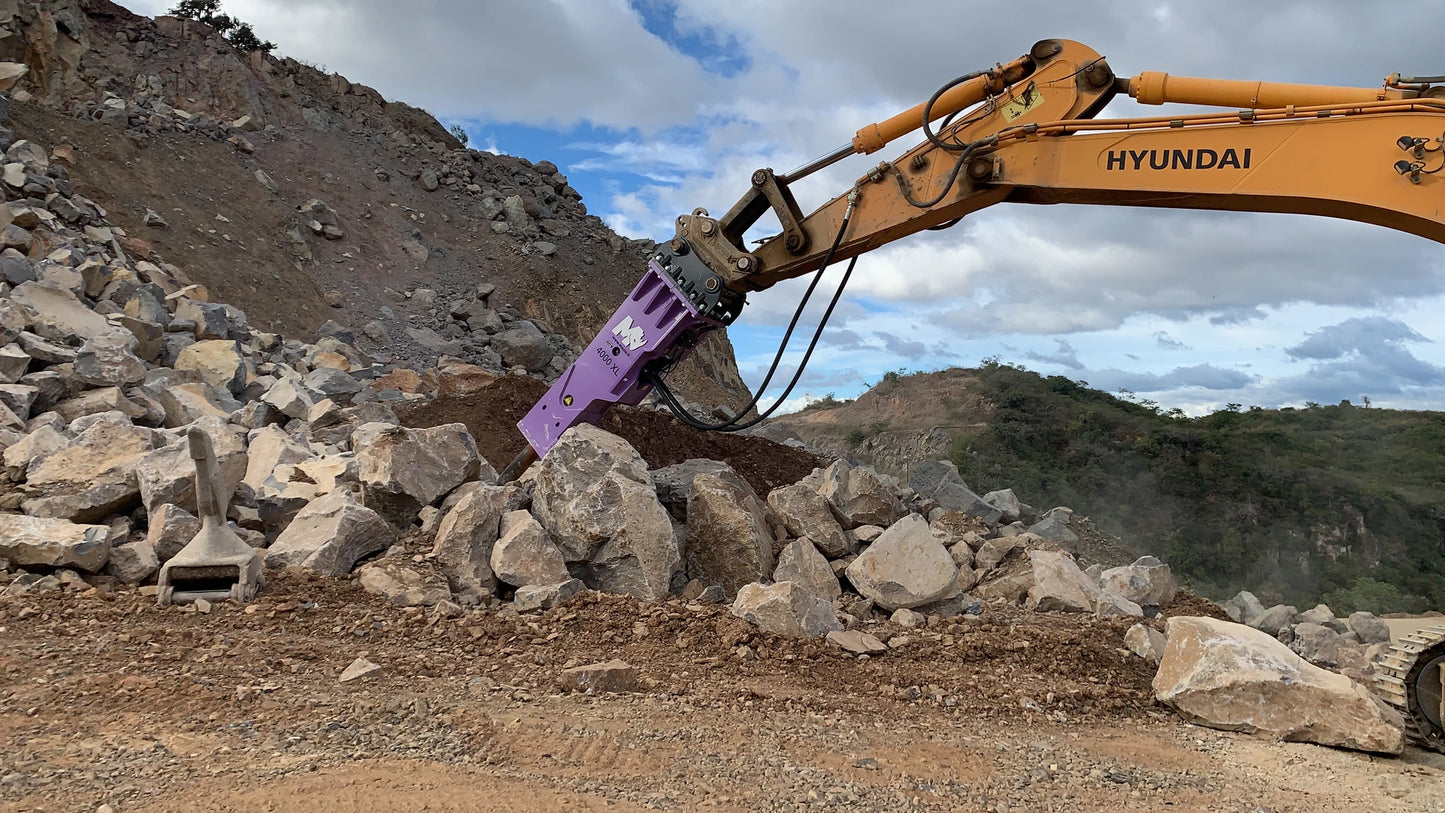

The Mazio XL Series Hydraulic Breakers are quite impressive! They're designed for a wide range of equipment, from skid steers and backhoes to excavators, and they handle operating weights from 30 to 140 tons. These breakers are built to withstand tough conditions in quarries, mining, tunneling, and demolition.
Key Features
- Carrier Compatibility: Designed for 30–140 ton excavators, covering large-scale demolition, quarrying, and foundation work.
- Impact Energy Range: Delivers 9,500 to 19,000 joules depending on model—ideal for breaking reinforced concrete, rock, and hard strata.
- Tool Diameter Options: Ranges from 162 mm (6.4″) to 240 mm (9.45″) for matching breaker size to carrier and material hardness.
- Hydraulic Flow Range: Operates between 200–530 L/min (53–140 GPM) for consistent power delivery across all models.
- Frequency Range: Adjustable from 250 to 500 cycles/min for tailored impact speed and material response.
- Working Pressure: Rated between 160–210 bar depending on model, ensuring optimal force transfer and system efficiency.
- Heavy-Duty Construction: Units weigh from 3050 kg to 10,000 kg, built for durability and stability under extreme impact loads.
- Extended Tool Reach: Heights range from 2980 mm to 5000 mm with tool installed, allowing deeper penetration and better visibility.
- Model Scalability: XL-3000 to XL-10000 series offers progressive sizing for carrier classes from 30 to 140 tons.
- Ideal Applications: Suited for mining, trenching, demolition, tunneling, and large-scale infrastructure projects.
Detailed Specifications
Hydraulic Breaker — 3000XL
| Attribute | Specification |
|---|---|
| Weight | 3050 kg |
| Height with Tool | 2980 mm |
| Tool Diameter | 162 mm (6.4″) |
| Oil Flow | 200–260 L/min (53–69 GPM) |
| Frequency | 250–500 c/min |
| Working Pressure | 160–180 bar |
| Impact Energy | 9500 joule |
| Carrier Weight | 30–40 Ton |

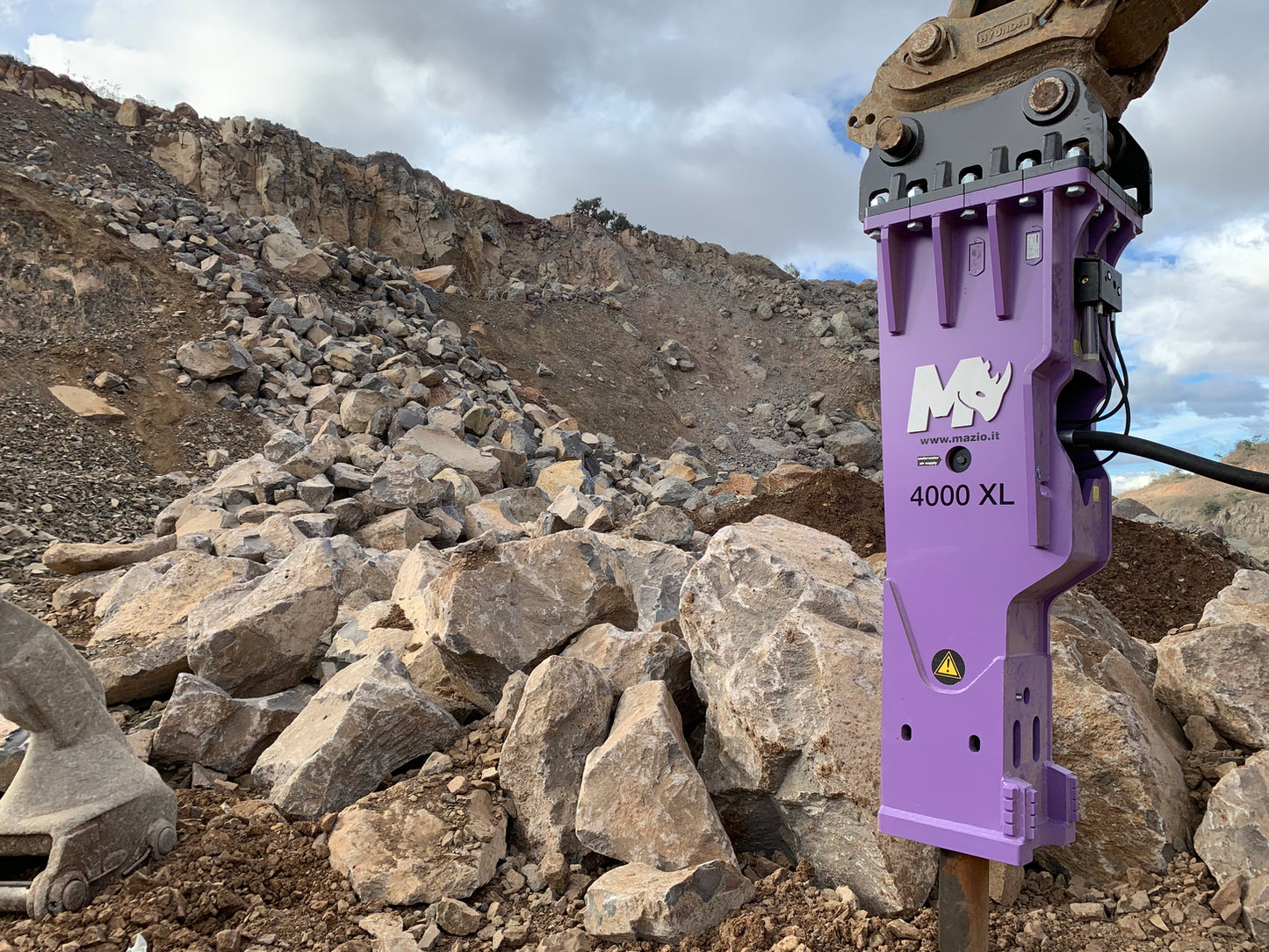

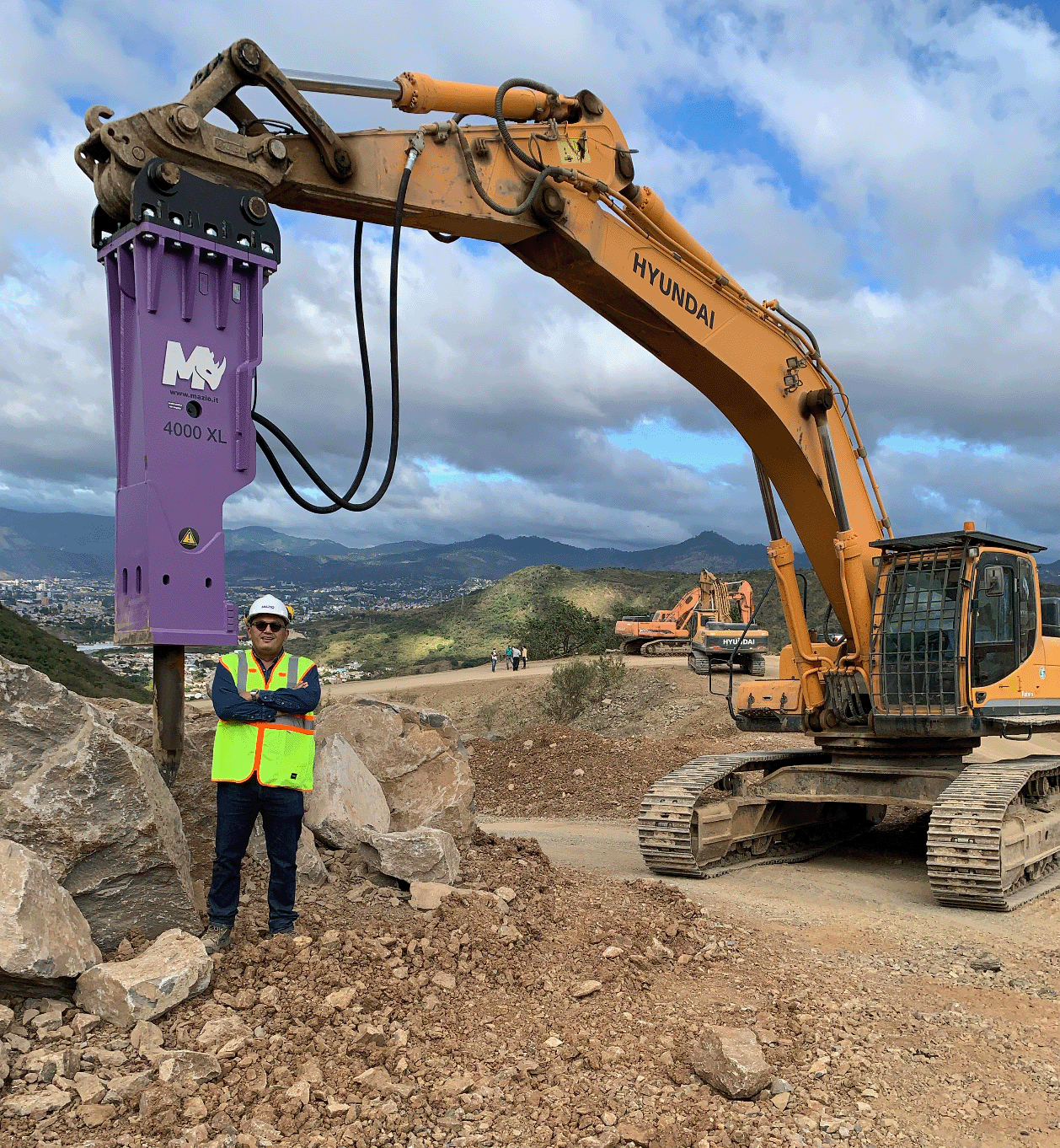

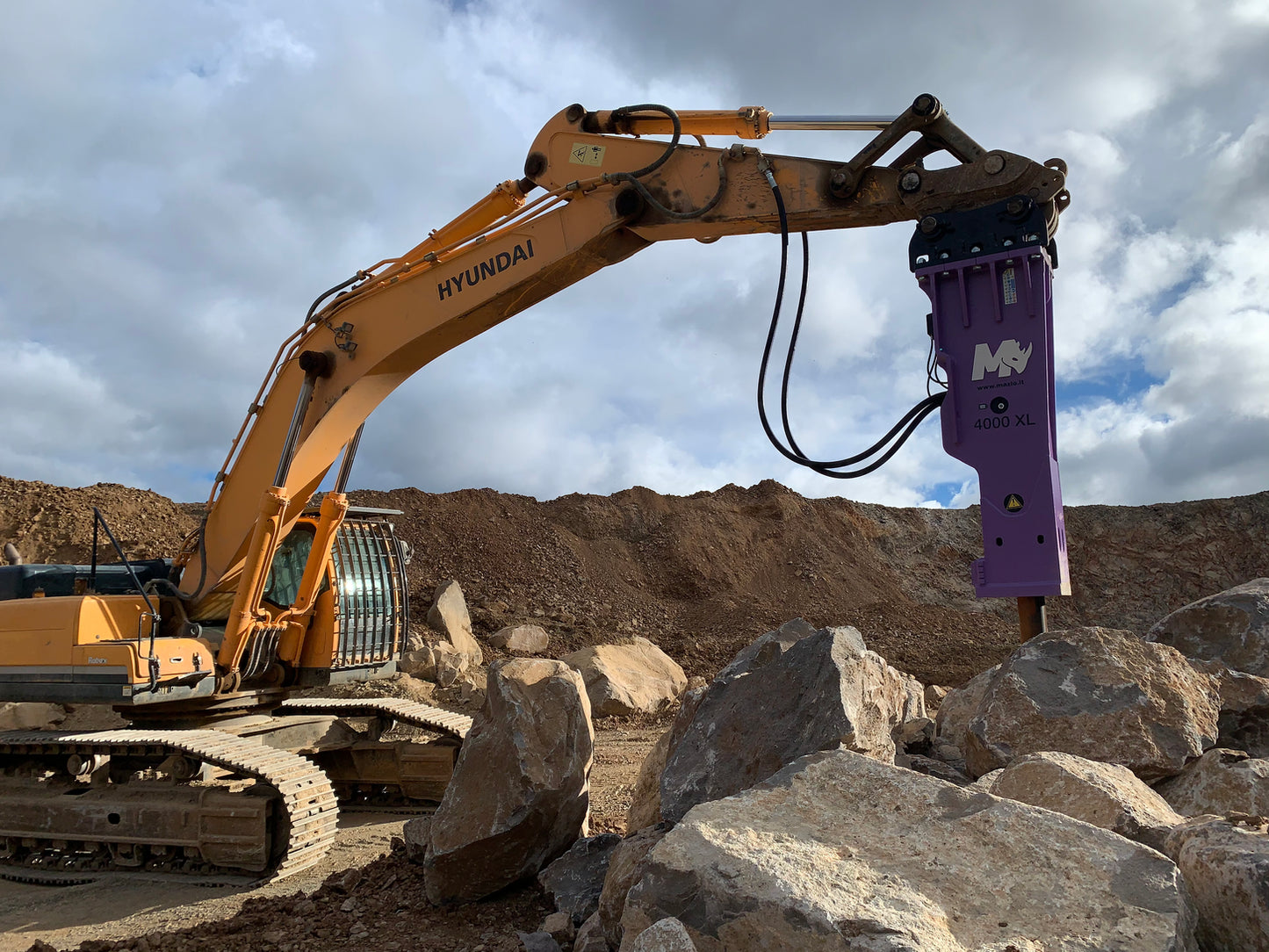

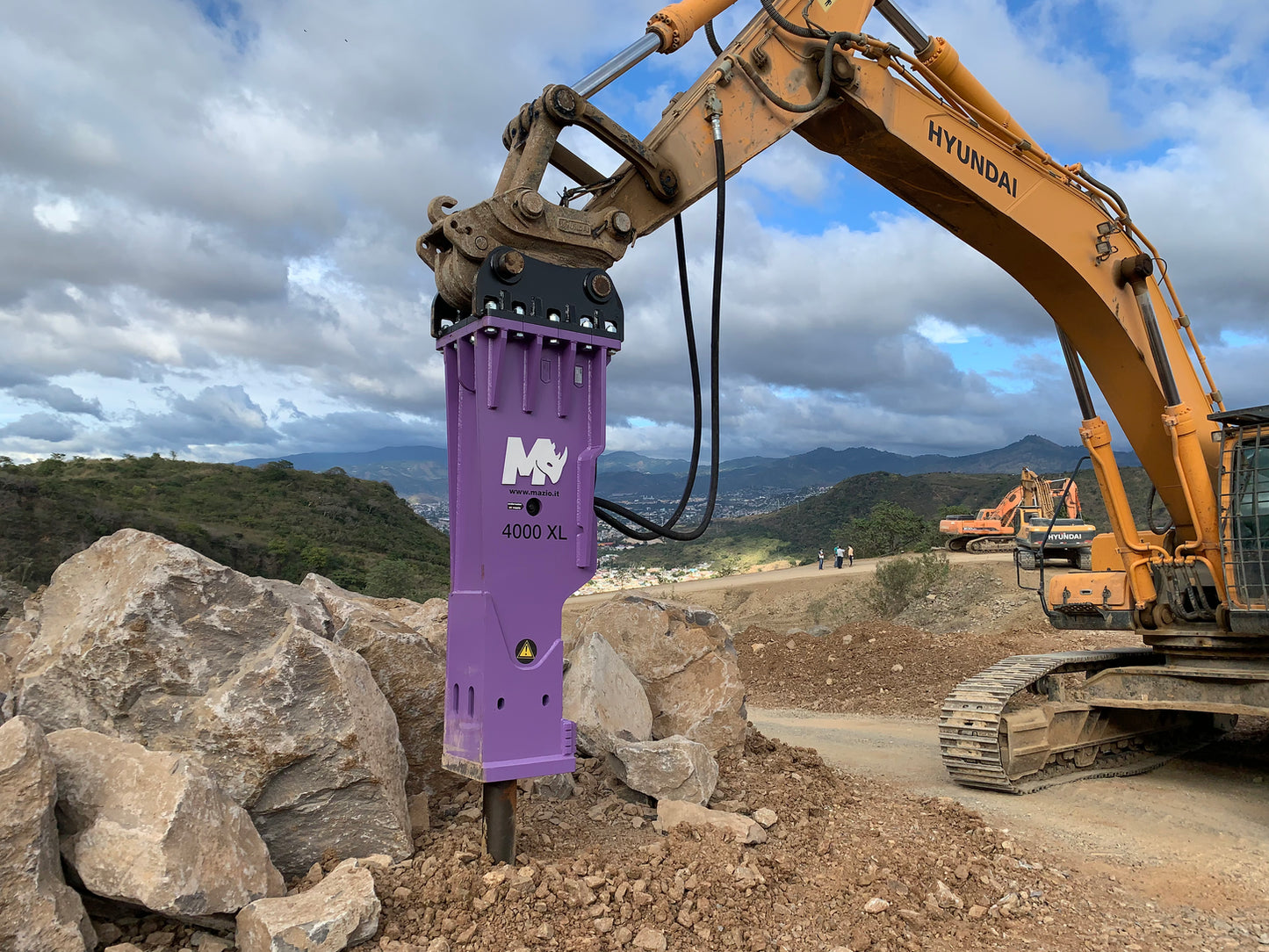

🔨 Hydraulic Breaker — 4000XL
| Attribute | Specification |
|---|---|
| Weight | 3800 kg |
| Height with Tool | 3180 mm |
| Tool Diameter | 177 mm (7.0″) |
| Oil Flow | 240–320 L/min (63–85 GPM) |
| Frequency | 250–500 c/min |
| Working Pressure | 160–180 bar |
| Impact Energy | 12000 joule |
| Carrier Weight | 38–60 Ton |
🔨 Hydraulic Breaker — 5000XL
| Attribute | Specification |
|---|---|
| Weight | 4800 kg |
| Height with Tool | 3250 mm |
| Tool Diameter | 180 mm (7.1″) |
| Oil Flow | 260–360 L/min (69–95 GPM) |
| Frequency | 250–500 c/min |
| Working Pressure | 160–190 bar |
| Impact Energy | 13700 joule |
| Carrier Weight | 45–70 Ton |
🔨 Hydraulic Breaker — 6000XL
| Attribute | Specification |
|---|---|
| Weight | 5800 kg |
| Height with Tool | 4000 mm |
| Tool Diameter | 202 mm (7.95″) |
| Oil Flow | 310–390 L/min (82–103 GPM) |
| Frequency | 250–360 c/min |
| Working Pressure | 170–210 bar |
| Impact Energy | 14500 joule |
| Carrier Weight | 60–100 Ton |
🔨 Hydraulic Breaker — 8000XL
| Attribute | Specification |
|---|---|
| Weight | 7400 kg |
| Height with Tool | 4500 mm |
| Tool Diameter | 205 mm (8.1″) |
| Oil Flow | 350–420 L/min (92–111 GPM) |
| Frequency | 280–350 c/min |
| Working Pressure | 170–210 bar |
| Impact Energy | 17000 joule |
| Carrier Weight | 65–110 Ton |
🔨 Hydraulic Breaker — 10000XL
| Attribute | Specification |
|---|---|
| Weight | 10000 kg |
| Height with Tool | 5000 mm |
| Tool Diameter | 240 mm (9.45″) |
| Oil Flow | 450–530 L/min (119–140 GPM) |
| Frequency | 250–320 c/min |
| Working Pressure | 170–210 bar |
| Impact Energy | 19000 joule |
| Carrier Weight | 90–140 Ton |
