Product Description
Mazio XL Series Hydraulic Breakers | XL-910 to XL-2500 Models | Operating Weight 14-36 Ton | For Skid Steers, Excavators & Backhoes
DESCRIPTION

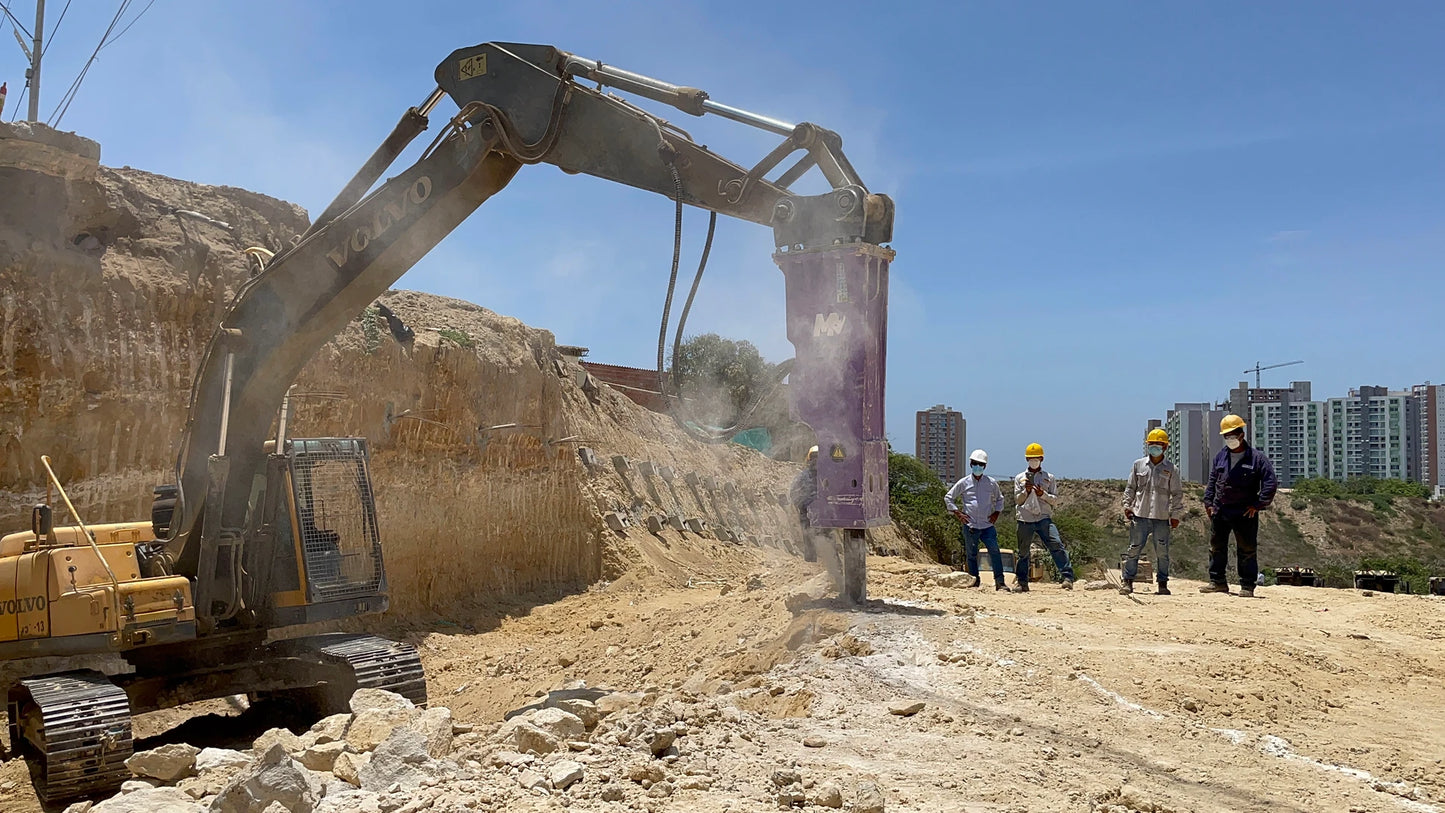

The Mazio XL Series Hydraulic Breakers are expertly crafted for demanding applications, ranging from construction and demolition to mining and tunneling. Designed for compatibility with skid steers, backhoes, and excavators, these breakers deliver exceptional impact energy and adaptability for carrier weights of 10 to 36 tons.
Equipped with Anti-Blank-Fire Technology and a Double Damping System, the Mazio XL Series ensures durability and reliability while reducing wear and vibrations. The Gas Technology Design simplifies maintenance and enhances performance, while the Energy Recovery System boosts efficiency by recycling energy. With premium-grade HARDOX® & STRENX® steel construction, these hydraulic breakers are built to last in the toughest environments.
From breaking concrete to rock excavation, the Mazio XL Series is a versatile and powerful solution for your equipment fleet. It features variable impact speeds, making it suitable for diverse tasks, and offers optional configurations for tunnel and underwater operations.
Key Features
- Anti-Blank-Fire Technology: Prevents damage during non-contact operations.
- Energy Recovery System: Recycles energy for improved efficiency.
- Double Damping System: Reduces vibration for smoother operation and longer component life.
- Gas Technology Design: Minimal moving parts for low maintenance costs.
- Premium Steel Construction: Made with HARDOX® & STRENX® steel for ultimate durability.
- Variable Impact Speed: Adjustable to suit various tasks and materials.
- Versatile Applications: Ideal for quarries, demolition, mining, tunneling, and more.
- Tunnel and Underwater Operation: Options available for diverse environments.
- Hour Meter: Tracks operational hours for maintenance planning.
- Warranty: Includes a 12-month comprehensive warranty.
Detailed Specifications
910XL & 1250XL
| Attribute | 910XL | 1250XL |
|---|---|---|
| Weight (Kg) | 900 | 1200 |
| Height with Tool (mm) | 2050 | 2280 |
| Tool Diameter (mm) | 102 | 127 |
| Oil Flow (l/min) | 80/110 | 90/120 |
| Frequency (c/min) | 300/700 | 300/700 |
| Working Pressure (bar) | 150/170 | 150/170 |
| Impact Energy (joule) | 2000 | 3000 |
| Carrier Weight (ton) | 10/14 | 15/18 |
1500XL & 1900XL
| Attribute | 1500XL | 1900XL |
|---|---|---|
| Weight (Kg) | 1450 | 1850 |
| Height with Tool (mm) | 2400 | 2420 |
| Tool Diameter (mm) | 130 | 137 |
| Oil Flow (l/min) | 100/145 | 100/155 |
| Frequency (c/min) | 350/550 | 350/600 |
| Working Pressure (bar) | 160/180 | 160/180 |
| Impact Energy (joule) | 4000 | 4500 |
| Carrier Weight (ton) | 16/22 | 18/24 |
2500XL
| Attribute | 2500XL |
|---|---|
| Weight (Kg) | 2400 |
| Height with Tool (mm) | 2650 |
| Tool Diameter (mm) | 152 |
| Oil Flow (l/min) | 180/240 |
| Frequency (c/min) | 350/600 |
| Working Pressure (bar) | 160/180 |
| Impact Energy (joule) | 6000 |
| Carrier Weight (ton) | 24/36 |
In Package
- Mazio XL Series Hydraulic Breaker (selected model)
- Two Working Tools
- Hydraulic Hoses and Fittings
- Mounting Brackets (Skid Steer, Backhoe, Excavator)
- Gas Charging Kit
- Repair Tool Box
- Owner’s Manual
- 12-Month Warranty Documentation
