MB Crushers

MB Crushers Screening Bucket | Model MB-S18 S4 | Width 79" | Machine Size 20-35 Tons | For Excavators

MB Crushers Screening Bucket | Model MB-S18 S4 | Width 79" | Machine Size 20-35 Tons | For Excavators

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Width 79" & Machine Size 20-35 Tons For Excavators
  • Optimized for Large Excavators: Designed for machines between 44,100 and 77,200 lbs.
  • Efficient Screening Capacity: Handles up to 3.14 cubic yards of material for high productivity.
  • Reduces Crushing Time: Cuts material processing time by up to 60%, improving efficiency.
  • Hydraulic Efficiency: Operates at >2,900 PSI pressure and an oil flow rate of 32 gal/min.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

MB Crushers Screening Bucket | Model MB-S18 S4 | Width 79" | Machine Size 20-35 Tons | For Excavators

DESCRIPTION

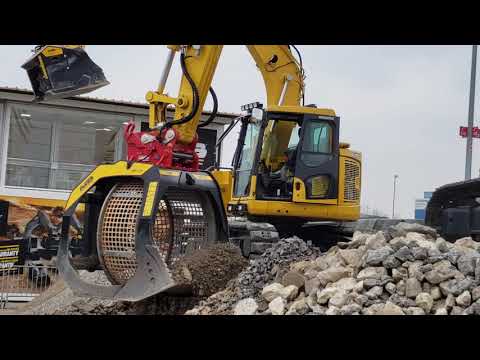

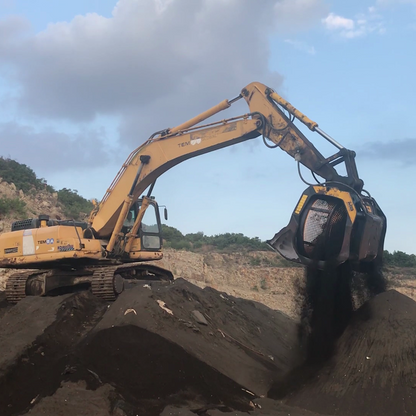

The MB Crushers MB-S18 S4 Screening Bucket is a versatile and efficient attachment ideal for large excavators. Weighing 4,409 lbs and capable of processing up to 3.14 cubic yards of material, this screening bucket delivers unmatched performance. Whether used before or after crushing, the MB-S18 reduces processing time by up to 60% while screening quarry residues, dry soil, river stones, and other natural materials. Its modular design, featuring interchangeable panels with various hole sizes, allows for easy customization to meet specific project requirements. Rugged and reliable, the MB-S18 is an essential tool for reducing material volumes and optimizing size for on-site processing.

Key Features

  • Large Screening Capacity: Designed to handle large material volumes with ease.
  • Customizable Panels: Interchangeable modular panels for precise material sizing.
  • Durable Construction: Built to withstand tough quarrying, mining, and demolition projects.
  • Time and Cost Efficiency: Reduces material processing time by up to 60%.
  • Hydraulic Optimization: Operates seamlessly within recommended flow and pressure parameters.

Applications

  • Pipeline and Trenches: Screens backfill material for trench bedding and coverage.
  • Urban Job Sites: Compact enough for confined spaces, yet robust for urban processing.
  • Quarries and Mines: Processes quarry residues and aggregates efficiently.
  • Demolitions: Separates and reclaims debris for reuse or further processing.
  • Foundries: Screens heavy materials for recycling and repurposing.
  • Tunnels and Enclosed Spaces: Performs effectively in confined environments.
  • Road Works: Prepares materials for road construction and maintenance.
  • Forest Maintenance: Processes organic materials for landscaping or agricultural applications.
  • Recycling Aggregate: Converts construction debris into reusable resources.
  • Excavations and Removal: Handles heavy material processing for large-scale excavation projects.

Detailed Specifications

Feature Specification
Model MB-S18 S4
Weight 4,409 lbs
Load Capacity 3.14 cubic yards
Pressure >2,900 PSI
Counter Pressure <580 PSI
Oil Flow Range 32 GPM
Excavator Compatibility 44,100–77,200 lbs (20–35 tons)
Width 79 inches (2000 mm)
