Rinieri Mechanical Orchard Pruner CRF Series | 79"-134" Cutting Width for Tractor
Description

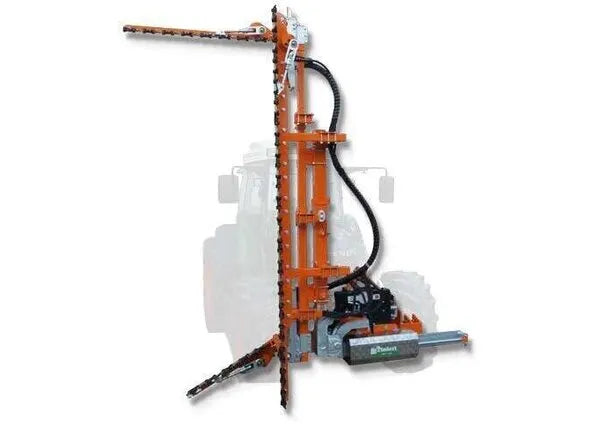

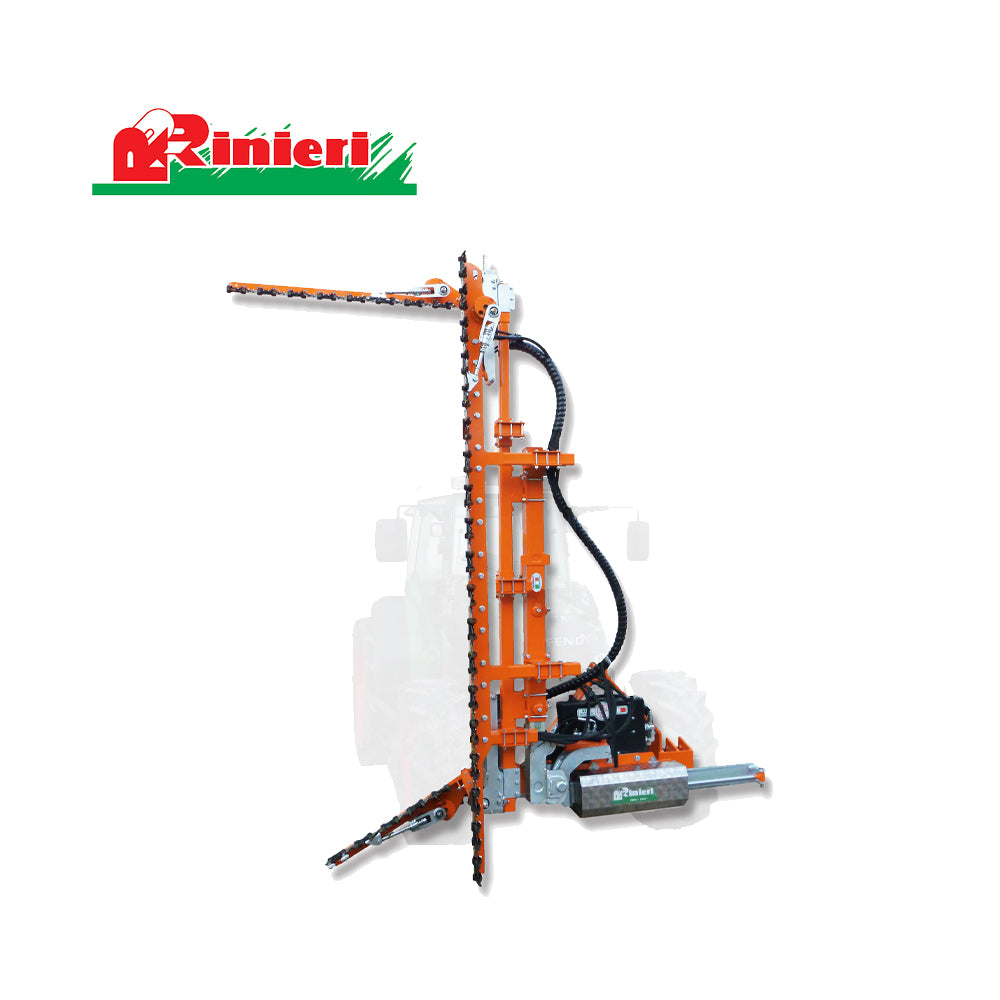

The Mechanical Orchard Pruner CRF is designed for high-density spindle orchards, making it perfect for pruning various fruit trees such as apples, apricots, cherries, and olives up to 13 feet high. Featuring a single-acting sickle bar with "SCH" teeth, this pruner can cut branches up to 1.2" to 1.6" in diameter, ensuring precision and speed in your pruning tasks.
With numerous accessories available, the CRF pruner can be adapted to different orchard setups, including hail-net-protected orchards. The machine can be equipped with a top bar featuring hydraulic tilting and rear rotation to avoid obstacles like poles. A "window" cutting kit with up to 3 bars is available on request, designed to improve sunlight penetration into the canopy, thus increasing productivity while reducing manual pruning labor.
Features
- High Adaptability: Suitable for high-density orchards and various tree species such as apples, apricots, cherries, and olives up to 13 feet high.
- Efficient Sickle Bar: Features a single-acting sickle bar with "SCH" teeth, cutting branches up to 1.2" - 1.6" in diameter.
- Optional Accessories: Includes top bars, bottom bars, and a "window" cutting kit for enhanced sunlight penetration, improving tree productivity and reducing manual labor.
- Customizable for Hail Nets: Hydraulic tilting and rear rotation on top bars help avoid poles in hail-net-protected orchards.

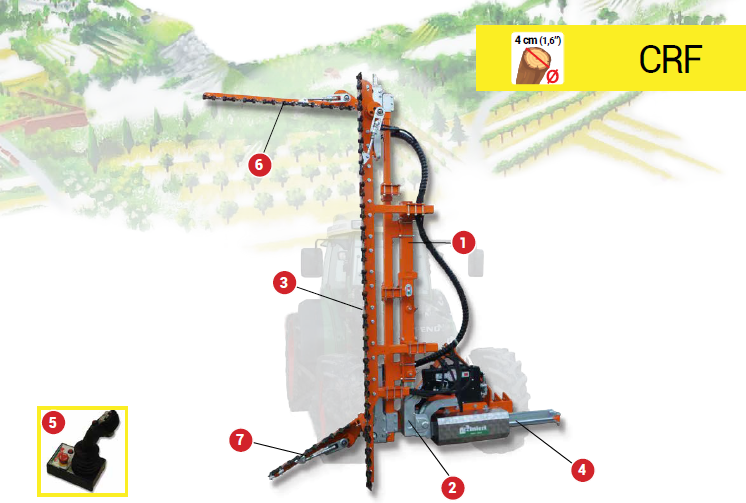

- Hydraulic Adjustments: Includes hydraulic lift, tilting column, side shift, and a vertical bar for precise pruning.
Specifications
| Component | Details |
|---|---|
| Hydraulic Lift | 35.4 inches |
| Hydraulic Tilting Column | +/- 5.9 inches |
| Hydraulic Side Shift | 19.7 inches (hydraulic) and 9.8 inches (manual) |

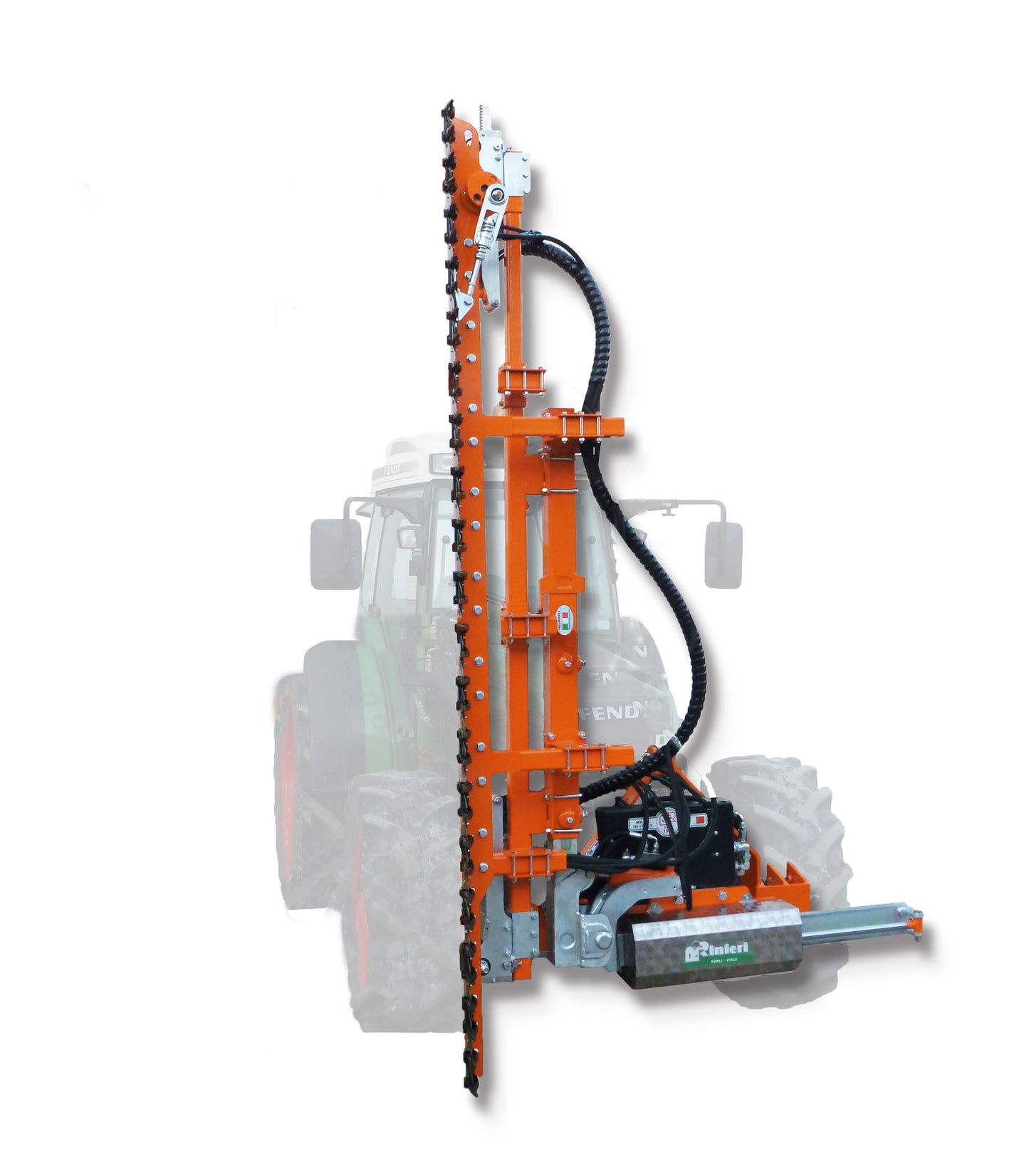

| Vertical Bar with "SCH" Teeth | Handles branches up to 1.2" - 1.6" Ø |
| Tractor Requirements | 1 double-acting distributor, 1 pressure-free return, 30-45 liters/min flow, 12V socket |
Model & Performance Chart

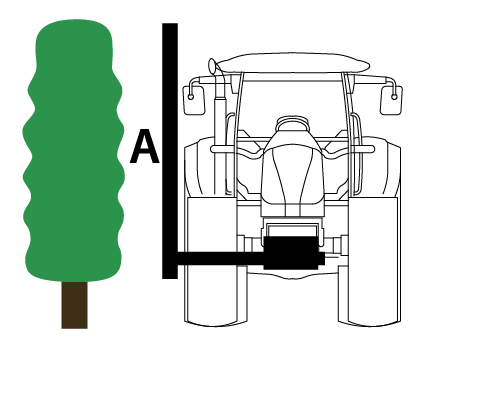

| Model | Dimensions A (inches) | Oil Demand (Liters/min) | Cutting Power (kW) |
|---|---|---|---|
| CRF 200 | 78.7" | 30 - 45 | 4 |
| CRF 250 | 98.4" | 30 - 45 | 4 |
| CRF 280 | 110.2 " | 35 - 45 | 4 |
| CRF 340 | 133.9" | 35 - 45 | 4 |
What's Included
- Mechanical Orchard Pruner CRF
- Hydraulic lift, tilting column, and side shift
- Vertical bar with "SCH" tooth
- Max pressure valve for motor protection
- Hydraulic stand for easy storage
- User Manual & Setup Guide
Additional Accessories:
- Adapter For Mounting CRF On Coupling Frames For Pruning Machines
- 3 Point Coupling CAT 2 For Tractors With Front Lift Or Reversible Tractor

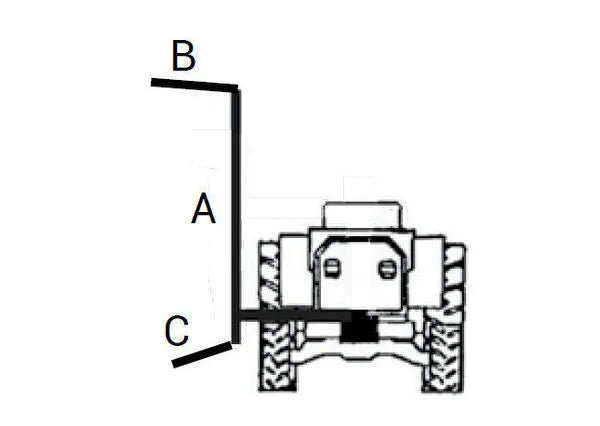

- 47.2" Top Sickle Bar With 90° Hydraulic Tilt And Spring-Shockproof With Backward Rotation
- 47.2" Top Sickle Bar With 90° Manual Tilt, Hydraulic Backward Rotation, And Safety Max Pressure Valve
- 47.2" Top Sickle Bar With 90° Hydraulic Tilt, Hydraulic Backward Rotation, And Safety Max Pressure Valve (2 Hydraulic Movements)
- 25.6" Bottom Sickle Bar With Manual Tilt And Spring Safety Device (0 Hydraulic Movements)
- 47.2" Top Sickle Bar With 90° Hydraulic Tilt, Spring Shockproof, And Backward Rotation (1 Hydraulic Movement)
- 25.6" Bottom Sickle Bar With Hydraulic Tilt And Spring Safety Device (1 Hydraulic Movement)
- Accessories For CRF
- Price Increase For Hydraulic Height Adjustment
- 25.6" Bottom Sickle Bar With Manual Tilting And Spring Safety Device (0 Hydraulic Movements)
- 25.6" Bottom Sickle Bar With Hydraulic Tilting And Spring Safety Device (1 Hydraulic Movement)
- 15.7" Mid Sickle Bar With Manual Regulation (0 Hydraulic Movements)
- Independent Hydraulic Kit With 45 L Pump, 90 L Oil Tank, Oil Cooler, And Cardan Joint
- Valve Kit For Adding Top With Cutting Saw Discs On CRF
- Hydraulic Height Adjustment For 19.7" Topping Bar (1 Hydraulic Movement, Hoses To The Tractor)
- Protection For Teeth Available For The Branches
- Independent Hydraulic Kit With 45 L Pump, 90 L Oil Tank, Oil Cooler For Hydraulic Kit, And Cardan Joint
- Radiator Mounting Kit Without Hydraulic Unit
- Protection Kit For Hail Nets
Boost your orchard’s productivity with the CRF Mechanical Orchard Pruner. Equipped with a highly efficient cutting bar and adaptable accessories, this pruner ensures better sunlight penetration and reduces manual labor during pruning. Order now and experience the perfect pruning solution for high-density orchards!
