Mini Trencher

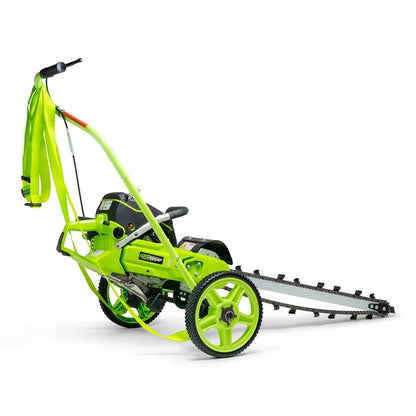

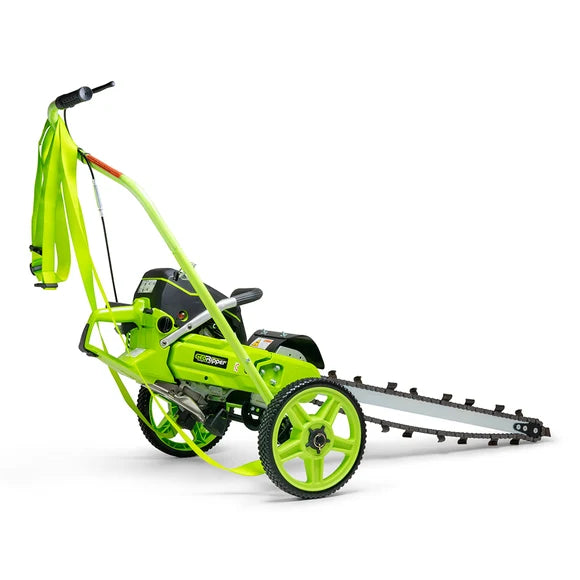

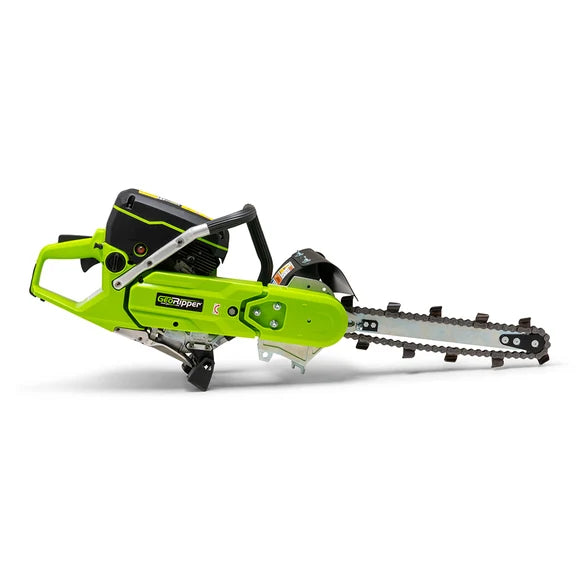

Mini Trencher GeoRipper®16 Portable Handheld Trencher | Model GR416 | 16-Inch Digging Depth | 4.7 HP, 74cc Engine

Mini Trencher GeoRipper®16 Portable Handheld Trencher | Model GR416 | 16-Inch Digging Depth | 4.7 HP, 74cc Engine

Regular price $2,299.99
Regular price Sale price $2,299.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Engine Power: 4.7 HP, 74cc Two-Stroke Gasoline Engine.
  • Maximum Digging Depth: 16" for Narrow Trenching Applications.
  • Trench Width: 2" for Precise Underground Utility Installation.
  • Digging Chain: Two Heavy-Duty, Self-Sharpening 16" Chains Included.
  • Intended Use: Portable Trenching for Irrigation, Landscaping, Pipes, Wires.
View full details

Product Description

Mini Trencher GeoRipper®16 Portable Handheld Trencher | Model GR416 | 16-Inch Digging Depth | 4.7 HP, 74cc Engine


DESCRIPTION

The Mini Trencher GeoRipper®16 is a powerful, portable handheld trencher designed for precise, efficient digging in landscaping, irrigation, and utility installation projects. Powered by a dedicated 74cc, 4.7 HP two-stroke engine with a belt-driven system, this compact trenching machine delivers reliable performance with a maximum digging depth of 16 inches and a 2-inch trench width. Its spring-loaded vibration control system improves handling and operator comfort, while the easy-pull starter simplifies engine starting. The self-sharpening, heavy-duty digging chains tackle soil, small roots, and demanding ground conditions, helping reduce manual digging time and physical effort. Vortex air filtration helps keep the engine intake clean, supporting dependable operation. Ideal for irrigation lines, landscape lighting, root barriers, and underground pipe or wire installations, the GeoRipper®16 offers a practical solution for narrow trenching where larger equipment may be unsuitable.

Key Features

  • Powerful 74cc, 4.7 HP Engine The dedicated two-stroke engine delivers 4.7 HP of digging power for efficient narrow trenching, making this portable mini trencher suitable for landscaping, irrigation, and utility installation tasks.
  • Maximum 16-Inch Digging Depth Reach depths of up to 16 inches for underground pipe installations, irrigation lines, landscape lighting, and other shallow trenching applications requiring controlled excavation.
  • Narrow 2-Inch Trench Width Create narrow trenches for wires, pipes, and irrigation systems while minimizing unnecessary soil disturbance in gardens, lawns, and landscaped areas.
  • Self-Sharpening Digging Chains Two heavy-duty digging chains feature self-sharpening teeth designed to maintain cutting performance and help tackle roots and challenging soil conditions during routine trenching.
  • Spring-Loaded Vibration Control The integrated vibration-control system helps reduce vibration transferred to the operator, supporting improved handling and comfort during digging tasks.
  • Belt-Driven Engine System The belt-driven power system transfers engine output to the digging mechanism, providing a practical configuration for portable, handheld trenching applications.
  • Easy-Pull Starting System The easy-pull starter is designed to reduce the effort required to start the engine, helping operators get to work more conveniently.
  • Vortex Air Filtration The Vortex air filtration system helps keep dirt and debris out of the engine intake, supporting dependable operation in dusty outdoor working environments.
  • Efficient Irrigation Trenching Dig narrow trenches for irrigation pipes and watering systems with less manual excavation, making installation and landscaping projects more manageable.
  • Underground Wire Installation Suitable for shallow trenching associated with landscape lighting, underground wiring, and similar utility projects where the specified trench dimensions meet project requirements.
  • Root Barrier Installation Create narrow channels for root-barrier projects and landscaping improvements, helping simplify targeted digging around outdoor planting areas.
  • Compact Portable Design The handheld configuration provides a practical alternative to larger trenching equipment for small jobs, tight workspaces, and targeted digging applications.
  • Reduced Manual Digging Effort Mechanized chain cutting helps reduce dependence on hand tools, saving time and physical effort compared with manual excavation for suitable trenching tasks.
  • Heavy-Duty Digging Components The digging bar, nose bar-end assembly, nose sprocket, and heavy-duty chains provide the core components required for the GeoRipper®16 trenching system.
  • Complete Essential Tool Kit The included engine tool kit, combination wrench, spare drive belt, nose bearing, bar-end assembly screws, chain connector link, and owner's manual help support setup and routine maintenance.

Detailed Specifications

Specification Details
Brand Mini Trencher
Product Name GeoRipper®16
Model GR416
Product Type Portable Handheld Mini Trencher
Engine Type Two-Stroke Gasoline Engine
Engine Displacement 74cc
Engine Power 4.7 HP
Drive System Belt-Driven
Maximum Digging Depth 16 inches
Trench Width 2 inches
Digging Bar Length 16 inches
Digging Chain Quantity 2
Digging Chain Size 16 inches deep × 2 inches wide
Chain Tooth Type Self-Sharpening, Heavy-Duty
Vibration Control Spring-Loaded System
Air Filtration Vortex Air Filtration
Starting System Easy-Pull Starter
Noise Level 116 dB (manufacturer-stated)
Primary Applications Irrigation, Root Barriers, Landscape Lighting, Pipe and Wire Installation
Included Digging Assembly 16-Inch Digging Bar, Nose Bar-End Assembly and Nose Sprocket
Additional Components Spare Drive Belt, Nose Bearing, Bar-End Assembly Screws
Tools Included Engine Tool Kit, 18mm and 13mm Combination Wrench
Other Included Items Chain Connector Link, Owner's Manual
SKU GR416
UPC-A 810075761085
EZ Kart Compatibility Optional; EZ Kart not included with GR416
