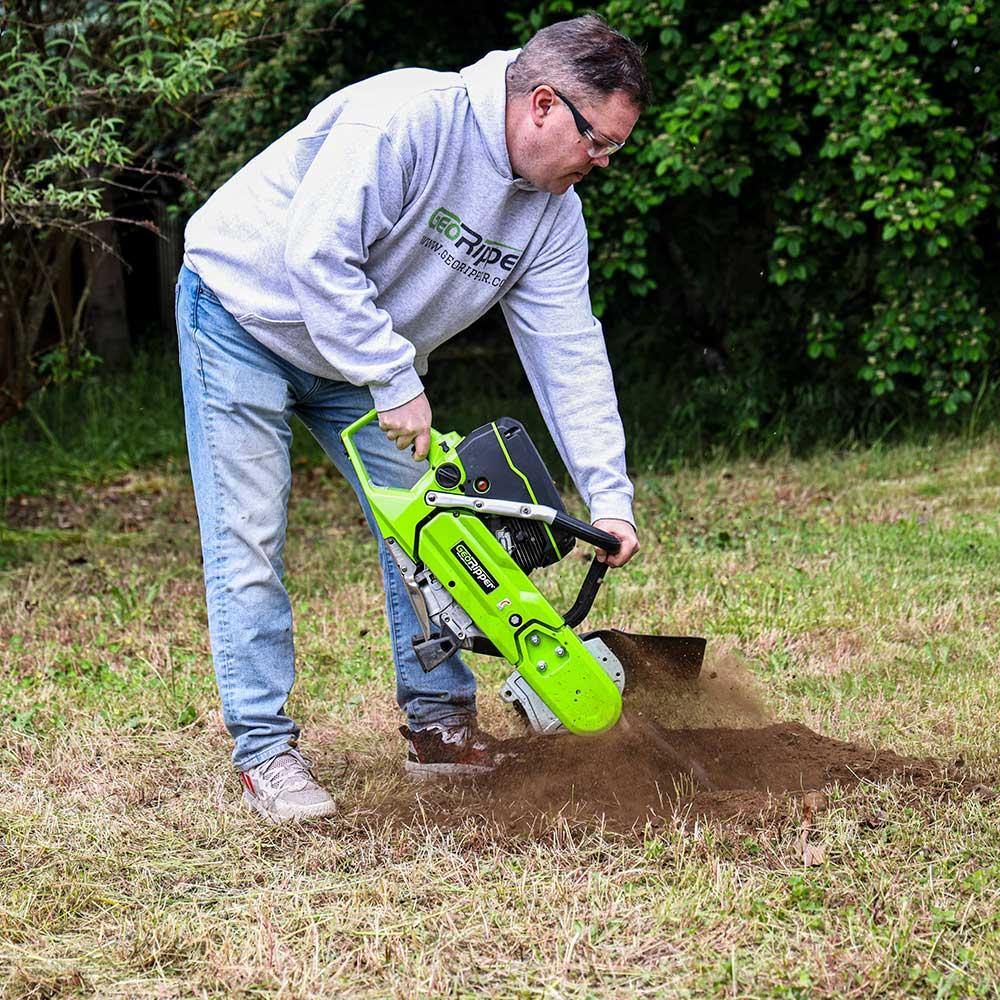

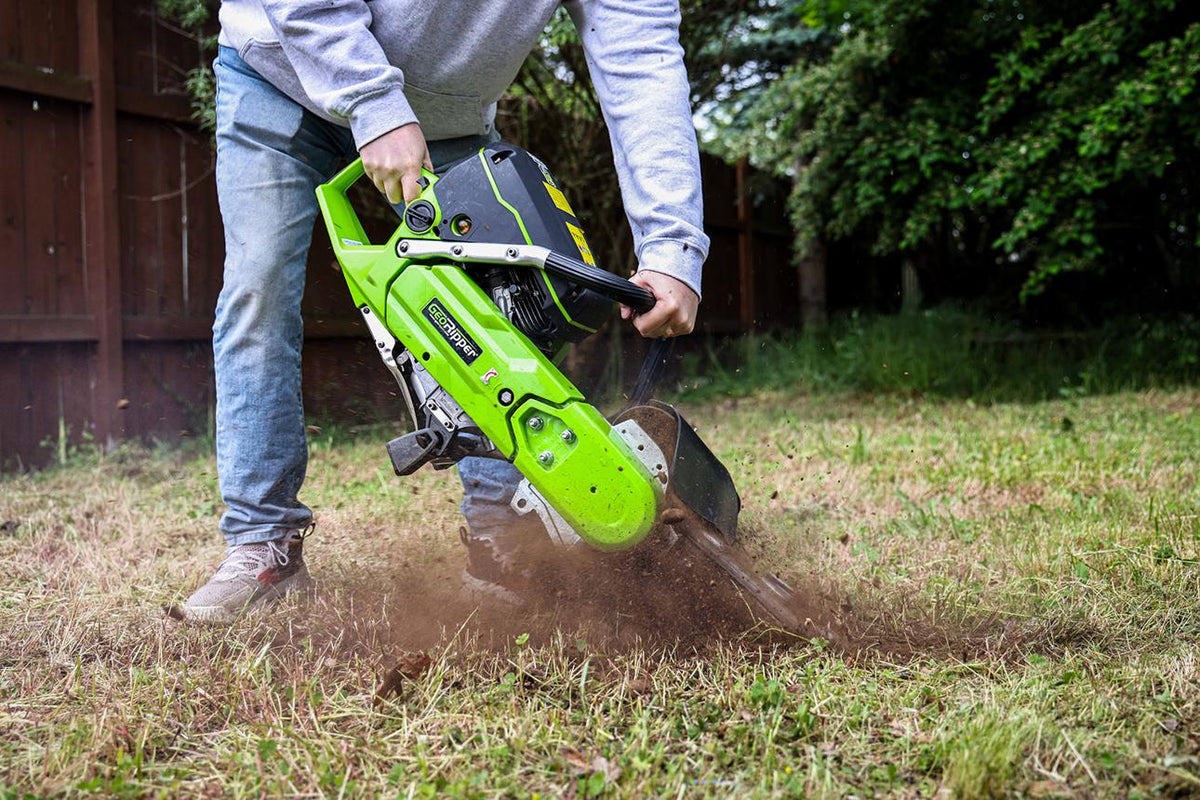

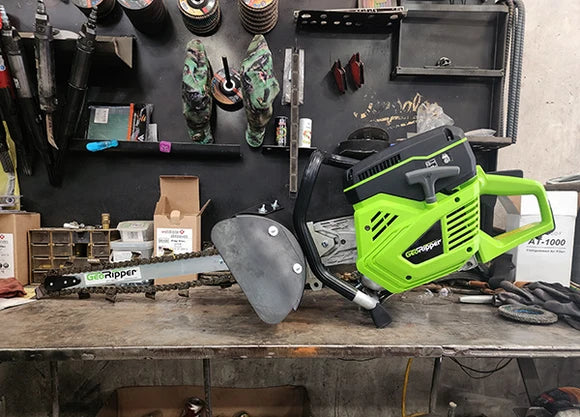

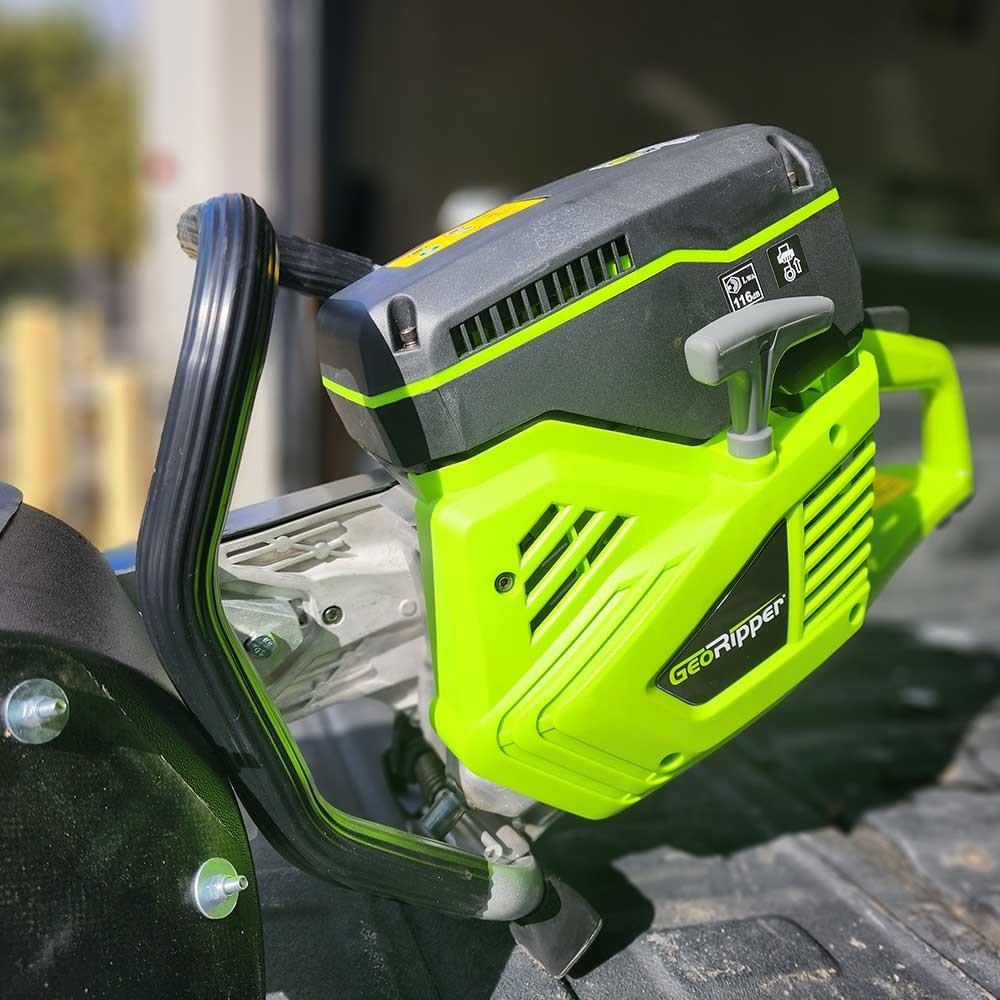

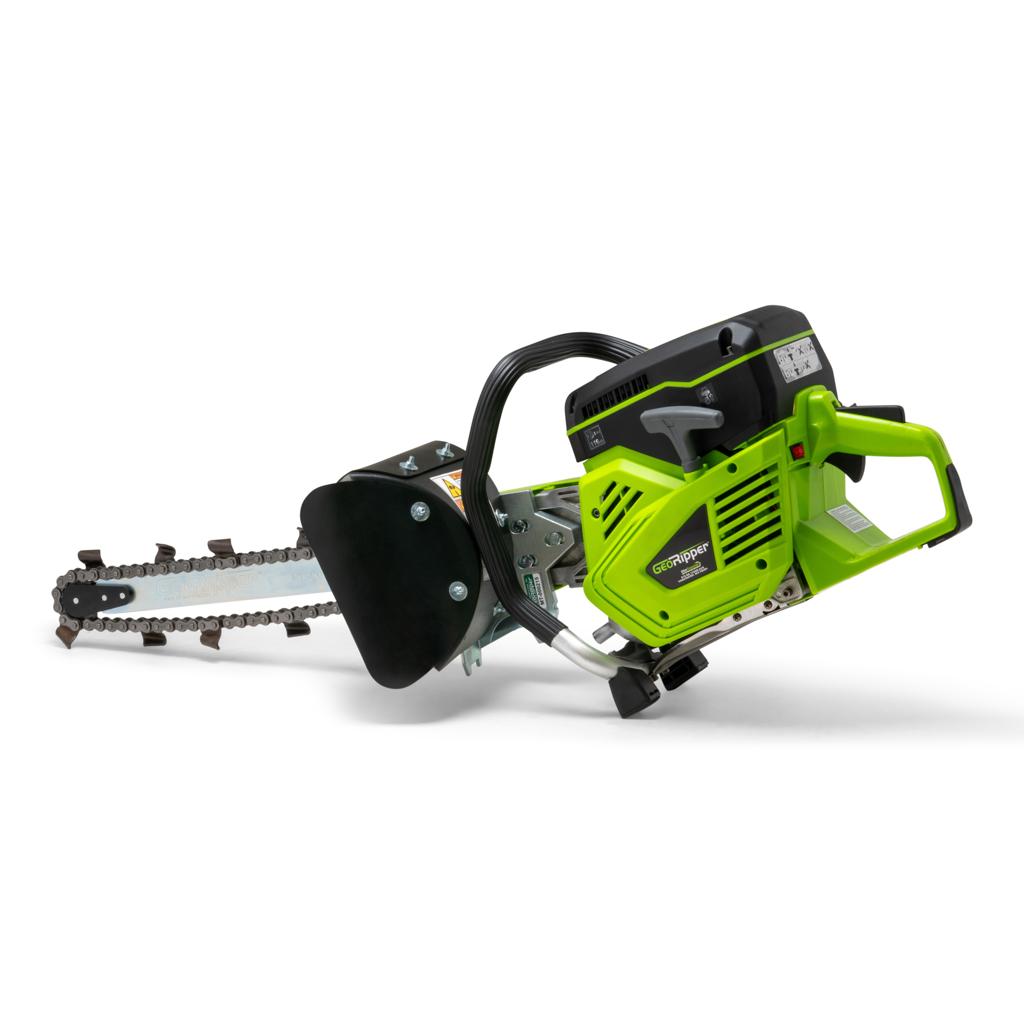

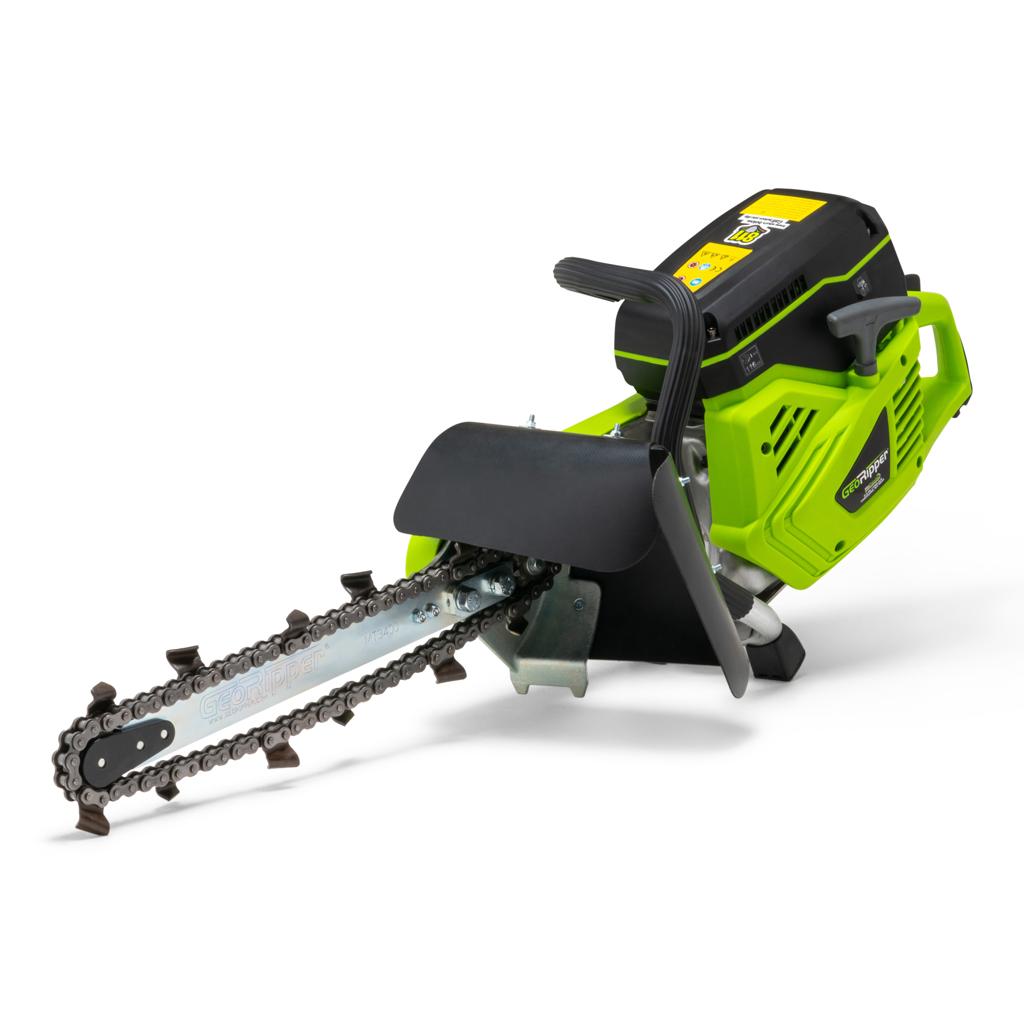

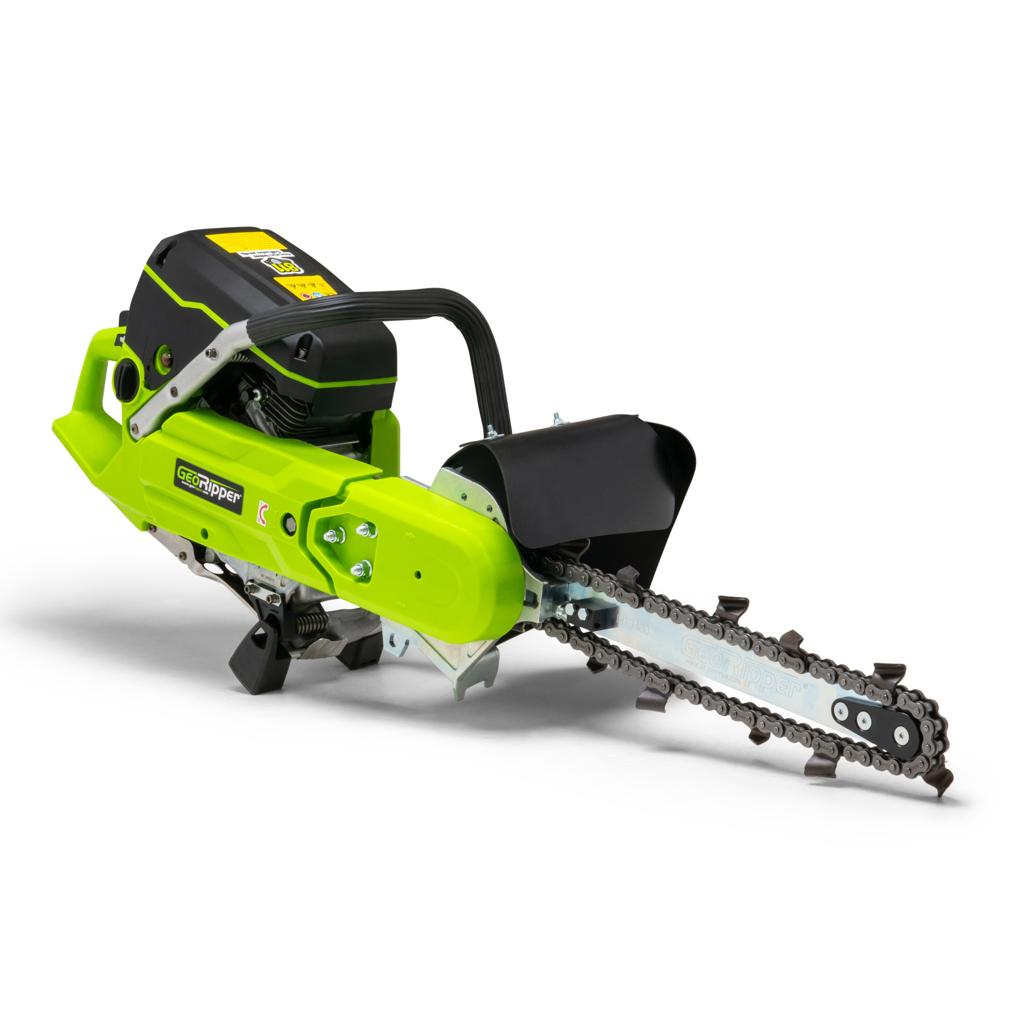

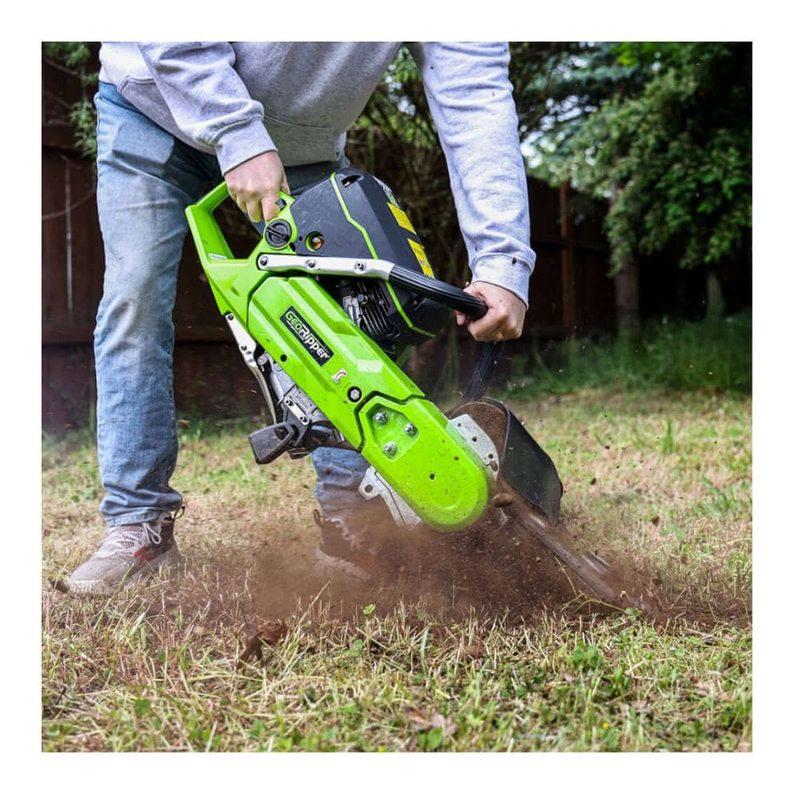

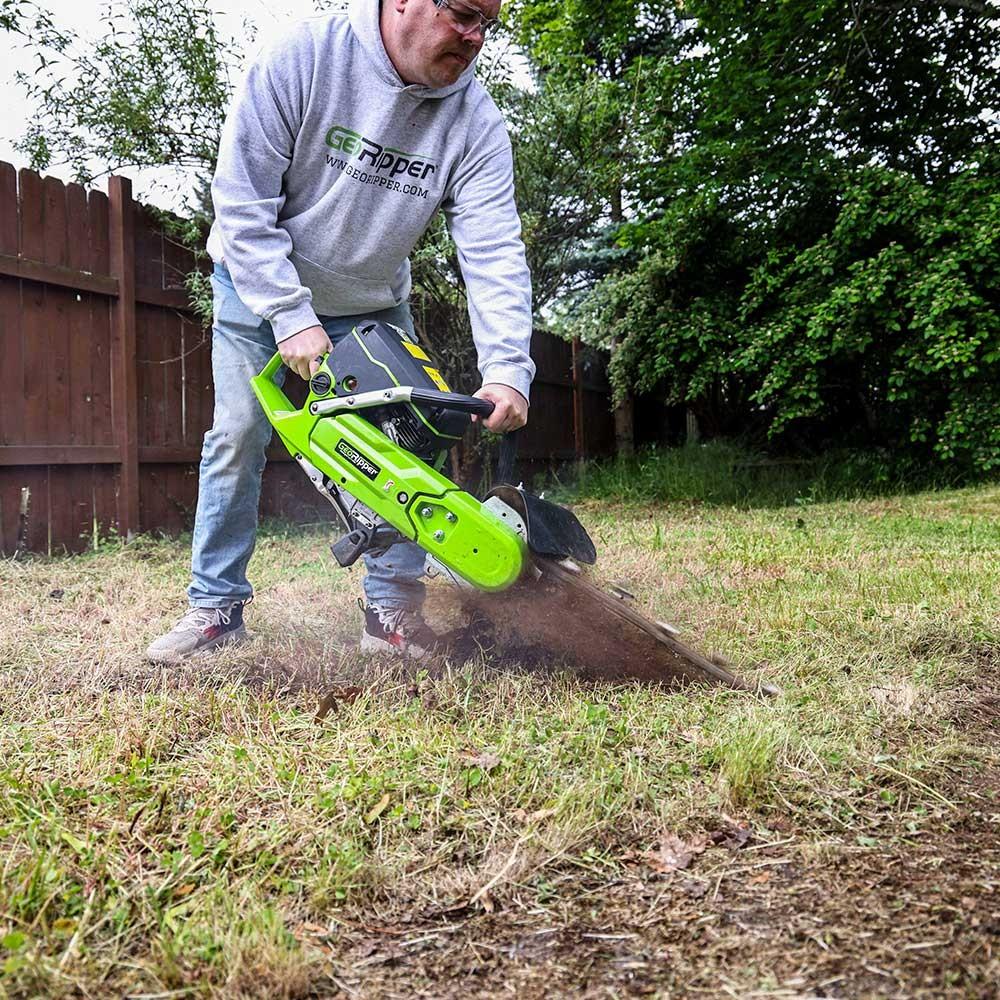

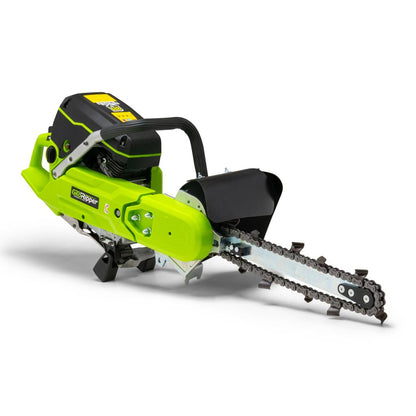

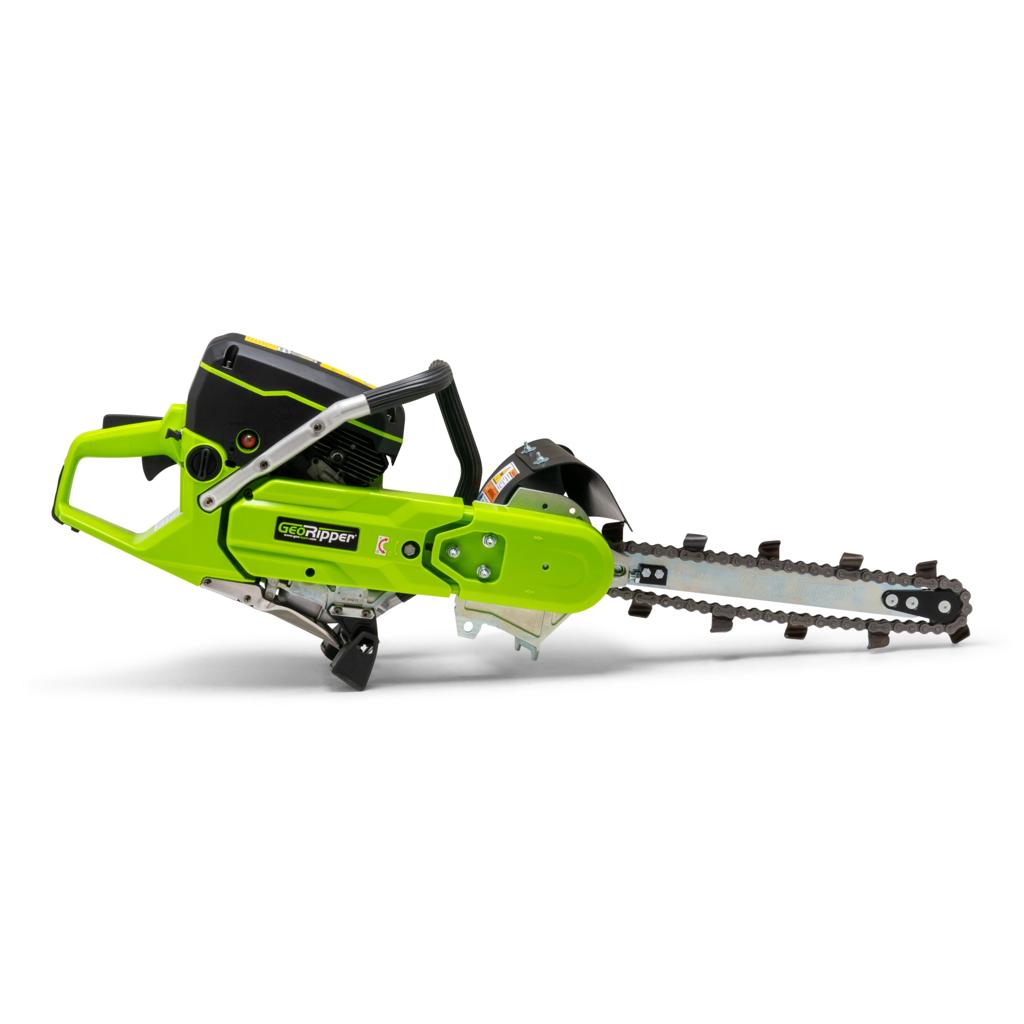

The Mini Trencher GeoRipper®20 (GR520) is a powerful, portable handheld trenching machine designed for precision digging up to 20 inches deep. Powered by a purpose-built 74cc, 4.7 HP two-stroke belt-driven engine, this compact gas-powered trencher delivers efficient performance for irrigation systems, landscape lighting, root barriers, and underground pipe or wire installations. Its two self-sharpening, heavy-duty 2-inch-wide digging chains provide reliable cutting performance, while the spring-loaded vibration control system helps improve operator comfort. Advanced Vortex Air Filtration helps protect the engine intake, and the easy-pull starter reduces starting effort. Designed to handle roots and rocks in suitable soil conditions, the GeoRipper®20 offers a practical alternative to manual digging for landscaping professionals, contractors, and property maintenance teams. Choose the GR520 for the trencher without the EZ Kart or the GR520EZ configuration with the EZ Kart included.
| Specification | Details |
|---|---|
| Brand | Mini Trencher |
| Product Name | GeoRipper®20 |
| Model | GR520 |
| Alternative Model | GR520EZ |
| Product Type | Portable Handheld Mini Trencher |
| Engine Type | Two-Stroke Gasoline Engine |
| Engine Displacement | 74cc |
| Engine Power | 4.7 HP |
| Drive System | Belt-Driven |
| Maximum Digging Depth | 20 inches |
| Digging Width | 2 inches |
| Digging Chain Quantity | 2 |
| Digging Chain Type | Heavy-Duty, Self-Sharpening |
| Vibration Control | Spring-Loaded Vibration Control System |
| Air Filtration | Vortex Air Filtration |
| Starting System | Easy-Pull Starter |
| Root-Cutting Capability | Tree roots up to 3 inches below grade under suitable conditions |
| Rock Removal Capability | Rocks up to 4 inches under suitable conditions |
| Noise Level | 116 dB (manufacturer-stated) |

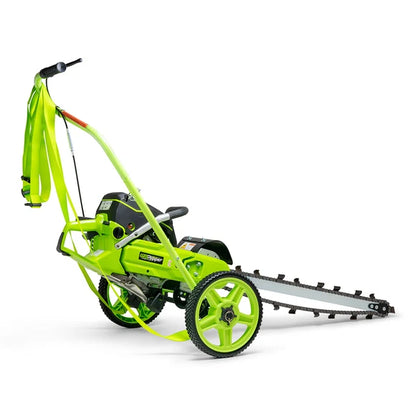

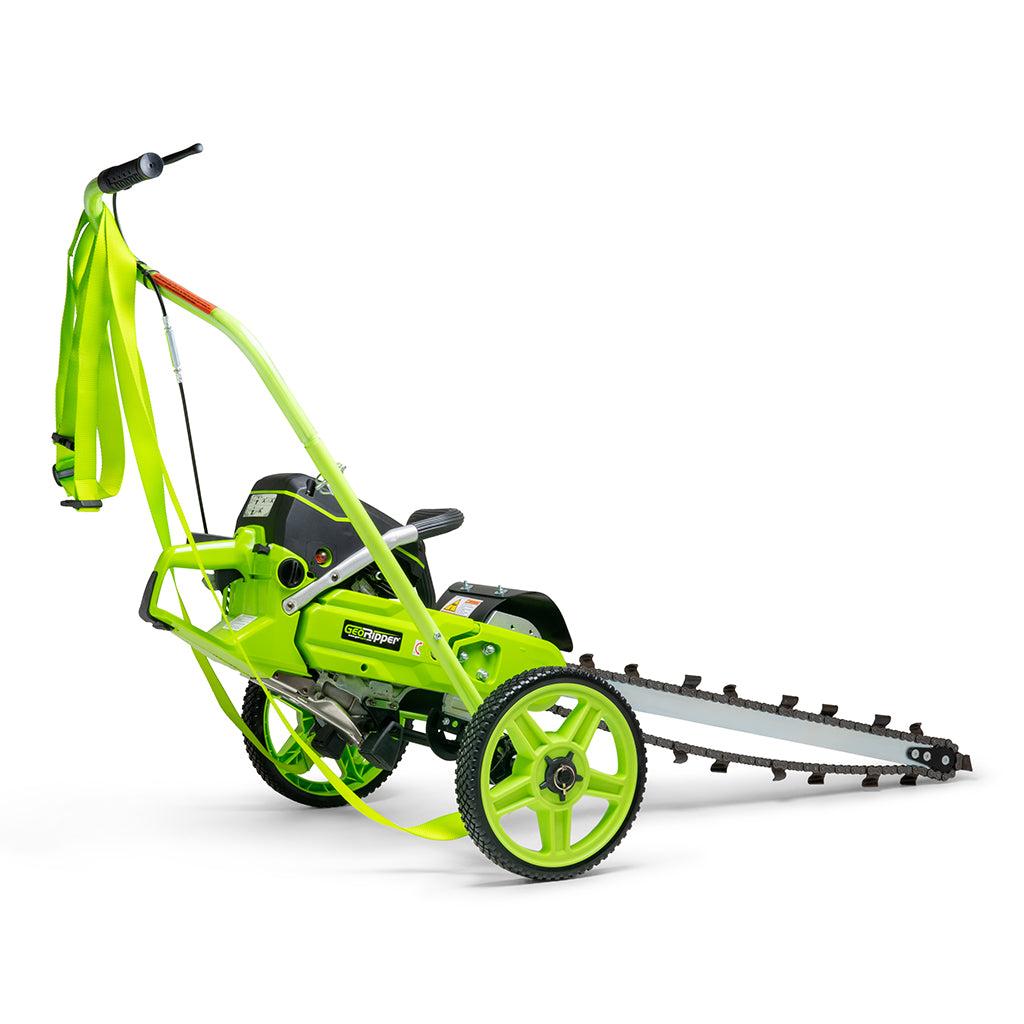

| EZ Kart Compatibility | GR520: Not included; GR520EZ: Included |
| Digging Bar | 20-inch bar with nose bar end assembly and nose sprocket |
| Included Chains | Two 20-inch-deep, 2-inch-wide digging chains |
| Spare Parts Included | Additional drive belt, nose bearing, and bar end assembly screws |
| Tools Included | Engine tool kit, 18mm and 13mm combination wrench |
| Additional Accessories | Chain connector link |
| Documentation | GeoRipper® Owner's Manual |
| UPC-A | 810075761092 |
| Primary Applications | Irrigation, root barriers, landscape lighting, pipe and wire installation |
