MiniTrencher

MiniTrencher GeoRipper®T/A Portable Handheld Trencher | Model H700 | 27" Digging Depth | Husqvarna K970 | 2" Trench Width

MiniTrencher GeoRipper®T/A Portable Handheld Trencher | Model H700 | 27" Digging Depth | Husqvarna K970 | 2" Trench Width

Regular price $2,100.00
Regular price Sale price $2,100.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Digging Depth: Maximum 27".
  • Trench Width: Standard 2".
  • Compatibility: Husqvarna K970 Type III Power Cutters.
  • Digging Chains: Two 27" Chains Included.
  • Intended Use: Irrigation, Pipes, Cables, Landscape Lighting.
View full details

Product Description

MiniTrencher GeoRipper®T/A Portable Handheld Trencher | Model H700 | 27" Digging Depth | Husqvarna K970 | 2" Trench Width

DESCRIPTION

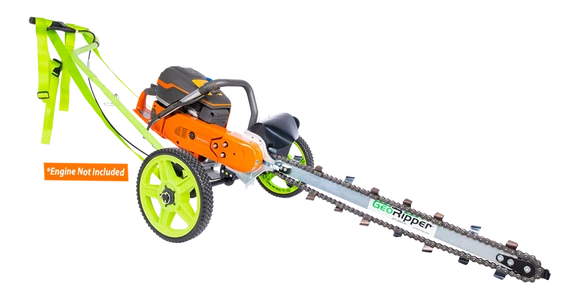

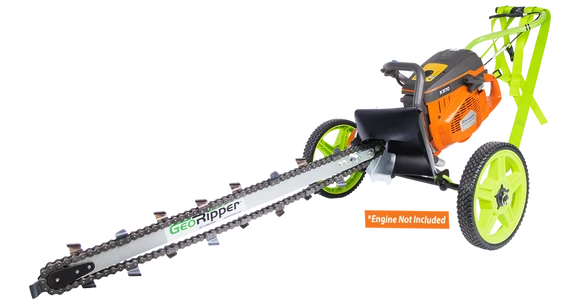

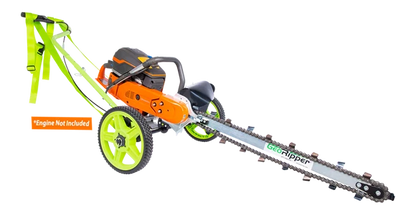

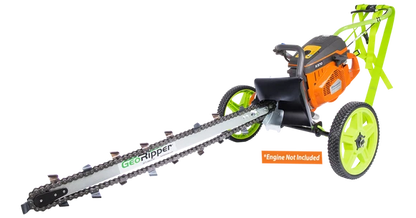

Transform your Husqvarna® K970 Type III Power Cutter into a powerful, compact GeoRipper®T/A H700 Mini Trencher in minutes. Designed for professional landscaping, irrigation, and utility installation, this heavy-duty trenching attachment delivers a maximum 27-inch digging depth and a standard 2-inch trench width for efficient underground pipe, wire, and cable installation. Its rugged digging chains tackle tough soil conditions, while self-sharpening teeth cut through tree roots up to 3 inches below grade and help remove rocks up to 4 inches in diameter in suitable soils. The integrated safety bar and dirt deflection system help improve operator protection and minimize soil scatter. With less ground disturbance, this attachment supports faster backfilling and easier site cleanup than conventional hand-digging. The bolt-on/bolt-off design allows quick conversion between power cutting and trenching. Ideal for irrigation systems, root barriers, landscape lighting, and utility projects, the GeoRipper®T/A H700 delivers portable, jobsite-ready trenching performance.

Key Features

  • Quick Power Cutter Conversion Convert a compatible Husqvarna® K970 Type III Power Cutter into a compact mini trencher in minutes using the convenient bolt-on/bolt-off attachment design.
  • Maximum 27-Inch Digging Depth Reach depths of up to 27 inches for irrigation pipes, underground wiring, landscape lighting, and other shallow utility installation projects.
  • Standard 2-Inch Trench Width Create narrow trenches approximately 2 inches wide to reduce unnecessary excavation and simplify backfilling around pipes and cables.
  • Husqvarna K970 Compatibility Designed for compatible Husqvarna® K970 Type III Power Cutters, allowing professionals to expand existing equipment capabilities without purchasing a dedicated trencher.
  • Heavy-Duty Digging Chains Includes two 27-inch digging chains engineered for demanding trenching applications and efficient material removal across suitable soil conditions.
  • Self-Sharpening Digging Teeth Cut through tree roots up to 3 inches below grade, supporting landscaping, root barrier installation, and other challenging ground preparation tasks.
  • Rock Removal Capability Designed to handle rocks up to 4 inches in diameter in suitable soils, helping reduce interruptions when encountering underground obstacles.
  • Reduced Ground Disturbance Its narrow-cutting design minimizes unnecessary turf and soil disruption, helping preserve surrounding landscapes during trenching operations.
  • Faster Backfilling and Cleanup Narrow excavation reduces excess spoil and supports quicker backfilling, cleaner work areas, and more efficient project completion.
  • Integrated Safety Bar Features a safety bar designed to help keep fingers away from moving components during operation, supporting safer equipment use.
    Dirt Deflection System Helps direct excavated soil toward the ground rather than scattering it widely, improving jobsite cleanliness and reducing cleanup effort.
  • Compact, Lightweight Design GeoRipper® mini trenchers start at approximately 45 lb, offering a portable alternative to larger trenching equipment. Actual attachment weight may vary.
  • Irrigation and Utility Installation Suitable for installing irrigation lines, underground pipes, electrical wiring, communication cables, and other landscape utilities.
  • Flexible EZ Kart Configuration Available with or without the EZ Kart, allowing buyers to select the configuration that best suits their handling and jobsite requirements.

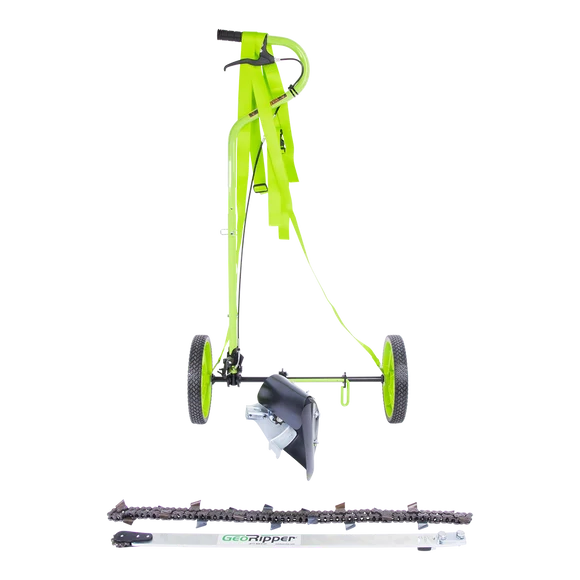

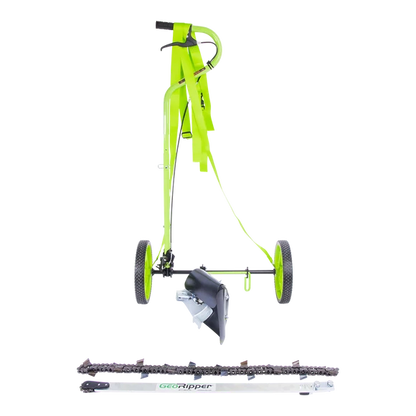

  • Comprehensive Trenching Accessories Includes a 27-inch digging bar assembly, two digging chains, nose sprocket, additional drive belt, nose bearing, bar-end screws, tool kit, chain connector link, and owner's manuals.

Detailed Specifications

Specification Details
Brand Mini Trencher
Product Name GeoRipper®T/A H700 Trenching Attachment
Model Number GRTA-H700
Alternate Model GRTA-H700-NOEZ
Product Type Power Cutter Trenching Attachment / Mini Trencher
Compatible Equipment Husqvarna® K970 Type III Power Cutter
Power Source Compatible power cutter engine; engine not included
Maximum Digging Depth 27 inches
Standard Trench Width Approximately 2 inches
Digging Bar Length 27 inches
Digging Chains 2 included
Digging Chain Dimensions 27 inches deep × 2 inches wide, as specified by the manufacturer
Maximum Root-Cutting Capability Tree roots up to 3 inches below grade
Rock Handling Capability Rocks up to 4 inches in diameter in suitable soils
Approximate Weight GeoRipper® mini trenchers start at 45 lb; exact H700 attachment weight not specified
Mounting Type Bolt-on/bolt-off
Safety Features Safety bar and dirt deflection system
Drive Components Drive belt, nose bearing, nose sprocket, and bar-end assembly
Included Accessories GeoRipper® tool kit, chain connector link, additional drive belt, nose bearing, bar-end assembly screws, and owner's manuals
EZ Kart Configuration GRTA-H700: included; GRTA-H700-NOEZ: not included
Typical Applications Irrigation, root barriers, landscape lighting, pipe installation, and underground wire or cable trenching
UPC / Barcode 810075760392
