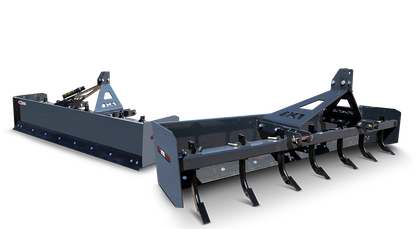

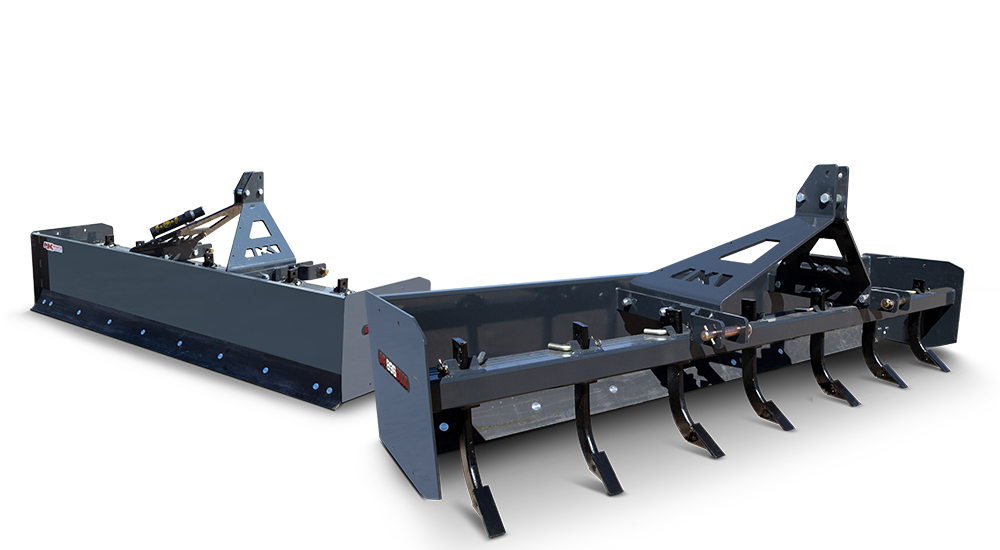

MK Martin | Box Blade | Model 784HD, 784DLX, 896DLX, 566HD & 448STD | Width 48" To 96" | Horsepower Up to 75 HP | For Tractors

MK Martin | Box Blade | Model 784HD, 784DLX, 896DLX, 566HD & 448STD | Width 48" To 96" | Horsepower Up to 75 HP | For Tractors

Regular price $1,320.00
Regular price Sale price $1,320.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Working Widths Available: 48", 60", 66", 72", 84", and 96"
  • Reinforced Dual Cutting Edges: Internal and external hardened steel edges for pull/push material handling
  • Height-Adjustable Shanks: Customizable depth for efficient grading
  • Replaceable Scarifier Tips: Extend life with easy-to-replace scarifier tips
  • Fully Welded 3PH Design: Durable and stable design for heavy-duty tasks
View full details

Product Description

MK Martin | Box Blade | Model 784HD, 784DLX, 896DLX, 566HD & 448STD | Width 48" To 96" | Horsepower Up to 75 HP | For Tractors


DESCRIPTION

Level your land with ease and precision using the MK Martin Box Blade Series, built to take on the toughest grading, leveling, and backfilling jobs. Designed for tractors of all sizes from small acreage property owners to professional agricultural operators these 3-point hitch box blades deliver serious performance and rugged durability.

Every model is crafted with a fully welded steel frame, adjustable scarifier shanks, and dual reversible hardened cutting edges that let you tackle terrain from both directions. Whether you're smoothing gravel driveways, maintaining horse arenas, contouring soil, or managing construction sites, the MK Martin box blade gives you full control of your land.

Choose from a range of working widths from 48" to 96" to suit your machine size and task load. Built in North America, these attachments are engineered for maximum durability, operator efficiency, and long-lasting field performance.

Key Features

  • Adjustable Scarifier Shanks Break up compacted soil with ease using height-adjustable shanks that deliver powerful ground penetration and consistent leveling.
  • Dual Reversible Cutting Edges Push or pull with confidence each box blade includes two hardened steel cutting edges, inside and out, for maximum versatility and extended wear life.a
  • Replaceable Scarifier Tips Extend the life of your shanks with replaceable tips. Easy pin-style adjustments let you fine-tune depth based on the task at hand.
  • Reinforced Shank Design For heavy-duty grading, the DLX Series offers reinforced shanks with permanent tube bracing to better withstand impact and stress.
  • Fully Welded 3PH Construction Built for strength. No bolted joints just solid, fully welded craftsmanship for years of rugged, trouble-free operation.
  • Wide Compatibility Available in Category 1 and 2 3-point hitch configurations, compatible with most compact, utility, and mid-size tractors up to 75 horsepower.
  • Versatile Application Ideal for farm, rural, and landscaping use: gravel driveway maintenance, topsoil leveling, ditch grading, pasture restoration, and more.

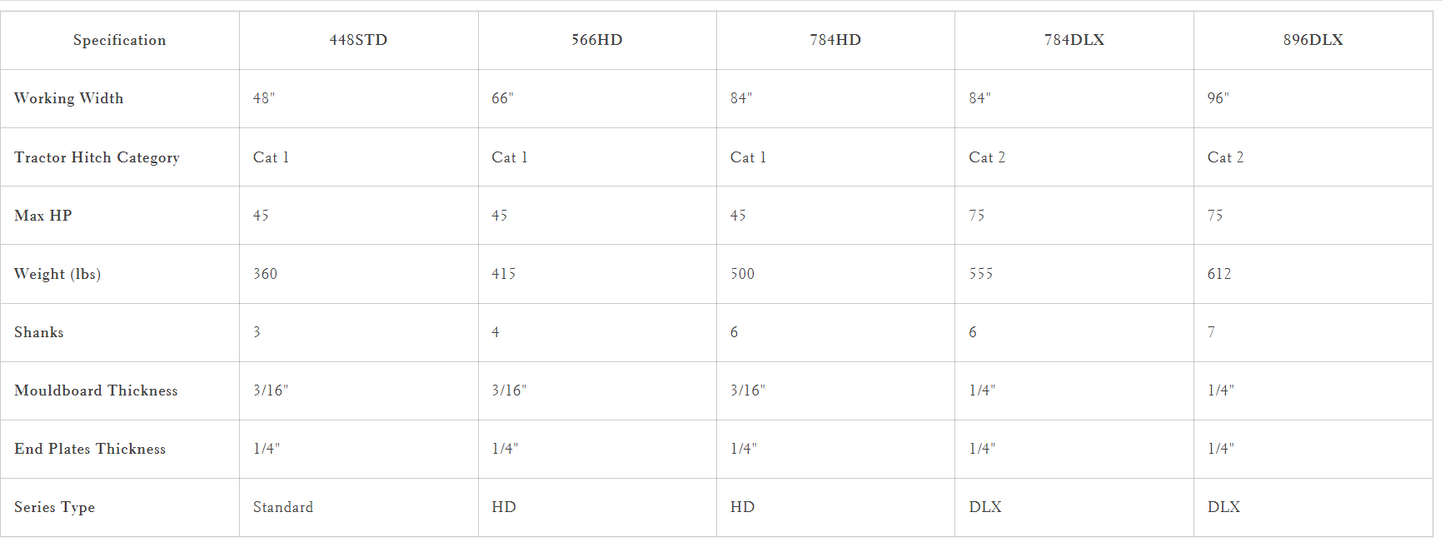

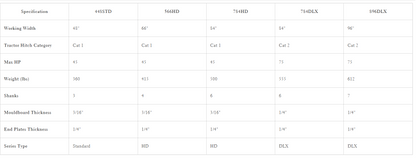

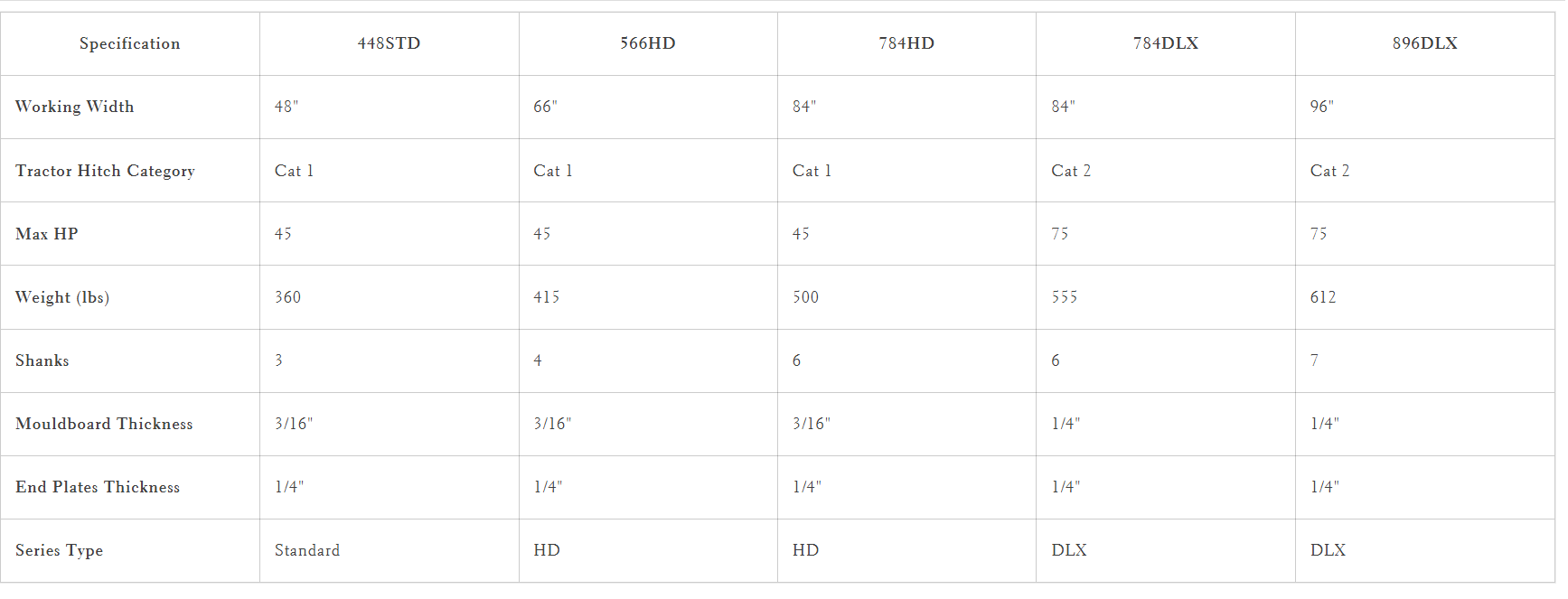

Detailed Specifications

Specification 448STD 566HD
Working Width 48" 66"
Tractor Hitch Category Cat 1 Cat 1
Max HP 45 45
Weight (lbs) 360 415
Shanks 3 4
Mouldboard Thickness 3/16" 3/16"
End Plates Thickness 1/4" 1/4"
Series Type Standard HD



Specification 784HD 784DLX
Working Width 84" 84"
Tractor Hitch Category Cat 1 Cat 2
Max HP 45 75
Weight (lbs) 500 555
Shanks 6 6
Mouldboard Thickness 3/16" 1/4"
End Plates Thickness 1/4" 1/4"
Series Type HD DLX



Specification 896DLX
Working Width 96"
Tractor Hitch Category Cat 2
Max HP 75
Weight (lbs) 612
Shanks 7
Mouldboard Thickness 1/4"
End Plates Thickness 1/4"
Series Type DLX

Manuals & Documents

Product Brochure

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information neededabout products and parts you can’t find!
