MK Martin | Grader Blades | Model 8XD, 9XD, 9XD, 10XD, MK588OT & MKGB567 | Working Width 60″ – 120″ | 3‑Point Hitch | Horsepower 30 – 150 HP | For Tractors

MK Martin | Grader Blades | Model 8XD, 9XD, 9XD, 10XD, MK588OT & MKGB567 | Working Width 60″ – 120″ | 3‑Point Hitch | Horsepower 30 – 150 HP | For Tractors

Regular price $10,247.60
Regular price Sale price $10,247.60
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Hydraulic Adjustments: Hydraulic cylinders enable precise control over blade angle, tilt, and offset for versatile grading.
  • Size Options: Available in 8', 9', 10', 12', and 14' widths for tractors rated between 100-250 HP & Working Width 60″ – 120″ & Horsepower 30 – 150 HP For Tractors
  • Durable Mouldboard: Constructed with high-strength 5/16" to 3/8" mouldboard thickness, depending on model.

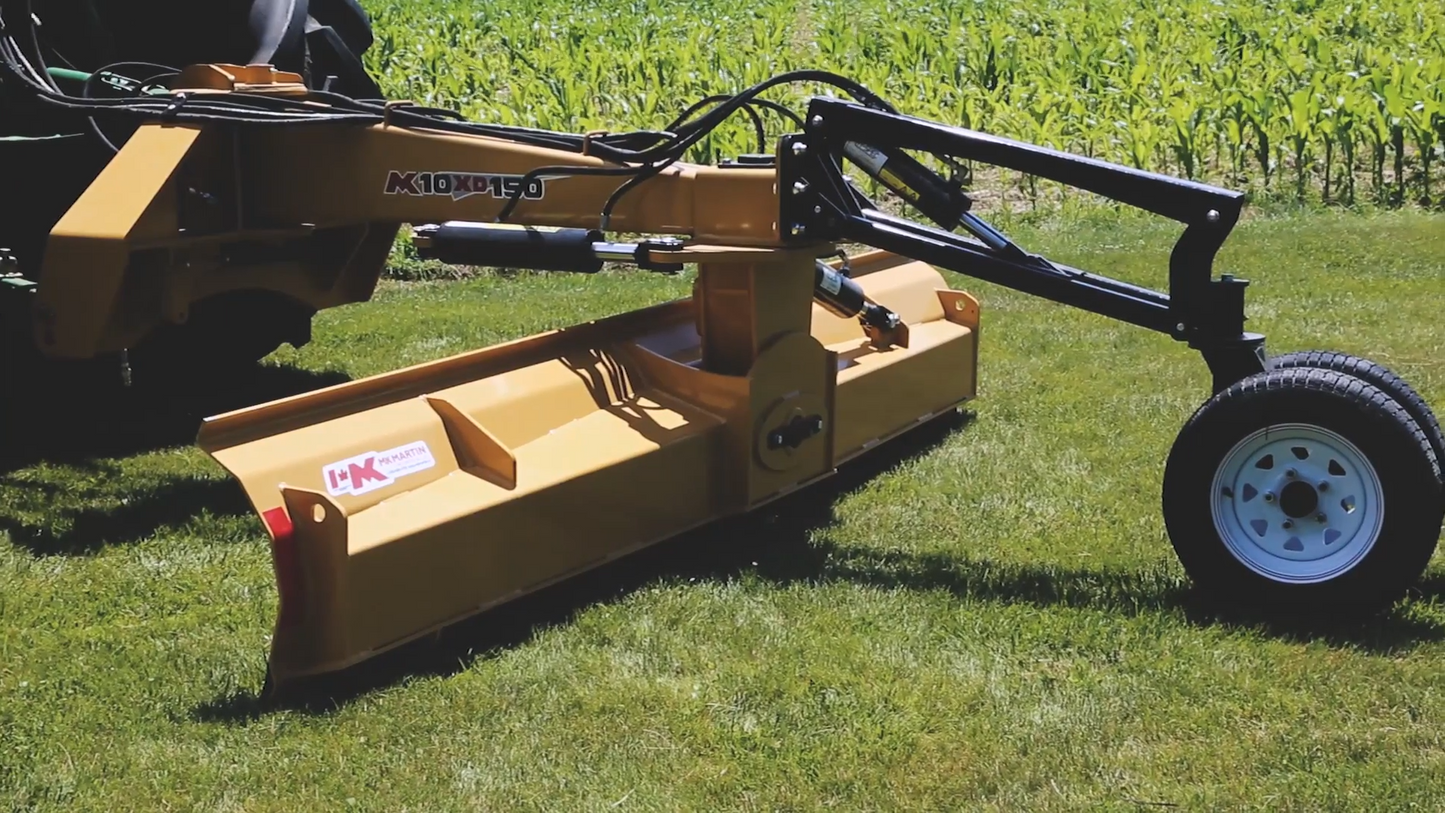

  • Optional Wheel Kit: Includes a hydraulic depth control for enhanced stability during grading.
  • Reversible Cutting Edge: Features a high-carbon, reversible cutting edge, 1/2" x 6" for long-lasting performance.
View full details

Product Description

MK Martin | Grader Blades | Model 8XD, 9XD, 9XD, 10XD, MK588OT & MKGB567 | Working Width 60″ – 120″ | 3‑Point Hitch | Horsepower 30 – 150 HP | For Tractors

DESCRIPTION

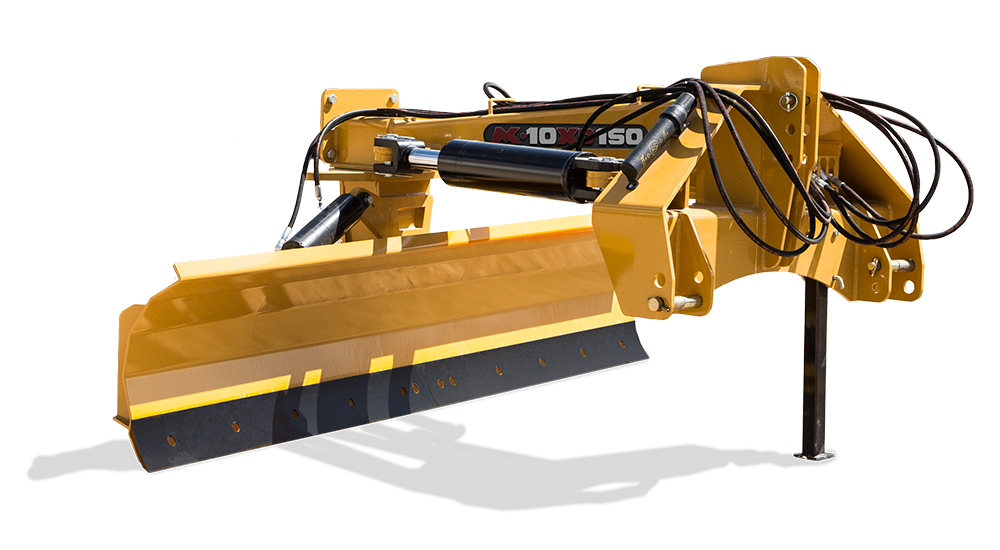

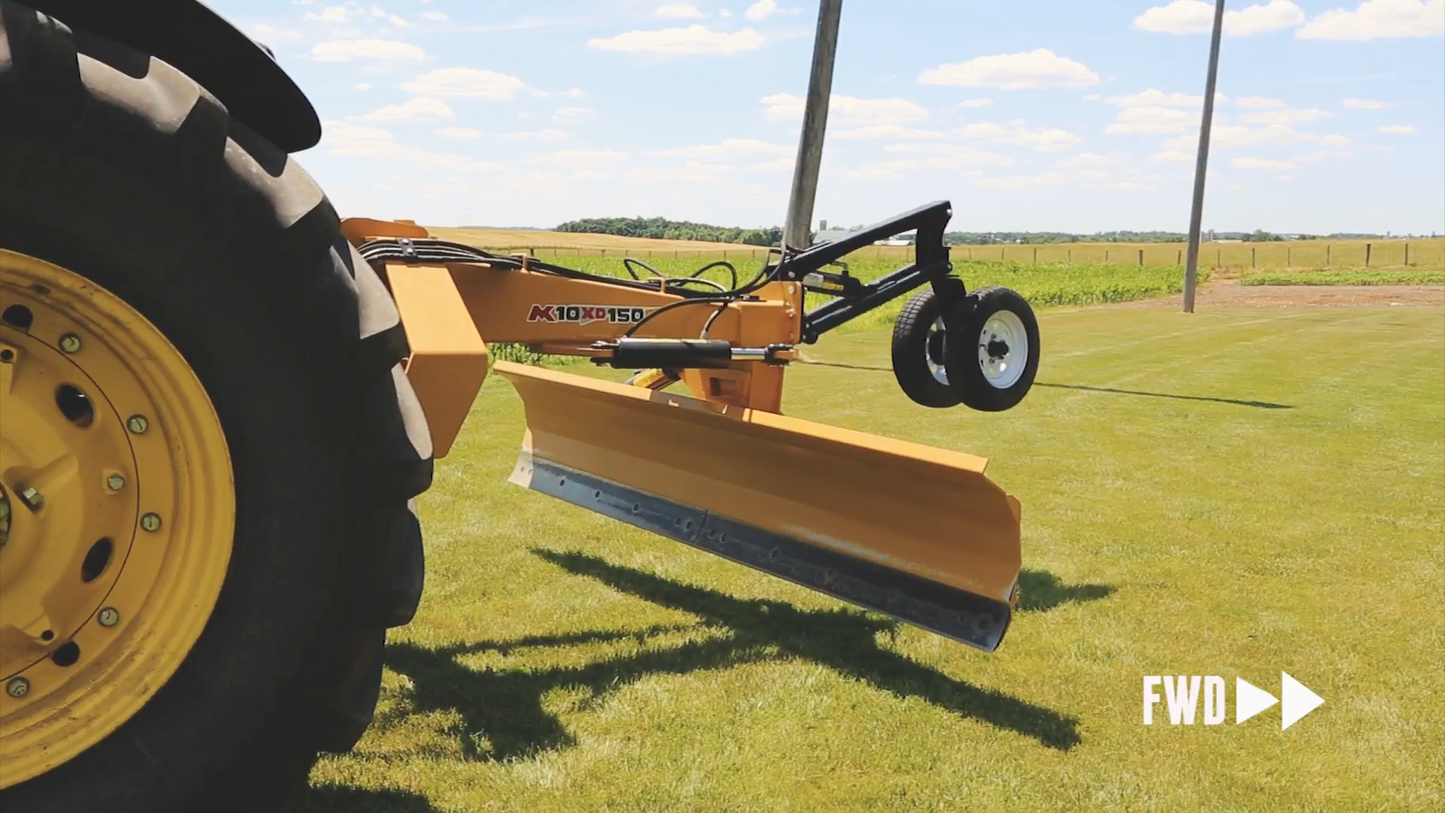

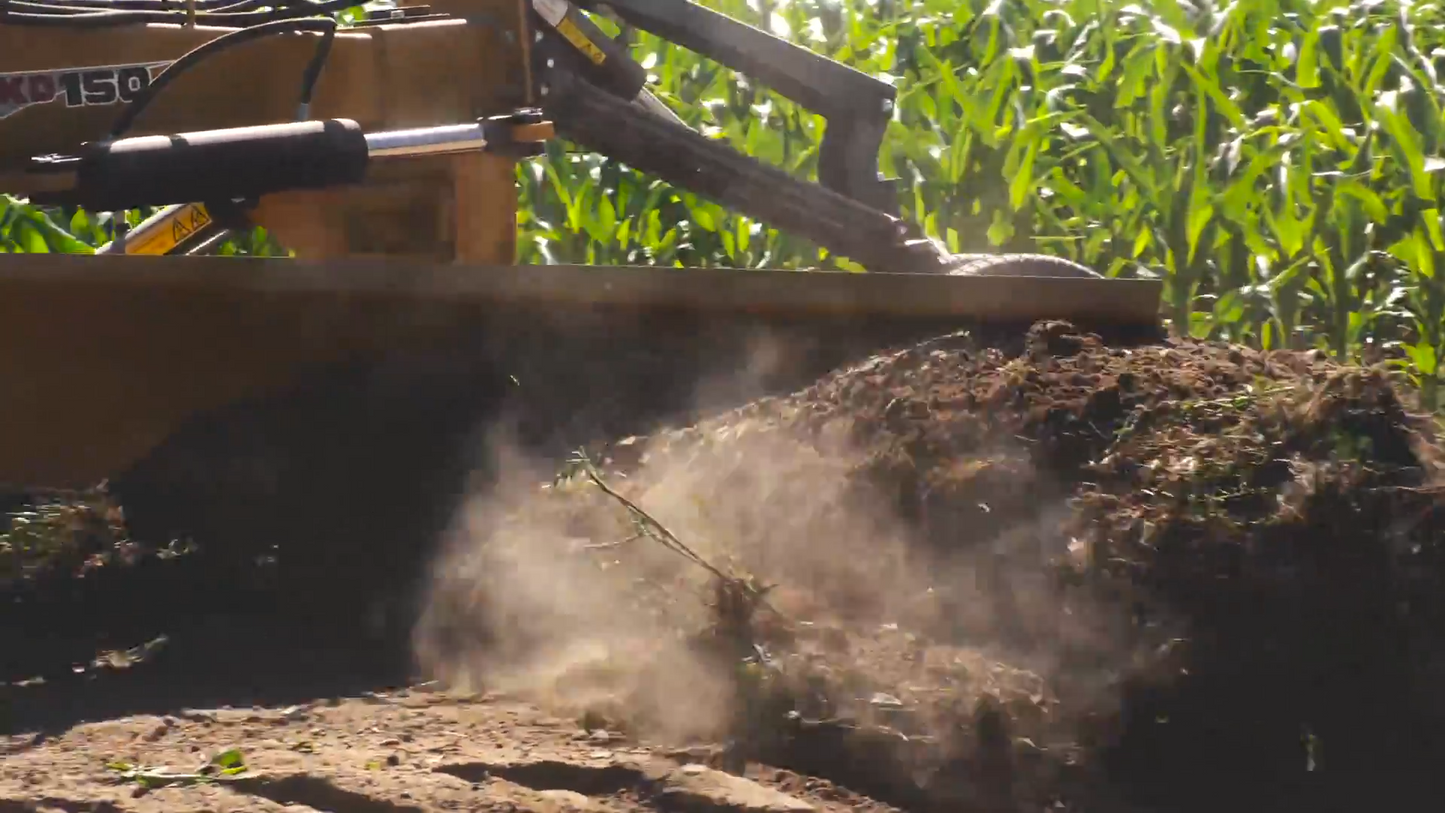

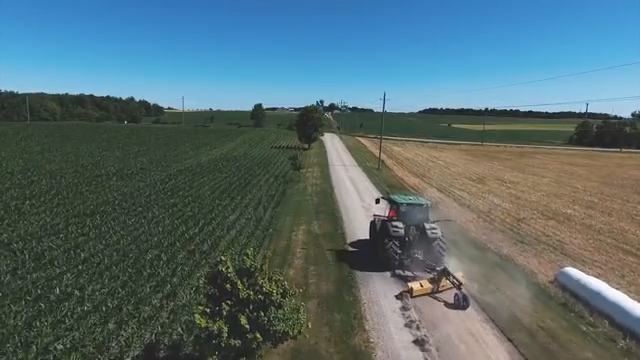

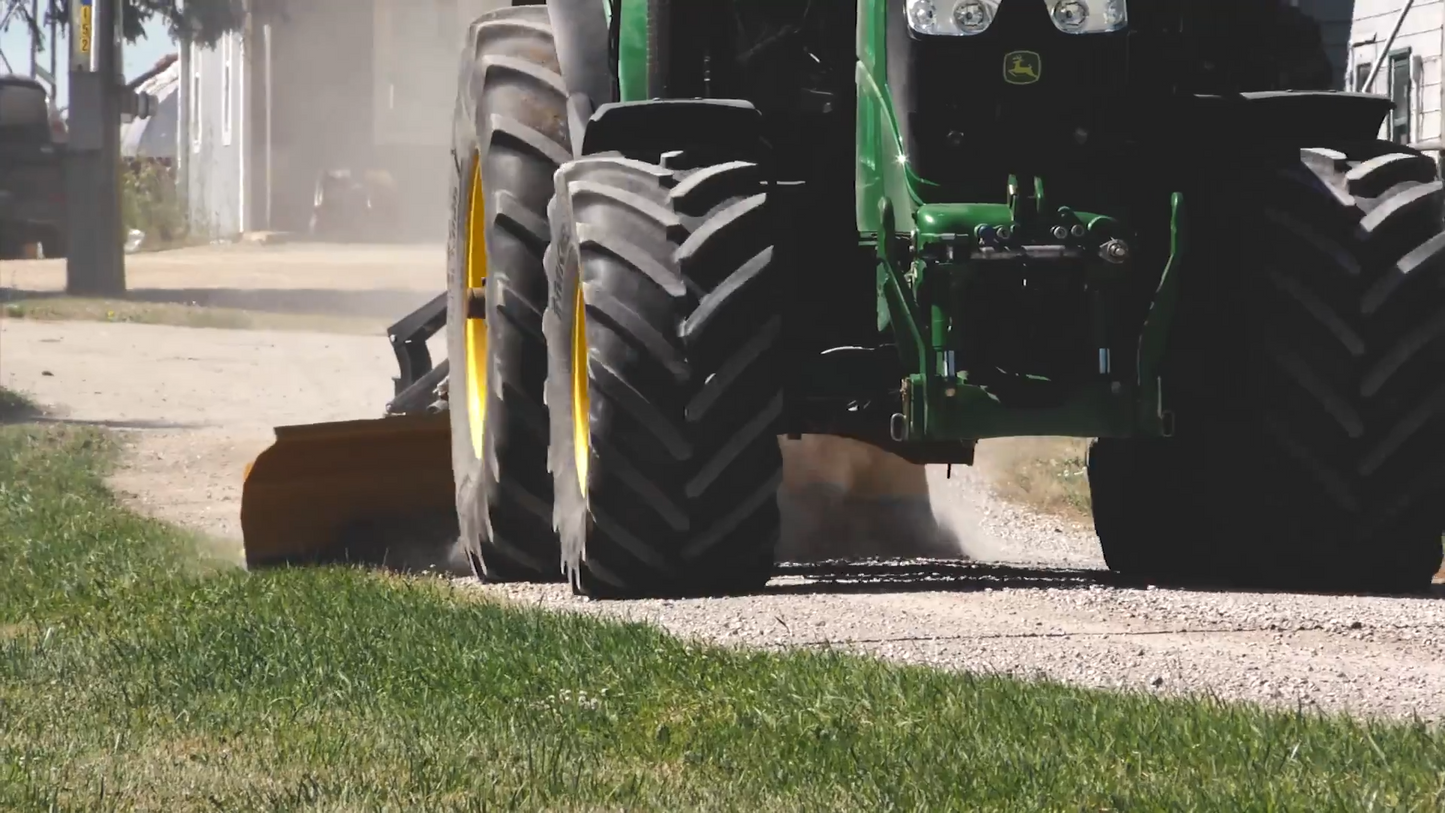

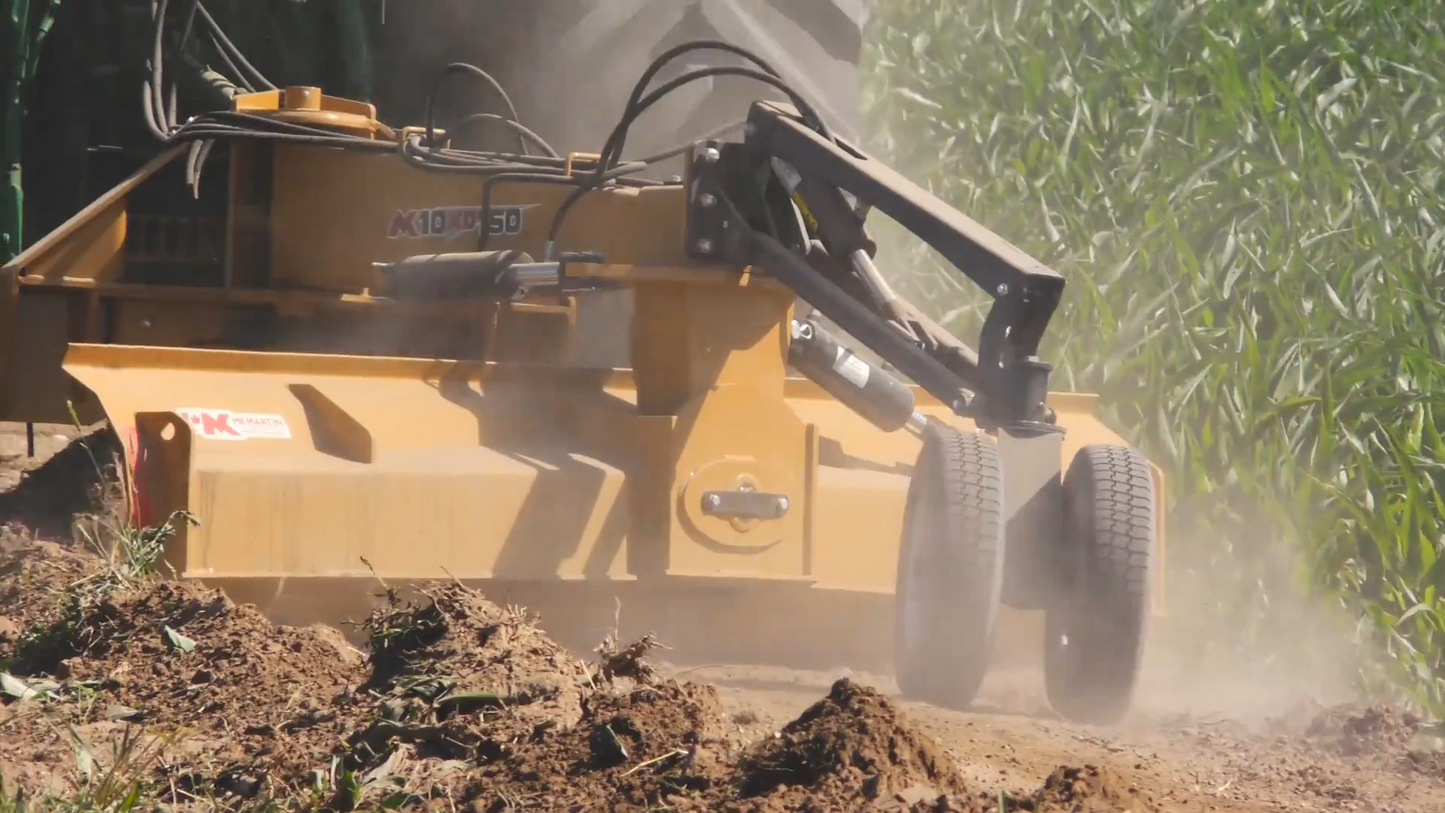

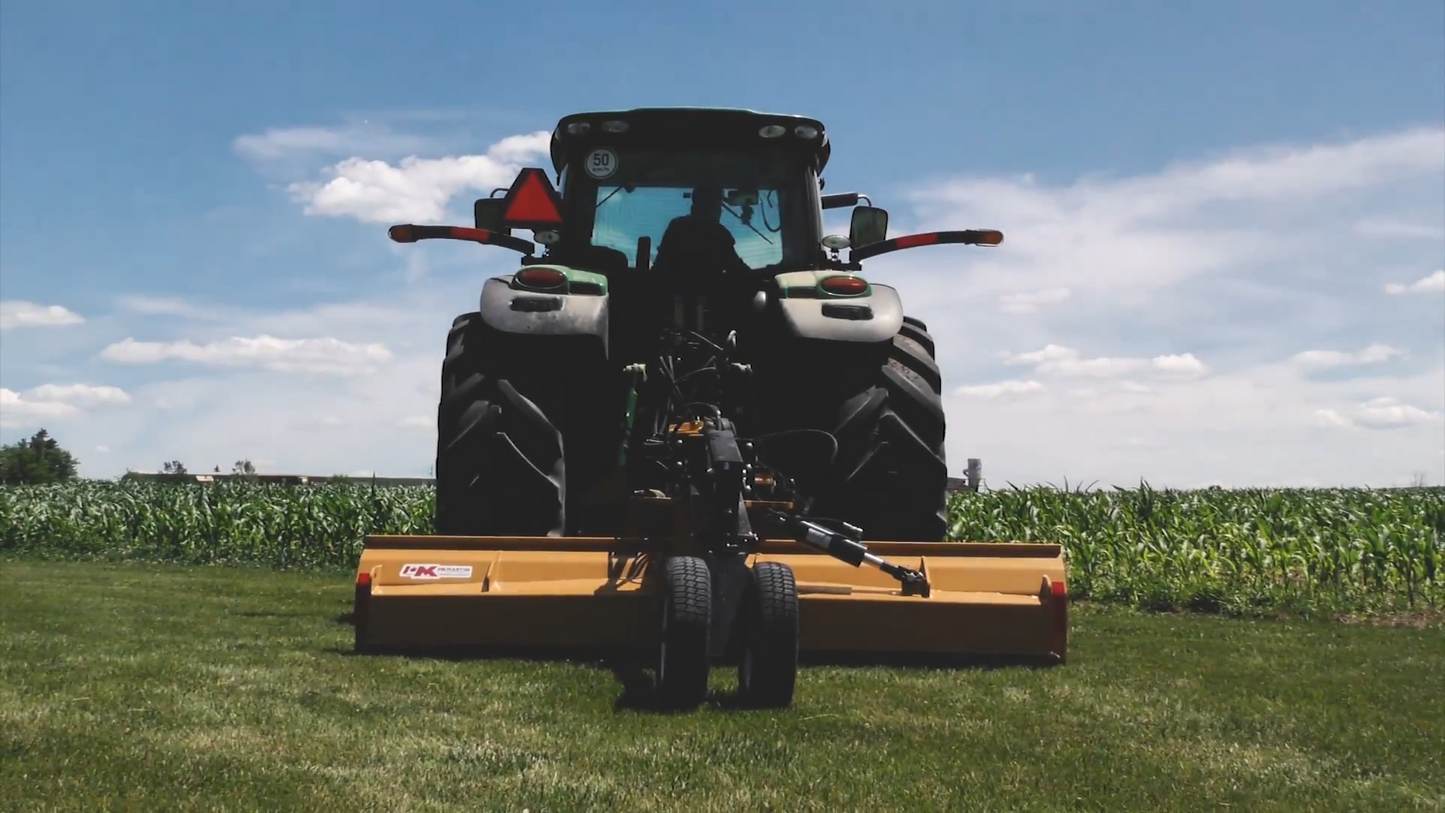

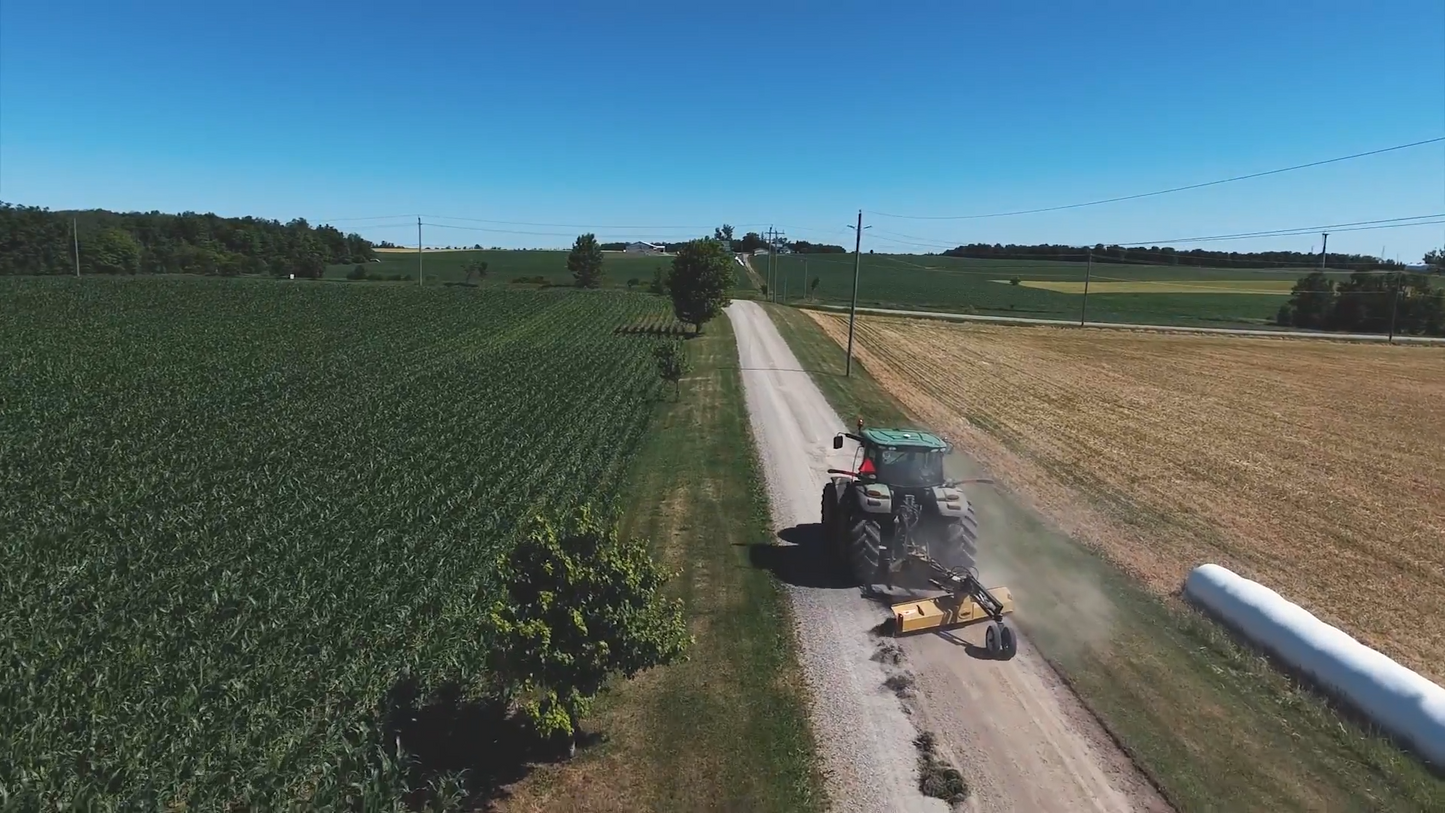

The MK Martin XD Series Grader Blades deliver versatility, durability, and precision for landscaping, driveway maintenance, snow removal, and farm road grading. Available in six sizes—from the compact 60″ MKGB567 and MK588OT to the heavy-duty 108″–120″ XD‑grade models (8XD‑100, 9XD‑100, 9XD‑150, 10XD‑150) each blade connects seamlessly to your tractor's 3-point hitch and powers grading success with hydraulic angle, tilt, and offset controls.

Whether you're a homeowner, contractor, or farmer, these blades help you take charge of terrain maintenance. From the agility of the light-duty series on modest tractors to the strength of the Extreme Duty series on 100–150 HP machines, the XD Series offers robust construction, smooth hydraulic control, and easy handling for cleaner roads, defined paths, and perfectly leveled surfaces.

Key Features

  • Sizes for Every Job:

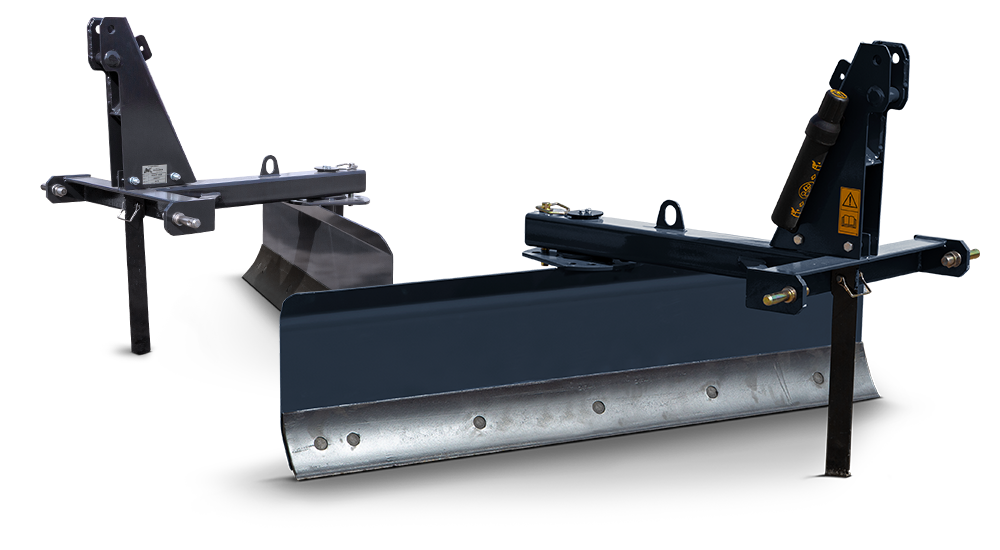

    • 60″ (MKGB567, MK588OT) exact fit for compact tractors up to 30–50 HP.
    • 96″, 108″, 120″ (XD Series) built for 100–150 HP tractors, engineered for larger-scale grading.
  • Full Hydraulic Blade Control (XD Series):
    Adjust angle (±32°), tilt (±13°), and lateral offset (27″) smoothly from your seat for professional results.
  • 3‑Point Hitch (CAT II/III):
    Quick, secure hookup matching a wide range of tractors no tractor upgrade needed.
  • Heavy‑Duty Construction
    5/16″ mouldboards (XD models) and rugged reversible cutting edges that withstand rigorous use.

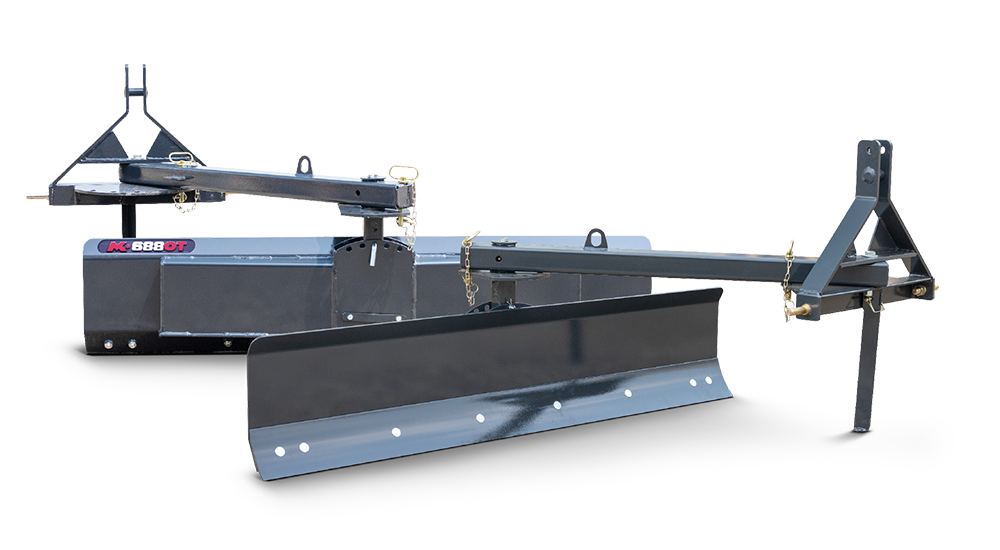

  • Compact Series Option (MK588OT):
    Includes manual offset, tilt, and angle with versatile 5‑position adjustment choices.
  • Expanded Versatility:

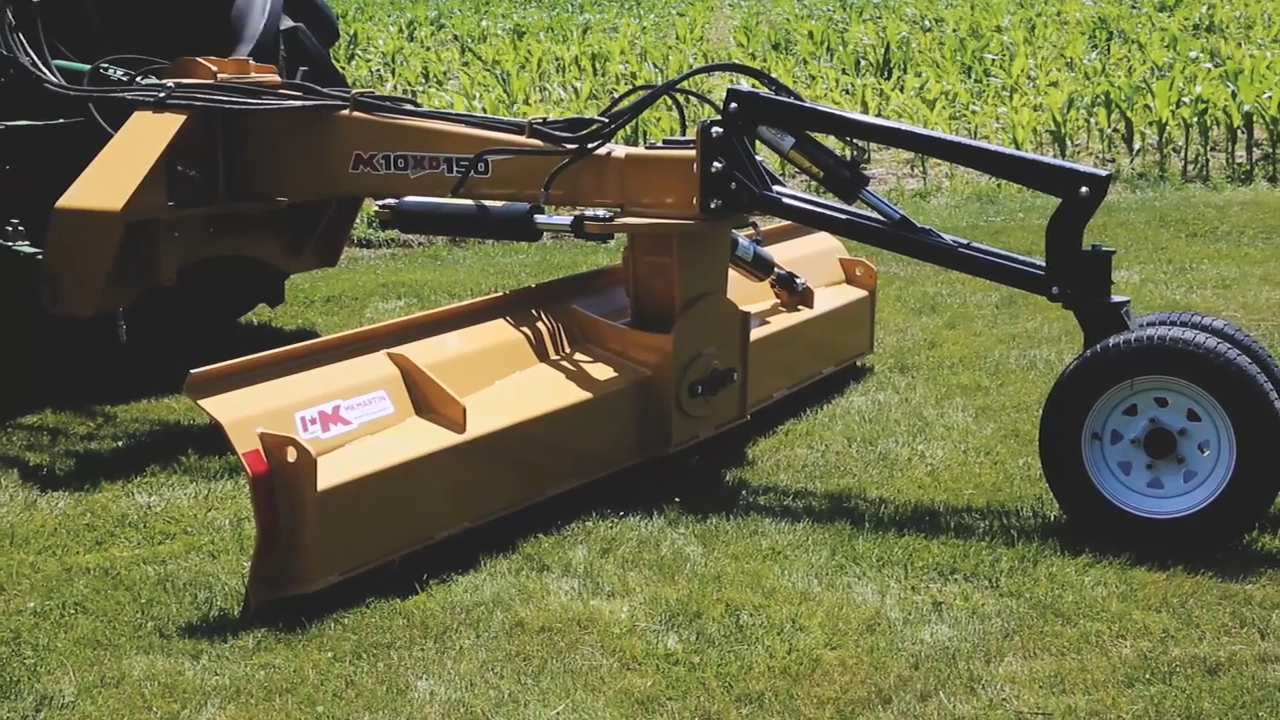

    Reversible mouldboards, optional hydraulic wheel kit, and offset designs let you customize for grading, pushing, or snow plowing.
  • Easy Maintenance:
    Serviceable high-carbon cutting edges and simple mechanical/hydraulic systems help minimize downtime.

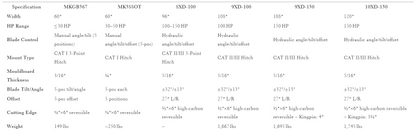

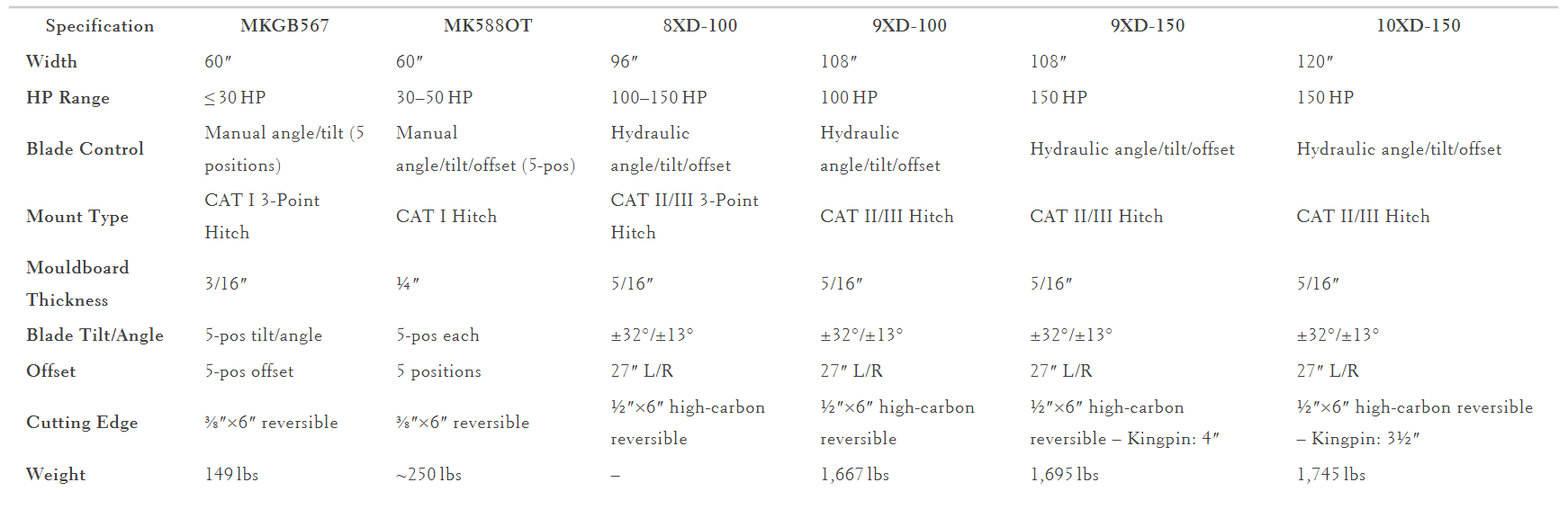

Detailed Specifications

Specification MKGB567 MK588OT
Width 60″ 60″
HP Range ≤ 30 HP 30–50 HP
Blade Control Manual angle/tilt (5 positions) Manual angle/tilt/offset (5-pos)
Mount Type CAT I 3‑Point Hitch CAT I Hitch
Mouldboard Thickness 3/16″ ¼″
Blade Tilt/Angle 5-pos tilt/angle 5-pos each
Offset 5-pos offset 5 positions
Cutting Edge ⅜″×6″ reversible ⅜″×6″ reversible
Weight 149 lbs ~250 lbs



Specification 8XD‑100 9XD‑100
Width 96″ 108″
HP Range 100–150 HP 100 HP
Blade Control Hydraulic angle/tilt/offset Hydraulic angle/tilt/offset
Mount Type CAT II/III 3‑Point Hitch CAT II/III Hitch
Mouldboard Thickness 5/16″ 5/16″
Blade Tilt/Angle ±32°/±13° ±32°/±13°
Offset 27″ L/R 27″ L/R
Cutting Edge ½″×6″ high-carbon reversible ½″×6″ high-carbon reversible
Weight – 1,667 lbs



Specification 9XD‑150 10XD‑150
Width 108″ 120″
HP Range 150 HP 150 HP
Blade Control Hydraulic angle/tilt/offset Hydraulic angle/tilt/offset
Mount Type CAT II/III Hitch CAT II/III Hitch
Mouldboard Thickness 5/16″ 5/16″
Blade Tilt/Angle ±32°/±13° ±32°/±13°
Offset 27″ L/R 27″ L/R
Cutting Edge ½″×6″ high-carbon reversible – Kingpin: 4″ ½″×6″ high-carbon reversible – Kingpin: 3½″
Weight 1,695 lbs 1,745 lbs
