Product Description
MK Martin | Gravity Box | Model MK 5000 | Width 101" | 500 To 605 Bushel Capacity | 12-Gauge Steel Hopper | Horsepower 120 – 150+ HP | For Tractors
DESCRIPTION

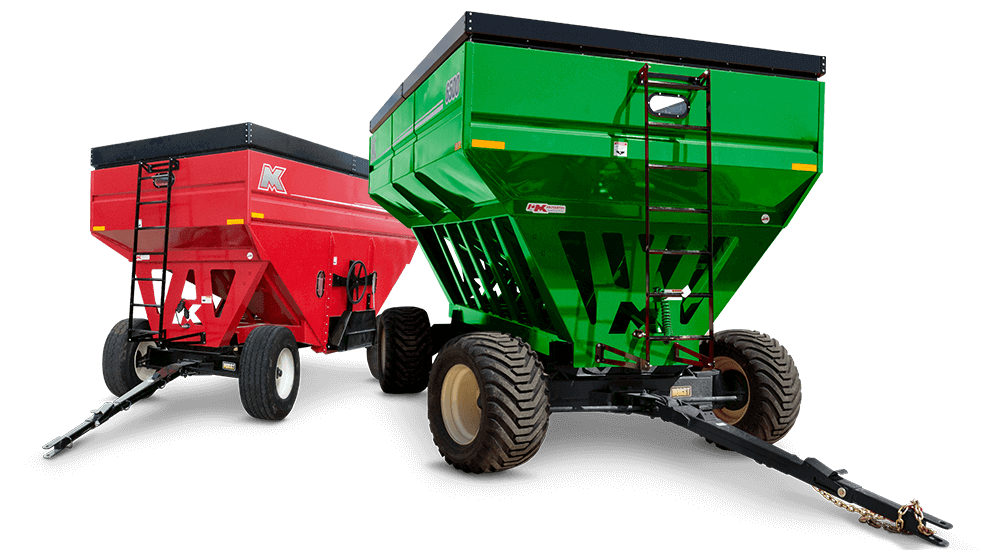

Maximize your harvest efficiency with the MK Martin MK 5000 Gravity Box, a high-capacity grain box engineered for reliability, control, and seamless unloading in the field. With capacities of 500 to 605 bushels (via 8” and 12” extensions), this ruggedly built gravity box is ideal for mid- to large-scale farming operations looking to reduce trips and keep material flow smooth.
Constructed with a robust 12-gauge steel hopper and supported by a 4”x8” wall rectangular tube underframe, the MK 5000 is built to handle heavy grain loads with ease. The standard dual unloading doors within a 57” wide opening offer precise metering, allowing you to fine-tune the flow of grain whether you’re unloading into an auger, cart, or truck.
Need more flexibility? The MK 5000 supports a wide range of optional upgrades, including a hydraulic door opener, grain divider, and rear ladder all of which enhance convenience, safety, and productivity in demanding field conditions. Matched perfectly with the 365 Horst Wagon, this model is a reliable grain handling solution you’ll depend on year after year.
Key Features
- Flexible Grain Capacity Options Choose from 500, 570, or 605 bushels with optional 8" and 12" extension kits ideal for adapting to seasonal yields.
- Heavy-Duty Steel Hopper Built from 12-gauge steel, the hopper withstands harsh conditions and high-volume loads.
- Wide Dual Unloading Doors Features twin 28" doors within a 57" opening, offering consistent, controlled metering of grain.
- Optional Hydraulic Door Opener Remotely open or meter your grain from the tractor seat exclusive to MK 5000 and 6500 models.
- Divider Kit for Dual Loads Haul two different commodities at once, each with independent unloading control.
- Built-In Sight Windows & Front Ladder Easily check grain levels and inspect your load using the angled front ladder and clear sight windows.
- Optional Upgrades for Productivity Equip with a center dump, tarp kit, rear ladder, or unloading auger for maximum operational versatility.
- Field-Tested for Horst Running Gear Designed to pair seamlessly with the 365 Horst Wagon with 425/22.5 tires, ensuring smooth, stable transport.
Detailed Specifications
| Specification | MK Martin MK 5000 Gravity Box |
|---|---|
| Model | MK 5000 |
| Capacity (Bushels) | 500 (Standard), 570 (w/ 8" Extension), 605 (w/ 12" Extension) |
| Hopper Construction | 12-Gauge Steel |
| Under Structure | 4" x 8" x .188" Wall Rectangular Tubing |
| Unloading Doors | Dual 28" Doors within 57" Width, Metering Control |
| Chute Height | 17" – 21" |
| Box Length | 196" |
| Box Width | 101" |
| Height (Less Wagon) | 89" (Standard), 98" (w/ 8" Extension), 101" (w/ 12" Extension) |
| Height (On Wagon w/ 22.5" Tires) | 123" (Standard), 131" (8" Ext.), 135" (12" Ext.) |
| Weight | 3,610 lbs (Standard), 3,845 lbs (8" Ext.), 3,915 lbs (12" Ext.) |
| Wheel Base | 142" |
| Suggested Running Gear | 365 Horst Wagon – 425/22.5 Tires |
| Optional Features | Hydraulic Door, Divider Kit, Rear Ladder, Tarp Kit, Center Dump, Unloading Auger |
Manuals & Documents
Product Mannual
Product Brochure
