Product Description
MK Martin | Land Leveler | Model LLP-8, LLP-10 & LLP-12 | Width 96"–144" | 3PT Hitch | Horsepower Max 165 HP | For Tractor
DESCRIPTION

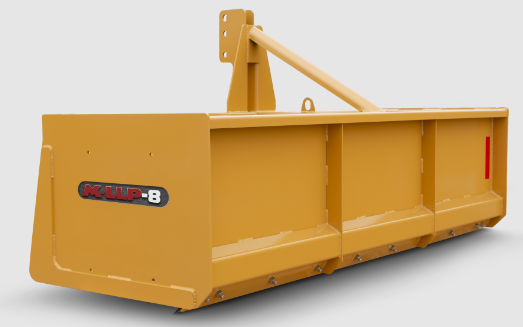

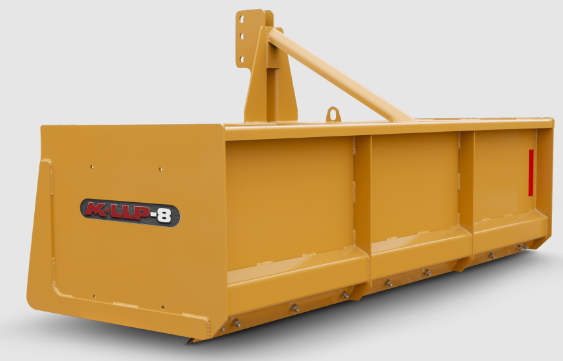

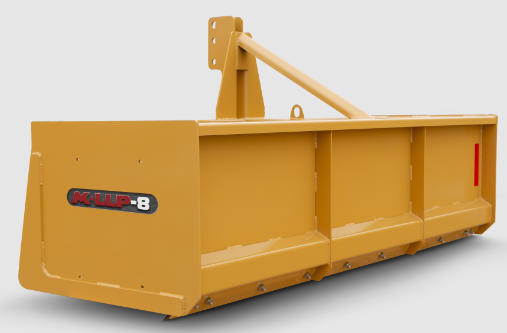

Level your land with unmatched precision using the MK Martin LLP Series Land Levelers available in 8, 10, and 12-foot working widths. Built for serious agricultural demands, these rugged 3-point hitch box scrapers are engineered to smooth surfaces, redistribute soil, and repair tough terrain across feedlots, pastures, and construction zones.
Each model features a reversible ½-inch hardened cutting edge, heavy-duty side plates, and a 3"x8" hydraulic cylinder for on-the-fly depth control. Whether you're cutting swales for water management or reclaiming compacted ground, the LLP Series offers the durability and flexibility required for heavy fieldwork, with the ease of operation that lets you stay productive.
Designed to work with tractors up to 165 HP, these land levelers are built for farmers, ranchers, and landowners who need performance they can count on season after season.
Key Features
- Built for Tough Terrain – Ideal for feedlot maintenance, swale cutting, soil leveling, and land reclamation.
- Hydraulic Depth Control – Equipped with a powerful 3"x8" hydraulic cylinder, giving you real-time control over cutting depth.
- Reversible Hardened Cutting Edge – Standard ½" thick edge ensures long service life and efficient two-way use.
- Heavy-Duty Construction – Reinforced 3/8" side plates, ¼" mouldboard, and ¾" wear plate stand up to harsh conditions.
- Compatible with 3-Point Hitch Tractors – Standard Category 2 & 3 3PH mounting makes hookup fast and universal.
- Multiple Sizes for Every Operation – Choose between 8', 10', or 12' widths based on your tractor and acreage needs.
- Maximized Horsepower Utility – Engineered to perform flawlessly with tractors up to 165 HP for powerful raking and smoothing.
Detailed Specifications
| Specification | LLP-8 | LLP-10 | LLP-12 |
|---|---|---|---|
| Model Number | LLP-8 | LLP-10 | LLP-12 |
| Working Width | 96" (8 feet) | 120" (10 feet) | 144" (12 feet) |
| Mount Type | 3PT Hitch (Category 2/3) | 3PT Hitch (Category 2/3) | 3PT Hitch (Category 2/3) |
| Max Horsepower | 165 HP | 165 HP | 165 HP |
| Cutting Edge | ½" Reversible Hardened Steel | ½" Reversible Hardened Steel | ½" Reversible Hardened Steel |
| Side Plate Thickness | 3/8" | 3/8" | 3/8" |
| Mouldboard Thickness | 1/4" | 1/4" | 1/4" |
| Wear Plate | 3/4" | 3/4" | 3/4" |
| Tilt Adjustment | Not Applicable | Not Applicable | Not Applicable |
| Skidbar | Not Applicable | Not Applicable | Not Applicable |
| Hydraulic Cylinder | 3" x 8" | 3" x 8" | 3" x 8" |
| Weight | 838 lbs (380 kg) | 956 lbs (434 kg) | 1,077 lbs (489 kg) |
