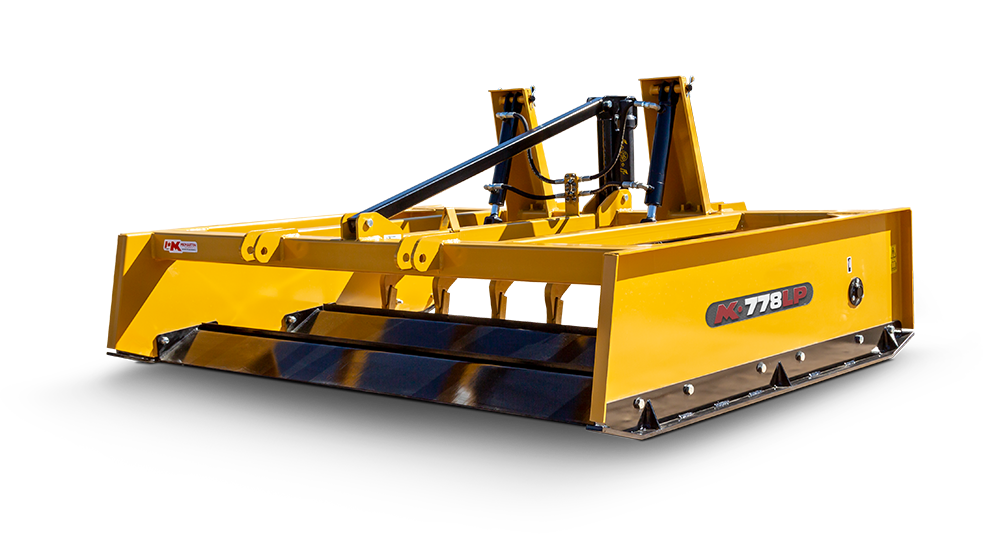

MK Martin | Land Plane Grader Leveler | Models LP678, LP778 & LP878 | Width 72" To 96" | Dual Hydraulic Scarifier Bars | For Tractors
MK Martin | Land Plane Grader Leveler | Models LP678, LP778 & LP878 | Width 72" To 96" | Dual Hydraulic Scarifier Bars | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
MK Martin | Land Plane Grader Leveler | Models LP678, LP778 & LP878 | Width 72" To 96" | Dual Hydraulic Scarifier Bars | For Tractors
DESCRIPTION
Take control of your laneways, gravel driveways, and outdoor work areas with the LandMaster LP Series Land Plane Grader Leveler engineered for rugged performance and precise ground restoration. Available in 72”, 84”, and 96” working widths, these professional-grade land planes are built to transform rough, rutted surfaces into smooth, even terrain in a single pass.
Powered by dual hydraulic cylinders, the adjustable scarifier bar digs deep to break through hardpan, pulling material to the surface for effortless redistribution. From pothole filling to final grading, the 1/2" reversible hardened cutting edges leave a clean, level finish that stands up to repeated use.
Whether you're a property owner restoring a gravel path or a contractor prepping a foundation, the LP Series offers the versatility, power, and durability to meet your grading needs. Choose from skid steer or 3-point hitch mounts, and get the job done faster—with precision you can see.
Key Features
- Dual Hydraulic Scarifier Bars Loosen compacted ground effortlessly with on-the-fly adjustment from the operator’s seat.
- Reversible Hardened Cutting Edges Two ½” thick hardened blades provide aggressive leveling and long-lasting performance.
- Available in 72", 84", & 96" Widths Ideal for compact and utility tractors, sized to match small acreage and large lots alike.
- Heavy-Duty Shank Assembly Long-wearing shanks with replaceable chisel tips and height adjustment for consistent ground penetration.
- AR400 Bolt-On Skid Shoes Durable and replaceable shoes protect your surface and your equipment during operation.
- Versatile Mounting Options Choose 3-point hitch or skid steer quick attach; optional dual-mounting setup available for maximum flexibility.
- Flow-Over Design Enables smooth redistribution of material without lifting the implement efficient and operator-friendly.
Detailed Specifications
| Specification | LP678 | LP778 | LP878 |
|---|---|---|---|
| Working Width | 72" | 84" | 96" |
| Overall Width | 77" | 89" | 101" |
| Length | 69.5" | 69.5" | 69.5" |
| Number of Shanks | 6 | 7 | 8 |
| Shank Tube Dimensions | 4" x 6" x 1/4" | 4" x 6" x 1/4" | 4" x 6" x 1/4" |
| Cutting Edge | (2) 1/2" Reversible Hardened Blades with 1" Adjustments | ||
| Skid Shoes | 3/8" AR400 x 2 Reversible | 3/8" AR400 x 2 Reversible | 3/8" AR400 x 2 Reversible |
| Hydraulics | Dual Hydraulic Cylinders | Dual Hydraulic Cylinders | Dual Hydraulic Cylinders |
| Mount Type | 3PH and/or Skid Steer Compatible | ||
| Weight | 1,140 lbs | 1,240 lbs | 1,350 lbs |
