MK MARTIN

MK Martin | Rotary Broom | Models MKCS1960H (Standard/Euro/John Deere) | 60" Sweeping Width | 19" Brush Diameter | Horsepower 30-40 | For Tractor

MK Martin | Rotary Broom | Models MKCS1960H (Standard/Euro/John Deere) | 60" Sweeping Width | 19" Brush Diameter | Horsepower 30-40 | For Tractor

Regular price $4,995.00
Regular price Sale price $4,995.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Recommended Horsepower 30-40 For Tractor

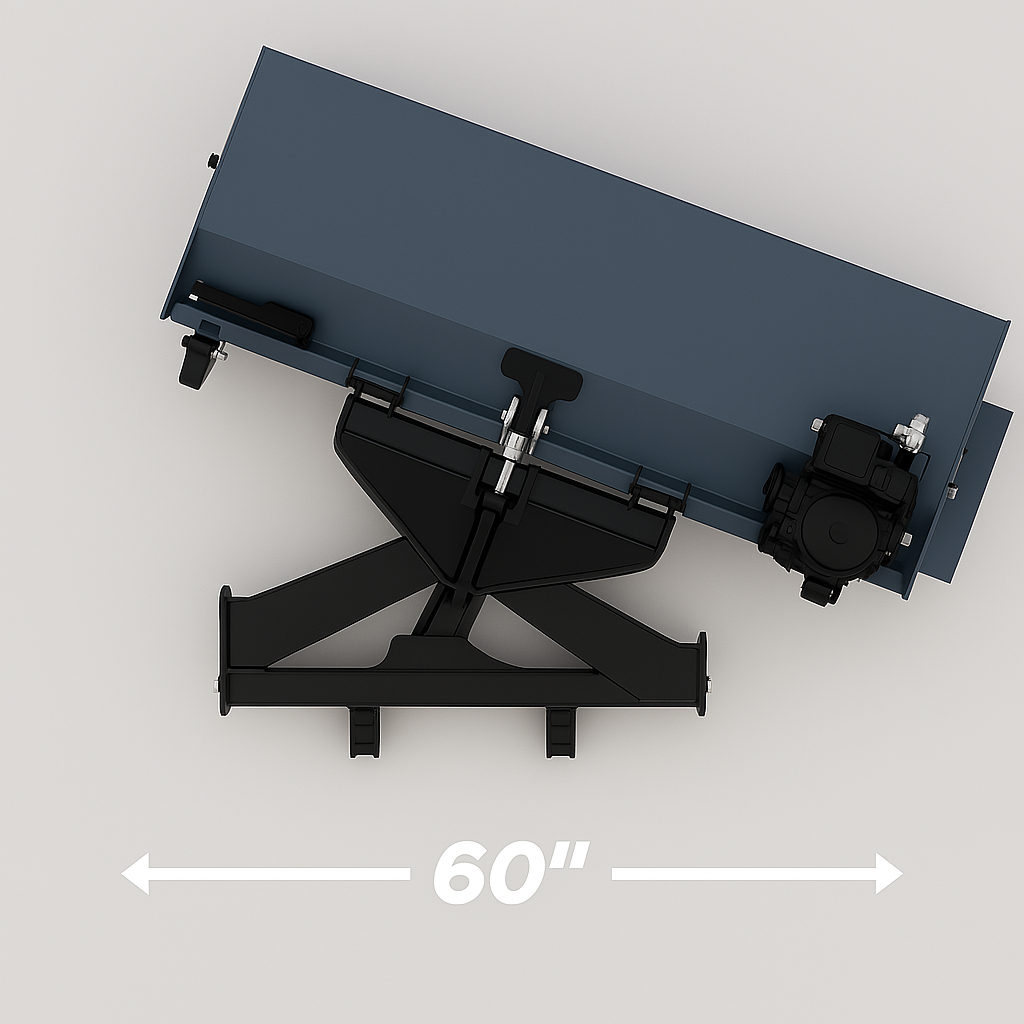

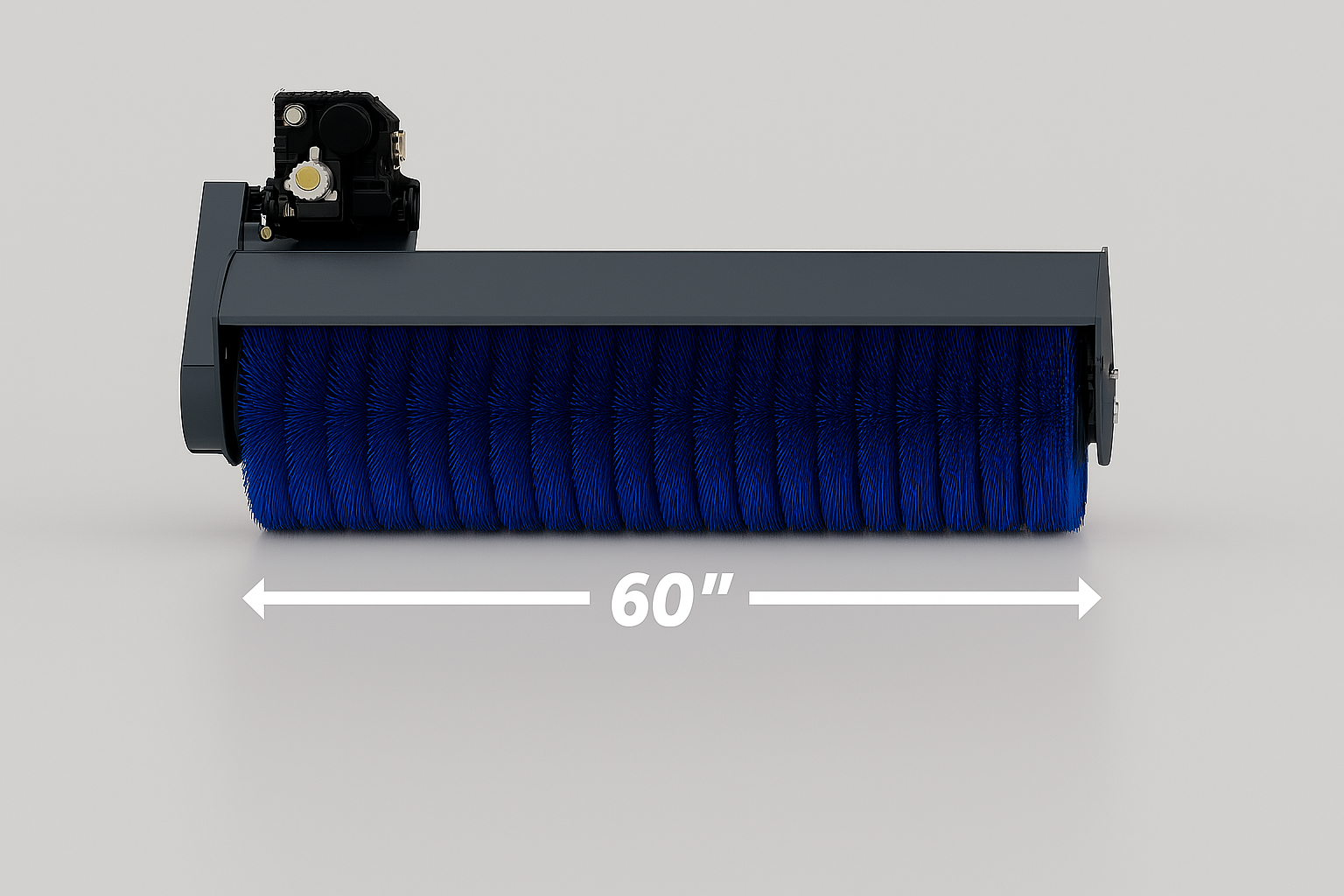

  • 60" Sweeping Width Cleans large areas with each pass, reducing time spent on jobs.
  • 19" Brush Diameter Ensures deep cleaning for debris of all sizes.
  • 29 Heavy-Duty Sweeping Wafers Offers consistent pressure and effective debris removal, even on uneven surfaces.
  • Floating Linkage System Automatically adjusts to provide even pressure on all surfaces.
View full details

Product Description

MK Martin | Rotary Broom | Models MKCS1960H (Standard/Euro/John Deere) | 60" Sweeping Width | 19" Brush Diameter | Horsepower 30-40 | For Tractor


DESCRIPTION

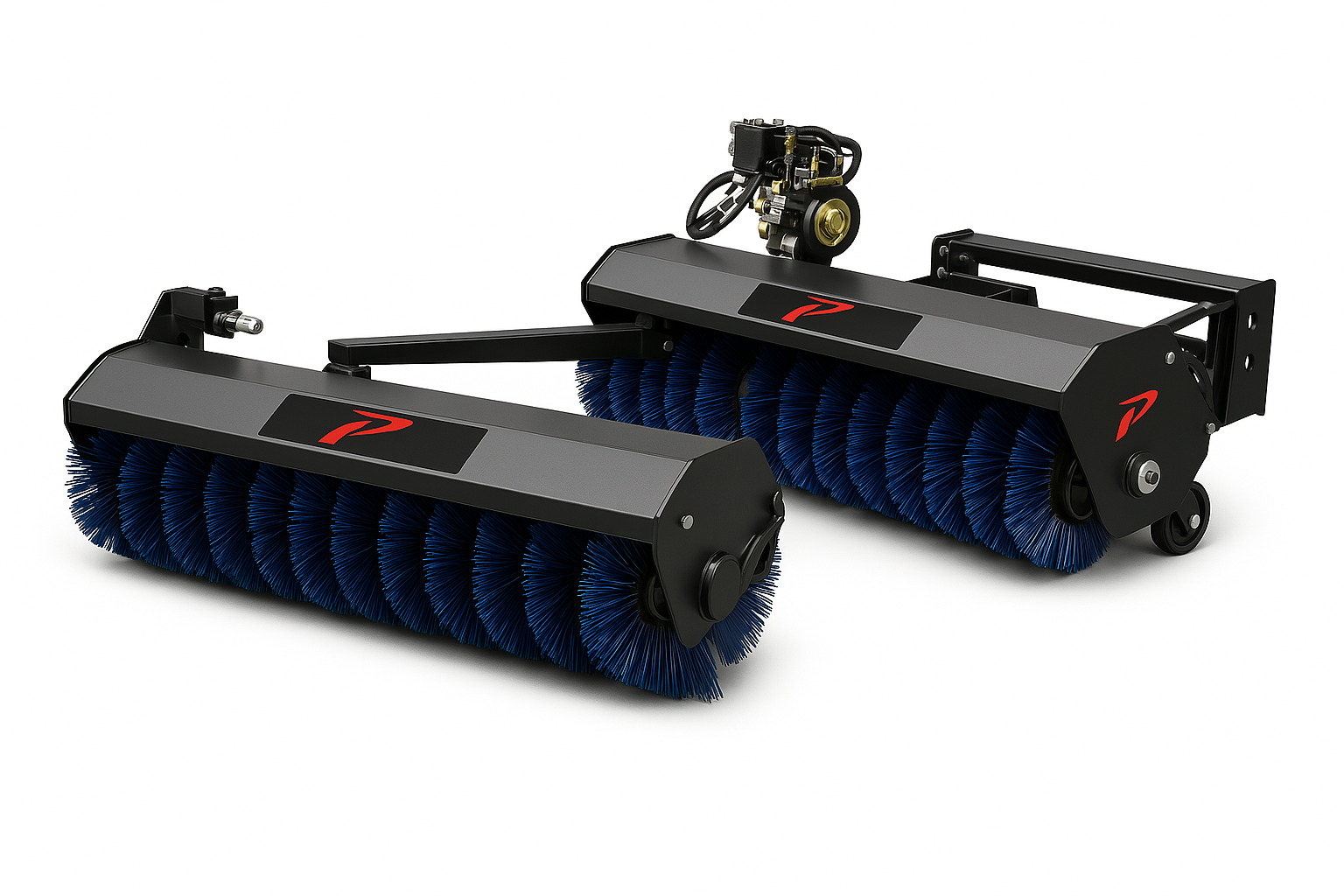

The MK Martin Rotary Broom series includes three expertly designed models: MKCS1960H, MKCS1960H-EURO, and MKCS1960H-JOHN DEERE 300-400, each tailored to specific tractor mounting systems. Whether you're using a standard tractor, a Euro Mount, or a John Deere 300-400 series, this broom attachment is built to provide heavy-duty performance for clearing farmyards, job sites, parking lots, and residential streets.

Each model features a 60" sweeping width and a 19" brush diameter, ensuring maximum coverage with every pass. The floating linkage system with 29 heavy-duty sweeping wafers guarantees even pressure on uneven surfaces, while the chain-driven mechanism ensures the brush remains fully engaged, no matter the terrain. With manual angling as standard and optional hydraulic or electric angling, these brooms offer the flexibility you need for a precise, consistent cleaning experience.

The MKCS1960H is compatible with standard tractors, the MKCS1960H-EURO is designed specifically for Euro Mount tractors, and the MKCS1960H-JOHN DEERE 300-400 is engineered to perfectly fit John Deere 300-400 series loaders. Each model features quick attach mounting systems, making it easy to switch between jobs.

Whether you need a broom for cleaning dirt, debris, leaves, or gravel, this rotary broom will deliver the durability and performance you need to get the job done quickly and efficiently.

Key Features

  • 60" Sweeping Width Cleans large areas with each pass, reducing time spent on jobs.
  • 19" Brush Diameter Ensures deep cleaning for debris of all sizes.
  • 29 Heavy-Duty Sweeping Wafers Offers consistent pressure and effective debris removal, even on uneven surfaces.
  • Floating Linkage System Automatically adjusts to provide even pressure on all surfaces.
  • Versatile Angling Options Choose from manual, hydraulic, or electric angling options depending on your needs.
  • Multiple Mounting Options Includes SS Quick Attach (Standard), Euro Mount, John Deere Loader Mount, and more, providing compatibility with a wide range of tractors.
  • Chain-Driven Mechanism Ensures the brush turns continuously for maximum cleaning efficiency.
  • Ideal for 30-40 HP Tractors Optimized for use with mid-range tractors, including John Deere 300-400 Series, Euro Mount, and standard tractor models.

Detailed Specifications

Feature MKCS1960H MKCS1960H-EURO MKCS1960H-JOHN DEERE 300-400
Model MKCS1960H MKCS1960H-EURO MKCS1960H-JOHN DEERE 300-400
Sweeping Width 60 inches 60 inches 60 inches
Brush Diameter 19 inches 19 inches 19 inches
Tractor HP (min) 30-40 HP 30-40 HP 30-40 HP
Drive System Chain - Fully engaged (brush turns continuously) Chain - Fully engaged (brush turns continuously) Chain - Fully engaged (brush turns continuously)
Sweeping Angle 30° on each side 30° on each side 30° on each side
Lateral Swivel
Angling Options Manual (Standard), Hydraulic (Optional) Manual (Standard), Hydraulic (Optional) Manual (Standard), Hydraulic (Optional)
Center Frame Transport Cylinder Manual (Standard), Hydraulic or Electrical (Optional) Manual (Standard), Hydraulic or Electrical (Optional) Manual (Standard), Hydraulic or Electrical (Optional)
Sweep Length @ 30° 54 ¼ inches 54 ¼ inches 54 ¼ inches
Wheels 6" x 2" Caster Wheels 6" x 2" Caster Wheels 6" x 2" Caster Wheels
Weight Approx. 455 lbs Approx. 455 lbs Approx. 455 lbs
Mounting Options SS Quick Attach (Standard), JD Loader Mount, ALO Quick Attach, TORO-DINGO Plate Euro Mount, SS Quick Attach (Standard), JD Loader Mount, ALO Quick Attach John Deere Loader Mount, SS Quick Attach (Standard), JD Loader Mount, ALO Quick Attach
Motor Requirements 8-12 GPM, 6.5 HP Vanguard Engine 8-12 GPM, 6.5 HP Vanguard Engine 8-12 GPM, 6.5 HP Vanguard Engine
