Product Description

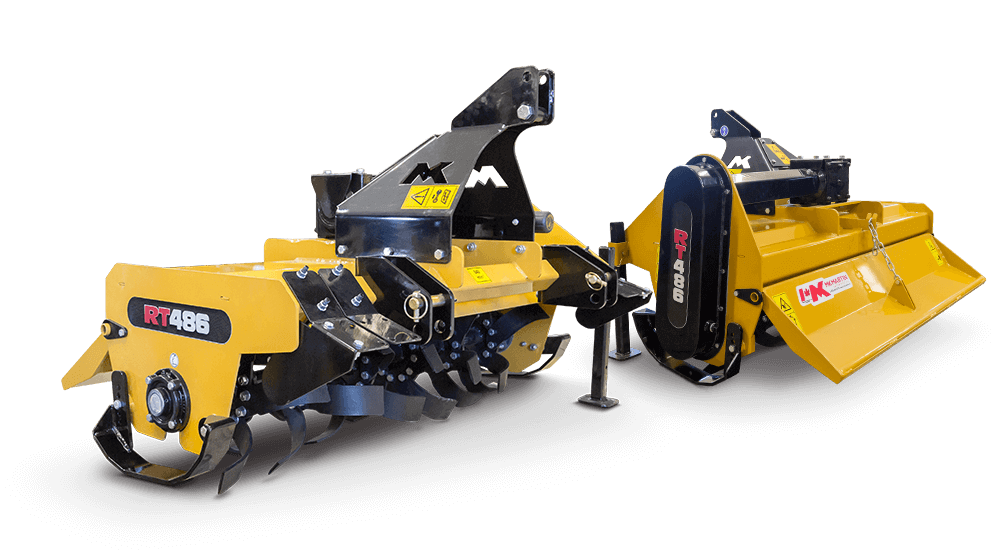

MK Martin | Rotary Tiller | Models RT486, RT546, RT606 & RT726 | 50" to 74" Width | Horsepower 15-60 HP | For Tractors
DESCRIPTION
When it comes to preparing your soil for planting or cultivating garden beds, the MK Martin Rotary Tiller series stands out for its performance, reliability, and versatility. Whether you're a hobby farmer or a landscaping professional, these tillers provide the perfect solution for loosening compact soil, enhancing seedbed preparation, and ensuring efficient tilling.
Designed to work with tractors ranging from 15 HP to 60 HP, the MK Martin Rotary Tillers are equipped with replaceable bolt-on tines, a self-lubricating chain drive, and adjustable skid shoes, giving you the flexibility to tackle any tilling job with ease. The spiral tine configuration ensures a superior and consistent soil break-up, whether you're dealing with light loam or more challenging compacted soils.
The tillers come in multiple models, including the RT486, RT546, RT606, and RT726, each with varying working widths and horsepower requirements, ensuring there’s a perfect fit for your specific needs. With a heavy-duty construction and efficient chain drive, these tillers maximize efficiency while keeping maintenance simple.
Key Features
- Replaceable Bolt-On Tines Easily replace individual tines when needed, extending the life of your tiller and keeping it in peak working condition.
- Self-Lubricating Chain Drive No need to manually lubricate the chain before each use. The tiller’s self-lubricating system ensures smooth operation with less maintenance.
- Adjustable Skid Shoes Precisely control tilling depth by raising or lowering the skid shoes, adapting to different soil types and applications.
- Spiral Tine Configuration Provides optimal soil processing with minimal drag, increasing overall tilling efficiency and reducing fuel consumption.
- Floating Deflector Helps control soil displacement, providing better compaction control and keeping the workspace tidy.
- Powerful Gearbox Equipped with a 50 HP gearbox at 540 RPM PTO, delivering consistent power to the tines at 211 RPM, ensuring efficient tilling in all conditions.
- Offset 3PH Mount Standard with an adjustable 3-point hitch mount, allowing you to offset the tiller for enhanced control, even in hard-to-reach areas.
- Safety Guards Protects you from the tines and rotor during operation by covering the sides of the tiller, ensuring a safe working environment.
Detailed Specifications
| Feature | RT486 | RT546 | RT606 | RT726 |
|---|---|---|---|---|
| Horsepower Range | 15-30 HP | 20-40 HP | 20-50 HP | 25-60 HP |
| Hitch Type | CAT 1 | CAT 1 | CAT 1 | CAT 1 |
| Inner Width (in.) | 50 | 54 | 58 | 74 |
| Overall Width (in.) | 55.375 | 59.375 | 63.375 | 79.375 |
| Weight (lbs.) | 491 | 514 | 525 | 636 |
| Number of Flanges | 6 | 6 | 7 | 9 |
| Tines per Flange | 6 (C-Shape) | 6 (C-Shape) | 6 (C-Shape) | 6 (C-Shape) |
| Flange Spacing (in.) | 7.75 | 7.75 | 7.75 | 7.75 |
| Max Tillage Depth (in.) | 6.5 | 6.5 | 6.5 | 6.5 |
| Skid Shoe Settings | 5 | 5 | 5 | 5 |
| Rotor Diameter (in.) | 17 | 17 | 17 | 17 |
| Rotor Speed @ 540 PTO (RPM) | 211 | 211 | 211 | 211 |
| Gearbox (HP) | 50HP @ 540 RPM | 50HP @ 540 RPM | 50HP @ 540 RPM | 50HP @ 540 RPM |
| Drive Chain | #80 | #80 | #80 | #80 |
