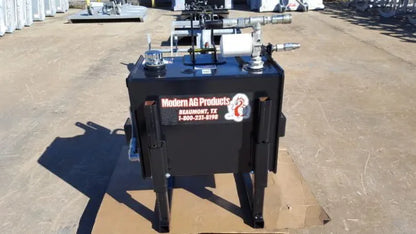

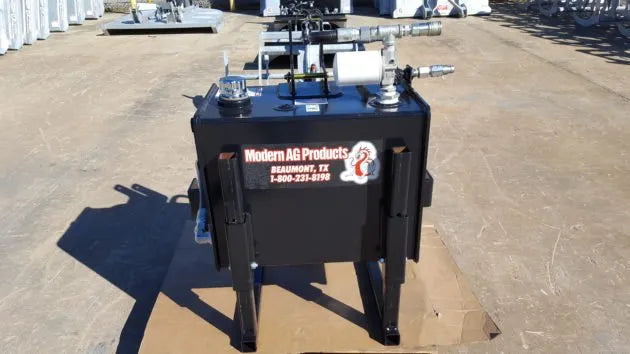

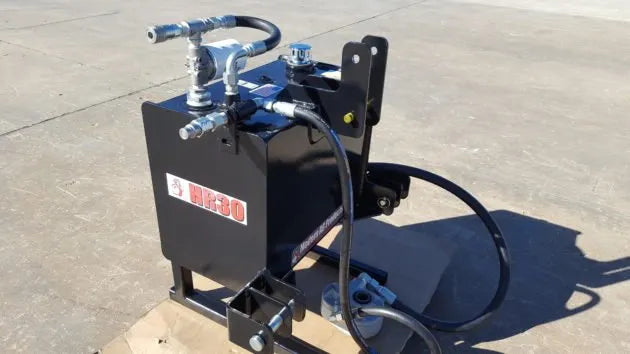

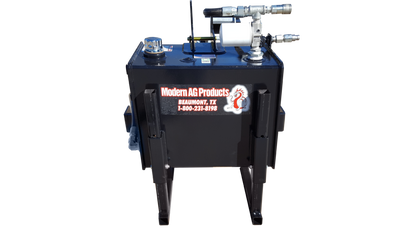

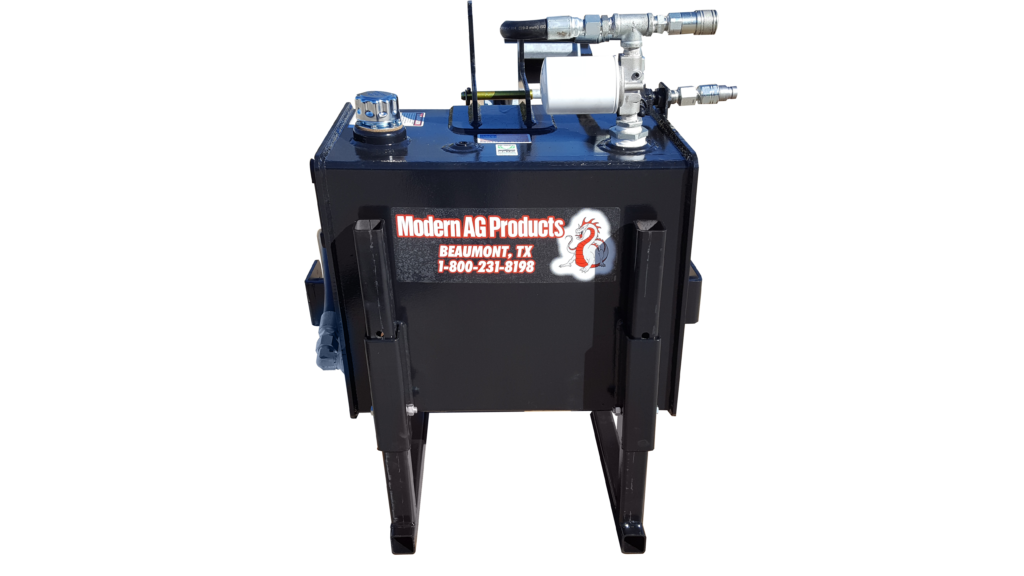

Modern Ag | Hydraulic Reservoir | HR30 | 30 Gallon Tank | 12.85 GPM 2500 PSI | 21–22 HP Minimum | For Tractor
DESCRIPTION
The Modern Ag HR30 Hydraulic Reservoir – 30 Gallon is your reliable solution for powering hydraulic-driven implements when your tractor’s onboard system just doesn’t cut it. Whether you’re operating heavy-duty brush cutters, snow plows, broom attachments, or any other hydraulic equipment that demands continuous hydraulic fluid circulation, the HR30 steps in to do the heavy lifting.
Crafted with high-quality, heavy-duty materials, this reservoir system not only boosts your tractor’s hydraulic capabilities but also functions as a solid rear counterweight making it especially useful for lightweight tractors that need added stability. Its user-friendly PTO pump hookup, robust tank design, and thoughtful safety features make it a favorite among landowners, farmers, and contractors alike.
With easy integration via a Category I & II Quick Attach Hitch, a 10-micron filtration system, and flat-faced quick-connect fittings, this reservoir system is ready to deliver dependable performance in the field, season after season.
Key Features
30 Gallon Tank: Provides ample capacity for hydraulic fluid, ensuring your equipment runs smoothly and efficiently.
Inline Pressure Relief Valve: Protects your hydraulic system from excessive pressure, enhancing safety and reliability during operation.
10 Micron Filter: Ensures clean hydraulic fluid circulation, prolonging the life of your hydraulic components and improving performance.
Easy Hook Up PTO Pump: Simplifies the connection process, allowing for quick and hassle-free setup.
Heavy-Duty Tank Construction: Built with 3/8” steel sides, the HR30 is designed to withstand the rigors of heavy use and harsh conditions.
Cat. I & II QA Hitch: Compatible with a wide range of tractors, ensuring versatility and ease of attachment.
Oil Level & Temperature Indicator: Keeps you informed about the status of your hydraulic fluid, allowing for proactive maintenance.
Flat Face Quick Connect Fittings: Facilitates easy and secure connections, minimizing the risk of leaks and ensuring efficient operation.
Three Position Landing Gear: Provides stability and support during operation, making it easier to maneuver and transport.
Acts as a Rear Counterweight: Enhances stability for lightweight tractors, improving overall performance and safety.
Detailed Specifications
Feature
Specification
Model
HR30
Tank Capacity
30 Gallons
Tank Construction
3/8” Steel Sides
PTO Input
540 RPM
Pump Capacity
Approximately 12.85 GPM @ 2500 PSI
Filter
10 Micron
Magnetic Drain Plug
Yes
Oil Level & Temperature Indicator
Yes
Pressure Relief Valve
Inline
Hitch Compatibility
Cat. I & II QA Hitch
Quick Connect Fittings
Flat Face
Landing Gear Adjustment
Three Height Positions
Weight (Dry)
300 lbs
Weight (Full)
Approximately 525 lbs
