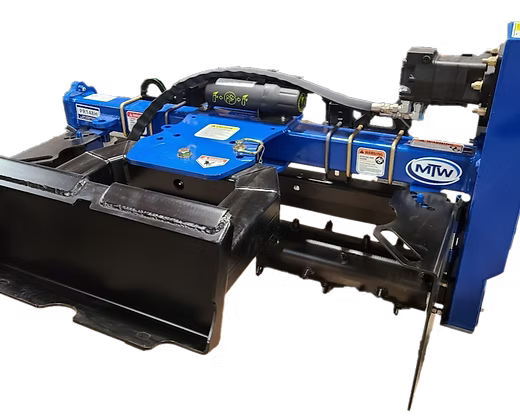

MTW TerrainX RTS Skid Steer Power Box Rake / Soil Conditioner | Working Widths 48″, 60", 72" & 84" | 8–20 GPM | For Skid Steers
MTW TerrainX RTS Skid Steer Power Box Rake / Soil Conditioner | Working Widths 48″, 60", 72" & 84" | 8–20 GPM | For Skid Steers
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
MTW TerrainX RTS Skid Steer Power Box Rake / Soil Conditioner | Working Widths 48″, 60", 72" & 84" | 8–20 GPM | For Skid Steers
DESCRIPTION
The MTW TerrainX RTS Skid Steer Power Box Rake / Soil Conditioner is engineered for professionals who demand precision, versatility, and dependable performance on compact to mid-size skid steers. Available in working widths of 48”, 60”, 72”, and 84”, and offered with multiple mount options—including Mini Universal, Standard Universal, Bobcat MT, and ASV RC30—the TerrainX adapts easily to a wide range of machines and jobsite requirements.
Built around MTW’s patented RTS (Rotary Tool System), the base unit functions as a power box rake, with optional quick-change RTS rotors sold separately to expand capability into soil conditioning, rock raking, tilling, and sweeping. Operators can choose between manual or hydraulic angle configurations to fine-tune grading control and surface finish.
Designed and manufactured in the USA, the TerrainX features purpose-built structure, durable components, and service-friendly construction—delivering long-term reliability, consistent results, and the versatility professionals expect from MTW on every job.
Key Features
- Rotary Tool System (RTS): Patented system for fast and easy rotor changes.
- Versatile Application: Suitable for landscaping, seedbed preparation, site cleanup, and material conditioning.
- Interchangeable Rotors: Compatible with power rake, tiller, broom, and other rotor diameters.
- Carbide Teeth: Replaceable carbide teeth for aggressive material conditioning and long life.
- Durable Construction: Built with a .25" frame tube for strength and reliability.
- Skid Steer Compatibility: Mount options for standard skid steers, mini skid steers, Bobcat MT, and ASV.
- Hydraulic Angle: Choice of manual or hydraulic angle adjustment.
- Designed for Lower Flow: Optimized for mini skid steers and lower-flow skid steers.
Detailed Specifications
| Specification | Details |
|---|---|
| Working Widths | 48″, 60″, 72″, 84″ |
| Angle Widths |
45″ @ 10°, 42″ @ 20° (48″ model) 57″ @ 10°, 54″ @ 20° (60″ model) 69″ @ 10°, 66″ @ 20° (72″ model) 81″ @ 10°, 78″ @ 20° (84″ model) |
| Mount Options | Mini Universal, Standard Universal, Bobcat MT, ASV RC30 |
| Angle Options | Manual Angle, Hydraulic Angle |
| Teeth Options | Carbide Weld‑On or Replaceable Teeth |
| RTS Rotors (Optional) | Standard Rake, Rock Rake, Tiller, Broom |
| Frame & Mounting Plate | .25 Tube |
| Rotor Size | 6″ |
| Drive Shaft | 1‑1/2″ |
| Chain | #80 |
| Chain Case | Oil Bath |
| Motor | 2K Motor (8–20 GPM flow rates) |
| Hydraulic Angle Adjustment | On‑the‑fly (optional) |
| Wheels | Solid “No Flat” rubber wheels |
| Bearing System | Steel housings with triple lip seal bearings |
| Weight | 795–900 lbs |
| Special Guarding | AR steel skid pads under legs & chain case |
| Safety Shield | Full rotor shield for all RTS rotors |
