Product Description

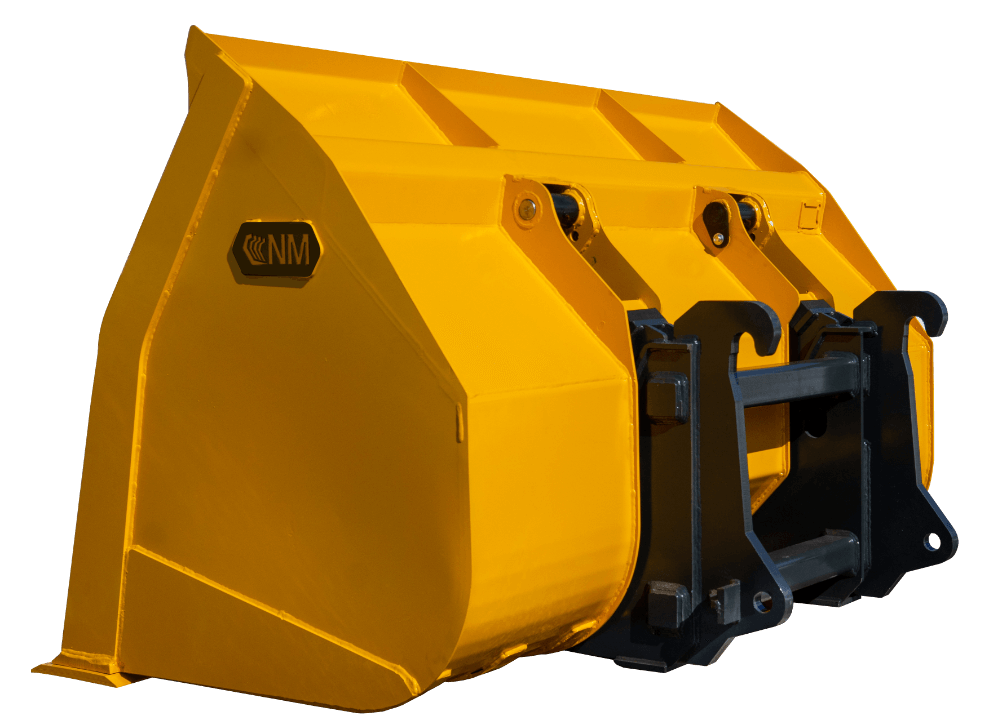

NM Attachment High Dump Bucket | Model 50HD Series | Widths 72"–84" | Machine Class 50 | Machine Size 10,000–12,000 lbs | For Wheel Loaders
DESCRIPTION
The 50HD Series High Dump Buckets from NM Attachments are designed for compact wheel loaders operating in tight spaces and elevated loading conditions. These buckets feature a high-lift dump profile, allowing operators to reach over tall hoppers, trucks, and containers with ease. Built from high-strength steel and equipped with a bolt-on cutting edge, they offer durability and serviceability in demanding construction and industrial environments. Available in capacities from 1 to 2.5 cubic yards, each bucket is tailored for Class 50 wheel loaders with operating weights between 10,000–12,000 lbs. Mount specification is required to ensure compatibility with OEM couplers.
Key Features
- Model Identification: 50HD Series High Dump Bucket models like 50HD-100, 50HD-150, etc., indicate loader class and bucket capacity.
- Bucket Capacities: 1 to 2.5 Yards Ideal for compact loaders handling loose material, waste, or bulk aggregates.
- Dump Height Advantage: High dump geometry allows elevated discharge into tall bins, trailers, and hoppers.
- Machine Class Compatibility: Class 50 Designed for wheel loaders with operating weights between 10,000–12,000 lbs.
- Bolt-On Cutting Edge: Replaceable edge protects the base lip and simplifies maintenance.
- Mount Compatibility: Must specify mount type (e.g., CAT Fusion, ISO, JRB, Volvo, Deere) for proper fit.
- Rugged Steel Construction: Reinforced side plates and welds for long-term durability in high-cycle environments.
- Application: Versatility Perfect for construction sites, recycling yards, feedlots, and bulk material handling.
-
Bucket Widths: Approx. 72" to 84" Width varies by model and capacity.
- High Dump Capability: Increases operational range and efficiency for elevated dumping needs.
- Replaceable Cutting Edge: Bolt-on cutting edge designed for easy replacement.
- Custom Mounting Options: Mount specifications are required to ensure precise fit.
- Construction-Grade Durability: Built to handle tough construction site requirements.
Detailed Specifications
50HD-100
| Attribute | Details |
|---|---|
| Model | 50HD-100 |
| Part Number | 50HD-100 |
| Bucket Type | High Dump |
| Class | Class 50 |
| Machine Size | ~10,000–12,000 lbs |
| Capacity (Volume) | 1 Yard |
| Capacity (Weight) | Up to 2,000 lbs (light material) |
| Bucket Width | Approx. 72" |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
50HD-150
| Attribute | Details |
|---|---|
| Model | 50HD-150 |
| Part Number | 50HD-150 |
| Bucket Type | High Dump |
| Class | Class 50 |
| Machine Size | ~10,000–12,000 lbs |
| Capacity (Volume) | 1.5 Yard |
| Capacity (Weight) | Up to 3,000 lbs |
| Bucket Width | Approx. 78" |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
50HD-200
| Attribute | Details |
|---|---|
| Model | 50HD-200 |
| Part Number | 50HD-200 |
| Bucket Type | High Dump |
| Class | Class 50 |
| Machine Size | ~10,000–12,000 lbs |
| Capacity (Volume) | 2 Yard |
| Capacity (Weight) | Up to 4,500 lbs |
| Bucket Width | Approx. 84" |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
50HD-250
| Attribute | Details |
|---|---|
| Model | 50HD-250 |
| Part Number | 50HD-250 |
| Bucket Type | High Dump |
| Class | Class 50 |
| Machine Size | ~10,000–12,000 lbs |
| Capacity (Volume) | 2.5 Yard |
| Capacity (Weight) | Up to 6,000 lbs |
| Bucket Width | Approx. 84" |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
