NM Attachments Hydraulic Grapple | Model RRH Series | 96"–105" Width | Class 125–175 | Machine Size 24,000–40,000 lbs | For Wheel Loaders
NM Attachments Hydraulic Grapple | Model RRH Series | 96"–105" Width | Class 125–175 | Machine Size 24,000–40,000 lbs | For Wheel Loaders
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Products Description
NM Attachments Hydraulic Grapple | Model RRH Series | 96"–105" Width | Class 125–175 | Machine Size 24,000–40,000 lbs | For Wheel Loaders
DESCRIPTION

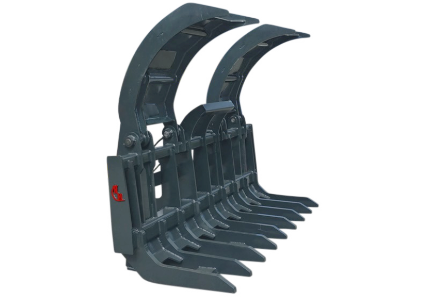

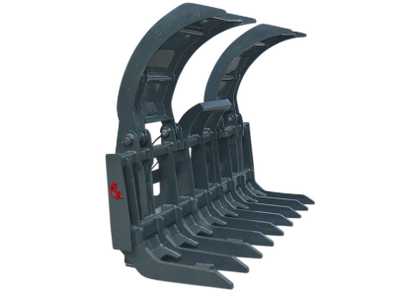

The NM Attachments Hydraulic Grapple is a heavy-duty, high-performance tool designed for wheel loaders in Class 125, 150, and 175. Engineered for reliability and efficiency, this grapple features 8 durable tines with 13.5" spacing, making it ideal for material handling in construction, demolition, and landscaping applications.
Available in two working widths—96" and 105"—this grapple offers versatility for a wide range of tasks, from clearing debris to handling large loads. The hydraulic grapple system ensures secure and precise lifting, increasing operational efficiency and productivity.
Custom mount options allow for seamless compatibility with popular wheel loader brands and models, including Caterpillar, Case, Komatsu, Deere, Hyundai, JCB, and more. Whether working with Class 125 loaders for smaller applications or Class 175 loaders for heavy-duty tasks, NM Attachments has a solution tailored to your needs.
Key Features
- Working Widths: Available in 96" and 105" widths to accommodate various loader classes and material volumes.
- Tine Configuration: Each grapple includes 8 heavy-duty tines spaced at 13.5" for optimal material retention and flow.
- Hydraulic Clamping: Dual-cylinder hydraulic system ensures secure grip and fast cycle times for high-efficiency loading.
- Reinforced Build: Constructed from high-strength steel with reinforced tine tips and crossbars for durability in rugged conditions.
- Mount Compatibility: Requires specified mount type (ISO, CAT Fusion, JRB, etc.) for OEM fit across multiple loader brands.
- Loader Class Range: Designed for Class 125–175 wheel loaders, covering machines from 24,000 to 40,000 lbs.
- Application Versatility: Ideal for log handling, brush clean up, scrap sorting, and bulk material transfer in forestry, construction, and industrial settings.
Detailed Specifications
Model 125RRH-96
| Feature | Specification |
|---|---|
| Part Number | 125RRH-96 |
| Working Width | 96" |
| Tine Count | 8 |
| Tine Spacing | 13.5" |
| Loader Class | Class 125 |
| Machine Size | 24,000–30,000 lbs |
| Hydraulic System | Dual-cylinder hydraulic clamp |
| Mount Requirement | Must specify (CAT, ISO, JRB, etc.) |
| Applications | Brush, logs, scrap, bulk debris |
Model 150RRH-105
| Feature | Specification |
|---|---|
| Part Number | 150RRH-105 |
| Working Width | 105" |
| Tine Count | 8 |
| Tine Spacing | 13.5" |
| Loader Class | Class 150 |
| Machine Size | 30,000–35,000 lbs |
| Hydraulic System | Dual-cylinder hydraulic clamp |
| Mount Requirement | Must specify (CAT, ISO, JRB, etc.) |
| Applications | Forestry, demolition, material sorting |
Model 175RRH-105
| Feature | Specification |
|---|---|
| Part Number | 175RRH-105 |
| Working Width | 105" |
| Tine Count | 8 |
| Tine Spacing | 13.5" |
| Loader Class | Class 175 |
| Machine Size | 35,000–40,000 lbs |
| Hydraulic System | Dual-cylinder hydraulic clamp |
| Mount Requirement | Must specify (CAT, ISO, JRB, etc.) |
| Applications | Bulk transfer, scrap, log handling |
HOST MACHINE
150RRH-105
- CATERPILLAR 926M
- CATERPILLER 930M
